Siglent SDS1102CFL 100MHz Dual channel oscilloscope

€579.00

Siglent SDS1102CFL 100MHz Dual channel oscilloscope

€579.00

The Siglent SDS1102CFL Oscilloscope offers faster sampling rates and higher bandwidths than other Siglent SDS1000 families of scopes. The CFL’s provide up to four channels with an external trigger input channel and bandwidths up to 300 MHz.

With a set of separate vertical controls for each input channel, you don’t need to worry about accidentally modifying the wrong trace. No more switching between channels as found in some other 2 and 4 channel oscilloscopes. Powerful triggering and analysis capabilities make it easy to capture and analyze waveforms, greatly improving the test efficiency.

8×18 div wide screen

32 types of auto measurements

Key Features

  • Auto measurement of 32 parameters
  • 2 / 4 groups’ reference waveforms. 20 groups of captured waveforms and 20 groups of setups. Internal save/recall function and USB flash drive save/recall function.
  • Cursor types: Manual, Track, and Auto modes
  • FFT waveform display on split or full screen
  • Four Screen display styles: Classical, Modern, Tradition, Succinct
  • Multiple Language User Interface
  • Built-in help system

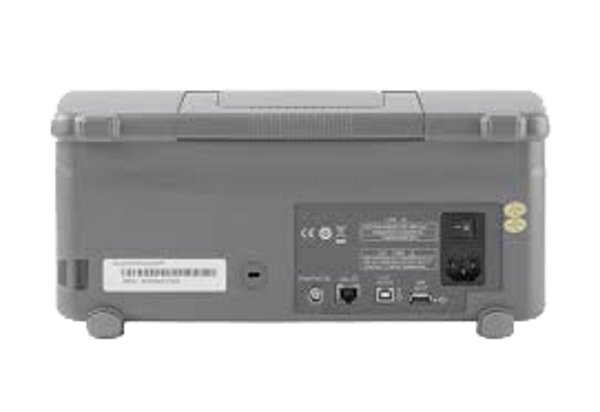

  • Standard interfaces: Dual USB Host; USB Device; LAN Port; Pass/Fail Out



Alternative-trigger

Accessoires Included:

1 x Siglent SDS1102CNL Oscilloscope
2 x 70MHz probes
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

Siglent BAG-S2 Soft Carry Case for SDS2000X / SSA3000X / SVA, SDS5000X

Siglent ISFE Isolated Front End module

Siglent USB-GPIB Adapter to allow Non-GPIB Siglent instruments to operate on an existing GPIB interface bus.

Siglent CP4020 100 KHz 60 Amp Current Probe.

SDS1000CNL User Manual
PDF – 1.6 MB 45 downloads
SDS1000CNL Data Sheet
PDF – 247.4 KB 63 downloads
SDS1000CNL Service Manual
PDF – 1.1 MB 40 downloads
