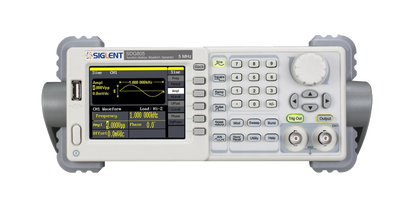

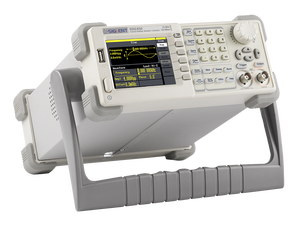

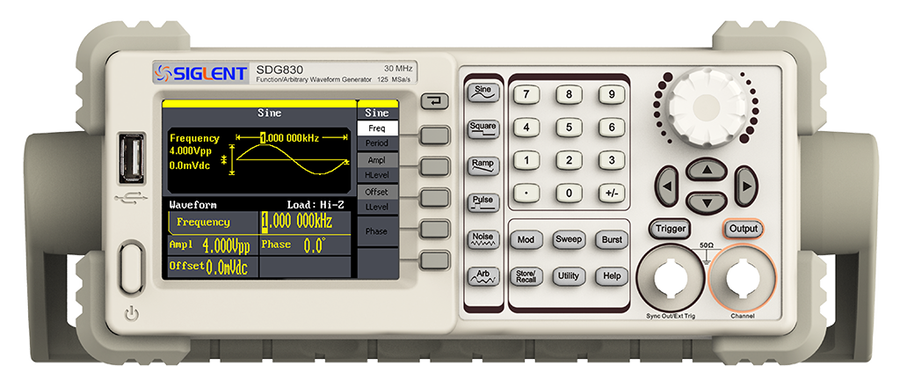

SDG800 Series
An affordable single-channel DDS generator with up to 30 MHz output, a 125 MSa/s sample rate and 14-bit resolution. A complete modulation suite, 46 built-in arbitrary waveforms and a 20 Vpp output make it ideal for education, bench work and basic signal simulation.
Overview
The SDG800 series is Siglent's entry-level, single-channel function/arbitrary waveform generator — a reliable, affordable signal source for everyday bench and teaching work. Built on direct digital synthesis (DDS), it delivers stable, low-distortion signals up to 30 MHz with a 125 MSa/s sample rate and 14-bit vertical resolution.
It outputs sine, square, ramp, pulse and Gaussian-noise waveforms plus 46 built-in arbitrary waveforms, and includes a complete set of modulation functions — AM, DSB-AM, FM, PM, FSK, ASK and PWM — together with sweep and burst, so the modulated waveform can be observed directly. A 20 Vpp output drives most bench loads.
The bundled EasyWave PC software lets you create and store custom 14-bit, 16 kpts arbitrary waveforms by manual or point-by-point drawing, with 10 non-volatile storage slots on the instrument.

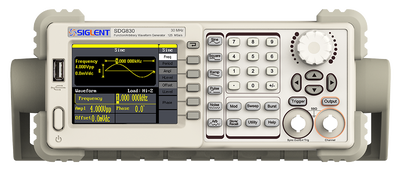

The series shares identical performance and differs only in bandwidth: the SDG810 (10 MHz) and SDG830 (30 MHz). The 5 MHz SDG805 is now end of life — please contact us for availability.
As the official Siglent distributor for Europe, we hold the SDG800 in EU stock and back every unit with local warranty, optional ISO/DKD calibration and expert application support.
At a glance
- Type
- Function / arbitrary generator
- Models
- SDG805 · 810 · 830
- Channels
- 1
- Max bandwidth
- Up to 30 MHz
- Display
- 3.5-inch TFT-LCD · 320×240
- Availability
- EU stock
Key highlights
Up to 30 MHz
Single-channel DDS output to 30 MHz for everyday signal generation.
125 MSa/s · 14-bit
Stable, low-distortion DDS signals with 14-bit vertical resolution.
20 Vpp output
Large 20 Vpp amplitude (HiZ) drives most bench loads directly.
Full modulation suite
AM, DSB-AM, FM, PM, FSK, ASK and PWM, plus sweep and burst.
46 built-in arbs
46 arbitrary waveforms plus 16 kpts custom-waveform editing via EasyWave.
Education-ready
Compact 3.5-inch TFT-LCD, online help and USB — perfect for teaching labs.
Models in the series
Identical performance — choose your bandwidth.
Core capabilities
DDS waveform generation
Direct digital synthesis at 125 MSa/s with 14-bit resolution produces stable, pure, low-distortion sine, square, ramp, pulse and Gaussian-noise signals, plus 46 built-in arbitrary waveforms (including DC).
Complete modulation, sweep & burst
AM, DSB-AM, FM, PM, FSK, ASK and PWM modulation — observable directly on screen — plus linear/log sweep (1 ms–500 s) and count/infinite/gated burst with internal, external or manual triggering.
Arbitrary editing with EasyWave
Create custom 14-bit, 16 kpts waveforms with the bundled EasyWave software — nine standard shapes plus manual, point-to-point and free-point drawing — and store up to 10 in non-volatile memory.
Friendly, compact design
A 3.5-inch TFT-LCD with on-screen help, built-in storage and USB host/device makes the SDG800 quick to learn — ideal for analog sensors, circuit and IC test, and research & training.
Specifications
Key specs across the SDG800 series (SDG805 / SDG810 / SDG830).
- Max sine frequency
- 30 / 10 / 5 MHz
- Channels
- 1
- Frequency resolution
- 1 µHz
- Max output amplitude
- 20 Vpp (HiZ, ≤10 MHz)
- Square / pulse max
- 10 MHz / 5 MHz
- Output impedance
- 50 Ω
- Sample rate
- 125 MSa/s (DDS)
- Vertical resolution
- 14-bit
- Arbitrary length
- 16 kpts
- Built-in arbitrary
- 46 waveforms (incl. DC)
- Non-volatile storage
- 10 waveforms
- Standard
- Sine, Square, Ramp, Pulse, Noise, Arb
- Pulse min width
- 16 ns (1 ns res.)
- Square rise/fall
- < 24 ns
- Sine THD
- < 0.2% (DC–20 kHz)
- Phase noise
- −108 dBc/Hz (10 kHz)
- Square jitter
- 500 ps + 0.001% period
- Modulation
- AM, DSB-AM, FM, PM, FSK, ASK, PWM
- AM / DSB-AM depth
- 0 – 120%
- Sweep
- Linear / log · up/down · 1 ms–500 s
- Burst
- Count (1–50,000) / infinite / gated
- Trigger source
- Internal / external / manual
- Interfaces
- USB host · USB device · GPIB opt.
- Remote control
- SCPI over USB
- Display
- 3.5-inch TFT-LCD · 320×240
- DC offset
- ±10 V (HiZ) · ±5 V (50 Ω)
- Power
- 100–240 V · < 30 W
- Dimensions / weight
- 229 × 105 × 281 mm · 2.6 kg
Amplitude figures are into a HiZ load (halved into 50 Ω) and reduce above 10 MHz. A BNC cable and a USB-GPIB adapter are optional accessories. Ask us for a configured quote. Full specifications in the datasheet below.
Software & control
Operate from the 3.5-inch display, design waveforms on your PC, or drive the instrument over USB for automated test.
EasyWave
Free PC waveform editor — build and edit custom 14-bit, 16 kpts arbitrary waveforms with manual and point-by-point drawing.
Remote control & SCPI
USB host and device (USBTMC) interfaces with a SCPI command set; GPIB available via the optional USB-GPIB adapter.
Resources & downloads
Related series
Configure your SDG800
Tell us your required bandwidth (10 or 30 MHz) and whether you need the BNC cable or USB-GPIB adapter — we'll quote the right SDG810 or SDG830. The 5 MHz SDG805 is end of life; ask us for alternatives.
Specifications are based on the manufacturer's official datasheet and are provided for guidance only. While we take great care to keep this information accurate and up to date, specifications, options, availability and pricing are subject to change without notice, and errors or omissions may occur. The official Siglent datasheet remains the definitive reference — please contact us to confirm any detail before ordering.
