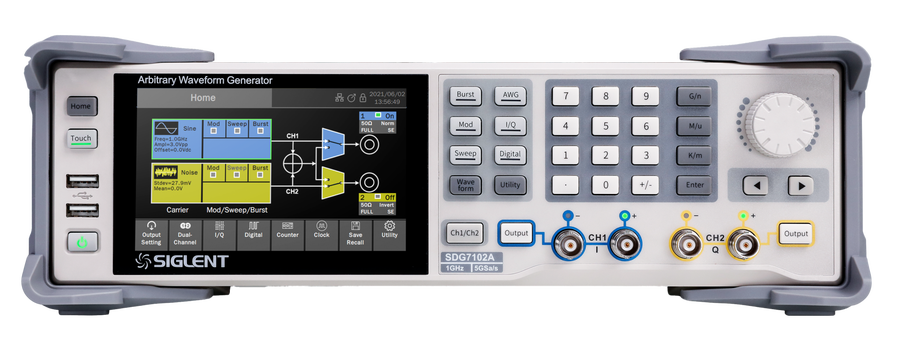

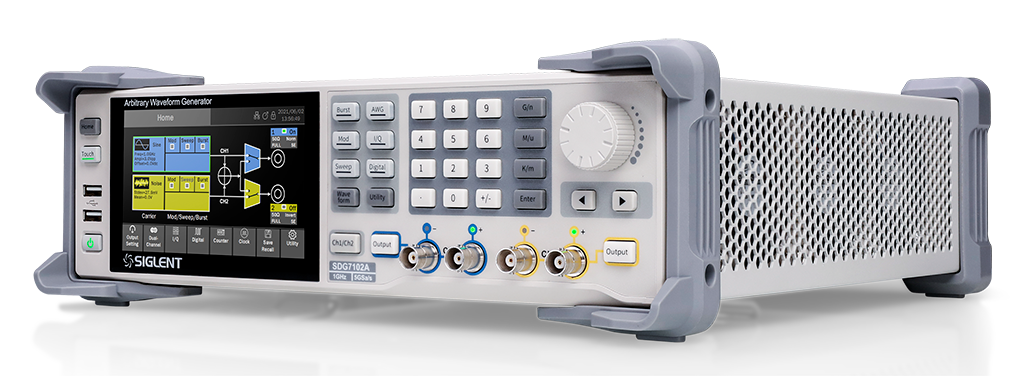

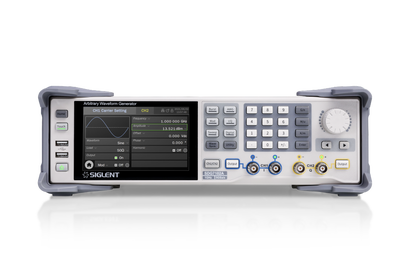

SDG7000A Series
A wideband, dual-channel arbitrary/function generator with up to 1 GHz bandwidth, 5 GSa/s sampling and 14-bit resolution. TrueArb point-by-point playback, EasyPulse edges and deep 512 Mpts memory in one instrument.
Overview
The SDG7000A series is Siglent's high-end wideband arbitrary/function waveform generator. With up to 1 GHz bandwidth, a 5 GSa/s sample rate and 14-bit vertical resolution, it pairs TrueArb point-by-point playback with deep 512 Mpts memory for clean, detailed signals.
It is a true multi-function source from DC to 1 GHz — continuous wave, pulse, noise, PRBS, and optional IQ/vector and 16-bit digital-bus output — that can replace an RF signal generator in many applications. EasyPulse delivers 1 ns pulses with 500 ps edges, and the 24 Vpp output (with ±12 V offset, ±24 V range) drives demanding loads without an external amplifier.

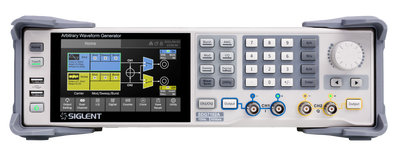

Three models share identical performance and differ only in bandwidth: the SDG7032A (350 MHz), SDG7052A (500 MHz) and SDG7102A (1 GHz) — and bandwidth can be upgraded later by software licence.
From RF and communications development to high-speed pulse and serial/PRBS stimulus, mixed-signal work with the optional digital bus, and general R&D and education, the SDG7000A delivers high-fidelity, low-jitter signals from a single dual-channel instrument.
As the official Siglent distributor for Europe, we hold the SDG7000A in EU stock and back every unit with local warranty, optional ISO/DKD calibration and expert application support.
At a glance
- Type
- Wideband AWG / function gen.
- Models
- SDG7032A · 7052A · 7102A
- Channels
- 2 (diff / single-ended)
- Max bandwidth
- Up to 1 GHz
- Display
- 5-inch touch · 800×480
- Availability
- EU stock
Key highlights
Up to 1 GHz bandwidth
Dual-channel output to 1 GHz — wideband signal generation from a single instrument.
5 GSa/s · 14-bit
High sample rate and resolution for accurate, low-distortion waveforms.
TrueArb · 512 Mpts
Point-by-point playback from 0.01 Sa/s to 2.5 GSa/s with deep 512 Mpts memory.
EasyPulse edges
Low-jitter pulses with 1 ns minimum width and 500 ps minimum edge, finely adjustable.
Optional IQ / vector
Vector signals up to 500 MS/s symbol rate with EasyIQ and SigIQPro (optional).
±24 V output range
24 Vpp output with ±12 V offset (±24 V range), differential or single-ended.
Core capabilities
TrueArb & EasyPulse
Point-by-point arbitrary playback from 0.01 Sa/s to 2.5 GSa/s with low jitter and 0-order / linear / sinc interpolation, plus low-jitter pulses down to 1 ns width and 500 ps edges.
IQ / vector signals (optional)
ASK, FSK, PSK and QAM up to 256QAM, MSK and MultiTone — symbol rate to 500 MS/s, carrier DC–1 GHz, with EasyIQ and SigIQPro (Bluetooth, IoT 802.15.4, OFDM).
Modulation, sweep & hopping
AM, FM, PM, PWM, ASK, FSK, PSK and DSB-SC, plus sweep (linear/log/step), burst (NCycle/infinite/gated), frequency hopping, multi-pulse and PRBS to 625 Mbps.
Dual-channel & digital bus
Inter-channel tracking, coupling, copy, phase-lock, waveform combining and channel modulation — plus an optional 16-bit LVTTL/LVDS digital bus up to 1 Gbps for mixed-signal work.
Models in the series
Identical performance — choose your bandwidth (upgradeable later by licence).
Specifications
Key specs across the SDG7000A series (SDG7032A / SDG7052A / SDG7102A).
- Max sine frequency
- 1 GHz / 500 MHz / 350 MHz
- Channels
- 2 · differential / single-ended
- Frequency resolution
- 1 µHz
- Output range
- 24 Vpp + ±12 V offset (±24 V)
- Sine amplitude (50 Ω)
- 12 Vpp ≤40 MHz · 3 Vpp >120 MHz
- Output impedance
- 50 Ω
- DAC sample rate
- 5 GSa/s
- TrueArb (AWG) rate
- 0.01 Sa/s – 2.5 GSa/s
- Vertical resolution
- 14-bit
- Arbitrary memory
- 24 pts – 512 Mpts/ch
- Sequence
- Up to 4096 segments
- Standard
- Sine, Square, Ramp, Pulse, Noise, DC, PRBS, Arb
- Pulse width / edge
- 1 ns / 500 ps min
- Pulse/square jitter
- 10 ps typ
- Sine harmonic dist.
- < -55 dBc ≤500 MHz
- Phase noise
- -138 dBc/Hz typ
- Noise bandwidth
- 1 mHz – 1 GHz
- Analog / digital
- AM, FM, PM, PWM, ASK, FSK, PSK, DSB-SC
- Sweep / burst
- Linear/log/step · NCycle/infinite/gated
- PRBS
- to 625 Mbps (200 Mbps on 7032A)
- Frequency hopping
- List · random · random-list
- IQ / vector¹
- to 500 MS/s · carrier DC–1 GHz
- Interfaces
- USB ×3 · USB device · LAN (VXI-11)
- Display
- 5-inch touch · 800×480
- Aux I/O
- 10 MHz in/out · trigger · 2 markers
- Reference clock
- ±1 ppm (OCXO opt.)
- Frequency counter
- Built-in, up to 400 MHz
- Power
- 100–240 V · 90–110 W
- Dimensions / weight
- 338 × 113 × 369 mm · 4.4 kg
- Remote
- WebServer · SCPI
¹ Some capabilities — IQ/vector signal generation, the 16-bit LVTTL/LVDS digital bus, the high-precision OCXO timebase and bandwidth upgrades (350→500 MHz, 500 MHz→1 GHz) — are licensed/installed options. Ask us for a configured quote. Full specifications in the datasheet below.
Software & control
Build and edit waveforms on the 5-inch touch screen, from a browser, or over LAN/USB for automated test.
EasyIQ & SigIQPro
Create and edit IQ/vector signals — Bluetooth, IoT 802.15.4, OFDM and custom constellations (optional).
EasyWaveX & web control
Embedded and PC waveform editor plus a built-in web server for remote operation — SCPI over LAN/USB.
Resources & downloads

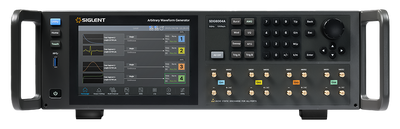

Related series
Configure your SDG7000A
Tell us your bandwidth and option needs — IQ/vector, digital bus or OCXO — and we'll quote the right SDG7032A, SDG7052A or SDG7102A configuration.
Specifications are based on the manufacturer's official datasheet and are provided for guidance only. While we take great care to keep this information accurate and up to date, specifications, options, availability and pricing are subject to change without notice, and errors or omissions may occur. The official Siglent datasheet remains the definitive reference — please contact us to confirm any detail before ordering.
