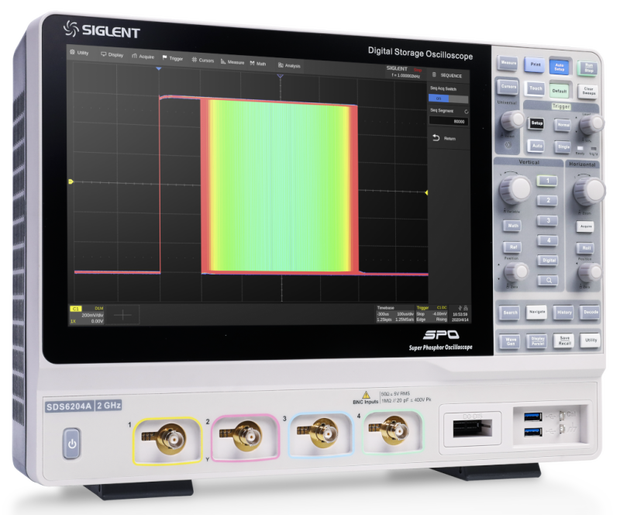

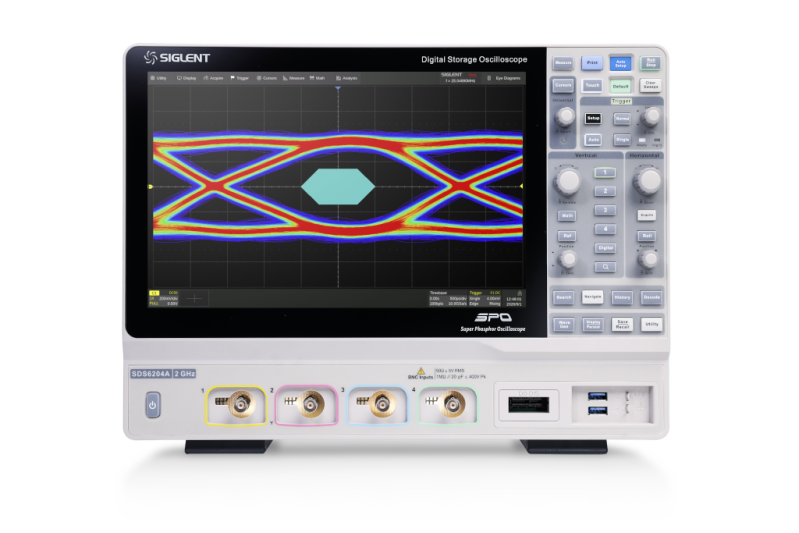

SDS6000A Series
Bench-defining performance: 500 MHz to 2 GHz across four channels, 5 GSa/s sampling, up to 500 Mpts of memory and a pro analysis suite — eye/jitter, power analysis, Bode and deep serial decode — on a 12.1" touch display.
A flagship bench oscilloscope
The SDS6000A series is Siglent’s high-performance platform for demanding R&D, validation and education. Three models deliver 500 MHz, 1 GHz or 2 GHz of bandwidth, each with four channels sampling at 5 GSa/s (10 GSa/s ESR) and up to 500 Mpts of acquisition memory.
Beyond raw acquisition, it is a complete analysis instrument: a large 12.1" capacitive touch display, a 170,000 wfm/s capture rate (750,000 wfm/s in Sequence mode), 8 Mpts FFT, and a license-activated pro suite covering eye-diagram & jitter, power analysis, Bode plotting, SignalScan and extensive serial-bus decode. Add the SPL2016 logic probe for 4 analog + 16 digital mixed-signal work.
Where it fits: the SDS6000A is for engineers who have outgrown a mid-range scope but need real bandwidth and analysis depth — power-electronics and motor-drive development, high-speed digital and serial-bus debug, RF-adjacent work, EMC pre-compliance and university research. All three models share the same platform, display and software, so you choose purely on bandwidth and unlock the analysis licenses you need, when you need them — protecting the investment as your work grows.
Key highlights
Bandwidth to 2 GHz
500 MHz, 1 GHz and 2 GHz models, all four channels at 5 GSa/s (10 GSa/s in ESR mode).
500 Mpts deep memory
Capture long, fast events without losing sample rate — up to 500 Mpts on a single channel.
170,000 wfm/s
High waveform-capture rate (750,000 wfm/s in Sequence mode) catches rare glitches.
Pro analysis suite
Bode plot, Power Analysis, Eye/Jitter analysis and SignalScan built in (license-activated).
Models in the series
Three bandwidths, identical platform and features — choose the bandwidth your work needs.
Core capabilities
Add a 16-channel logic probe (SPL2016) for full mixed-signal debug.
Deep spectrum analysis with a built-in frequency-domain math engine.
I²C, SPI, UART, CAN, LIN standard; CAN FD, FlexRay, I²S, 1553B, SENT, Manchester, ARINC429 optional.
Optional SDS6000Pro-EJ adds eye-diagram and jitter analysis for high-speed signals.
Optional SDS6000Pro-PA automates switching loss, harmonics, ripple and efficiency.
Large 1280×800 capacitive display, plus HDMI out, web control and wireless mouse.
Features in depth

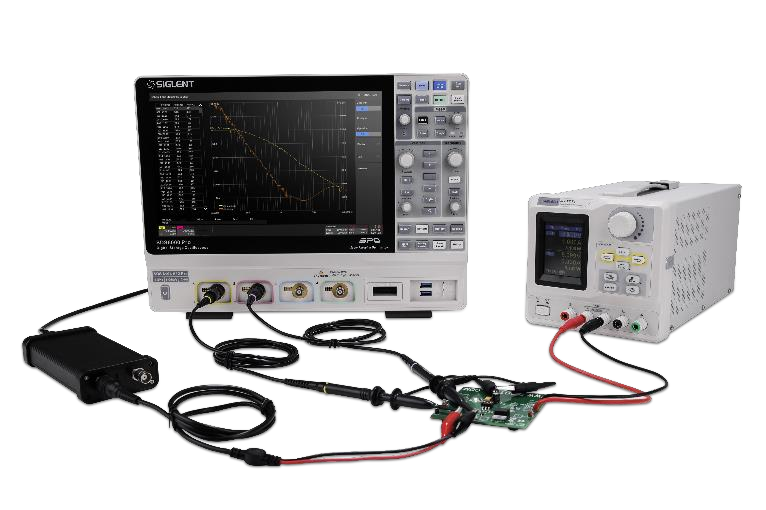

Bode plot & frequency-response analysis
A complete frequency-response analyser is built in: apply a swept stimulus and the SDS6000A plots gain and phase versus frequency directly on the 12.1″ screen — no PC and no separate vector network analyser required.
- Magnitude and phase plotted across a user-set frequency range
- Measure control-loop stability — gain margin & phase margin — of switch-mode power supplies
- Characterise filters, amplifiers, sensors and passive networks
- Drive the sweep from the optional built-in 25 MHz generator or an external source
- Automatic margin read-outs, cursors and on-screen result tables
- Export plots and CSV data straight into design reports

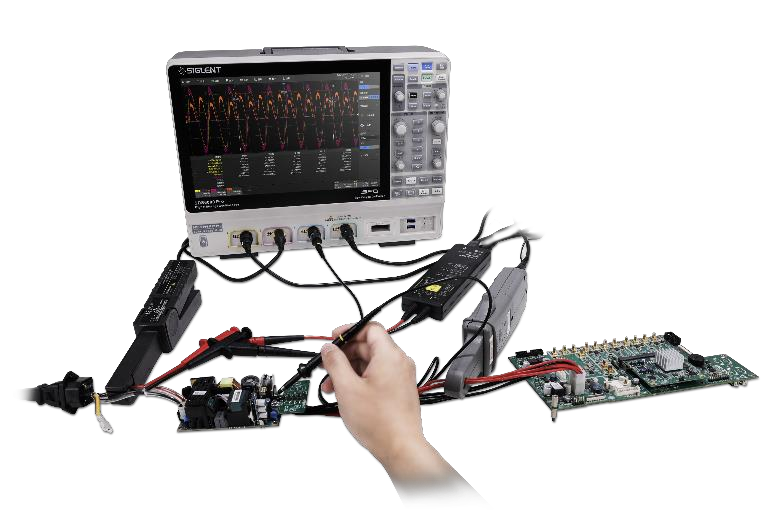

Power analysis — SDS6000Pro-PA
Pair a voltage and a current probe (de-skewed with the DF2001A fixture) and the SDS6000A turns into a power-measurement workstation, automating the slow, error-prone measurements engineers normally make by hand.
- Switching loss — turn-on, turn-off & conduction loss, plus a Safe-Operating-Area (SOA) plot
- Power quality — real / apparent / reactive power, power factor and crest factor
- Current-harmonics analysis with pass/fail tables
- Inrush current, plus dv/dt and di/dt slew-rate on fast edges
- Output ripple & noise, line / load regulation and efficiency
- Especially valuable for GaN/SiC fast-switching designs on the 1 GHz and 2 GHz models

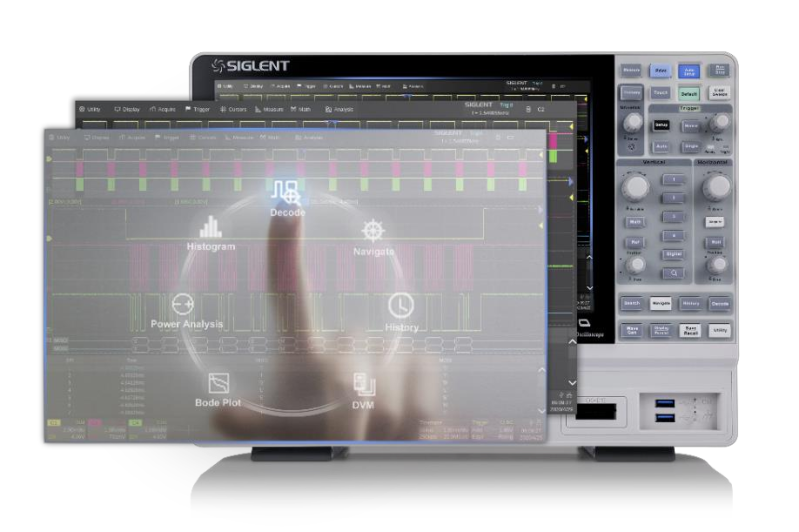

Eye diagram, jitter & deep memory
High-speed signal-integrity work is built in. The SDS6000Pro-EJ license adds on-instrument eye-diagram and jitter analysis, while 500 Mpts of memory captures long records without ever dropping the 5 GSa/s sample rate.
- Real-time eye diagram with mask testing for go/no-go checks
- Jitter decomposition (TIE, period, cycle-to-cycle) with histogram & trend views
- Software clock recovery for embedded-clock serial links
- Up to 2 GHz bandwidth, 5 GSa/s (10 GSa/s ESR) resolves the fastest edges cleanly
- Up to 500 Mpts record length for long, high-resolution acquisitions
- SignalScan & History hunt rare glitches across the entire deep record

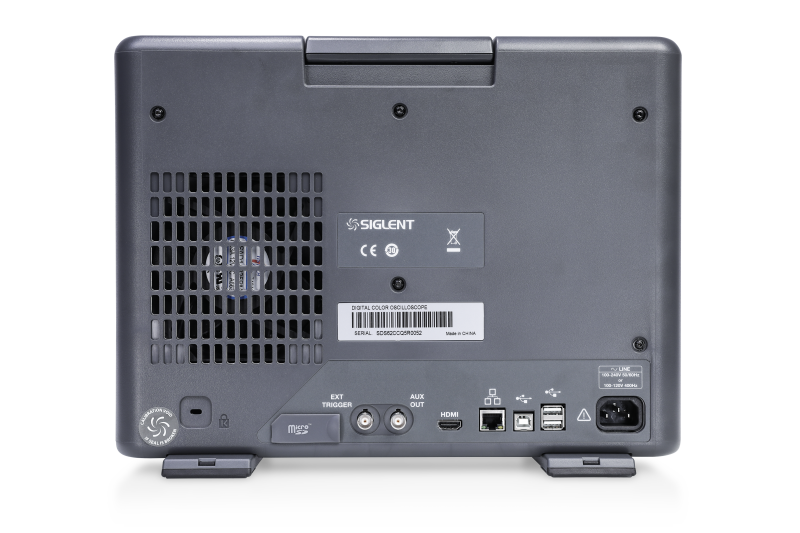

Mixed-signal, serial decode & connectivity
One instrument covers analog, digital and bus-level debug, and drops straight into a modern bench or automated-test rack with fast, standard interfaces.
- Add the SPL2016 logic probe for 4 analog + 16 digital channels (MSO)
- Standard serial decode: I²C, SPI, UART, CAN and LIN
- Optional decode: CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429
- Deep 8 Mpts FFT turns the scope into a capable spectrum tool
- USB 3.0 & 2.0, Gigabit LAN, HDMI out, micro-SD and full web / SCPI remote control
- 12.1″ 1280×800 capacitive multi-touch, with the included wireless mouse
Full specifications
| Analog channels | 4 + EXT |
| Bandwidth | 500 MHz / 1 GHz / 2 GHz (by model) |
| Max. sample rate | 5 GSa/s per channel (10 GSa/s ESR) |
| Max. record length | 500 Mpts (1-ch) · 250 Mpts (2-ch) · 125 Mpts (3–4-ch) |
| Waveform capture rate | 170,000 wfm/s (normal) · 750,000 wfm/s (sequence) |
| Vertical resolution | 8-bit, up to 16-bit in Hi-Res mode |
| Display | 12.1″ TFT-LCD capacitive multi-touch (1280×800) |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/Hold, Delay, Serial |
| Serial decode (standard) | I²C, SPI, UART, CAN, LIN |
| Serial decode (optional) | CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429 |
| Math | 4 traces · 8 Mpts FFT · formula editor |
| Analysis tools | Search, Navigate, History, Mask Test, DVM, Counter, Waveform Histogram, Bode Plot, Power Analysis, Eye/Jitter, SignalScan |
| Digital (optional) | 16 channels via SPL2016 logic probe |
| Connectivity | USB 3.0 Host ×2 · USB 2.0 Host ×2 · USB Device · LAN · micro-SD · HDMI · Ext trigger · Aux out |
| Standard probe | SP3150A 500 MHz passive probe, one per channel |
From the official SDS6000A datasheet; subject to change, errors & omissions excepted.
Software, licenses & options
Expand any SDS6000A with logic analysis, a generator and probes, or unlock pro software. See all SDS6000A licenses & options.

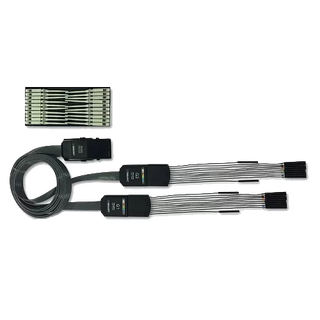

SPL2016 16-channel logic probe (incl. activation key).

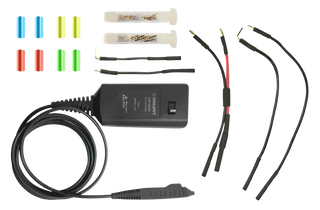

SAP1000 1 GHz active probe for SDS6000A.

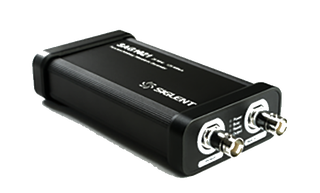

SAG1021I 25 MHz arbitrary/function generator module.

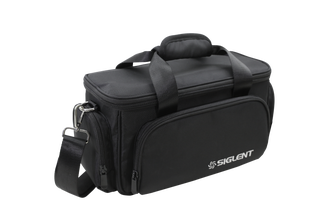

Probes, cases, calibration kits and more.
| License / option | Order number | Price | Shop |
|---|---|---|---|
| Mixed-signal (MSO) 16-ch | SPL2016 (hardware + key) | €749.00 | Buy |
| MSO digital activation | SDS6000Pro-16LA | €430.00 | Buy |
| Power analysis | SDS6000Pro-PA | €900.00 | Buy |
| Eye diagram & jitter | SDS6000Pro-EJ | €900.00 | Buy |
| Function/AWG activation | SDS6000Pro-FG | €300.00 | Buy |
| CAN FD decode | SDS6000Pro-CANFD | €380.00 | Buy |
| FlexRay decode | SDS6000Pro-FlexRay | €380.00 | Buy |
| I²S decode | SDS6000Pro-I2S | €380.00 | Buy |
| MIL-STD-1553B decode | SDS6000Pro-1553B | €380.00 | Buy |
| SENT decode | SDS6000Pro-SENT | €380.00 | Buy |
| Manchester decode | SDS6000Pro-Manch | €380.00 | Buy |
| ARINC429 decode | SDS6000Pro-ARINC | €775.00 | Buy |
Prices subject to change.
Documentation & downloads
Related ranges
Configure your SDS6000A
Tell us your bandwidth, channels and the analysis you need — we’ll quote the right model with the logic probe, generator, probes and licenses to match.
Frequently asked questions
Three models: SDS6054A (500 MHz), SDS6104A (1 GHz) and SDS6204A (2 GHz). All have 4 analog channels and sample at 5 GSa/s per channel (10 GSa/s in ESR mode).
Up to 500 Mpts on a single channel, 250 Mpts on two channels and 125 Mpts across three or four channels.
Yes — add the SPL2016 16-channel logic probe and the SDS6000Pro-16LA activation for 4 analog + 16 digital channels.
I²C, SPI, UART, CAN and LIN are standard. CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester and ARINC429 are available as licenses.
Yes — the SDS6000Pro-EJ (eye/jitter) and SDS6000Pro-PA (power analysis) licenses unlock these on-instrument.
The SDS6000A is an 8-bit scope with a Hi-Res mode that extends effective resolution up to 16 bits for low-noise, low-frequency measurements.
