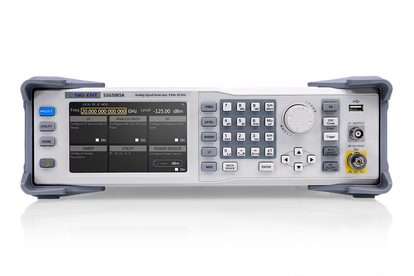

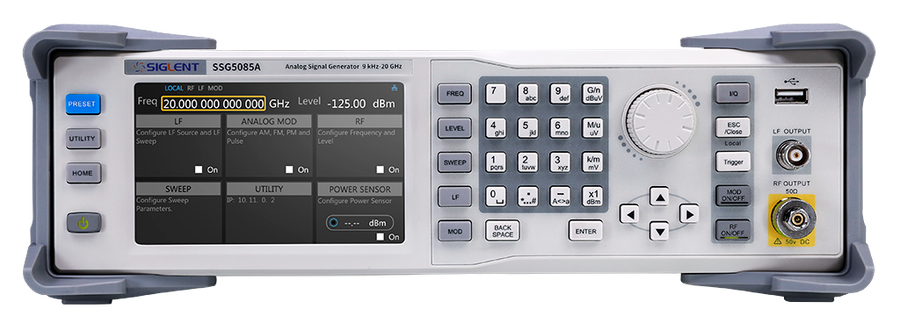

SSG5000A Series
A high-precision microwave signal generator reaching 13.6 or 20 GHz, with a standard OCXO reference for excellent frequency accuracy and stability. AM/FM/PM, pulse modulation, a pulse-sequence generator and power-meter control make it a complete microwave stimulus for radar, EW and aerospace work.
Microwave Signal Generator
A high-precision microwave signal generator reaching 13.6 or 20 GHz, with a standard OCXO reference for excellent frequency accuracy and stability. AM/FM/PM, pulse modulation, a pulse-sequence generator and power-meter control make it a complete microwave stimulus for radar, EW and aerospace work.
Every model shares the same platform, user interface and remote-control command set, so you choose purely on frequency and capability — and scale the analysis with licenses and accessories as your work grows. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
Microwave to 20 GHz
13.6 GHz (SSG5083A) or 20 GHz (SSG5085A) of clean microwave coverage.
OCXO accuracy
A standard OCXO reference delivers high frequency precision and stability out of the box.
Full modulation
AM, FM, PM, pulse modulation and a pulse-sequence generator for radar-style stimulus.
Power-meter control
Drive a Siglent power sensor directly for level calibration and characterisation.
Models in the series
Choose by frequency and capability — every model shares the same platform and software.
Core capabilities
Broad microwave coverage in one instrument.
Clean carrier for receiver and component test.
Very wide, accurate output level range.
High-stability reference included as standard.
Pulse modulation plus a pulse-sequence generator.
Integrated control of a Siglent USB power sensor.
Features in depth

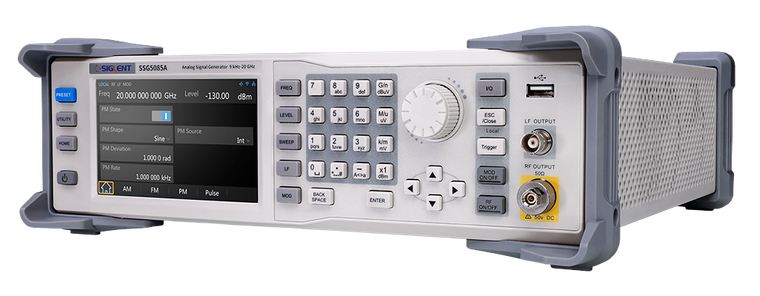

Microwave reach, precise control
The SSG5000A brings microwave coverage to a mid-range budget without giving up accuracy — a standard OCXO keeps frequency tight and stable across 13.6 or 20 GHz.
- 9 kHz to 13.6 GHz (SSG5083A) or 20 GHz (SSG5085A)
- Standard OCXO reference for high frequency precision
- −130 dBm to +25 dBm output level range
- −120 dBc/Hz phase noise for clean carriers
Built for radar & system test
Pulse and pulse-sequence generation plus power-meter control make it a complete stimulus for radar, EW and aerospace component characterisation.
- AM, FM and PM analog modulation
- Pulse modulation and a pulse-sequence generator
- Direct power-meter (sensor) control for level calibration
- LAN/USB/GPIB & SCPI for automated test systems
Applications
Where the SSG5000A Series is at home.
Full specifications
| Frequency range | 9 kHz – 13.6 GHz (SSG5083A) / 20 GHz (SSG5085A) |
| Phase noise | −120 dBc/Hz @ 1 GHz (typ.) |
| Output level | −130 dBm to +25 dBm |
| Reference | Standard OCXO; 10 MHz in/out |
| Analog modulation | AM, FM, PM |
| Pulse | Pulse modulation + pulse-sequence generator |
| Power meter | Direct USB power-sensor control |
| Sweep | Frequency & level sweep, list mode |
| Interfaces | LAN (LXI) · USB · GPIB · SCPI |
From the official SSG5000A Series datasheet; subject to change, errors & omissions excepted.
Licenses & options
Add capability, bandwidth and references with software licenses and expansion options — click Buy to open the option in the shop. See the full SSG5000A Series license page.
Other RF signal generators
Configure your SSG5000A Series
Tell us your frequency, power and modulation needs — we’ll quote the right model with the options and references to match.
Frequently asked questions
13.6 GHz (SSG5083A) or 20 GHz (SSG5085A), from 9 kHz — true microwave coverage.
Yes — a standard OCXO reference is included for high frequency precision and stability.
AM, FM and PM analog modulation, pulse modulation, and a pulse-sequence generator for radar-style signals.
Yes — it can directly control a Siglent USB power sensor for level calibration and characterisation.
−130 dBm to +25 dBm, with fine resolution and good level accuracy.
