SHA860A Series
Siglent’s top handheld signal analyzer — a full cellular and RF field instrument in a 3.2 kg body. Covering 9 kHz to 3.6 or 7.5 GHz with a −165 dBm/Hz noise floor, it adds up to 110 MHz of real-time and IQ analysis bandwidth (3.51 µs 100% POI), 5G NR and LTE OTA testing with multi-PCI/multi-beam analysis, modulation and pulse analysis, EMF/EMI, a 1-path-2-port vector network analyzer, cable-and-antenna testing and indoor/outdoor coverage mapping with GNSS logging — all on an 8.4-inch multi-touch screen.

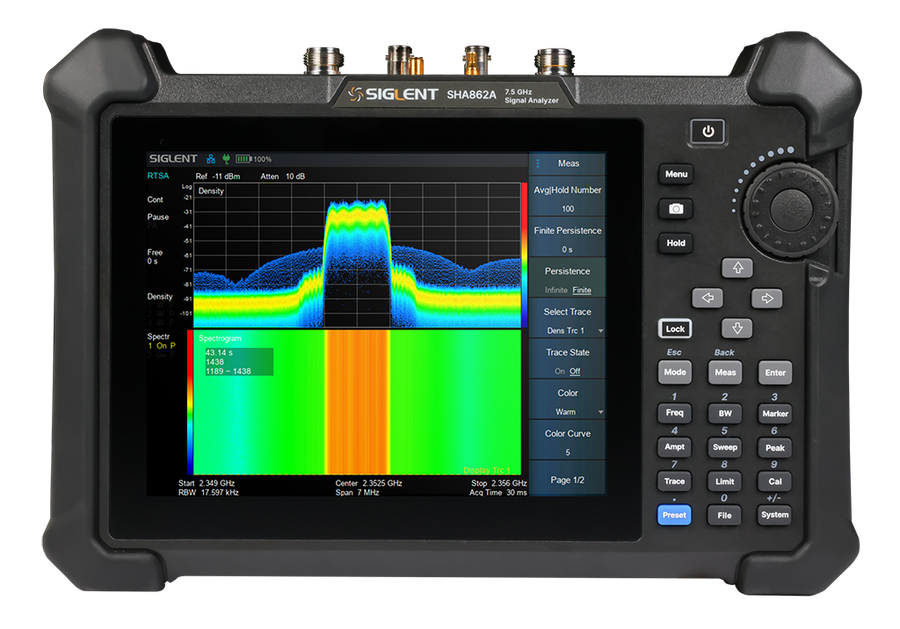

Handheld Signal Analyzer
Siglent’s top handheld signal analyzer — a full cellular and RF field instrument in a 3.2 kg body. Covering 9 kHz to 3.6 or 7.5 GHz with a −165 dBm/Hz noise floor, it adds up to 110 MHz of real-time and IQ analysis bandwidth (3.51 µs 100% POI), 5G NR and LTE OTA testing with multi-PCI/multi-beam analysis, modulation and pulse analysis, EMF/EMI, a 1-path-2-port vector network analyzer, cable-and-antenna testing and indoor/outdoor coverage mapping with GNSS logging — all on an 8.4-inch multi-touch screen.
Both models share the same handheld platform, 8.4-inch touch interface and licence set, so you choose on frequency — then add exactly the analysis you need, from 5G NR/LTE OTA and 110 MHz real-time to VNA, cable/antenna and mapping. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
110 MHz real-time & IQ
Up to 110 MHz analysis bandwidth with a 3.51 µs 100% POI and IQ data acquisition for capturing complex, transient signals.
5G NR & LTE OTA
Over-the-air 5G NR (multi-PCI, multi-beam) and LTE TDD/FDD measurement — cellular field test in your hand.
Handheld signal analyzer
8.4-inch multi-touch, 3.2 kg and about 2.5 hours of battery — built for drive test, install and maintenance.
VNA, CAT & source
Optional 1-path-2-port VNA (S21 114 dB), cable-and-antenna test and an independent source to 7.5 GHz.

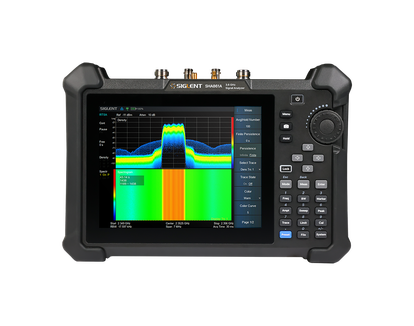

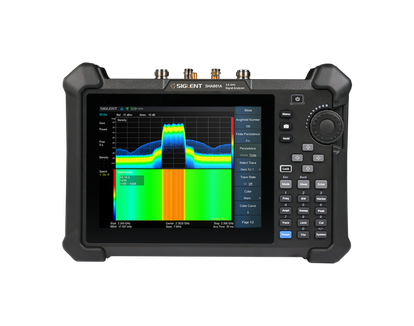

Models in the series
Choose by frequency — the SHA861A upgrades to 7.5 GHz with the F2 licence.
Core capabilities
−165 dBm/Hz DANL, −104 dBc/Hz phase noise, 1 Hz – 10 MHz RBW and a standard preamplifier.
110 MHz real-time analysis with a 3.51 µs 100% POI plus IQ data acquisition for offline analysis.
5G NR multi-PCI / multi-beam and LTE FDD/TDD over-the-air measurement with constellation.
AM/FM/PM and ASK/FSK/PSK/MSK/QAM analysis, audio tune & listen, and pulse-profile measurement.
1-path-2-port VNA (S11/S21, 114 dB S21 dynamic) plus cable-and-antenna test with DTF.
Indoor/outdoor maps, GNSS trace recording & playback, field-strength (EMF) and EMI measurement.
Features in depth
A cellular signal analyzer in your hand

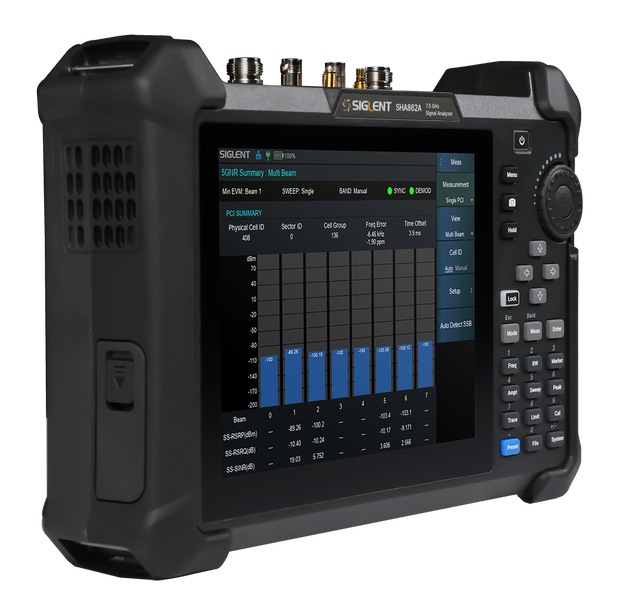

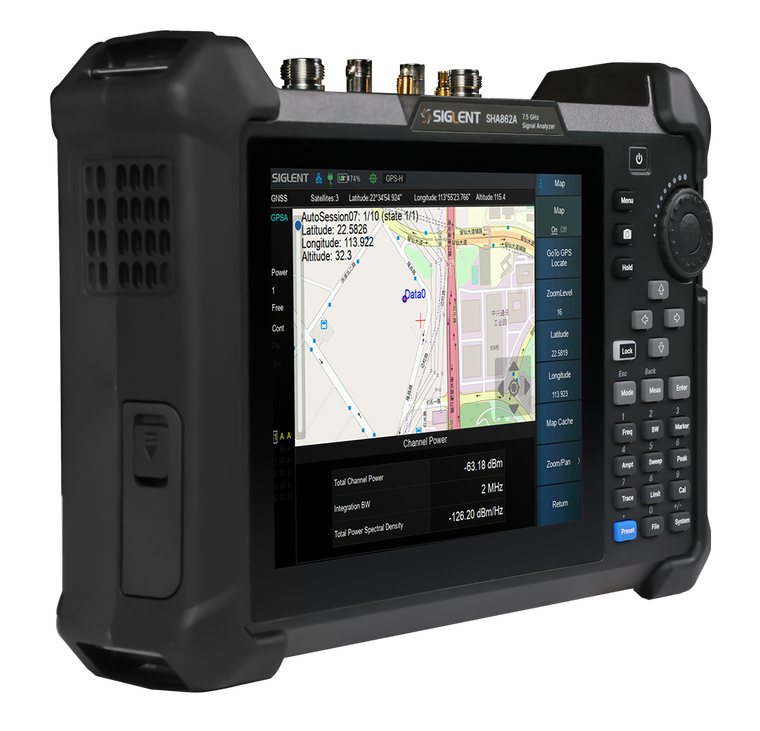

Beyond a spectrum trace, the SHA860A brings 5G NR and LTE over-the-air testing, 110 MHz real-time bandwidth and IQ capture into the field — so you can find, decode and record modern wireless signals where they actually live.
- 5G NR OTA: multi-PCI, multi-beam analysis & constellation
- LTE FDD/TDD OTA with multi-PCI analysis
- 110 MHz real-time analysis, 3.51 µs 100% POI
- IQ data acquisition in 110 MHz bandwidth for offline work
Every RF measurement, out in the field

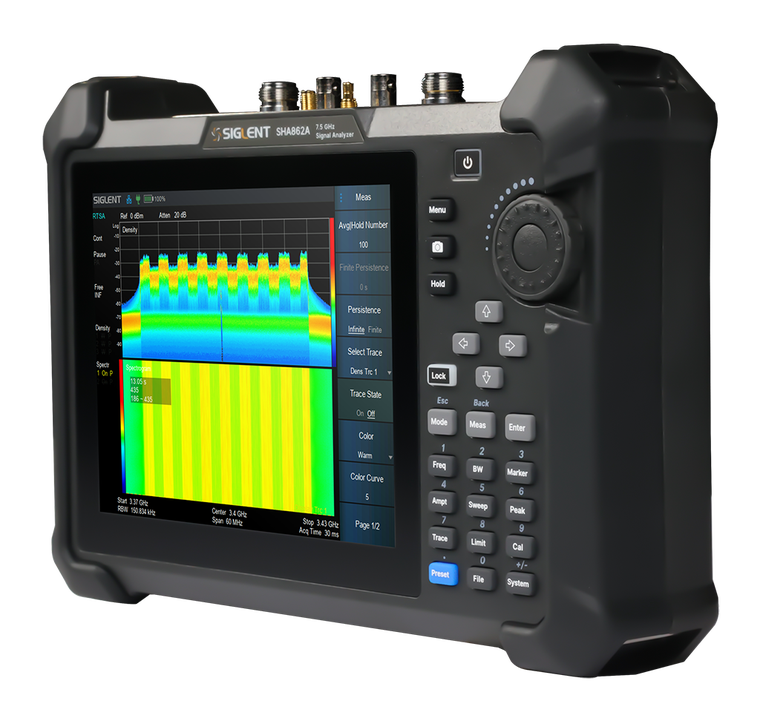

One handheld covers the whole job: modulation and pulse analysis, a vector network analyzer, cable-and-antenna testing, an independent source and EMF/EMI — with coverage mapping and GNSS logging to record it all.
- Analog AM/FM/PM & digital ASK/FSK/PSK/MSK/QAM + audio listen
- 1-path-2-port VNA — S11/S21, S11 directionality 40 dB, S21 114 dB
- Cable-and-antenna test, distance-to-fault & time-domain
- Independent source to 7.5 GHz · 12–32 V bias-out for TTA · EMF/EMI
Every input and output

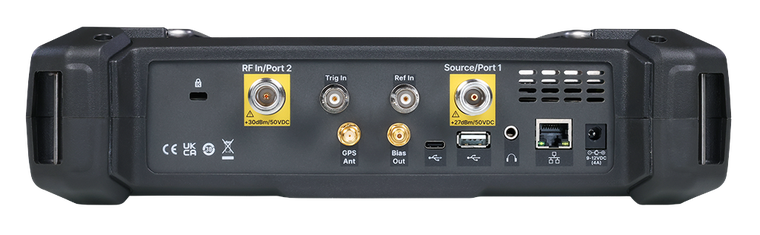

The top panel carries the whole connector set — two N-type RF ports for the analyzer, source and 1-path-2-port VNA, reference and trigger inputs, GPS and DC-bias, USB, LAN and audio — so the SHA860A drops straight into a field or bench setup.
- RF In / Port 2 and Source / Port 1 — two N-type ports (max +30 dBm and +27 dBm, 50 VDC) for the analyzer input, source and 1-path-2-port VNA
- Ref In & Trig In (BNC) — lock to a 10 MHz house reference and trigger externally
- GPS Ant (SMA) for positioning & logging, and Bias Out (SMA) delivering 12–32 V DC to tower-mounted amplifiers
- USB-C device port (PC / remote control) and USB-A host (storage, mouse & keyboard)
- LAN (RJ-45) for LXI / web-browser remote, plus a 3.5 mm headphone jack
- 9–12 VDC (4 A) power input and a Kensington security-lock slot
Applications
Where the SHA860A Series earns its keep.
Full specifications
| Frequency range | SHA861A: 9 kHz – 3.6 GHz · SHA862A: 9 kHz – 7.5 GHz (5 kHz usable; 861A upgradeable via F2) |
| Resolution bandwidth (RBW) | 1 Hz – 10 MHz, 1-3-10 sequence; shape factor < 4.8:1 |
| Displayed average noise level | −165 dBm/Hz (typ.) |
| Phase noise | −104 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) |
| Analysis bandwidth | 40 MHz · 110 MHz with SHA860-B1A (option) |
| Real-time analysis (opt.) | 110 MHz bandwidth · 3.51 µs 100% POI |
| IQ data acquisition (opt.) | In 110 MHz bandwidth |
| 5G NR OTA (opt.) | Multi-PCI, multi-beam analysis & constellation |
| LTE OTA (opt.) | FDD & TDD, multi-PCI analysis |
| Modulation analysis (opt.) | Analog AM/FM/PM · digital ASK/FSK/PSK/MSK/QAM · audio tune & listen |
| Pulse analysis (opt.) | Pulse-profile measurement |
| Vector network analysis (opt.) | 1-path-2-port · S11 & S21 · S11 directionality 40 dB · S21 dynamic range 114 dB |
| Cable & antenna test (opt.) | VSWR, return loss, cable loss, distance-to-fault, time-domain |
| Independent source (opt.) | To 7.5 GHz |
| DC bias output (opt.) | 12 – 32 V (TTA test) |
| EMF / EMI (opt.) | Field-strength (EMF) and EMI measurement |
| Mapping & GNSS (opt.) | Indoor/outdoor coverage maps · GNSS trace recording & playback |
| Preamplifier | Standard |
| Display | 8.4-inch capacitive multi-touch (mouse & keyboard supported) |
| RF connectors | 2 × N-type female, 50 Ω: RF In/Port 2 (+30 dBm / 50 VDC) · Source/Port 1 (+27 dBm / 50 VDC) |
| Rear / top I/O | Ref In & Trig In (BNC) · GPS Ant & Bias Out (SMA) · USB-C & USB-A · LAN (RJ-45) · 3.5 mm headphone · 9–12 VDC (4 A) input |
| Battery / weight | ~2.5 hours typical working time · 3.2 kg (net) |
| Remote control | Web-browser remote (LXI); USB / LAN |
From the official SHA860A Series datasheet (EN01D); subject to change, errors & omissions excepted.
Licenses & upgrades
The SHA860A is highly modular — add exactly the analysis you need. Click Buy to open an option in the shop. See the full SHA860A Series license page.
| License / option | Order number | Price | Shop |
|---|---|---|---|
| Frequency upgrade — SHA861A → SHA862A (7.5 GHz) | SHA860-F2 | €4,980.00 | Buy |
| Analysis bandwidth — 110 MHz | SHA860-B1A | €4,380.00 | Buy |
| Real-time spectrum analysis | SHA860-RTA | €3,630.00 | Buy |
| IQ data acquisition | SHA860-IQA | €3,630.00 | Buy |
| 5G NR OTA measurement | SHA860-NR | €4,100.00 | Buy |
| LTE TDD/FDD OTA measurement | SHA860-LTE | €2,580.00 | Buy |
| Cable & antenna test | SHA860-CAT | €1,230.00 | Buy |
| Vector network analysis | SHA860-VNA | €1,520.00 | Buy |
| Pulse profile analysis | SHA860-PU | €1,130.00 | Buy |
| Digital modulation analysis | SHA860-DMA | €820.00 | Buy |
| EMI measurement | SHA860-EMI | €750.00 | Buy |
| Advanced measurement kit | SHA860-AMK | €550.00 | Buy |
| EasyMap — map-tile download PC software | EasyMap | €550.00 | Buy |
| Analog modulation analysis (AM/FM/PM) | SHA860-AMA | €460.00 | Buy |
| Independent source | SHA860-SOR | €400.00 | Buy |
| GPS receiver | SHA860-GPS | €270.00 | Buy |
| Outdoor / indoor map | SHA860-MAP | €940.00 | Buy |
| DC bias output (12 – 32 V) | SHA860-BIAS | €190.00 | Buy |
