Frequency Range 30kHz-14GHz 30kHz-20GHz 30kHz-26.5GHz
Ports 2 2 2
Dynamic Range 100 dB 100 dB 100 dB
Trace Noise 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms
Range of Output -45 dBm ~ +10 dBm -45 dBm ~ +10 dBm -45 dBm ~ +10 dBm

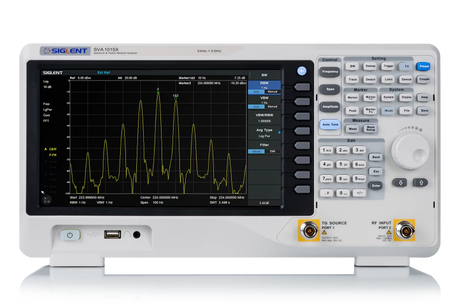

Frequency Range 9 kHz to 1.5 GHz 9 kHz to 3.2 GHz 9 kHz to 7.5 GHz
Resolution Bandwidth (RBW) 1 Hz to 1 MHz, in 1-3-10 sequence 1 Hz to 1 MHz, in 1-3-10 sequence 1 Hz~3 MHz
Phase Noise < -98 dBc/Hz @ 1 GHz, 10 kHz offset < -98 dBc/Hz @ 1 GHz, 10 kHz offset < -98 dBc/Hz @ 1 GHz, 10 kHz offset
Total Amplitude Accuracy ≤1.2 dB <0.7 dB <0.7 dB
Display Average Noise Level (DANL) -156 dBm/Hz, Normalized to 1 Hz (typ.) -161 dBm/Hz, Normalized to 1 Hz (typ.) -165 dBm/Hz, Normalized to 1 Hz (typ.)
Frequency Range 9 kHz~4.5 GHz 9 kHz~8.5 GHz 100 kHz~13.5 GHz
Ports 2 2 2
Dynamic Range 125 dB 125 dB 125 dB
Trace Noise 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms
Range of Output -55 ~ +10 dBm -55 ~ +10 dBm -55 ~ +10 dBm
Frequency Range 9 kHz~4.5 GHz 9 kHz~8.5 GHz 100 kHz~26.5 GHz
Ports 4 4 2
Dynamic Range 125 dB 125 dB 125 dB
Trace Noise 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms 0.003 dB rms,0.03° rms
Range of Output -55 ~ +10 dBm -55 ~ +10 dBm -55 ~ +10 dBm
Frequency Range 100 kHz to 13.5 GHz 100 kHz to 26.5 GHz 100 kHz to 26.5 GHz 100 kHz to 13.5 GHz
Ports 2 2 2 2
Dynamic Range 135 dB 135 dB 135 dB 135 dB
Trace Noise 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms
Range of Output -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm
Frequency Range 100 kHz to 26.5 GHz 100 kHz to 13.5 GHz 100 kHz to 26.5 GHz 100 kHz to 13.5 GHz
Ports 4 4 4 4
Dynamic Range 135 dB 135 dB 135 dB 135 dB
Trace Noise 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms 0.005 dB rms, 0.012° rms
Range of Output -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm -55 dBm ~ +10 dBm
