Microwave / mmWave Signal Generator

SSG6000A Series

Siglent's flagship microwave source, reaching 13.6, 20 or 40 GHz, and 67 GHz with the SSG6089A. −135 dBc/Hz phase noise as standard and −149 dBc/Hz (typ.) with the low-phase-noise option, 0.001 Hz frequency resolution and a −130 to +24 dBm level range. A dedicated vector model (SSG6082A-V) adds wideband I/Q to 8 GHz — built for mmWave, radar, EW and aerospace at the highest level.

Siglent SSG6000A Series RF signal generator
Up to 67 GHz
frequency range, by model
−135 dBc/Hz
phase noise @1 GHz, 10 kHz
0.001 Hz
frequency resolution
−130 to +24 dBm
level range

Microwave / mmWave Signal Generator

Siglent's flagship microwave source, reaching 13.6, 20 or 40 GHz, and 67 GHz with the SSG6089A. −135 dBc/Hz phase noise as standard and −149 dBc/Hz (typ.) with the low-phase-noise option, 0.001 Hz frequency resolution and a −130 to +24 dBm level range. A dedicated vector model (SSG6082A-V) adds wideband I/Q to 8 GHz — built for mmWave, radar, EW and aerospace at the highest level.

Every model shares the same platform, user interface and remote-control command set, so you choose purely on frequency and capability — and scale the analysis with licenses and accessories as your work grows. siglent.eu is the official EU distributor, with stock, warranty and local support.

Siglent SSG6000A Series

Key highlights

mmWave to 67 GHz

13.6, 20 or 40 GHz from the webshop, and 67 GHz with the SSG6089A on request — across the 5G FR2 and mmWave bands.

−135 dBc/Hz phase noise

Class-leading spectral purity for the most demanding receiver and radar test.

0.001 Hz resolution

Ultra-fine frequency setting with a standard OCXO reference and ≤0.7 dB level error.

Vector model

The SSG6082A-V adds an internal wideband I/Q vector engine to 8 GHz.

Models in the series

Choose by frequency and capability — every model shares the same platform and software. The 67 GHz SSG6089A is supplied by the Siglent factory, on request.

New: 67 GHz and multi-channel models

The SSG6089A takes the family to 67 GHz from a single 1.85 mm output. The SSG6M80A series puts two or four phase-coherent channels up to 20 GHz in one instrument. Both are supplied directly by the Siglent factory: send your request through the page of the instrument, we pass it on, and Siglent sends you an offer for your application.

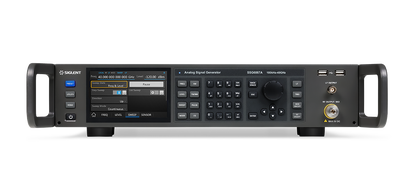

Siglent SSG6083A
SSG6083A
100 kHz – 13.6 GHz
€21,500
View SSG6083A
Siglent SSG6085A
SSG6085A
100 kHz – 20 GHz
€24,430
View SSG6085A
Siglent SSG6087A
SSG6087A
100 kHz – 40 GHz
€46,070
View SSG6087A
Siglent SSG6089A
SSG6089A
100 kHz – 67 GHz · 1.85 mm
On request from the Siglent factory
View SSG6089A

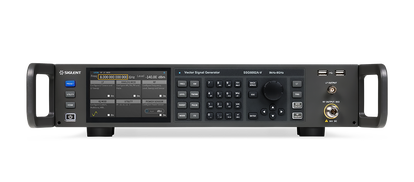

Siglent SSG6082A-V
SSG6082A-V
9 kHz – 8 GHz · vector
€27,680
View SSG6082A-V

Core capabilities

Up to 67 GHz

13.6 / 20 / 40 GHz microwave & mmWave coverage, 67 GHz on request.

−135 dBc/Hz

−149 dBc/Hz (typ.) with the factory-fitted low-phase-noise option.

0.001 Hz resolution

Ultra-fine tuning with a standard OCXO reference.

−130 to +24 dBm

Wide level range, level error ≤ 0.7 dB (typ.).

Vector (SSG6082A-V)

Internal wideband I/Q vector engine to 8 GHz.

Full modulation

AM / FM / PM, pulse modulation and pulse sequences.

Features in depth

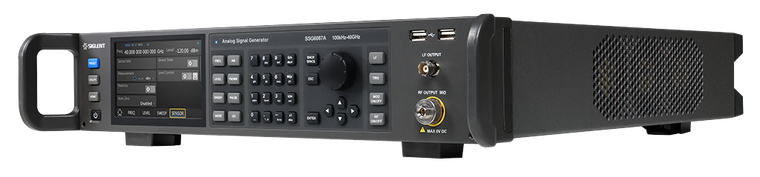

Flagship spectral purity

Flagship spectral purity

The SSG6000A is built for the measurements where the generator must be far cleaner than the device under test — and where every dB of phase noise counts.

  • −135 dBc/Hz phase noise @ 1 GHz, 10 kHz offset (typ.)
  • 0.001 Hz frequency resolution with a standard OCXO
  • −130 dBm to +24 dBm level range, ≤ 0.7 dB level error
  • Coverage to 13.6, 20, 40 or 67 GHz for mmWave work

Microwave, mmWave & vector

From a clean CW carrier to wideband vector signals, the family covers analog microwave to mmWave plus a dedicated vector model for modern digital standards.

  • AM, FM and PM analog modulation
  • Pulse modulation and pulse-sequence generation
  • SSG6082A-V: internal wideband I/Q vector engine to 8 GHz
  • 5G FR2 / mmWave, radar, EW, satellite and aerospace ready

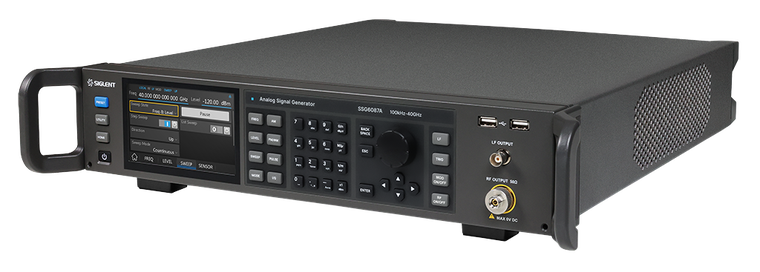

Microwave, mmWave and vector

Applications

Where the SSG6000A Series is at home.

5G FR2 / mmWave
Radar & EW
Satellite & SATCOM
Aerospace & defence
mmWave component test
Receiver & LO
Vector / digital (—V)
Advanced research

Full specifications

Frequency range100 kHz – 13.6 / 20 / 40 / 67 GHz (by model); SSG6082A-V 9 kHz – 8 GHz vector
Frequency resolution0.001 Hz
Phase noise−135 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) · −149 dBc/Hz (typ.) with option SSG6080A-LPH2
Output level−130 dBm to +24 dBm (SSG6089A: −110 dBm to +24 dBm) · up to +30 dBm with the high-power options HP20 / HP40
Level error≤ 0.7 dB (typ.)
RF connector2.92 mm (SSG6083A, SSG6085A, SSG6087A) · 1.85 mm (SSG6089A)
ReferenceStandard OCXO; 10 MHz in/out
Analog modulationAM, FM, PM (internal / external)
PulsePulse modulation + pulse-sequence generator
Vector / IQInternal wideband I/Q on SSG6082A-V (to 8 GHz)
InterfacesLAN (LXI) · USB · GPIB · SCPI

From the official SSG6000A Series datasheet; subject to change, errors & omissions excepted.

Licenses & options

Add capability, bandwidth and references with software licenses and expansion options — click Buy to open the option in the shop.

License / optionOrder numberPriceShop
Frequency upgrade — 13.6 → 20 GHzSSG6080A-F85€4,390.00Buy
Pulse modulationSSG6080A-PU€2,180.00Buy
Pulse-train generatorSSG6080A-PT€2,180.00Buy
Pulse modulation (vector / -V)SSG6080AV-PU€1,220.00Buy
Pulse-train generator (vector / -V)SSG6080AV-PT€1,520.00Buy
Internal RF / IQ bandwidth upgrade (vector)SSG6080AV-B1000€7,380.00Buy
Rack-mount kitSSG6000A-RMK€335.00Buy
Low phase noise — factory-fitted, order with the instrumentSSG6080A-LPH2On requestEnquire
High output power, 13.6 / 20 GHz models — factory-fittedSSG6080A-HP20On requestEnquire
High output power, 40 / 67 GHz models — factory-fittedSSG6080A-HP40On requestEnquire

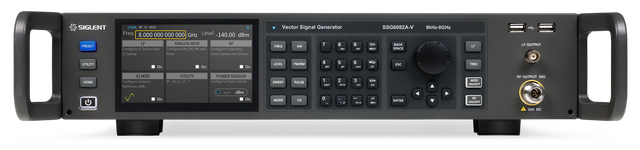

Siglent SSG6082A-V vector signal generator
Vector model

SSG6082A-V — why “V”?

Alongside the analog microwave models, the SSG6082A-V is a dedicated vector signal generator. The “V” means an internal I/Q baseband engine is fitted, so it generates digitally-modulated and wideband signals directly — ideal for 5G sub-6, Wi-Fi, Bluetooth and radar waveforms without an external arbitrary waveform generator.

  • Built-in I/Q baseband

    The “V” stands for Vector — an internal wideband I/Q baseband generator is built in, so the instrument produces digitally-modulated and complex waveforms in one box, with no external AWG.

  • 500 MHz internal RF bandwidth

    Up to 500 MHz of internal modulation bandwidth (I + Q) covers wideband 5G, Wi-Fi, radar chirps and custom waveforms straight from the generator.

  • Microwave purity, to 8 GHz

    Keeps the SSG6000A’s class-leading spectral purity — −132 dBc/Hz phase noise at 1 GHz — across the full 9 kHz to 8 GHz range for demanding receiver and EVM work.

SSG6082A-V key specs
Output frequency — CW mode9 kHz ~ 8 GHz
Output frequency — IQ mode10 MHz ~ 8 GHz
Phase noise−132 dBc/Hz @ 10 kHz offset, 1 GHz (typ.)
Internal RF bandwidth (I + Q)500 MHz
View SSG6082A-V

Other RF signal generators

Configure your SSG6000A Series

Tell us your frequency, power and modulation needs — we’ll quote the right model with the options and references to match.

EU stock
Fast European delivery
Warranty
Manufacturer-backed
ISO / DKD calibration
Optional, on request
Expert support
JRSE B.V., Helmond

Frequently asked questions

How high in frequency does the SSG6000A reach?

13.6 GHz (SSG6083A), 20 GHz (SSG6085A), 40 GHz (SSG6087A) or 67 GHz (SSG6089A, on request from the Siglent factory) — across the mmWave / 5G FR2 bands. The SSG6082A-V is a vector model to 8 GHz.

How good is the phase noise?

−135 dBc/Hz at 1 GHz with 10 kHz offset (typical), and −149 dBc/Hz (typical) with the low-phase-noise option SSG6080A-LPH2, which is fitted at the factory and ordered with the instrument.

What frequency resolution does it offer?

0.001 Hz setting resolution, with a standard OCXO reference for stability.

Is there a vector / IQ model?

Yes — the SSG6082A-V adds an internal wideband I/Q vector engine to 8 GHz for digitally-modulated signals.

What is the output level range and accuracy?

−130 dBm to +24 dBm (−110 dBm to +24 dBm on the SSG6089A), with a typical level error of ≤ 0.7 dB. The factory-fitted high-power options raise the maximum to +30 dBm.
