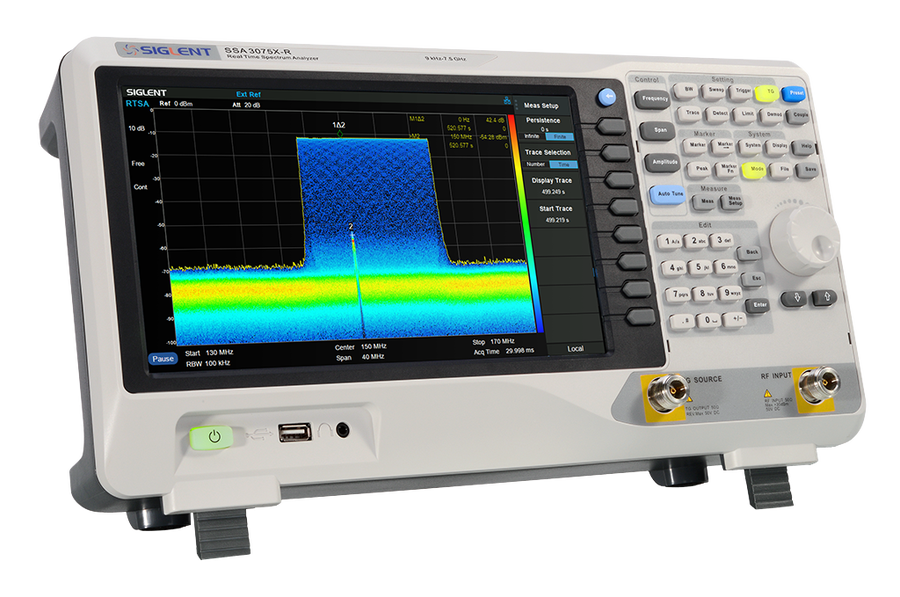

SSA3000X-R
Five software options for the SSA3032X-R, SSA3050X-R and SSA3075X-R, each activated with a key against your instrument’s serial number — nothing to fit and nothing to return. The vector network analyser and distance-to-fault modes are already standard, so this page also lists what they need: the calibration kits, plus the probes, adaptors and mounting hardware Siglent lists for the series.
All instruments
Real-time analysis and measurements
Every SSA3000X-R captures 25 MHz in real time as standard. SSA3000XR-RT40 takes that to 40 MHz with a 100 % probability of intercept down to 7.20 µs — and because digital modulation analysis uses the real-time bandwidth, it widens SSA3000XR-WDMA to 40 MHz as well. SSA3000XR-AMK adds channel power, ACPR, occupied bandwidth, time-domain power, carrier-to-noise, harmonics to the 10th and TOI, plus a spectrum monitor. SSA3000XR-EMI adds the CISPR 16-1-1 filters (200 Hz, 9 kHz, 120 kHz, 1 MHz), peak, average and quasi-peak detectors and EN 550xx / FCC Part 15 limit lines — for pre-compliance, not certification.

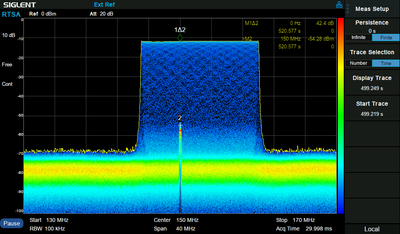

Widens real-time bandwidth from 25 MHz to 40 MHz, with a 7.20 µs 100 % POI.

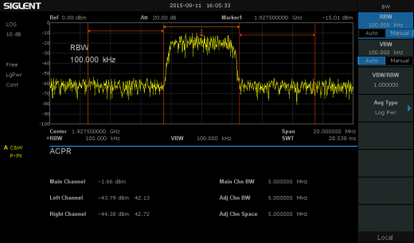

One-button channel power, ACPR, OBW, C/N, harmonics and TOI instead of manual marker work.

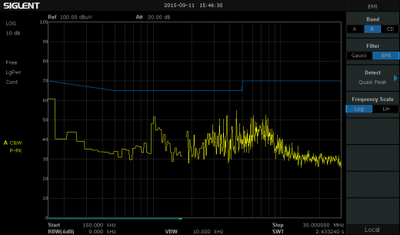

CISPR 16-1-1 filter bandwidths, a quasi-peak detector and limit lines for pre-compliance EMI work.
Modulation analysis
SSA3000XR-AMA covers AM and FM — there is no PM on this series. SSA3000XR-WDMA covers ASK, FSK, MSK, PSK, DPSK and QAM to 256 at up to 25 Msps; recordings can be played back in the EasyVSA software.

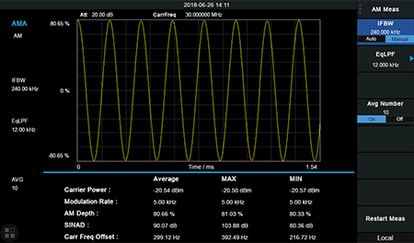

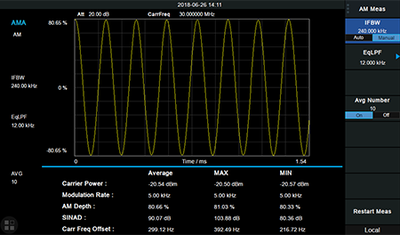

AM and FM demodulation with modulation rate, AM depth and FM deviation readouts.

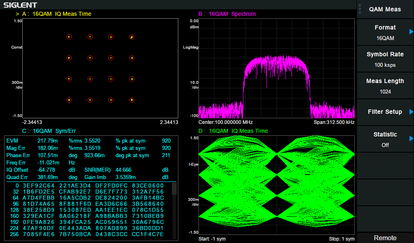

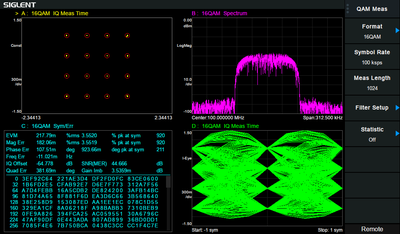

Vector analysis of ASK, FSK, MSK, PSK, DPSK and QAM to 256 — EVM, constellation and eye views.
VNA calibration kits
The VNA (vector S11/S21) and distance-to-fault modes are standard on every SSA3000X-R, and a calibration kit is what makes their results trustworthy. ⚠ The 4.5 GHz kits cover the full range of the SSA3032X-R only. For the SSA3050X-R (5 GHz) and SSA3075X-R (7.5 GHz), the 9 GHz kits calibrate the whole band. Choose N-type or 3.5 mm (SMA-compatible), and the gender that mates with the end of your test cable — or the TS sets, which hold both genders for less than two separate kits.

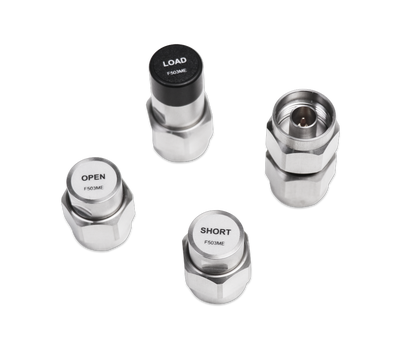

Open, short and load N-male standards to 4.5 GHz — calibrates the VNA at the end of your own cable.

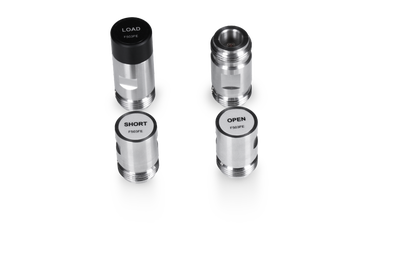

Open, short and load N-female standards to 4.5 GHz — calibrates the VNA at the end of your own cable.

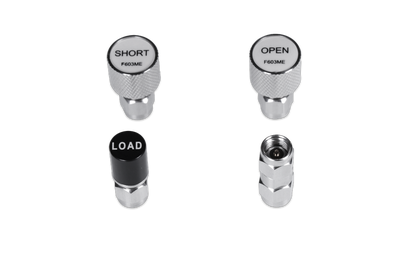

OSLT standards with 3.5 mm male connectors, DC to 4.5 GHz, for SMA-style test set-ups.

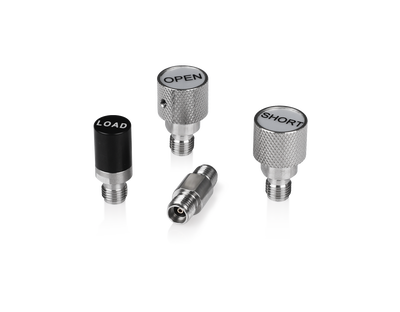

OSLT standards with 3.5 mm female connectors, DC to 4.5 GHz, for SMA-style test set-ups.

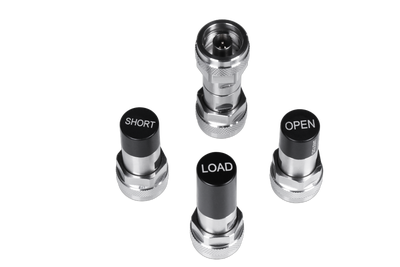

N-male OSLT standards to 9 GHz — enough for the full 5 and 7.5 GHz VNA range.

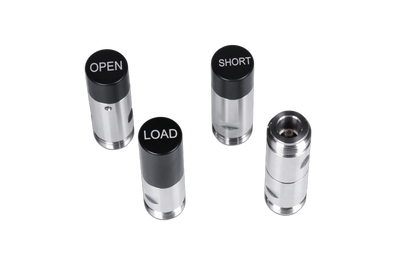

N-female OSLT standards to 9 GHz — enough for the full 5 and 7.5 GHz VNA range.

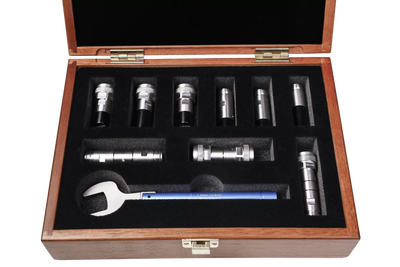

N-male and N-female 9 GHz standards plus torque wrench in one kit — less than buying both.

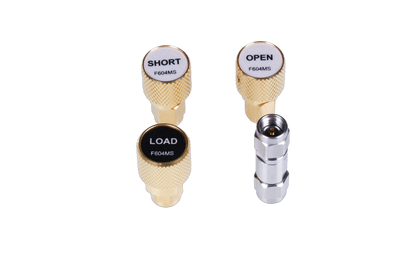

3.5 mm male OSLT standards to 9 GHz, for SMA-style set-ups over the full range.

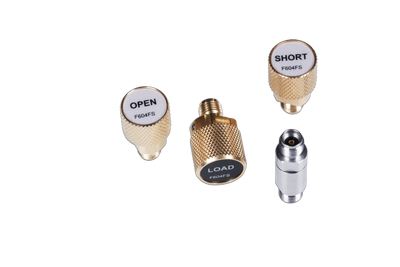

3.5 mm female OSLT standards to 9 GHz, for SMA-style set-ups over the full range.

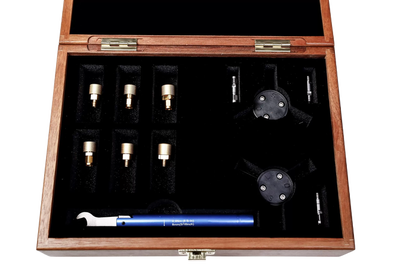

3.5 mm male and female 9 GHz standards plus torque wrench in one kit — less than buying both.
Related hardware and accessories
Physical items, not licence keys — the normal 14-day EU return right applies.
H-field and E-field probes, 300 kHz – 3 GHz, for locating emission hotspots on a board.

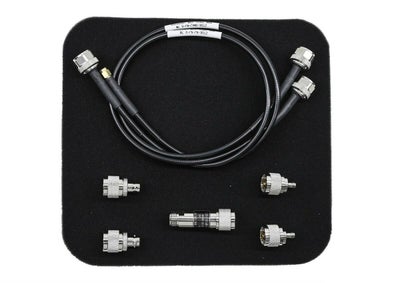

Adaptors, attenuator and cabling for the SSA/SVA — the BNC parts are specified only to about 2 GHz.
Adds a GPIB interface via the analyser’s USB host port, for older test systems.

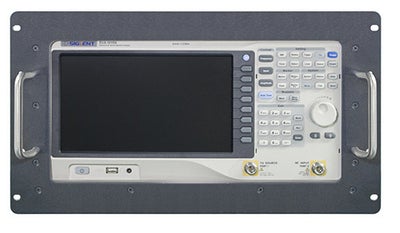

6U rack mount kit for the SSA3000X, SSA3000X Plus, SSA3000X-R and SVA1000X.
Padded soft carry case for taking the instrument, cables and probes to site.
Prices are per license and may exclude VAT; confirmed at checkout. Some options require a compatible firmware version or hardware (e.g. a logic probe for MSO) — see each product. Software licenses & activation keys are delivered electronically and are excluded from the 14-day EU return right once the key has been issued. Errors & omissions excepted.
Not sure which SSA3000X-R license you need?
Tell us your serial number and what you want to measure — we'll confirm the exact license and quote it, including for several units.
