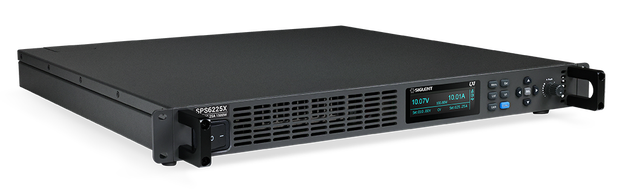

A high-power wide-range programmable switching DC power supply delivering 1500 W from a single 1U rack unit. Two models — 200 V / 25 A and 100 V / 50 A — each supply their full 1500 W across a wide range of voltage and current combinations (constant-power output), so one instrument covers many operating points. With 10 mV / 10 mA resolution, low ripple, sub-2.5 ms load-transient recovery, adjustable slew rates, a 50-step list mode and parallel operation of up to five units for 7500 W, the SPS6000X is built for demanding automotive, energy, power-electronics and production testing.
A high-power wide-range programmable switching DC power supply delivering 1500 W from a single 1U rack unit. Two models — 200 V / 25 A and 100 V / 50 A — each supply their full 1500 W across a wide range of voltage and current combinations (constant-power output), so one instrument covers many operating points. With 10 mV / 10 mA resolution, low ripple, sub-2.5 ms load-transient recovery, adjustable slew rates, a 50-step list mode and parallel operation of up to five units for 7500 W, the SPS6000X is built for demanding automotive, energy, power-electronics and production testing.
Both models share the same 1U platform, OLED interface and command set, so you choose on the voltage/current envelope you need — then scale with parallel operation and rack mounting. siglent.eu is the official EU distributor, with stock, warranty and local support.
Full 1500 W across a wide voltage/current range — one supply covers the operating points a rectangular V×I supply can’t.
200 V / 25 A for higher voltage, or 100 V / 50 A for higher current — both rated 1500 W, single channel.
Connect up to five same-model units in parallel to expand output power to 7500 W.
Sub-2.5 ms transient recovery, adjustable slew rates, a 50-step list mode and an embedded web server.

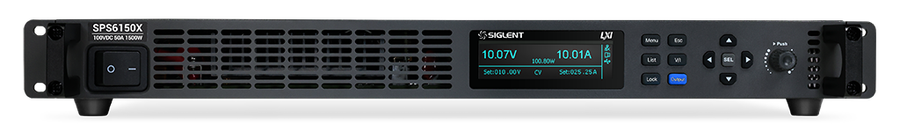

Two 1500 W models — choose more voltage or more current; both share the same platform and software.
The full 1500 W is available across a broad V/I envelope, covering more operating points from a single supply.
Fine setting and readback resolution with 0.1% ±10 mV voltage and 0.2% ±30 mA current accuracy.
220 mVpp / 39 mVrms ripple and load-transient recovery in under 2.5 ms for stable, clean output.
50-step list mode, CV/CC priority, a constant-power mode and slew rates from 0.001 V/ms and 0.001 A/ms.
Up to five same-model units in parallel for 7500 W, plus series operation for higher voltage.
OVP, OCP, LPP and OTP with a built-in discharge circuit for faster voltage ramp-down.

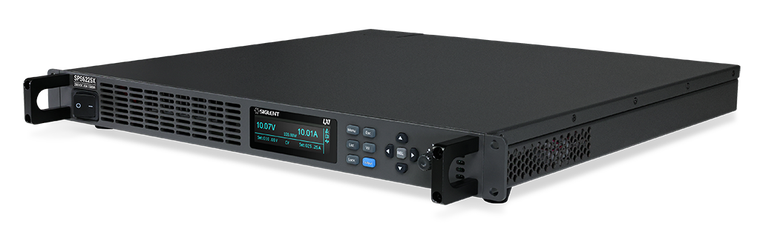

Instead of one fixed voltage-times-current rectangle, each SPS6000X delivers its full 1500 W over a wide range of voltage and current combinations — high current at low voltage or high voltage at low current — so a single supply covers jobs that would otherwise need several.

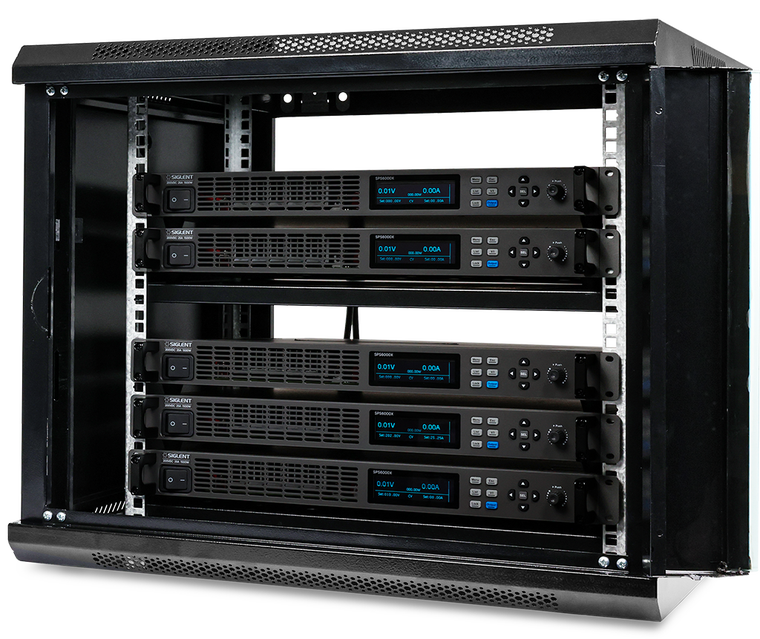

Each supply is a fan-cooled 1U, 19-inch unit that drops straight into a rack. Need more power? Connect up to five same-model units in parallel and drive them as a single 7500 W output.

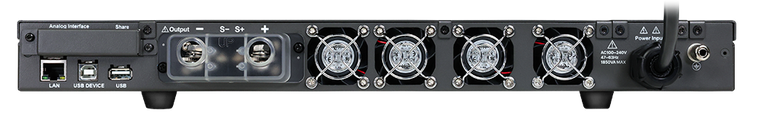

USB and LAN with an embedded web server are standard, with an optional USB-GPIB module — so the SPS6000X integrates cleanly into automated and remote test systems.
Where the SPS6000X Series fits.
| Output — SPS6225X | 200 V / 25 A / 1500 W, single channel |
| Output — SPS6150X | 100 V / 50 A / 1500 W, single channel |
| Output characteristic | Wide-range constant power (auto-ranging), switch-mode |
| Setting / readback resolution | 10 mV / 10 mA |
| Voltage accuracy | 0.1% ±10 mV |
| Current accuracy | 0.2% ±30 mA |
| Ripple & noise | 220 mVpp / 39 mVrms (CV, 220 Vac) |
| Load-transient recovery | < 2.5 ms (10% – 90% load step) |
| Slew rate | Voltage 0.001 – 4 V/ms · Current 0.001 – 2.4 A/ms |
| List / sequence mode | Up to 50 steps |
| Operating modes | CV / CC with selectable priority · constant-power mode |
| Parallel operation | Up to 5 same-model units → 7500 W |
| Series operation | Supported (higher output voltage) |
| Protection | OVP · OCP · LPP · OTP + built-in discharge circuit |
| Display | 3.12-inch high-brightness OLED |
| Interfaces | USB · LAN (embedded web server); USB-GPIB (optional) |
| Form factor | 1U, 19-inch rack width, fan-cooled |
From the official SPS6000X Series datasheet; per-model values vary. Subject to change, errors & omissions excepted.
Tell us the voltage and current you need — and whether you’ll parallel units for more power — and we’ll quote the right model.
Both are single-channel 1500 W wide-range supplies. The SPS6225X is rated 200 V / 25 A and the SPS6150X 100 V / 50 A — choose the one whose voltage and current envelope matches your load; the platform, resolution, features and price are otherwise the same.
Each supply delivers its full 1500 W across a wide range of voltage and current combinations rather than a single fixed V × I rectangle, so one instrument covers operating points that would otherwise need several supplies.
Yes — connect up to five same-model SPS6000X units in parallel to expand the output to 7500 W, controlled as a single output. Series operation is also supported for higher voltage.
USB and LAN with an embedded web server are standard, with an optional USB-GPIB module. A 50-step list mode, adjustable slew rates, CV/CC priority and a constant-power mode cover automated and sequenced testing, with sub-2.5 ms load-transient recovery.
Yes — each unit is a fan-cooled 1U, 19-inch chassis, so it fits directly into a standard 19-inch rack.
Specifications are taken from the official Siglent SPS6000X Series datasheet and are subject to change without notice; errors & omissions excepted. siglent.eu is operated by JRSE B.V., official EU distributor.
The SPS6225X is a 1500 W programmable DC power supply with 200 V / 25 A output, offering high precision, dynamic control, and advanced safety features for versatile testing applications.
The SPS6150X is a 1500 W programmable DC power supply with 200 V / 50 A output, offering high precision, dynamic control, and advanced safety features for versatile testing applications.
