SDS5000X HD Series
Twelve-bit oscilloscopes with four, six or eight analogue channels, 350 MHz to 1 GHz at 5 GSa/s, a 140 µVrms noise floor and up to 2.5 Gpts of memory — on a 12.1-inch touchscreen, or as the screen-less 1U SDS5000L for the rack.
More bits, and more channels to use them on
Most 12-bit oscilloscopes stop at four channels. The SDS5000X HD is built the other way round: the resolution is the starting point, and the channel count scales to the job — four, six or eight analogue inputs, sixteen digital ones with the SPL2016, all sampled at 5 GSa/s into up to 2.5 Gpts. That is what lets one instrument watch every rail of a board coming up, or three voltages and three currents of a drive, without a second scope and a synchronisation cable.
The 12-bit ADC is backed by a 140 µVrms noise floor at 1 GHz and 0.5 % DC gain accuracy typical, so the extra bits show up as detail rather than as finer-grained noise. Sixty-plus measurements with statistics, an 8 Mpts FFT, Bode plot, Double Pulse Test and hardware Mask Test are standard; power and three-phase analysis and seven further serial protocols are software keys.
The SDS5000L is the same acquisition system in a 1U housing with no screen: eight channels, HDMI, web server and SCPI over Gigabit LAN, for racks and automated test. Twelve models in all — nine on the shop today, the three six-channel models on request.

What defines the series
12 bits, and a noise floor that lets you use them
A 12-bit ADC with a 140 µVrms noise floor at 1 GHz (100 µVrms at 350 MHz) and 0.5 % DC gain accuracy typical. Small ripple on a big rail, or the tail of a switching edge, is resolved instead of buried in quantisation noise.

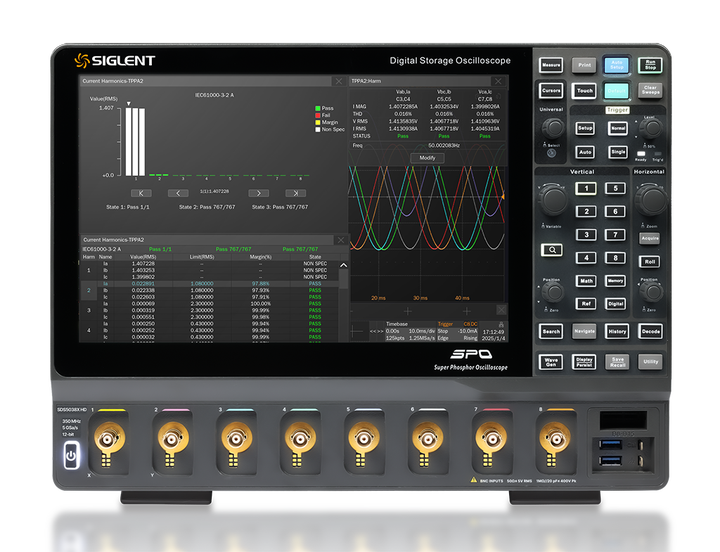

Four, six or eight analogue channels
Plus 16 digital channels with the SPL2016. Every rail of a board, all three phases of a drive, or voltage and current on three switches — in one acquisition, time-aligned by hardware.
2.5 Gpts and 160,000 wfm/s
Up to 2.5 Gpts per channel in quarter-channel mode keeps 5 GSa/s over a whole power-up or a long bus transaction. 160,000 waveforms per second (650,000 in Sequence mode) and a 170,000-frame history catch the event that happens once.
Bode, Double Pulse and Mask Test as standard
Bode plot with an SDG or the SAG1021I, Double Pulse Test for wide-bandgap switches, hardware Mask Test at 28,000 decisions per second, Search and Navigate. Power and three-phase analysis are software keys on top.
Twelve models
Three bandwidths, three channel counts on the bench, and the eight-channel low-profile SDS5000L. Bandwidth is a software key later; the channel count is not. Prices exclude VAT.

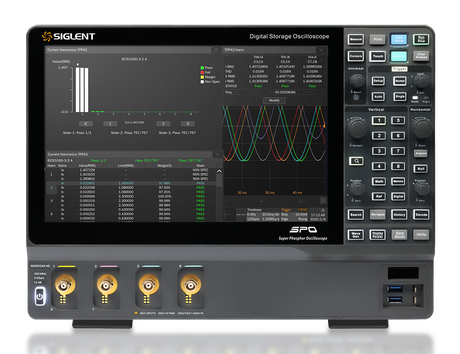

4 channels · bench
The compact end of the range; 12.1-inch touchscreen, MSO-ready.

Twelve-bit, 4 channels, 12.1-inch touchscreen.

Twelve-bit, 4 channels, 12.1-inch touchscreen.

Twelve-bit, 4 channels, 12.1-inch touchscreen.
6 channels · bench
The channel count the three-phase power key needs; configured to order.

Six inputs. Photo: the eight-channel model.

Six inputs. Photo: the eight-channel model.

Six inputs. Photo: the eight-channel model.

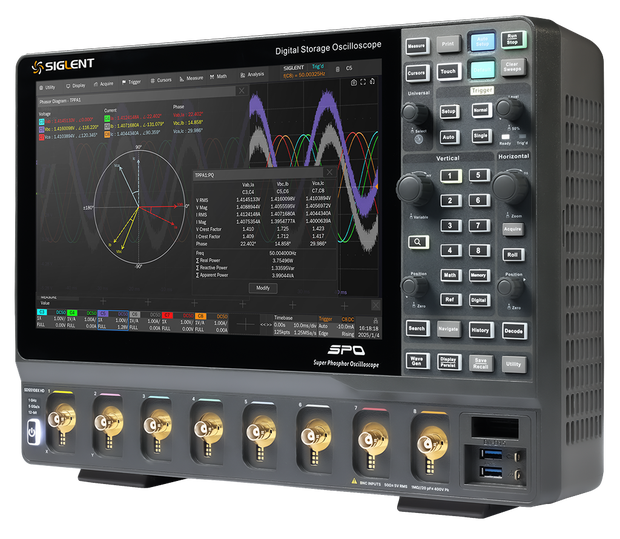

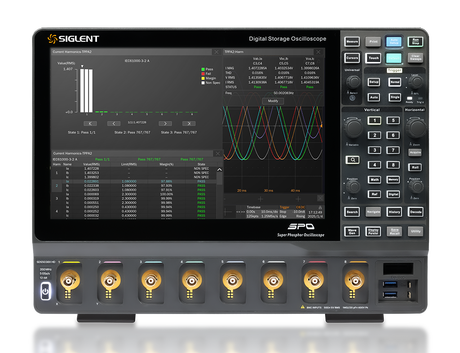

8 channels · bench
Every rail, every phase, one acquisition.

Twelve-bit, 8 channels, 12.1-inch touchscreen.

Twelve-bit, 8 channels, 12.1-inch touchscreen.

Twelve-bit, 8 channels, 12.1-inch touchscreen.

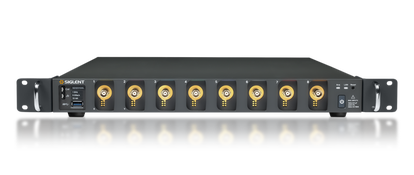

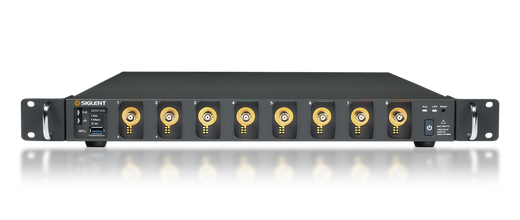

8 channels · SDS5000L low-profile
1U, no screen, no digital channels; HDMI, web server and SCPI.

Low-profile 1U, no screen — HDMI, web and SCPI control.

Low-profile 1U, no screen — HDMI, web and SCPI control.

Low-profile 1U, no screen — HDMI, web and SCPI control.
Compare the range
| 350 MHz | 500 MHz | 1 GHz | |
|---|---|---|---|
| 4 channels · bench | SDS5034X HD €7,760 | SDS5054X HD €9,300 | SDS5104X HD €12,180 |
| 6 channels · bench | SDS5036X HD €8,530 | SDS5056X HD €10,830 | SDS5106X HD €14,380 |
| 8 channels · bench | SDS5038X HD €9,580 | SDS5058X HD €12,460 | SDS5108X HD €16,020 |
| 8 channels · 1U low-profile | SDS5038L €9,200 | SDS5058L €11,500 | SDS5108L €15,060 |
All twelve models: 5 GSa/s, 12-bit, 2.5 Gpts/ch. Prices are Siglent’s recommended retail prices excl. VAT.
The instrument at work
Two screens that only a six- or eight-channel 12-bit scope can show.

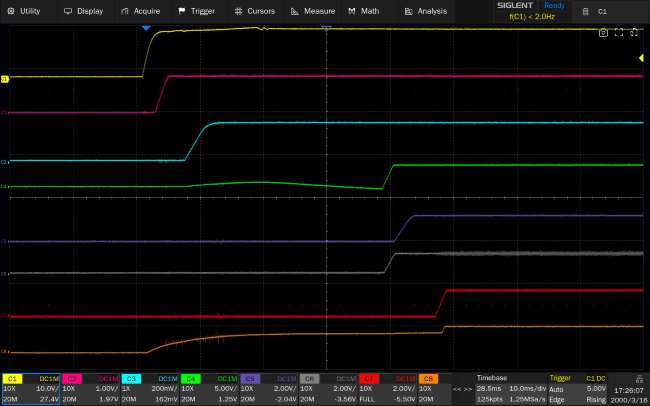

Eight rails, one trigger
A power-up sequence captured on an eight-channel model: C1 to C8 come up one after another across 28 ms at 10 ms/div. Rail order, inter-rail delay and ramp shape are read from one acquisition instead of eight.

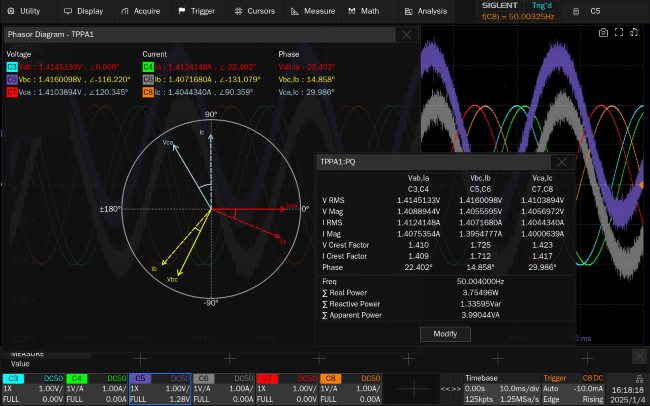

Three-phase power analysis (PA3 option)
The TPPA phasor diagram: three line voltages on C1, C3 and C5, three currents on C4, C6 and C8, with RMS, crest factor, phase angle and the real, reactive and apparent power of the system at 50.004 Hz. Six channels are needed, which is why Siglent pair the option with the 6- and 8-channel models.

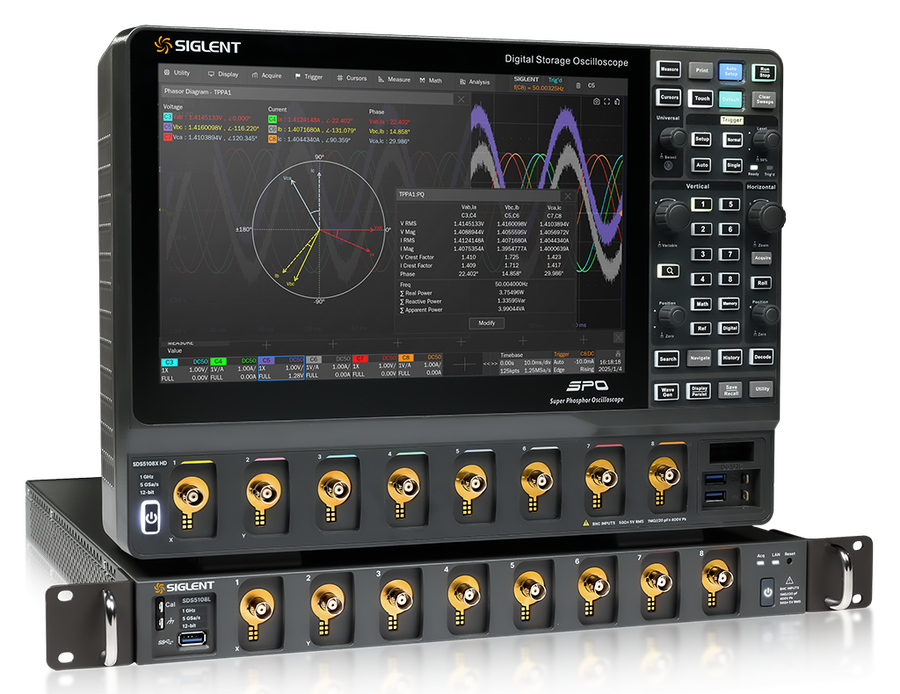

Two housings
The bench SDS5000X HD and the rack SDS5000L share the electronics and differ in everything you can touch.





Options and accessories
Software keys are activated on the instrument you already own; order the key that matches the channel count and the housing. The licences page explains each one. Prices excl. VAT.
Bandwidth upgrades — SDS5000X HD
One key per step and per channel count. 350 MHz straight to 1 GHz costs €370 less than two steps. After a 1 GHz upgrade, use the SP6150A or an active probe — the supplied probes are 500 MHz.
| Order code | Option | Price | |
|---|---|---|---|
| SDS5000HD-4BW3T5 | 4-ch, 350 MHz → 500 MHz | €1,900 | View |
| SDS5000HD-4BW5TA | 4-ch, 500 MHz → 1 GHz | €3,250 | View |
| SDS5000HD-4BW3TA | 4-ch, 350 MHz → 1 GHz | €4,780 | View |
| SDS5000HD-6BW3T5 | 6-ch, 350 MHz → 500 MHz | €2,670 | View |
| SDS5000HD-6BW5TA | 6-ch, 500 MHz → 1 GHz | €3,920 | View |
| SDS5000HD-6BW3TA | 6-ch, 350 MHz → 1 GHz | €6,220 | View |
| SDS5000HD-8BW3T5 | 8-ch, 350 MHz → 500 MHz | €3,250 | View |
| SDS5000HD-8BW5TA | 8-ch, 500 MHz → 1 GHz | €3,920 | View |
| SDS5000HD-8BW3TA | 8-ch, 350 MHz → 1 GHz | €6,800 | View |
Analysis and serial decode — SDS5000X HD
I²C, SPI, UART, CAN and LIN are standard. PA3 needs six channels; Manchester is decode only.
| Order code | Option | Price | |
|---|---|---|---|
| SDS5000HD-PA | Power analysis | €1,040 | View |
| SDS5000HD-PA3 | Three-phase power analysis (TPPA) | €1,800 | View |
| SDS5000HD-CANFD | CAN FD trigger & decode | €460 | View |
| SDS5000HD-FlexRay | FlexRay trigger & decode | €460 | View |
| SDS5000HD-I2S | I²S trigger & decode | €460 | View |
| SDS5000HD-SENT | SENT trigger & decode | €460 | View |
| SDS5000HD-1553B | MIL-STD-1553B trigger & decode | €460 | View |
| SDS5000HD-Manch | Manchester decode (no trigger) | €460 | View |
| SDS5000HD-ARINC | ARINC 429 trigger & decode | €920 | View |
Software keys — SDS5000L
The same twelve options for the low-profile unit, with their own order codes.
| Order code | Option | Price | |
|---|---|---|---|
| SDS5000L-PA | Power analysis | €1,040 | Ask for a quote |
| SDS5000L-PA3 | Three-phase power analysis (TPPA) | €1,800 | Ask for a quote |
| SDS5000L-CANFD | CAN FD trigger & decode | €460 | Ask for a quote |
| SDS5000L-FlexRay | FlexRay trigger & decode | €460 | Ask for a quote |
| SDS5000L-I2S | I²S trigger & decode | €460 | Ask for a quote |
| SDS5000L-SENT | SENT trigger & decode | €460 | Ask for a quote |
| SDS5000L-1553B | MIL-STD-1553B trigger & decode | €460 | Ask for a quote |
| SDS5000L-Manch | Manchester decode (no trigger) | €460 | Ask for a quote |
| SDS5000L-ARINC | ARINC 429 trigger & decode | €920 | Ask for a quote |
| SDS5000L-8BW3T5 | 350 MHz → 500 MHz | €2,670 | Ask for a quote |
| SDS5000L-8BW5TA | 500 MHz → 1 GHz | €3,920 | Ask for a quote |
| SDS5000L-8BW3TA | 350 MHz → 1 GHz | €6,220 | Ask for a quote |
Hardware that goes with it
Each unit ships with a 500 MHz probe per channel, USB cable, power cord, quick start, calibration certificate and a wireless mouse.

16 digital channels at up to 1.25 GSa/s, 250 Mpts — SDS5000X HD only; the SDS5000L has no digital inputs.

A set of 20 replacement clips in a case, for the logic probe’s flying leads.

The supplied probes are 500 MHz; a 1 GHz model or a 1 GHz upgrade needs this probe or an active probe to use its bandwidth.

1.2 pF loading on the SAPBus interface, powered by the scope.

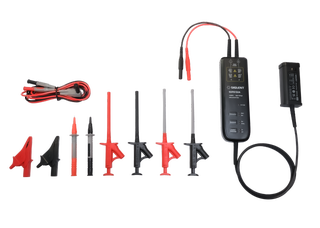

±1,500 V, 50×/500× — the voltage half of a power or three-phase measurement.

Aligns the voltage and current probes before a switching-loss measurement.

The sweep source for the built-in Bode plot.

For the bench models; the SDS5000L is a 1U rack unit as delivered.

Runs Tektronix TekProbe Level II active probes on the SAPBus input.
Specifications
From the SDS5000X HD / SDS5000L data sheet EN01A. Where three figures are given they are for the 1 GHz, 500 MHz and 350 MHz models in that order.
| Models | |
| Analogue channels | 4, 6 or 8 (SDS5000X HD) · 8 (SDS5000L) · plus external trigger |
| Bandwidth (−3 dB, 50 Ω) | 350 MHz · 500 MHz · 1 GHz (at 1 MΩ: 350 / 500 / 500 MHz) |
| Rise time (50 Ω, typ.) | 830 ps · 610 ps · 460 ps |
| Digital channels | 16 with the SPL2016, 1.25 GSa/s, 250 Mpts — SDS5000X HD only |
| Acquisition | |
| Sample rate | 5 GSa/s in quarter- and half-channel mode · 2.5 GSa/s with all channels on |
| Record length | 2.5 Gpts/ch (quarter) · 1 Gpts/ch (half) · 500 Mpts/ch (full) |
| Resolution | 12-bit ADC · up to 16-bit in HiRes mode |
| Noise floor (50 Ω, ≤ 5 mV/div, typ.) | 140 µVrms at 1 GHz · 120 µVrms at 500 MHz · 100 µVrms at 350 MHz |
| ENOB (typ.) | 8.2 bit (1 GHz) · 8.4 bit (500 MHz) · 8.6 bit (350 MHz) |
| DC gain accuracy | ±1 % FS max., ±0.5 % FS typ. (5 mV/div to 10 V/div) |
| Waveform capture rate | 160,000 wfm/s normal · 650,000 wfm/s Sequence |
| Sequence / History | Up to 170,000 segments or frames · segment dead time from 1.5 µs |
| Trigger & decode | |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video (HDTV), Qualified, Nth edge, Setup/hold, Delay, Serial · Zone trigger |
| Serial decode, standard | I²C, SPI, UART, CAN, LIN |
| Serial decode, optional | CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester (decode only), ARINC 429 |
| Analysis | |
| Measurements | 60+ parameters · statistics, histogram, trend, track · gating · on Math, History and Memory traces |
| Math | 8 traces · 8 Mpts FFT · arithmetic, integration, differentiation, filters, ERES, average · formula editor |
| Standard tools | Search, Navigate, History, Mask Test (28,000 decisions/s), DVM, Counter, Waveform Histogram, Bode plot, Double Pulse Test |
| Optional tools | Power Analysis (SDS5000HD-PA / SDS5000L-PA) · Three-phase power analysis, TPPA (-PA3) |
| Display & I/O | |
| Display | SDS5000X HD: 12.1-inch 1280 × 800 capacitive touchscreen, multi-touch · SDS5000L: none, HDMI output |
| Interfaces | 2× USB 3.0 host (1× on the L), USB 2.0 host, USB 3.0 device (USBTMC), 1000M LAN (VXI-11, Telnet 5024, Socket 5025, LXI, web server), HDMI, Ext trig in, Aux out, 10 MHz in/out |
| Remote control | Built-in web server in a browser · SCPI · external mouse and keyboard |
| Data export | Waveforms saved as .bin or CSV · .bin converts to CSV with Siglent’s free FileConverter.exe, downloadable from the built-in web interface |
| General | |
| Power | 100–240 Vrms, 50/60 Hz · 200 W max., 123 W typ., 4 W standby |
| Size / weight, SDS5000X HD | 379 × 288 × 159 mm · 5.5 kg net |
| Size / weight, SDS5000L | 395 × 43.15 × 413.85 mm (1U) · 6.2 kg net |
| Supplied with | One 500 MHz passive probe per channel, USB cable, power cord, quick start, calibration certificate, wireless mouse |
| Warranty | 3 years |
Where it is used
Multi-rail board bring-up
SoC, FPGA and SoM boards have six to twelve rails. Eight channels and deep memory verify the whole sequence, with 12 bits to see the brown-out that an 8-bit scope rounds away.
Power electronics and drives
Three voltages and three currents on one screen with the PA3 key; switching loss, SOA and efficiency with PA; Double Pulse Test for SiC and GaN as standard.
Automotive and aerospace buses
CAN, LIN, I²C, SPI and UART standard; CAN FD, FlexRay, SENT, MIL-STD-1553B, ARINC 429, I²S and Manchester as keys — decoded next to the analogue signals that carry them.
Rack and automated test
The SDS5000L puts the same acquisition system in 1U with no screen: HDMI, web server, LXI and SCPI over Gigabit LAN, and SAPBus inputs for active probes.
Documentation
Data export to CSV: waveform data saved as .bin can be converted to CSV with Siglent’s free FileConverter.exe. The tool runs on Windows without installation and can be downloaded directly from the oscilloscope’s built-in web interface. It also converts .bin files from other Siglent oscilloscopes.
Questions we are asked
Which model do I need?
Count the signals first. Four channels cover most debug; six or eight when you watch all rails of a board or all phases of a drive at once, and the three-phase power key needs six. Then choose the bandwidth — it can be raised later by software key, the channel count cannot.
Are the 6-channel models available?
Yes. The SDS5036X HD, SDS5056X HD and SDS5106X HD are in Siglent’s price list at €8,530, €10,830 and €14,380; ask us for a quote and delivery time.
Is power analysis built in?
No. Bode plot, Double Pulse Test, Mask Test and the measurement suite are standard; single-phase Power Analysis (SDS5000HD-PA, €1,040) and three-phase TPPA (SDS5000HD-PA3, €1,800) are software keys. Both also need a high-voltage differential probe and a current probe.
What is the difference between the SDS5000X HD and the SDS5000L?
The same 12-bit acquisition system. The L is an 8-channel, 1U unit without a screen or digital channels, driven over HDMI, the web server or SCPI — for racks and automated test. It has its own set of software keys (SDS5000L-…).
Can I upgrade the bandwidth later?
Yes, by software key, in one or two steps, with a key per channel count. Going 350 MHz to 1 GHz in one key is €370 cheaper than two steps. The supplied probes are rated 500 MHz, so budget an SP6150A or an active probe with a 1 GHz upgrade.
How deep is the memory really?
2.5 Gpts per channel with two of eight channels active (quarter-channel mode), 1 Gpts with half, 500 Mpts with all eight on. The same rule applies to the sample rate: 5 GSa/s in quarter- and half-channel mode, 2.5 GSa/s with every channel on.
Does the 12-bit resolution hold at full bandwidth?
The ADC is 12-bit at all times; the effective number of bits is 8.2 to 8.6 bit typical depending on bandwidth, and HiRes mode trades bandwidth for up to 16 bits. The 140 µVrms noise floor is what makes the extra bits usable.
Tell us the signals and we will configure it
Channel count, bandwidth, the buses you decode and whether power analysis is in the plan. We will quote the model, keys and probes as one set — including the six-channel models. Official Siglent distributor for the EU.
