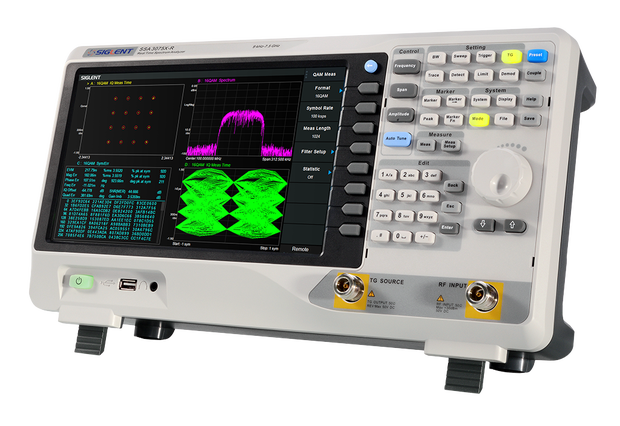

SSA3000X-R Series
A real-time spectrum analyzer that also hides a vector network analyzer inside. Covering 9 kHz to 3.2, 5.0 or 7.5 GHz with up to 40 MHz of real-time bandwidth and a 7.2 µs 100% probability of intercept, it catches the hopping, bursting and colliding signals a swept analyzer misses — shown as density, spectrogram, 3D and power-versus-time. Every model also ships with a 1-path-2-port VNA (vector S11/S21) and a distance-to-fault locator at no extra charge, plus a standard preamplifier, tracking generator and a 10.1-inch multi-touch screen.
Real-Time Spectrum Analyzer
A real-time spectrum analyzer that also hides a vector network analyzer inside. Covering 9 kHz to 3.2, 5.0 or 7.5 GHz with up to 40 MHz of real-time bandwidth and a 7.2 µs 100% probability of intercept, it catches the hopping, bursting and colliding signals a swept analyzer misses — shown as density, spectrogram, 3D and power-versus-time. Every model also ships with a 1-path-2-port VNA (vector S11/S21) and a distance-to-fault locator at no extra charge, plus a standard preamplifier, tracking generator and a 10.1-inch multi-touch screen.
All three models share the same real-time platform, multi-touch interface and remote-control command set, so you choose on frequency — then scale with the RT40 real-time upgrade, modulation, EMI and advanced-measurement licenses as your work grows. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
Real-time analysis
25 MHz standard (40 MHz optional) with a 7.2 µs 100% POI — see transients, hopping and interference a swept sweep skips.
Built-in VNA + DTF
A 1-path-2-port vector network analyzer (S11/S21, 90 dB range) and distance-to-fault locator — included free.
Multi-domain displays
Density, spectrogram, 3D and power-versus-time views to observe complex signals in several dimensions at once.
10.1" multi-touch
A bright capacitive multi-touch screen with standard preamplifier, tracking generator and −165 dBm/Hz DANL.
Models in the series
Choose by frequency — every model includes the VNA, DTF, preamplifier and tracking generator.
Core capabilities
Up to 40 MHz real-time bandwidth, 7.2 µs 100% POI and a 60 dB real-time dynamic range.
Density, spectrogram, 3D and PvT displays plus advanced frequency-mask triggering.
1-path-2-port VNA — vector S11 & S21, 100 kHz–7.5 GHz, 90 dB dynamic range, included.
Time-domain locator for cable and antenna testing — find the fault, not just the mismatch.
Analog AM/FM and digital ASK/FSK/MSK/PSK/QAM vector analysis (option).
CISPR-16 EMI filters and quasi-peak, plus CHP/ACPR/OBW/CNR/harmonic/TOI (options).
Features in depth

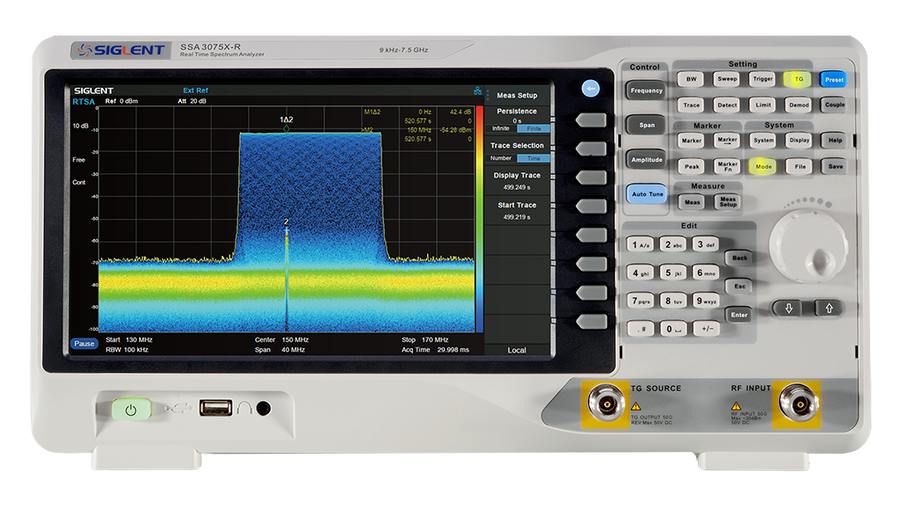

Catch what a swept analyzer misses
With up to 40 MHz of real-time bandwidth and a 7.2 µs 100% probability of intercept, the SSA3000X-R captures rare, fast and overlapping events — then shows them as density, spectrogram, 3D or power-versus-time so nothing hides in the gaps.
- 25 MHz real-time bandwidth standard, 40 MHz optional (RT40)
- 7.2 µs 100% POI · 60 dB real-time dynamic range
- Density, spectrogram, 3D and PvT multi-views
- Frequency-mask and advanced triggering for transient capture

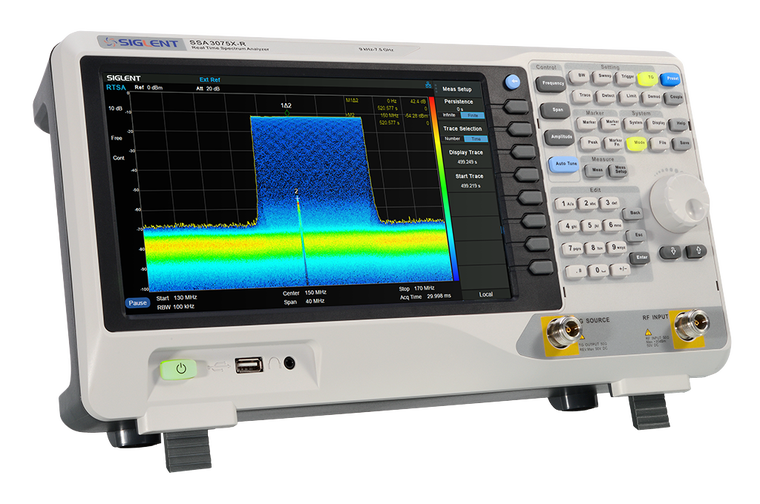

A vector network analyzer, built in
Every SSA3000X-R includes a 1-path-2-port vector network analyzer and a distance-to-fault locator — measure amplitude and phase, vector S11/S21 and locate cable faults without a second instrument.
- Vector S11 & S21, amplitude and phase
- 100 kHz – 7.5 GHz, up to 90 dB dynamic range
- Distance-to-fault for cable & antenna testing
- Standard preamplifier and tracking generator

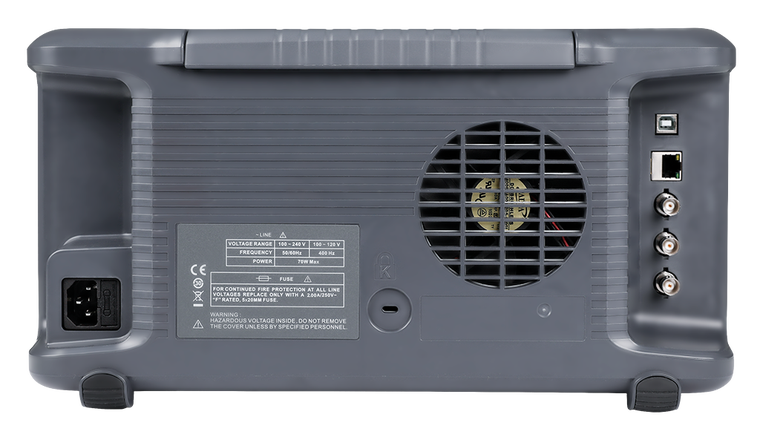

Rear panel, connectivity & automation
LAN, USB and an optional USB-GPIB adapter make the R straightforward to automate; SCPI, LabVIEW and IVI drivers over USB-TMC, VXI-11, Socket or Telnet cover any test framework, and the web server mirrors the screen to any device.
- LAN, USB Device & USB Host (USB-GPIB option)
- SCPI / LabVIEW / IVI remote control
- 10 MHz reference in/out, external trigger
- Web browser, NI-MAX, EasySpectrum & file explorer
Applications
Where the SSA3000X-R Series is at home.
Full specifications
| Frequency range | 9 kHz – 3.2 / 5.0 / 7.5 GHz (by model) |
| Real-time bandwidth | 25 MHz standard · 40 MHz with RT40 option |
| 100% POI | 7.20 µs |
| Real-time dynamic range (SFDR) | 60 dB |
| Real-time displays | Density, spectrogram, 3D, power-versus-time (multi-view) |
| Resolution bandwidth (RBW) | 1 Hz – 3 MHz, 1-3-10 sequence |
| Displayed average noise level | −165 dBm/Hz (typ., preamp on) |
| Phase noise | < −98 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) |
| Third-order intercept (TOI) | +14 dBm |
| Total amplitude accuracy | < 0.7 dB |
| Preamplifier | Standard, 20 dB (nom.) |
| Tracking generator | Standard, 100 kHz – 3.2 / 5.0 / 7.5 GHz |
| Vector network analyzer | 1-path-2-port · vector S11 & S21 · 100 kHz – 7.5 GHz · 90 dB dynamic range (incl.) |
| Distance-to-fault | Time-domain locator for cable & antenna testing (incl.) |
| Modulation analysis (opt.) | Analog AM/FM · digital ASK/FSK/MSK/PSK/QAM |
| Advanced measurement (opt.) | CHP, ACPR, OBW, CNR, harmonic, TOI, spectrum monitor |
| EMI mode (opt.) | CISPR-16 filters, quasi-peak detector, limit lines |
| Traces / display points | 4 traces · 751 points |
| Trigger | Free, video, external, frequency mask (real-time) |
| Display | 10.1-inch TFT LCD, 1024×600, capacitive multi-touch |
| Interfaces | LAN · USB Device · USB Host (USB-GPIB opt.); SCPI/LabVIEW/IVI via USB-TMC/VXI-11/Socket/Telnet |
| Power | 100–240 VAC, 50/60 Hz (400 Hz); 70 W max |
| Dimensions / weight | 393 × 207 × 116.5 mm · 4.7 kg |
| Compliance | EN 61326-1 (EMC) · EN 61010-1 (safety) |
From the official SSA3000X-R Series datasheet (DS0703R); subject to change, errors & omissions excepted.
Licenses & upgrades
The VNA and distance-to-fault functions are included free. Extend further with these licenses — click Buy to open the option in the shop. See the full SSA3000X-R Series license page.
| Kit / option | Order number | Price | Shop |
|---|---|---|---|
| 40 MHz real-time bandwidth upgrade (from 25 MHz) | SSA3000XR-RT40 | €1,255.00 | Buy |
| Advanced measurement kit — CHP, ACPR, OBW, CNR, harmonic, TOI, monitor | SSA3000XR-AMK | €515.00 | Buy |
| EMI pre-compliance kit — CISPR-16 filters, quasi-peak detector, limit lines | SSA3000XR-EMI | €745.00 | Buy |
| Wideband digital modulation analysis — ASK, FSK, MSK, PSK, QAM | SSA3000XR-WDMA | €905.00 | Buy |
| Analog modulation analysis — AM, FM | SSA3000XR-AMA | €425.00 | Buy |
Related & resources
Configure your SSA3000X-R Series
Tell us your frequency range and whether you need the 40 MHz real-time upgrade, modulation analysis or EMI — we’ll quote the right model with the licenses to match.
Frequently asked questions
Frequency range: SSA3032X-R 3.2 GHz, SSA3050X-R 5.0 GHz and SSA3075X-R 7.5 GHz. Everything else — 25 MHz real-time bandwidth, the built-in VNA and DTF, standard preamplifier and tracking generator, multi-touch screen and software — is identical.
It processes a wide slice of spectrum continuously — 25 MHz as standard, 40 MHz with the RT40 option — with a 7.2 µs 100% probability of intercept, so brief, hopping and overlapping signals that a swept analyzer skips are captured and shown as density, spectrogram, 3D or power-versus-time.
Yes. Every SSA3000X-R ships with a 1-path-2-port VNA (vector S11 and S21, up to 90 dB dynamic range) and a distance-to-fault locator for cable and antenna testing — at no extra charge.
RT40 (40 MHz real-time bandwidth), AMK (advanced measurements), AMA (analog AM/FM modulation), WDMA (wideband digital ASK/FSK/MSK/PSK/QAM) and EMI (CISPR-16 pre-compliance).
The R adds true real-time analysis (density/spectrogram/3D/PvT) plus a built-in vector network analyzer and DTF. The Plus is a swept analyzer without real-time capture or the VNA. Both share the 10.1-inch multi-touch platform.
Specifications are taken from the official Siglent SSA3000X-R Series datasheet and are subject to change without notice; errors & omissions excepted. siglent.eu is operated by JRSE B.V., official EU distributor.
