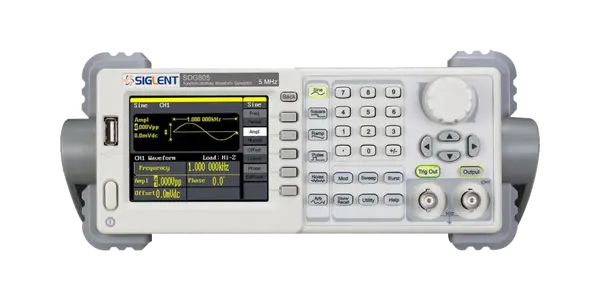

Max. output frequency | 5 MHz | 10 MHz | 30 MHz |
Output channels | 1 | 1 | 1 |
Sample rate | 125MSa/s | 125MSa/s | 125MSa/s |
Waveform length | 16kpts | 16kpts | 16kpts |
Frequency resolution | 1μHz | 1μHz | 1μHz |
vertical resolution | 14bits | 14bits | 14bits |
Waveform | Sine, Square, Ramp,Pulse, ,,Gaussian Noise. 46 built-in ,,arbitrary waveforms(include DC) | Sine, Square, Ramp,Pulse, ,,Gaussian Noise. 46 built-in ,,arbitrary waveforms(include DC) | Sine, Square, Ramp,Pulse, ,,Gaussian Noise. 46 built-in ,,arbitrary waveforms(include DC) |
Modulation | AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst | AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst | AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst |
Standard interface | USB Host & USB Device | USB Host & USB Device | USB Host & USB Device |
Bandwidth | 30 MHz | 60 MHz |
Sampling rate | 150 MSa/s | 150 MSa/s |
Vertical resolution | 14-bit | 14-bit |
Waveform Length | 16 kpts | 16 kpts |
Num. of channels | 2 | 2 |
Max. amplitude | ±10 V | ±10 V |
Display | 4.3” display, 480 x 272 x RGB | 4.3” display, 480 x 272 x RGB |
Interface | Standard: USB Host, USB Device, LAN | Standard: USB Host, USB Device, LAN |

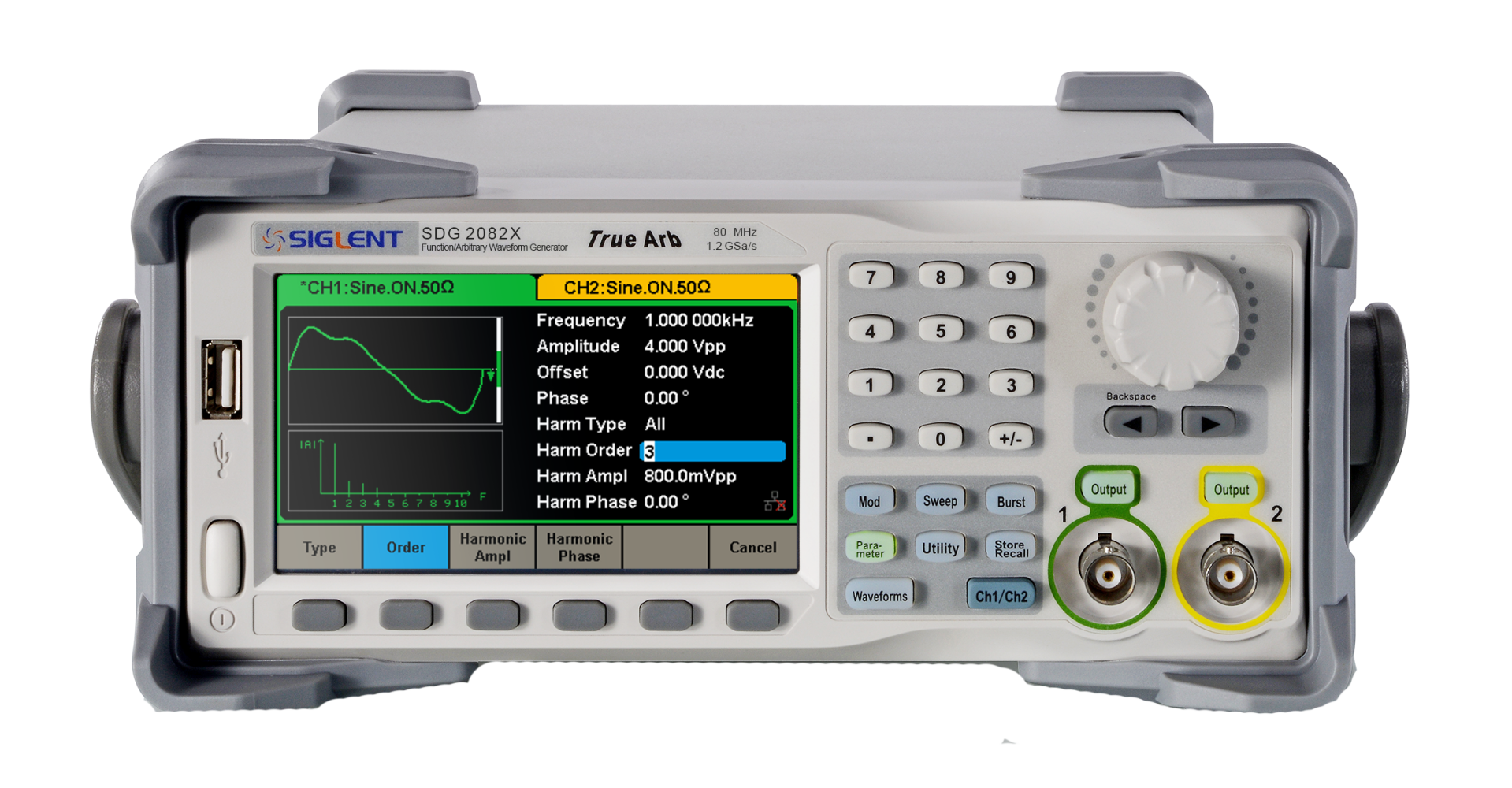

Bandwidth | 40 MHz | 80 MHz | 120 MHz |
Sampling rate | 1.2 GSa/s (4X Interpolation) | 1.2 GSa/s (4X Interpolation) | 1.2 GSa/s (4X Interpolation) |
Vertical resolution | 16 bit | 16 bit | 16 bit |
Num. of channels | 2 | 2 | 2 |
Max. amplitude | ±10V | ±10V | ±10V |
Display | 4.3” touch screen display, 480 x 272 x RGB | 4.3” touch screen display, 480 x 272 x RGB | 4.3” touch screen display, 480 x 272 x RGB |
Interface | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) |

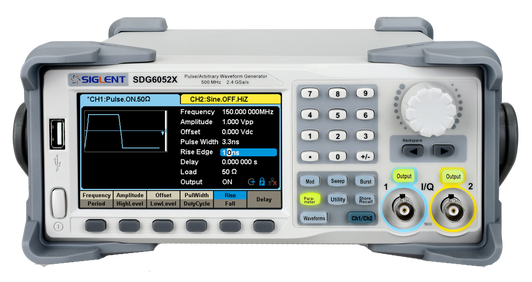

Bandwidth | 200 MHz | 350 MHz | 500 MHz |
Sampling rate | 2.4 GSa/s (2X Interpolation) | 2.4 GSa/s (2X Interpolation) | 2.4 GSa/s (2X Interpolation) |
Vertical resolution | 16 bit | 16 bit | 16 bit |
Num. of channels | 2 | 2 | 2 |
Arbitrary waveform length | 2 ~ 20 Mpts | 2 ~ 20 Mpts | 2 ~ 20 Mpts |
Display | 4.3” touch screen display, 480 x 272 x RGB | 4.3” touch screen display, 480 x 272 x RGB | 4.3” touch screen display, 480 x 272 x RGB |
Interface | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) | Standard: USB Host, USB Device, LAN Optional: GPIB (USB-GPIB adaptor) |

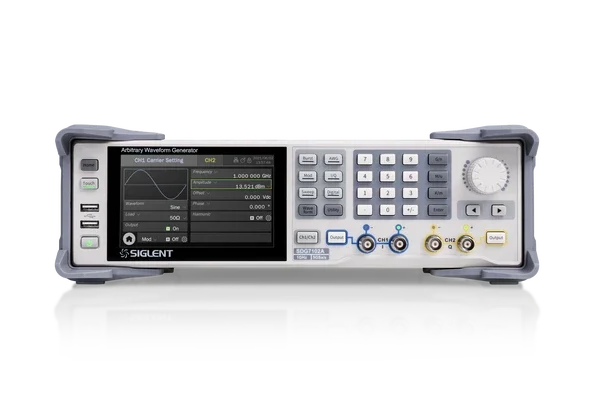

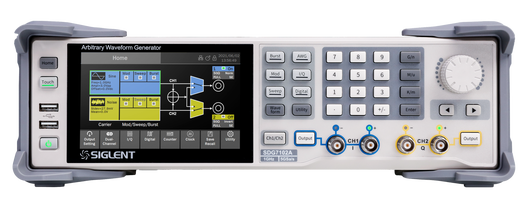

Bandwidth | 1 GHz | 500 MHz | 350 MHz |
Sample rate | 5 GSa/s | 5 GSa/s | 5 GSa/s |
Vertical resolution | 14-bit | 14-bit | 14-bit |
Number of channels | 2 Differential/Single-ended | 2 Differential/Single-ended | 2 Differential/Single-ended |
Arbitrary waveform | 0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback | 0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback | 0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback |
Vector signal (Optional) | 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing | 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing | 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing |
Continuous waveform | Up to 1GHz, supports harmonic generation function | Up to 1GHz, supports harmonic generation function | Up to 1GHz, supports harmonic generation function |
Pulse | Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable | Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable | Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable |
