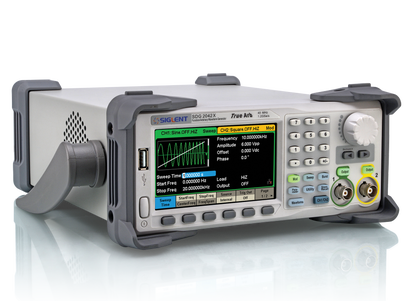

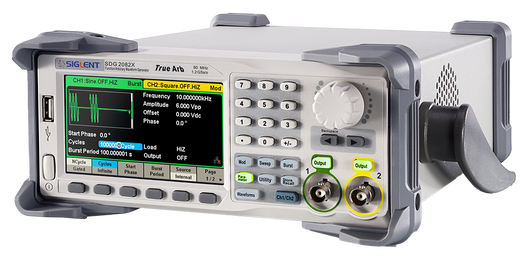

SDG2000X Series
A dual-channel function/arbitrary generator with up to 120 MHz bandwidth, 1.2 GSa/s sampling and 16-bit resolution. Proprietary TrueArb and EasyPulse technologies deliver high-fidelity, low-jitter signals with a 20 Vpp output and a 4.3-inch touchscreen.
Overview

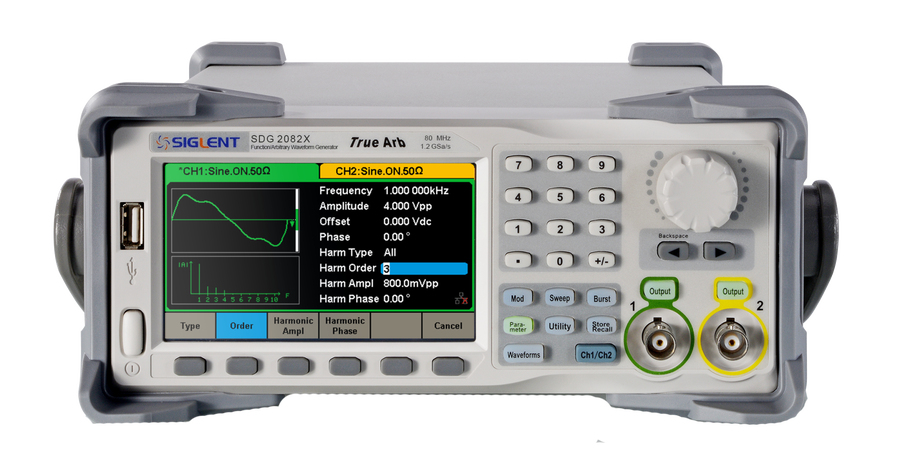

The SDG2000X series is a dual-channel function/arbitrary waveform generator. With up to 120 MHz bandwidth, a 1.2 GSa/s sample rate and 16-bit vertical resolution, it reconstructs waveforms accurately with low distortion.
Siglent's proprietary TrueArb and EasyPulse technologies solve the weaknesses inherent in traditional DDS generators: TrueArb plays arbitrary waveforms point-by-point without skipping, and EasyPulse produces low-jitter square and pulse waveforms with fine width and rise/fall control. A 20 Vpp output and an 80 dB dynamic range round out a versatile bench instrument.

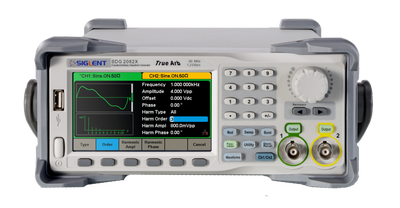

Three models share identical performance and differ only in bandwidth: the SDG2042X (40 MHz), SDG2082X (80 MHz) and SDG2122X (120 MHz). Each provides a wide range of analog and digital modulation, sweep, burst, a high-precision frequency counter and 196 built-in arbitrary waveforms.
From R&D and education to communications and general signal simulation, the SDG2000X delivers high-fidelity, low-jitter signals from a single dual-channel instrument.
As the official Siglent distributor for Europe, we hold the SDG2000X in EU stock and back every unit with local warranty, optional ISO/DKD calibration and expert application support.
At a glance
- Type
- Function / arbitrary generator
- Models
- SDG2042X · 2082X · 2122X
- Channels
- 2
- Max bandwidth
- Up to 120 MHz
- Display
- 4.3-inch touch · 480×272
- Availability
- EU stock
Key highlights
Up to 120 MHz
Dual-channel output to 120 MHz for a wide range of signals.
1.2 GSa/s · 16-bit
High sample rate and resolution for accurate, low-distortion waveforms.
20 Vpp output
Large 20 Vpp amplitude (HiZ) with an 80 dB dynamic range.
TrueArb & EasyPulse
Point-by-point arbitrary playback and low-jitter square/pulse output.
Rich modulation
AM, DSB-AM, FM, PM, ASK, FSK, PSK and PWM, plus sweep and burst.
196 arbs · 4.3-inch touch
196 built-in arbitrary waveforms on a 4.3-inch touchscreen.
Core capabilities
TrueArb & EasyPulse
Point-by-point arbitrary playback (8 pts–8 Mpts, 1 µSa/s–75 MSa/s) that never skips a point, plus low-jitter square/pulse output with pulse widths down to 16.3 ns and independently adjustable rise/fall edges from 8.4 ns.
Modulation, sweep & burst
A full set of analog and digital modulation — AM, DSB-AM, FM, PM, ASK, FSK, PSK and PWM — with internal or external sources, plus linear/log sweep, N-cycle/infinite/gated burst and harmonic generation up to the 10th order.
High-precision frequency counter
A built-in frequency counter measures frequency, period, positive/negative pulse width and duty cycle over a 0.1 Hz–200 MHz range, with AC, DC and HF-reject coupling.
Arbitrary waveform editing
196 built-in arbitrary waveforms, plus the free EasyWaveX PC software for creating and editing custom waveforms by manual drawing, line, equation or coordinate entry.
Models in the series
Identical performance — choose your bandwidth.
Specifications
Key specs across the SDG2000X series (SDG2042X / SDG2082X / SDG2122X).
- Max sine frequency
- 120 / 80 / 40 MHz
- Channels
- 2
- Frequency resolution
- 1 µHz
- Max output amplitude
- 20 Vpp (HiZ) · ±10 V
- Square / pulse max
- 25 MHz / 25 MHz
- Output impedance
- 50 Ω
- Max sample rate
- 1.2 GSa/s (4× interpolation)
- TrueArb rate
- 1 µSa/s – 75 MSa/s
- Vertical resolution
- 16-bit
- Arbitrary memory
- 8 Mpts/ch
- Arb waveform length
- 8 pts – 8 Mpts
- Standard
- Sine, Square, Pulse, Ramp, Noise, DC, Arb
- Built-in arbitrary
- 196 waveforms
- Pulse min width / edge
- 16.3 ns / 8.4 ns
- Pulse/square jitter
- 150 ps
- Sine THD
- 0.075%
- Harmonics
- Up to 10th order
- Analog / digital
- AM, DSB-AM, FM, PM, ASK, FSK, PSK, PWM
- Sweep
- Linear / log · up / down
- Burst
- N-cycle / infinite / gated
- AM modulation depth
- 0 – 120%
- Frequency counter
- 0.1 Hz – 200 MHz
- Interfaces
- USB host · USB device · LAN · GPIB opt.
- Display
- 4.3-inch touch · 480×272
- Frequency counter
- Up to 200 MHz
- Reference clock
- 10 MHz in/out · ±1 ppm
- Power
- 100–240 V · up to 50 W
- Dimensions / weight
- 260 × 107 × 296 mm · 3.43 kg
Amplitude figures are into a HiZ load (halved into 50 Ω). The GPIB interface (via USB-GPIB adapter), a 20 dB attenuator and the SPA1010 10 W power amplifier are optional accessories. Ask us for a configured quote. Full specifications in the datasheet below.
Software & control
Operate from the 4.3-inch touch screen, design waveforms on your PC, or drive the instrument over USB/LAN for automated test.
EasyWaveX
Free PC waveform editor — build and edit custom arbitrary waveforms with manual, line, equation and coordinate modes.
Remote control & SCPI
USBTMC and LAN (VXI-11) interfaces with a full SCPI command set; GPIB available via the optional USB-GPIB adapter.
Resources & downloads

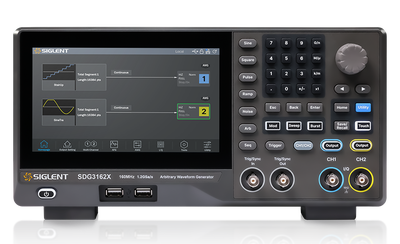

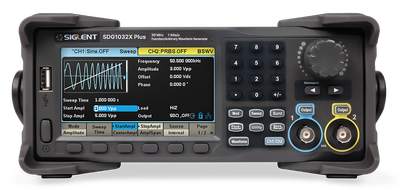

Related series
Configure your SDG2000X
Tell us your required bandwidth (40, 80 or 120 MHz) and whether you need the GPIB adapter or other accessories — we'll quote the right SDG2042X, SDG2082X or SDG2122X.
Specifications are based on the manufacturer's official datasheet and are provided for guidance only. While we take great care to keep this information accurate and up to date, specifications, options, availability and pricing are subject to change without notice, and errors or omissions may occur. The official Siglent datasheet remains the definitive reference — please contact us to confirm any detail before ordering.
