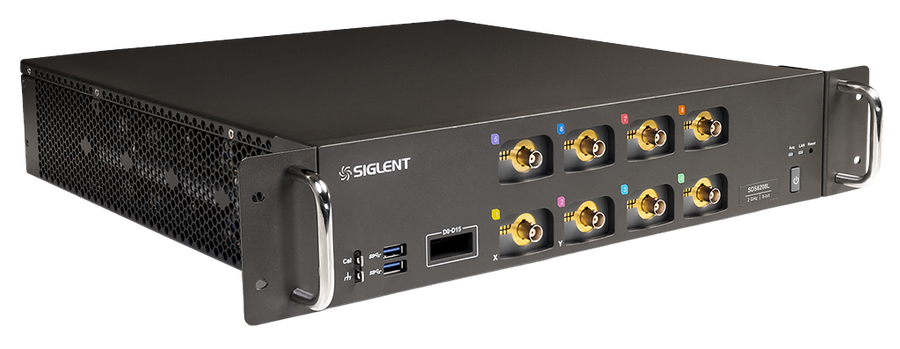

SDS6000L
13 license & upgrade options for the SDS6000L — serial decode, power analysis, function generator. Each is activated with a software key (hardware noted where included).
All instruments

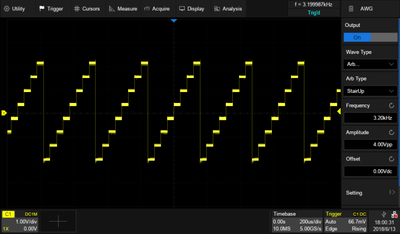

Activates the built-in function and arbitrary waveform generator inside the oscilloscope.

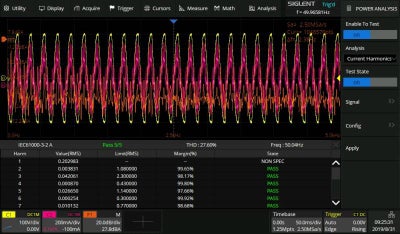

Adds switching loss, safe operating area, harmonics and efficiency measurement to the oscilloscope.

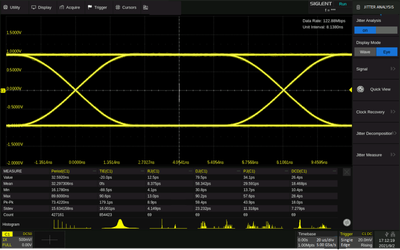

Adds eye-diagram construction and jitter decomposition into random and deterministic components.

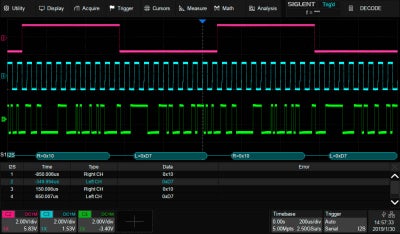

Trigger and decode for I²S audio and its LJ, RJ and TDM variants, as left/right sample values.

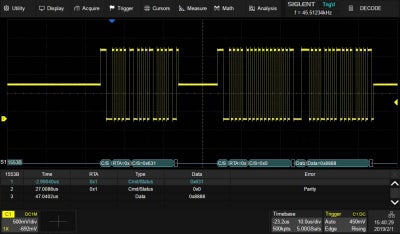

Trigger and decode for the MIL-STD-1553B avionics bus — command, status and data words.
Trigger and decode for the time-triggered FlexRay automotive bus, with cycle and slot structure.

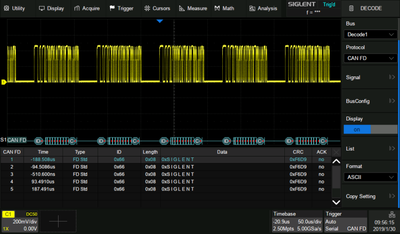

Hardware trigger and on-screen decode for CAN FD, including the arbitration-to-data bit-rate switch.

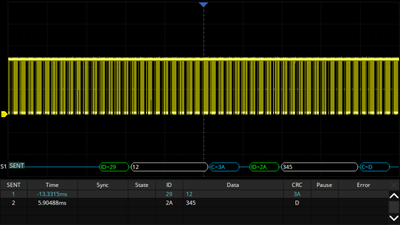

Trigger and decode for SENT (SAE J2716) automotive sensors, which encode data in edge timing.

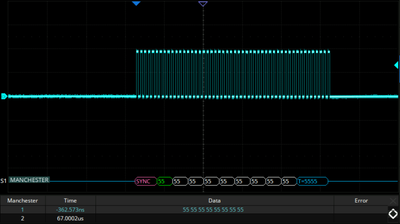

Trigger and decode for Manchester-encoded self-clocking serial data.
CAN XL decode in SIC and Fast mode, XL data phase to 20 Mbps — decode only.
SpaceWire decode from 2 to 400 Mbps, as characters or packets — decode only.
USB 2.0 decode at low, full and high speed — packets, tokens, handshakes and data, decode only.
Trigger and decode for ARINC 429 avionics words — label, SDI, data, SSM and parity.
Prices are per license and may exclude VAT; confirmed at checkout. Some options require a compatible firmware version or hardware (e.g. a logic probe for MSO) — see each product. Software licenses & activation keys are delivered electronically and are excluded from the 14-day EU return right once the key has been issued. Errors & omissions excepted.
Not sure which SDS6000L license you need?
Tell us your serial number and what you want to measure — we'll confirm the exact license and quote it, including for several units.
