SPS5000X Series
A wide-range programmable switching DC power supply family — thirteen models from 40 to 160 V and 180 to 1080 W, in single-, dual- and triple-channel versions. Each supply delivers its full rated power across a wide range of voltage and current combinations (constant-power output), so one instrument covers many operating points. Add series and parallel operation up to 320 V, 270 A and 3240 W, 1 mV / 1 mA resolution, a 50-step list mode, analog control and an embedded web server, and the SPS5000X scales from the teaching bench to automated production test.
Programmable Switching DC Power Supply
A wide-range programmable switching DC power supply family — thirteen models from 40 to 160 V and 180 to 1080 W, in single-, dual- and triple-channel versions. Each supply delivers its full rated power across a wide range of voltage and current combinations (constant-power output), so one instrument covers many operating points. Add series and parallel operation up to 320 V, 270 A and 3240 W, 1 mV / 1 mA resolution, a 50-step list mode, analog control and an embedded web server, and the SPS5000X scales from the teaching bench to automated production test.
Every model shares the same platform, OLED interface and command set, so you choose on voltage, power and channel count — then scale with series/parallel operation and rack mounting as your needs grow. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
Wide-range constant power
Full rated power across a wide voltage/current range — one supply covers the operating points a rectangular V×I supply can’t.
Up to 160 V / 1080 W
High-power-density switch-mode design from 180 W to 1080 W, with 40, 50, 80 and 160 V models.
Series & parallel
Combine units for 0–320 V (2 in series) or 0–270 A (3 in parallel) — up to 3240 W.
Programmable & connected
50-step list mode, adjustable slew rate, CV/CC priority, analog control and an embedded web server.

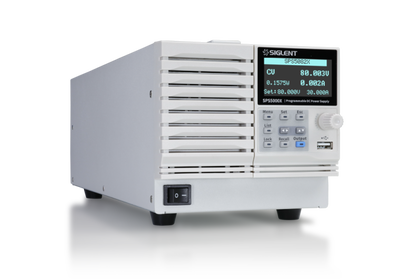

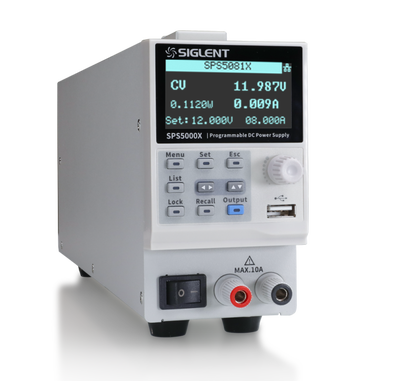

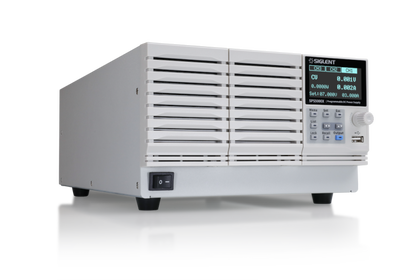

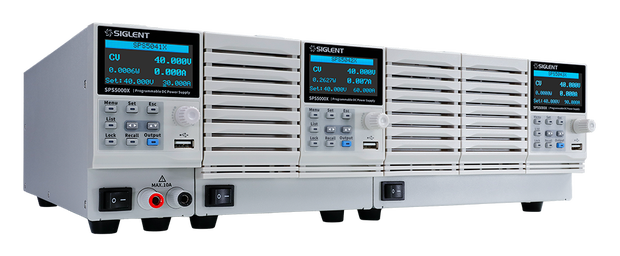

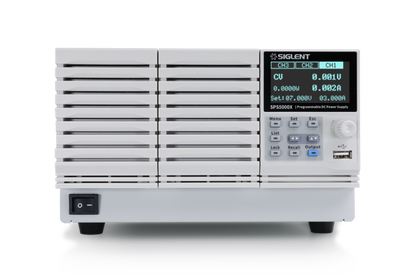

Models in the series
Fifteen models by voltage, power and channel count — every model shares the same platform and software (×2 / ×3 = per-channel rating on multi-channel models).
Core capabilities
Rated power is available across a broad V/I envelope, covering more operating points from a single supply.
Single high-power outputs plus isolated dual- and triple-channel models for multi-rail work.
Fine setting and readback resolution with ±0.1% setting accuracy for precise, repeatable tests.
Up to 50 steps, built on the front panel or imported from USB; adjustable slew rate and CV/CC priority.
2 units in series to 320 V, 3 in parallel to 270 A — up to 3240 W combined.
OVP, OCP, LPP and OTP with an internal discharge circuit; analog voltage/resistor programming.
Features in depth

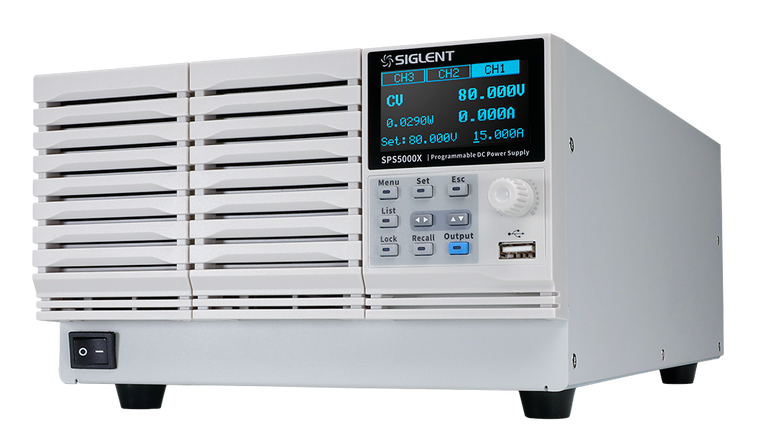

Wide-range, constant-power output
Instead of one fixed voltage-times-current rectangle, each SPS5000X delivers its full rated power over a wide range of voltage and current combinations. A single 360 W model, for example, supplies high current at low voltage or high voltage at low current — so one supply covers jobs that would otherwise need several.
- Full rated power across a wide V/I envelope
- Fewer supplies to cover the same set of test points
- 1 mV / 1 mA resolution, ±0.1% setting accuracy
- CV/CC priority selection and adjustable slew rate

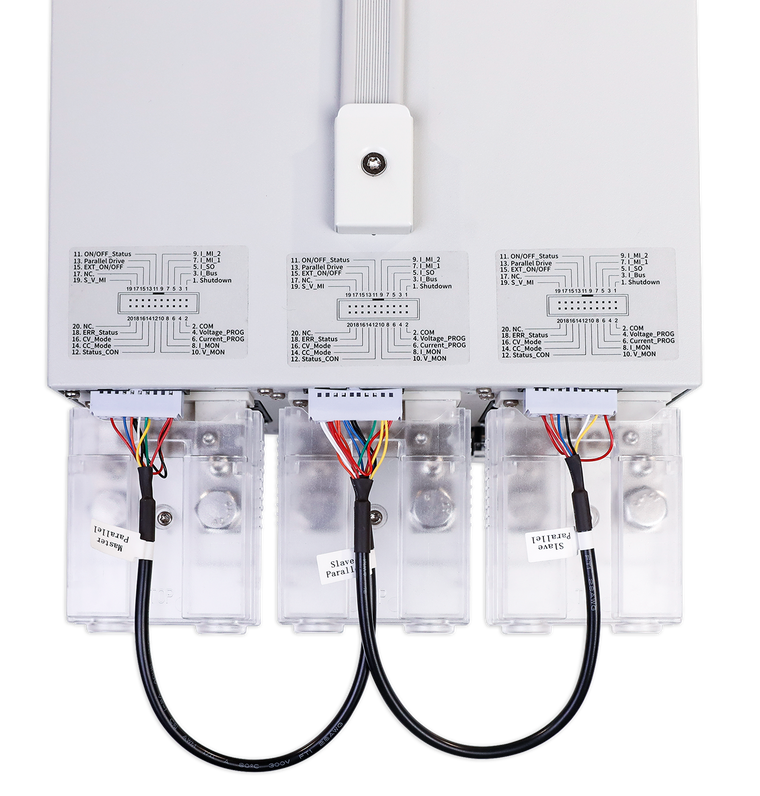

Series & parallel — scale to 320 V / 270 A
Need more voltage or current than one unit gives? Connect two supplies in series for up to 320 V, or three in parallel for up to 270 A — a combined 3240 W — and drive it all as one output.

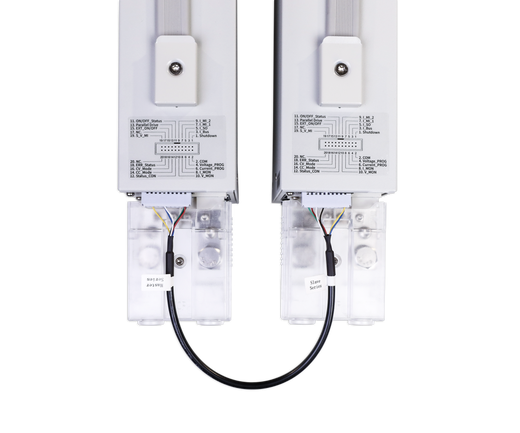

- Series (2 units): 0 – 320 V

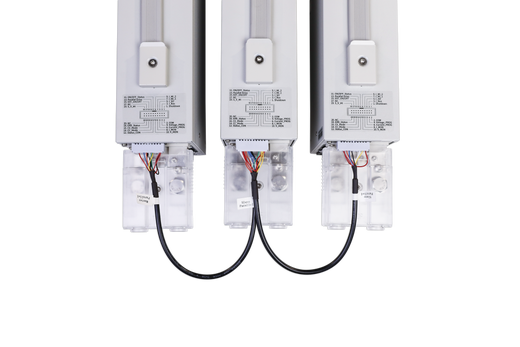

- Parallel (3 units): 0 – 270 A
- Up to 3240 W combined power
- High-power-density switch-mode design

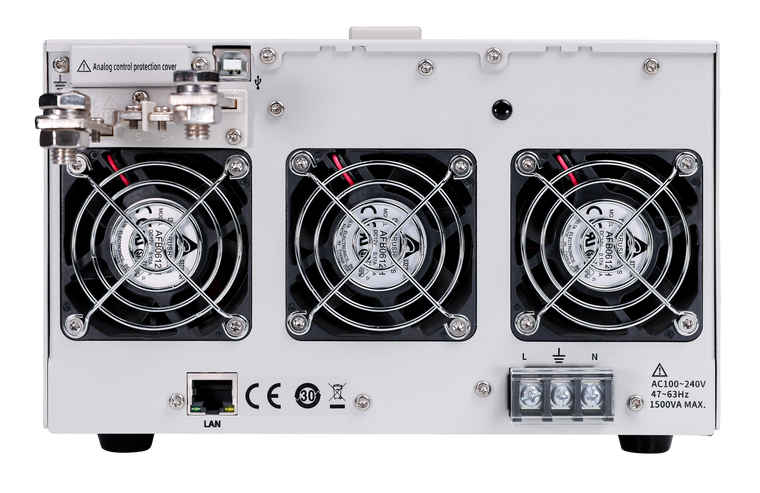

Rear panel, programmable & connected
The rear panel carries the remote-control and analog interfaces that make the SPS5000X easy to automate and rack-mount. USB, LAN with an embedded web server and an analog-control interface are standard, with an optional USB-GPIB module.
- USB, LAN (LXI, embedded web server) & analog control standard
- Analog voltage / resistor programming of V, I, OVP & OCP
- Optional USB-GPIB module; rack-mount kit (SPS5000X-RMK)
- High-brightness OLED display, 170° viewing angle
Applications
Where the SPS5000X Series fits.
Full specifications
| Output voltage (rated) | 40 / 50 / 80 / 160 V (by model) |
| Output power | 180 / 360 / 720 / 1080 W (by model) |
| Channels | 1, 2 or 3 (isolated) depending on model |
| Output characteristic | Wide-range constant power (auto-ranging), switch-mode |
| Setting resolution | 1 mV / 1 mA |
| Setting accuracy | Voltage ±0.1% ±(10–100 mV) · Current ±0.1% ±(5–100 mA) |
| Readback accuracy | Voltage ±0.1% ±(20–100 mV) · Current ±0.1% ±(5–100 mA) |
| List / sequence mode | Up to 50 steps (front panel or USB import) |
| Operating modes | CV / CC with selectable priority · adjustable slew rate |
| Series operation | 2 units → 0 – 320 V |
| Parallel operation | 3 units → 0 – 270 A |
| Max. combined power | 3240 W |
| Protection | OVP · OCP · LPP · OTP + user internal discharge circuit |
| External control | Analog voltage & resistor programming of V / I and OVP / OCP |
| Display | High-brightness OLED, 170° viewing angle |
| Interfaces | USB · LAN (LXI, embedded web server) · analog control; USB-GPIB (optional) |
| Rack mount | SPS5000X-RMK — ½, ⅓ and ⅙ rack widths |
| Standard accessories | USB cable · country-specific power cord |
From the official SPS5000X Series datasheet; per-model values vary. Subject to change, errors & omissions excepted.
Accessories & downloads
Related & resources
Configure your SPS5000X Series
Tell us the voltage, current and channel count you need — and whether you’ll series/parallel or rack-mount — and we’ll quote the right model.
Frequently asked questions
Rather than a single fixed voltage × current rectangle, each SPS5000X delivers its full rated power across a wide range of voltage and current combinations. One 360 W supply can therefore give high current at low voltage or high voltage at low current — covering operating points that would otherwise need several supplies.
Fifteen models: rated 40, 50, 80 or 160 V with 180, 360, 720 or 1080 W, in single-, dual- or triple-channel versions. Pick the voltage and power your load needs, and a multi-channel model if you need several isolated rails.
Yes. Two units in series reach 0–320 V, three in parallel reach 0–270 A, for up to 3240 W combined — controlled as a single output.
USB, LAN with an embedded web server and an analog-control interface are standard, with an optional USB-GPIB module. A 50-step list mode, adjustable slew rate and CV/CC priority cover automated and sequenced testing.

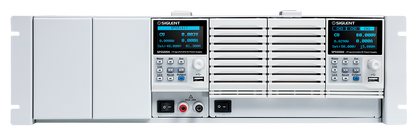

Yes — the SPS5000X-RMK rack-mount kit supports ½, ⅓ and ⅙ rack widths so single or multiple supplies fit a standard 19-inch rack.
Specifications are taken from the official Siglent SPS5000X Series datasheet and are subject to change without notice; errors & omissions excepted. siglent.eu is operated by JRSE B.V., official EU distributor.
