SDS800X HD
3 license & upgrade options for the SDS800X HD — MSO, power analysis. Each is activated with a software key (hardware noted where included).
All instruments

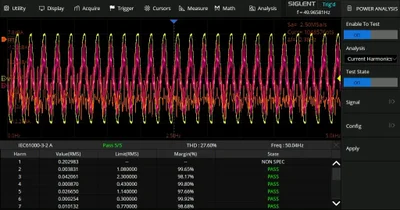

Adds a dedicated power-analysis application to the oscilloscope: switching loss, safe operating area, harmonics, power quality, modulation, inrush current and efficiency, computed from a synchronised voltage and current channel with the results tabulated rather than left as raw waveforms.
Turns the general-purpose oscilloscope into a power-supply test instrument, so switching-converter measurements can be made repeatably against a defined method instead of by hand with cursors.
An engineer qualifying a 65 W USB-C charger needs switching loss per cycle across the load range. By hand that is hours of cursor work and a spreadsheet; with the option the scope reports turn-on, turn-off and conduction loss directly, and the same measurement can be repeated identically on the next unit off the line.

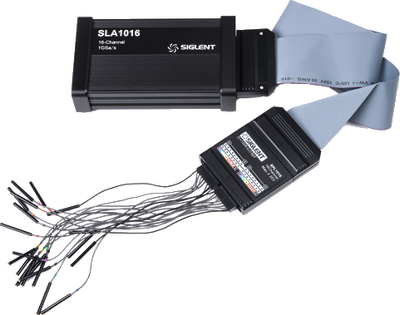

The 16-channel logic probe hardware for the entry and mid-range four-channel oscilloscopes, supplied with its interface cable, flying leads and grabber clips. 100 kΩ input, ±10 V range, 120 Mbps, 8.3 ns minimum pulse width.
The physical half of mixed-signal capability — the probe that brings sixteen digital channels into the oscilloscope alongside the analogue ones.
Bringing up a new board, an engineer watches a reset line, a chip select and a full SPI bus at once against the supply rail, and finds the reset releasing three clocks earlier than the memory datasheet allows.

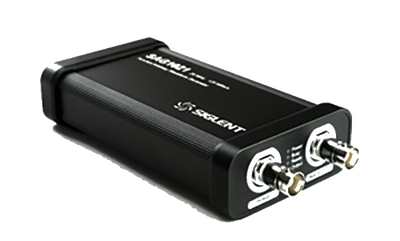

An external isolated USB arbitrary waveform generator module that the oscilloscope powers and drives over one lead. 25 MHz, 125 MSa/s, 14-bit, with a galvanically isolated output rated ±42 Vpk.
Provides the stimulus source that the oscilloscope's Bode-plot and frequency-response software needs, with isolation good enough to inject into a live power supply's feedback path.
Measuring the loop response of a running SMPS, the isolated output is connected across an injection resistor in the feedback path — a connection that would short part of the circuit through the mains if an earthed bench generator were used.
Prices are per license and may exclude VAT; confirmed at checkout. Some options require a compatible firmware version or hardware (e.g. a logic probe for MSO) — see each product. Software licenses & activation keys are delivered electronically and are excluded from the 14-day EU return right once the key has been issued. Errors & omissions excepted.
Not sure which SDS800X HD license you need?
Tell us your serial number and what you want to measure — we'll confirm the exact license and quote it, including for several units.
