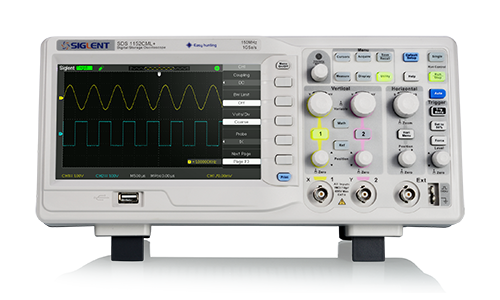

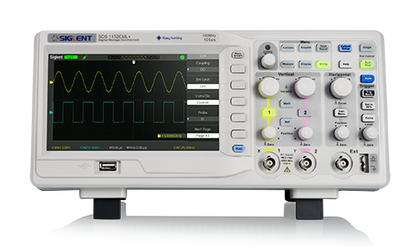

Bandwidth 50 MHz 70 MHz 100 MHz 150 MHz
Sampling Rate (Max.) 500 MSa/s 1 GSa/s 1 GSa/s 1 GSa/s
Channels 2+EXT 2+EXT 2+EXT 2+EXT
Memory Depth (Max.) 32 Kpts 2 Mpts 2 Mpts 2 Mpts
Trigger Types Edge, Pulse, Video, Slope, Alternate Edge, Pulse, Video, Slope, Alternate Edge, Pulse, Video, Slope, Alternate Edge, Pulse, Video, Slope, Alternate
I/O USB Host, USB Device, LAN, Pass/Fail USB Host, USB Device, LAN, Pass/Fail USB Host, USB Device, LAN, Pass/Fail USB Host, USB Device, LAN, Pass/Fail
Probe (Std) 2 pcs passive probe, PB470 2 pcs passive probe, PB470 2 pcs passive probe, PP510 2 pcs passive probe, PP215
Display 7 inch TFT LCD (800x480) 7 inch TFT LCD (800x480) 7 inch TFT LCD (800x480) 7 inch TFT LCD (800x480)

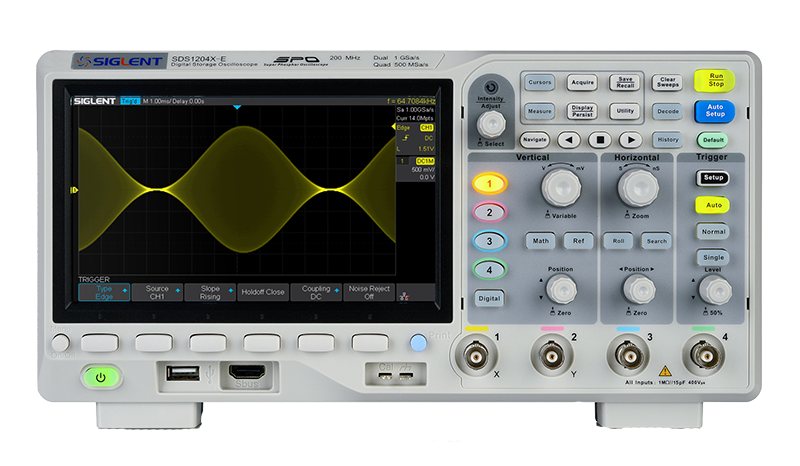

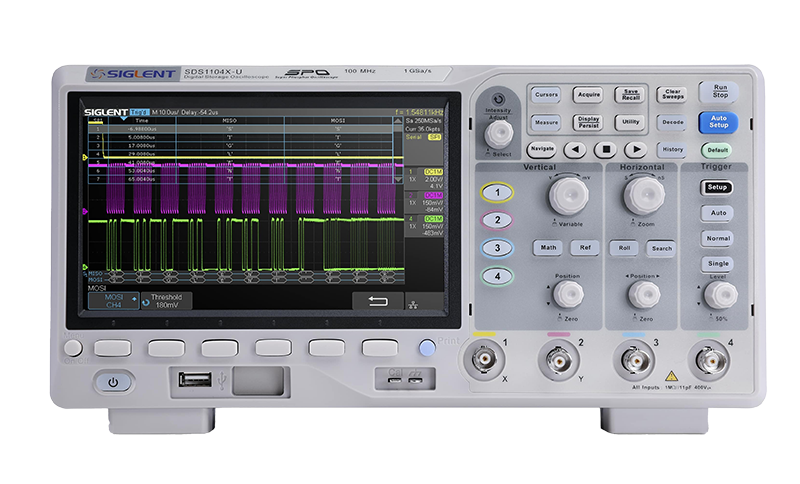

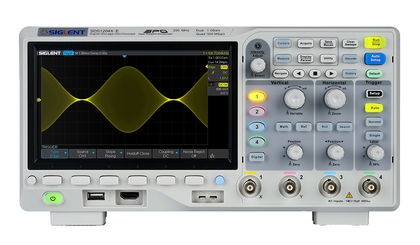

Bandwidth 200 MHz 100MHz 100 MHz 200 MHz
Sampling Rate (Max.) single channel 1 GSa/s - 2 channels 500 MSa/s. single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC ) single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC ) single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC )
Channels 2 4 4 4
Memory Depth (Max.) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe, PP215 4 pcs passive probe, PP510 4 pcs passive probe, PP510 4 pcs passive probe, PP215
Display 7 inch TFT -LCD (800x480) 7 inch TFT -LCD (800x480) 7 inch TFT -LCD (800x480) 7 inch TFT -LCD (800x480)

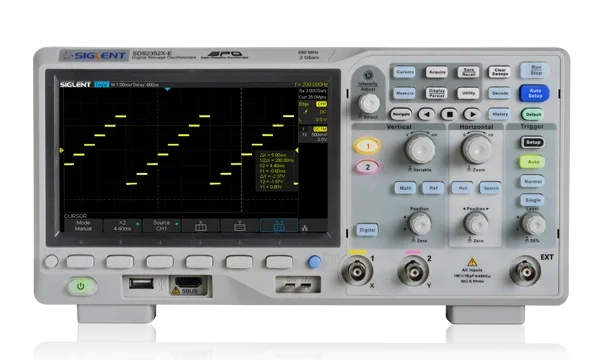

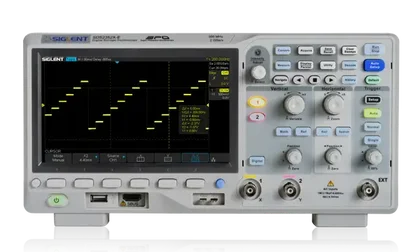

Bandwidth 200 MHz 350 MHz
Sampling Rate (Max.) 2 GSa/s 2 GSa/s
Channels 2 2
Memory Depth (Max.) 14 Mpts/CH (not interleave mode); 28 Mpts/CH (interleave mode) 14 Mpts/CH (not interleave mode); 28 Mpts/CH (interleave mode)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe, PP215 2 pcs passive probe, PP215
Display 7 inch TFT -LCD (800x480) 7 inch TFT -LCD (800x480)

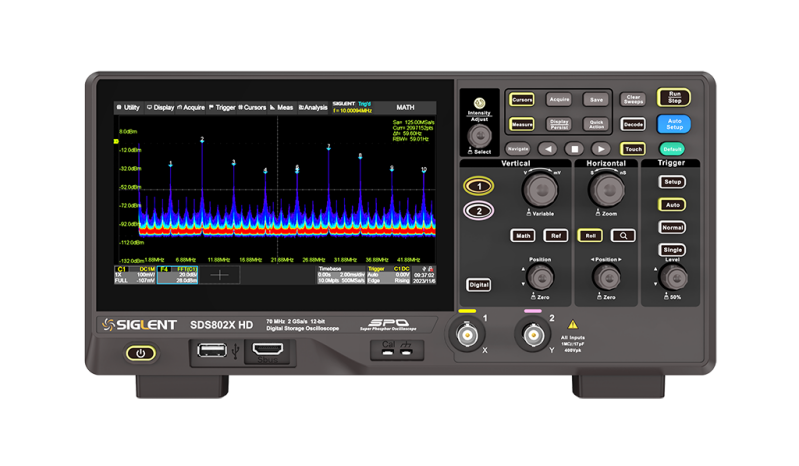

Bandwidth 70MHz 100 MHz 200 MHz
Vertical resolution 12-bit 12-bit 12-bit
Sampling Rate (Max.) single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC ) single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC ) single channel 1 GSa/s - 2 channels 500 MSa/s. CH 1-2 3-4 ( share ADC )
Channels 2 2 2
Memory Depth (Max.) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode) 7 Mpts/CH (not interleave mode); 14 Mpts/CH (interleave mode)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe, PP510 2 pcs passive probe, PP510 2 pcs passive probe, PP215
Display 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600) 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600) 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600)

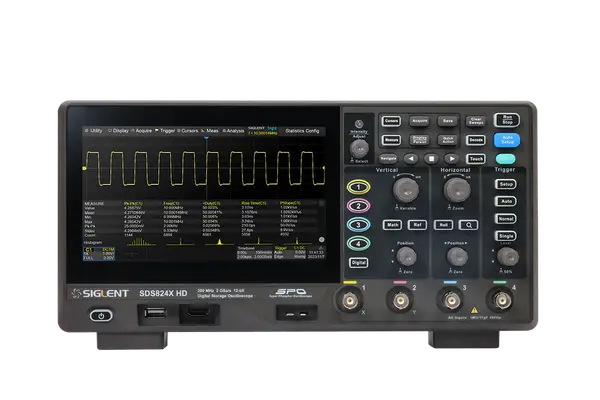

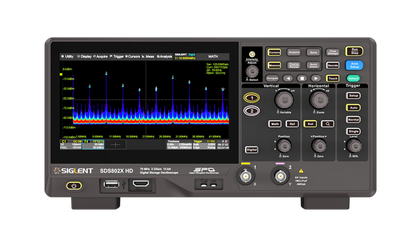

Bandwidth 70MHz 100 MHz 200 MHz
Vertical resolution 12-bit 12-bit 12-bit
Sampling Rate (Max.) One channel mode: 2 GSa/s,.. Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s One channel mode: 2 GSa/s,.. Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s One channel mode: 2 GSa/s,.. Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s
Channels 4 4 4
Memory Depth (Max.) One channel mode: 50 Mpts/ch, Two channel mode: 25 Mpts/ch, Four channel mode: 10 Mpts/ch One channel mode: 50 Mpts/ch, Two channel mode: 25 Mpts/ch, Four channel mode: 10 Mpts/ch One channel mode: 100 Mpts/ch, Two channel mode: 50 Mpts/ch, Four channel mode: 25 Mpts/ch
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 4 pcs passive probe, PP510 4 pcs passive probe, PP510 4 pcs passive probe, PP215
Display 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600) 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600) 7 inch TFT -LCD (800x480)7 TFT-LCD with capacitive touch screen (1024*600)

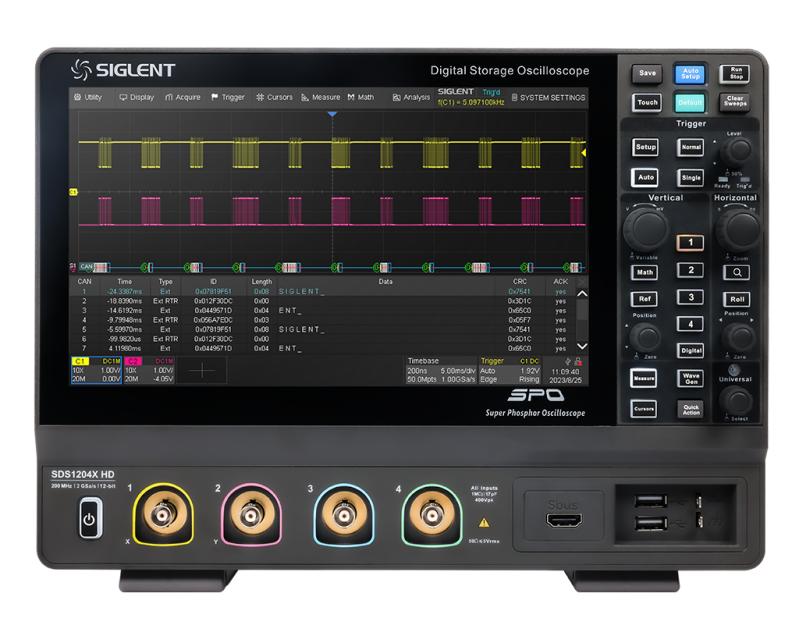

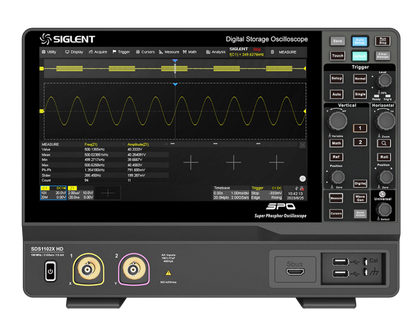

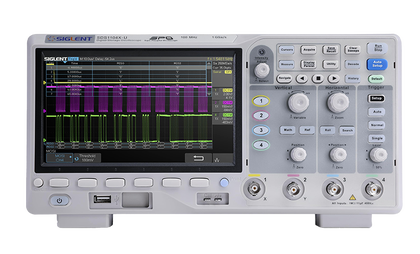

Bandwidth 100 MHz 100MHz 200 MHz 200 MHz
Vertical resolution 12-bit 12-bit 12-bit 12-bit
Sampling Rate (Max.)
Channels 2 4 2 4
Memory Depth (Max.)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe, PP215 4 pcs passive probe, PP510 2 pcs passive probe, PP510 4 pcs passive probe, PP215
Display
Bandwidth 100 MHz 100MHz 200 MHz 350 MHz
Vertical resolution
Sampling Rate (Max.)
Channels 2 4 4 4
Memory Depth (Max.)
Trigger Types Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO) USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO)
Probe (Std) 2 pcs passive probe, PP215 4 pcs passive probe, PP510 2 pcs passive probe, PP510 4 pcs passive probe, PP215
Display

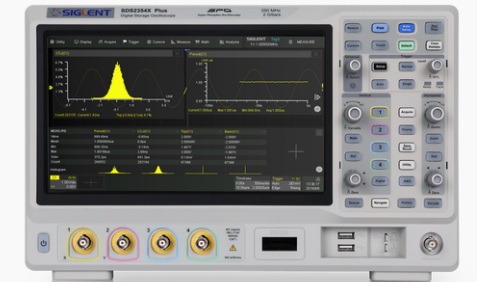

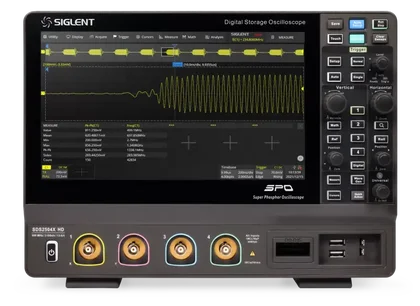

Bandwidth 200 MHz 350 MHz
Vertical resolution 12-bit 12-bit
Sampling Rate (Max.) 2 GSa/s (interleaving mode）, 1 GSa/s (non-interleaving mode) 2 GSa/s (interleaving mode）, 1 GSa/s (non-interleaving mode)
Channels 4 4
Memory Depth (Max.) 200 Mpts/ch (interleaving mode)，100 Mpts/ch (non-interleaving mode) 200 Mpts/ch (interleaving mode)，100 Mpts/ch (non-interleaving mode)
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge,Setup/hold, Delay, Serial Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge,Setup/hold, Delay, Serial
I/O USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL) USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe (Std) One 500 MHz passive probe supplied for each channel One 500 MHz passive probe supplied for each channe
Display 10.1 TFT-LCD with capacitive touch screen (1024*600) 10.1 TFT-LCD with capacitive touch screen (1024*600)

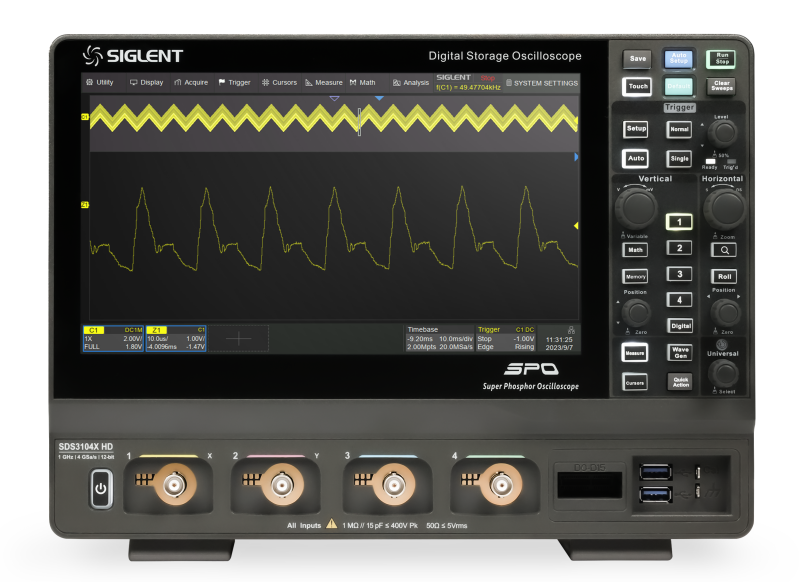

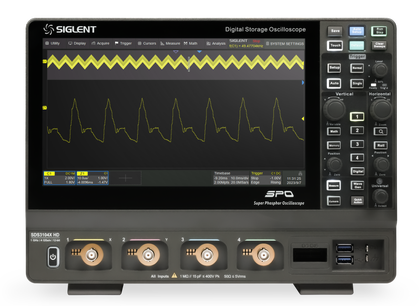

Bandwidth 350MHz 500MHz 1 GHz ( 800 MHz in non-interleaving mode )
Vertical resolution 12-bit 12-bit 12-bit
Sampling Rate (Max.) 4 GSa/s (interleaving mode), 2 GSa/s (non-interleaving mode) 4 GSa/s (interleaving mode), 2 GSa/s (non-interleaving mode) 4 GSa/s (interleaving mode), 2 GSa/s (non-interleaving mode)
Channels 4 4 4
Memory Depth (Max.) 400 Mpts/ch (interleaving mode: single-channel), 200 Mpts/ch (interleaving mode: dual-channel), 100 Mpts/ch (non-interleaving mode) 400 Mpts/ch (interleaving mode: single-channel), 200 Mpts/ch (interleaving mode: dual-channel), 100 Mpts/ch (non-interleaving mode) 400 Mpts/ch (interleaving mode: single-channel), 200 Mpts/ch (interleaving mode: dual-channel), 100 Mpts/ch (non-interleaving mode)
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
I/O USB 3.0 Host x2, USB 2.0 Host x1, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL) USB 3.0 Host x2, USB 2.0 Host x1, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL) USB 3.0 Host x2, USB 2.0 Host x1, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe (Std) One 500 MHz passive probe supplied for each channel One 500 MHz passive probe supplied for each channel One 500 MHz passive probe supplied for each channel
Display 10.1 TFT-LCD with capacitive touch screen (1024*600) 10.1 TFT-LCD with capacitive touch screen (1024*600) 10.1 TFT-LCD with capacitive touch screen (1024*600)

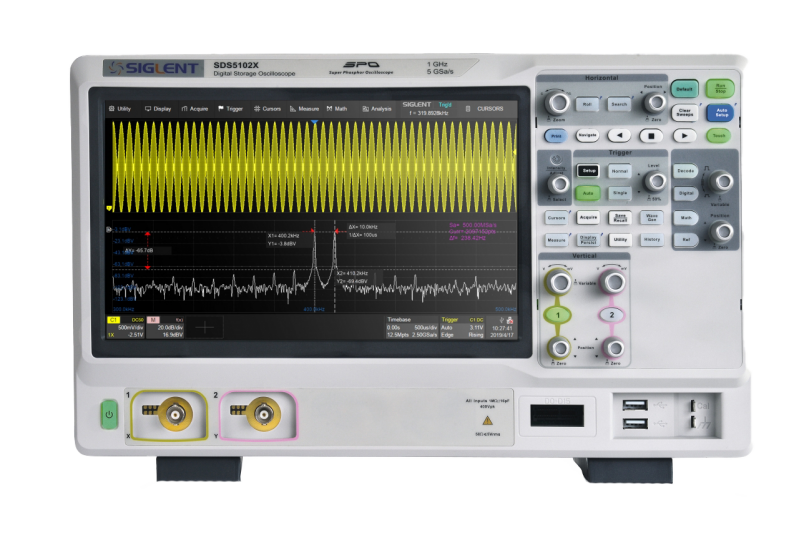

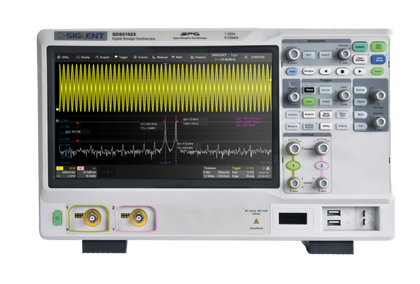

Bandwidth 350 MHz 500 MHz 1 GHz
Channels 2+EXT 2+EXT 2+EXT
Real time sampling rate 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel)
Capture rate 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode
Memory depth 250 Mpts (single-channel) 125 Mpts (dual-channel) 250 Mpts (single-channel) 125 Mpts (dual-channel) 250 Mpts (single-channel) 125 Mpts (dual-channel)

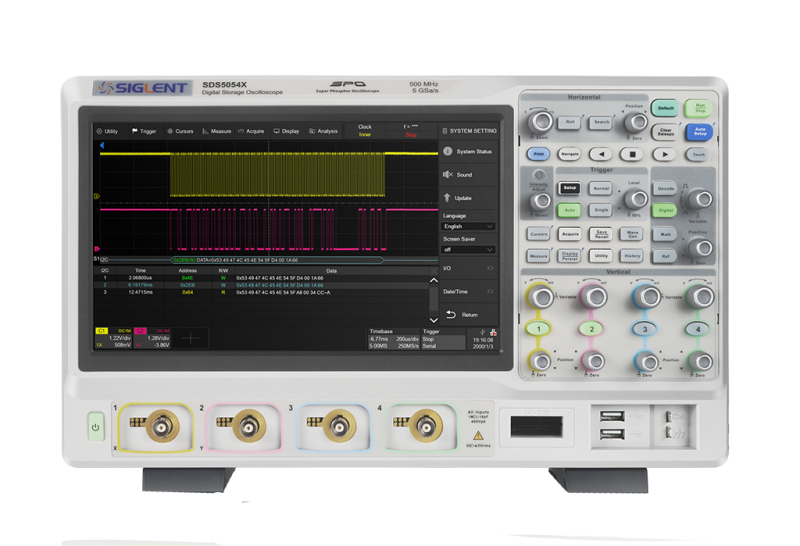

Bandwidth 350 MHz 500 MHz 1 GHz
Channels 4+EXT 4+EXT 4+EXT
Real time sampling rate 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel)
Capture rate 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode
Memory depth 250 Mpts (single-channel) 125 Mpts (dual-channel) 250 Mpts (single-channel) 125 Mpts (dual-channel) 250 Mpts (single-channel) 125 Mpts (dual-channel)

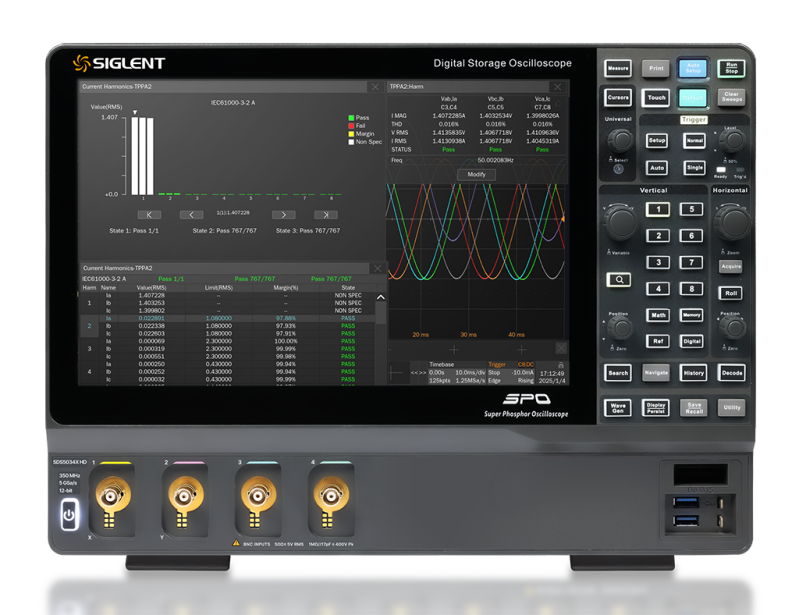

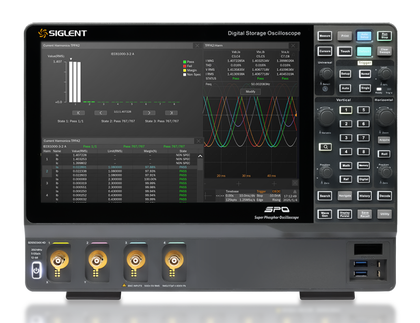

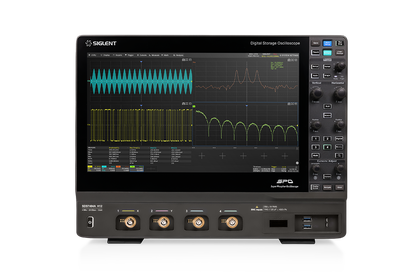

Bandwidth 350 MHz 500 MHz 1 GHz
Channels 4+EXT 4+EXT 4+EXT
Real time sampling rate 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode)
Capture rate Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s
Memory depth 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode)
Display 12.1” TFT-LCD with capacitive touch screen (1280*800) 12.1” TFT-LCD with capacitive touch screen (1280*800) 12.1” TFT-LCD with capacitive touch screen (1280*800)

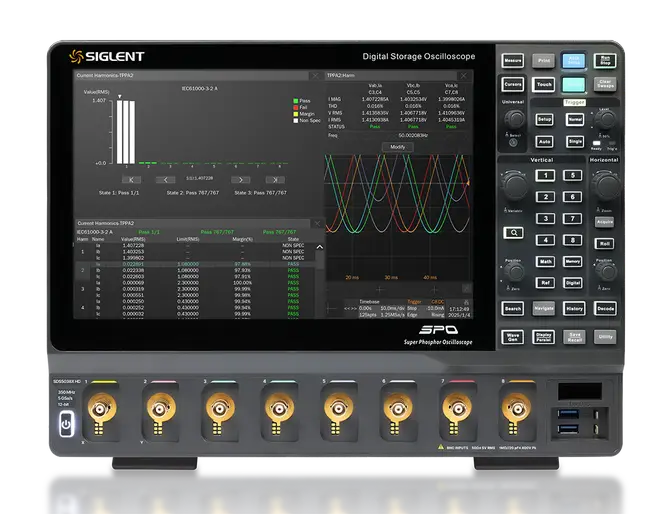

Bandwidth 350 MHz 500 MHz 1 GHz
Channels 8+EXT 8+EXT 8+EXT
Real time sampling rate 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode)
Capture rate Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s
Memory depth 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode)
Display 12.1” TFT-LCD with capacitive touch screen (1280*800) 12.1” TFT-LCD with capacitive touch screen (1280*800) 12.1” TFT-LCD with capacitive touch screen (1280*800)

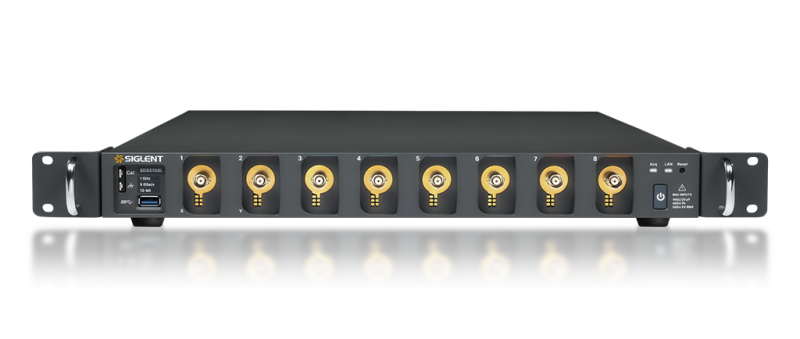

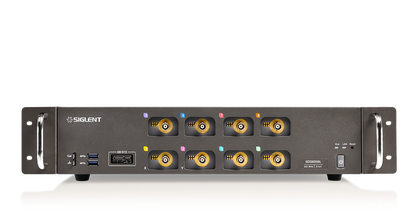

Bandwidth 350 MHz 500 MHz 1 GHz
Channels 8+EXT 8+EXT 8+EXT
Real time sampling rate 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode) 5 GSa/s (quarter channel/half channel mode) 2.5 GSa/s (full channel mode)
Capture rate Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s Normal mode: Up to 160,000 wfm/s； Sequence mode: Up to 650,000 wfm/s
Memory depth 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode) 2.5 Gpts/ch (quarter channel mode) 1 Gpts/ch (half channel mode) 500 Mpts/ch (full channel mode)

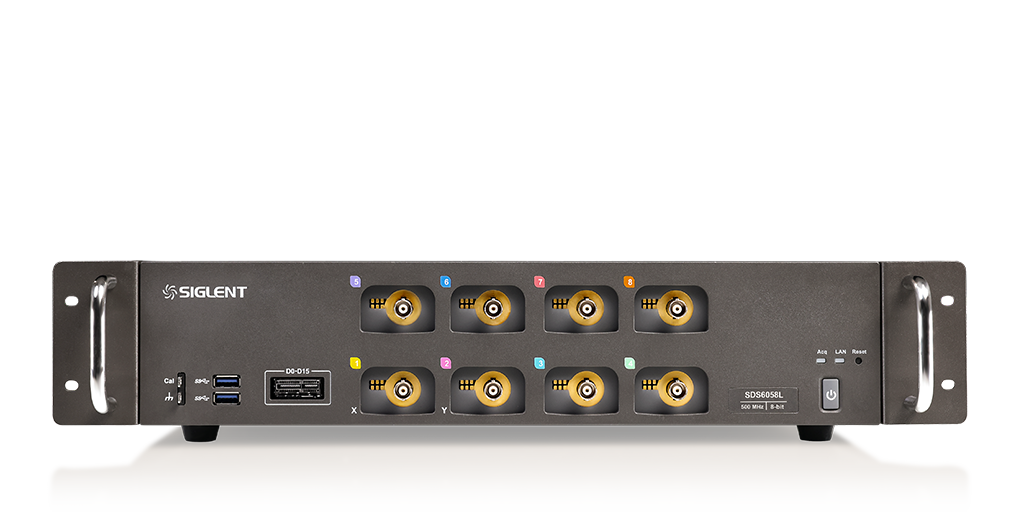

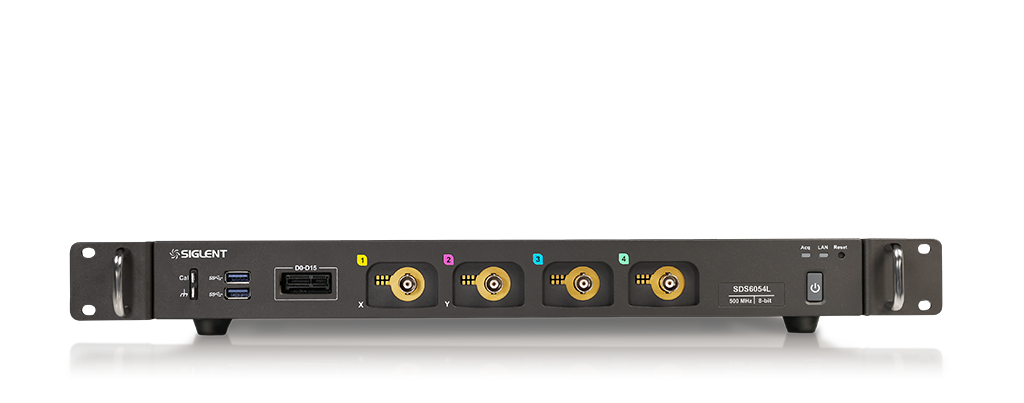

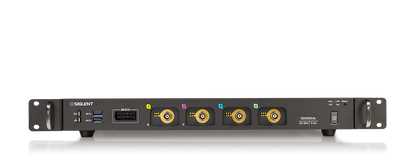

Bandwidth 500 MHz 500 MHz 1 GHz
Channels 4+EXT 8+EXT 4+EXT
Real time sampling rate 5 GSa/s (10 GSa/s ESR) @ each channel 5 GSa/s (10 GSa/s ESR) @ each channel 5 GSa/s (10 GSa/s ESR) @ each channel
Capture rate 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode)
Memory depth 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels)
Bandwidth 1 GHz 2 GHz 2 GHz
Channels 8+EXT 4+EXT 8+EXT
Real time sampling rate 5 GSa/s (10 GSa/s ESR) @ each channel 5 GSa/s (10 GSa/s ESR) @ each channel 5 GSa/s (10 GSa/s ESR) @ each channel
Capture rate 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode)
Memory depth 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels)
