Siglent SDS3000X HD Series

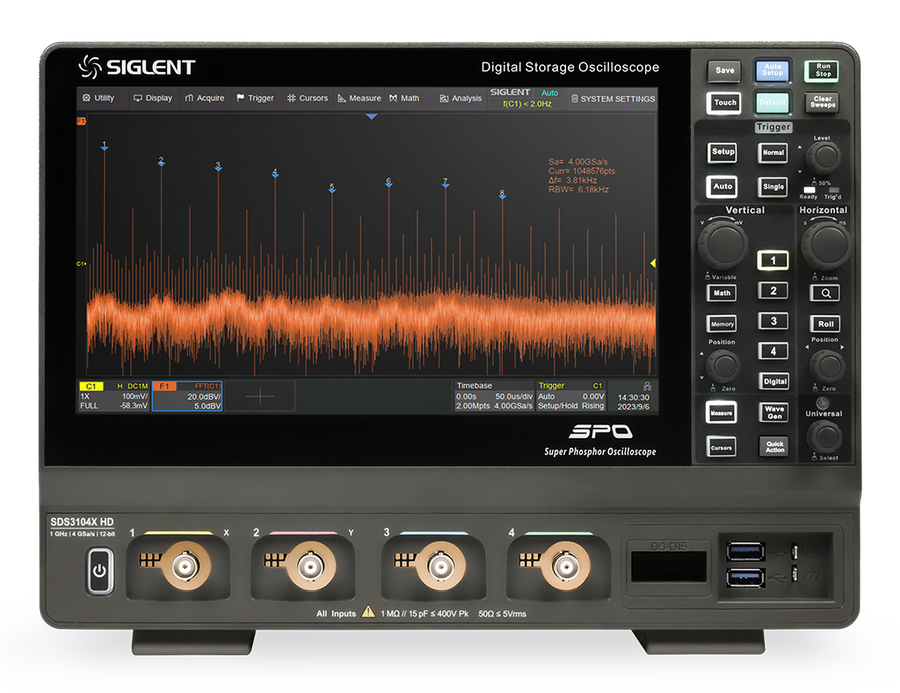

High-end 12-bit acquisition up to 1 GHz and 4 GSa/s, with up to 400 Mpts of memory, a 200,000 wfm/s capture rate, USB 3.0 & Gigabit LAN, and a 10.1" multi-touch display — mixed-signal and 50 MHz AWG ready. Available in 350 MHz, 500 MHz and 1 GHz.
Why choose the SDS3000X HD?
The SDS3000X HD gives you flagship-class capability at a mid-range price. A true 12-bit ADC (up to 16-bit in ERES) delivers 16× the vertical resolution of an 8-bit scope, so you can trust the small numbers — power-rail ripple, low-level distortion and fine detail riding on big signals stay clearly visible thanks to a quiet 125 µVrms front end and 0.5% DC gain accuracy.
Crucially, that resolution comes without giving up speed: up to 1 GHz bandwidth, 4 GSa/s sampling and a class-leading 400 Mpts of memory let you capture long, fast events at full fidelity, while 200,000 wfm/s helps you catch rare glitches.
It also replaces a whole bench: built-in Bode plot, power analysis, 4 Mpts FFT, 16-channel MSO and a 50 MHz generator option mean one instrument covers analog, digital, power and control work. Add a fast, modern workflow — 10.1" multi-touch, USB 3.0, Gigabit LAN and web control — and a 3-year warranty with EU support, and the SDS3000X HD is built to stay on your bench for years.
A high-end analysis bench
Built-in tools for power, control, RF and high-speed digital design — no extra software needed.
Bode plot & power analysis

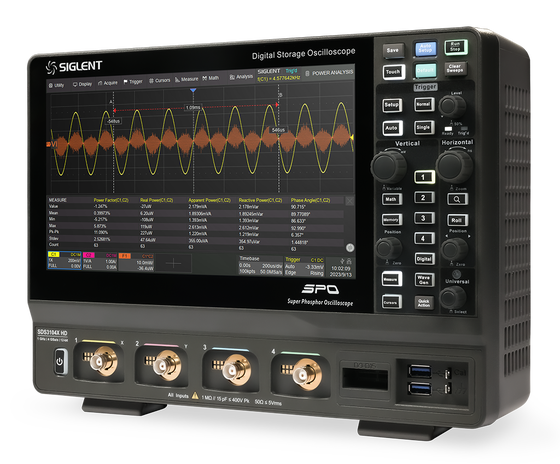

Measure gain and phase versus frequency for power-supply loop response and filters, plus dedicated power-analysis software for switching loss, harmonics, ripple and safe-operating-area — all on-instrument.
4 Mpts FFT (magnitude & phase)
A deep 4 Mpts FFT with both magnitude and phase turns the scope into a capable spectrum tool for spotting noise, harmonics and interference with fine frequency resolution.
10.1" multi-touch

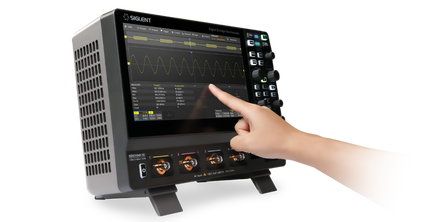

Large capacitive touch display (1024×600) with gestures, plus mouse, keyboard and web control over Gigabit LAN.
Mixed-signal (MSO)
Add the SPL2016 logic probe for 16 digital channels at up to 1 GSa/s and 100 Mpts.
50 MHz AWG option
SAG1021I module (125 MSa/s) adds an arbitrary/function generator for stimulus-response work.
Serial decode
I²C, SPI, UART, CAN, LIN standard; CAN FD/XL, FlexRay, I²S, 1553B, SENT, Manchester, ARINC429, SpaceWire, USB 2.0 and SPMI optional.
Deep memory & speed
400 Mpts capture, 200k wfm/s (890k in sequence) and USB 3.0 to find and move data fast.
Three models — choose your bandwidth
Identical 12-bit acquisition, 4 GSa/s, memory, display and features across the series — pick the bandwidth your signals need.
- 4 analog ch · 4 GSa/s · 12-bit
- 400 Mpts memory · 200k wfm/s
- 10.1" touch · USB 3.0 · MSO/AWG ready
The entry into the high-end HD platform — 12-bit, 4 GSa/s and deep memory for serious bench and lab work.
- 4 analog ch · 4 GSa/s · 12-bit
- 400 Mpts memory · 200k wfm/s
- 10.1" touch · USB 3.0 · MSO/AWG ready
The balanced choice — extra bandwidth headroom for faster edges and higher-speed buses.
- 4 analog ch · 4 GSa/s · 12-bit
- 400 Mpts memory · 200k wfm/s
- 10.1" touch · USB 3.0 · MSO/AWG ready
Full 1 GHz bandwidth for the most demanding R&D, power and high-speed digital design.
Full specifications
The models differ only in bandwidth; everything below the table is shared across the whole series.
| Specification | SDS3034X HD | SDS3054X HD | SDS3104X HD |
|---|---|---|---|

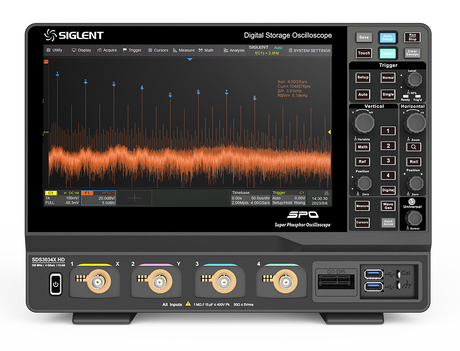

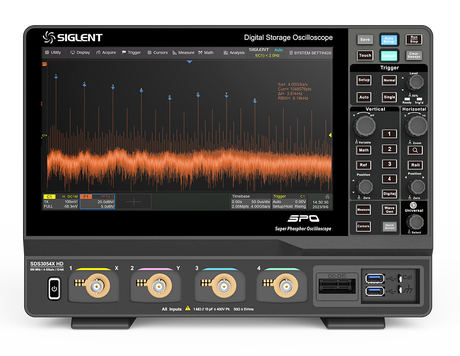

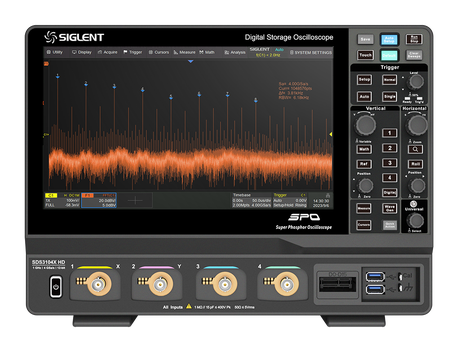

| Analog bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Max. sample rate (all models) | 4 GSa/s interleaved · 2 GSa/s per channel | ||
| Price | €3,380.00 | €4,680.00 | €5,980.00 |
Shared across all SDS3000X HD models
Acquisition
- Analog channels
- 4 + EXT
- Vertical resolution
- 12-bit (up to 16-bit in ERES)
- Max. sample rate
- 4 GSa/s (interleaved) · 2 GSa/s (per channel)
- Max. record length
- 400 Mpts (single-ch) · 200 Mpts (dual) · 100 Mpts/ch
- Waveform capture rate
- 200,000 wfm/s (normal) · 890,000 wfm/s (sequence)
- Low-noise front end
- 125 µVrms @ 1 GHz · 0.5% DC gain accuracy
Trigger & serial decode
- Trigger types
- Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/Hold, Delay, Serial + Zone
- Serial (standard)
- I²C, SPI, UART, CAN, LIN
- Serial (optional)
- CAN FD, CAN XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, SpaceWire, USB 2.0, SPMI
- Segmented / history
- Sequence up to 80,000 segments · History recording
Analysis & math
- Measurements
- 60+ parameters · statistics, histogram, trend, track
- Math
- 4 traces · 4 Mpts FFT (magnitude & phase) · formula editor
- Analysis tools
- Search, Navigate, Mask Test, DVM, Counter, Waveform Histogram, Bode Plot, Power Analysis
Display, I/O & options
- Display
- 10.1" capacitive multi-touch (1024×600)
- Connectivity
- Web control over LAN · mouse & keyboard · USB 3.0 Host ×2 + USB 2.0 Host · USB 3.0 Device · 10/100/1000M LAN
- Standard probes
- One 500 MHz passive probe per channel
- MSO option
- 16 digital channels (SPL2016 logic probe) · 1 GSa/s · 100 Mpts
- AWG option
- SAG1021I module · 50 MHz · 125 MSa/s
The 1 GHz model provides 800 MHz in non-interleaving mode. Specifications are taken from the official SDS3000X HD datasheet and are subject to change; errors & omissions excepted. See the datasheet for full, guaranteed specifications.
Options & accessories
- SPL2016 16-channel logic probe — adds MSO capability (1 GSa/s, 100 Mpts)
- SAG1021I AWG module — 50 MHz arbitrary/function generator
- Serial decode bundles — CAN FD/XL, FlexRay, I²S, 1553B, SENT, Manchester, ARINC429, SpaceWire, USB 2.0, SPMI
- One 500 MHz passive probe per channel included as standard
Configure your SDS3000X HD
Tell us your application and we’ll recommend the right bandwidth and options — MSO, AWG and serial decode — with EU stock, support and calibration.
Frequently asked questions
What does the “HD” in SDS3000X HD mean?
“HD” refers to the 12-bit ADC (extendable to 16-bit in ERES mode) — 16× the vertical resolution of a standard 8-bit oscilloscope, so fine detail and small signals are clearly visible with far less noise. The front end is very quiet at just 125 µVrms at 1 GHz.
What is the difference between the SDS3034X HD, SDS3054X HD and SDS3104X HD?
Only the analog bandwidth: 350 MHz, 500 MHz and 1 GHz respectively. Every other specification — 4 channels, 12-bit, 4 GSa/s, 400 Mpts memory, 10.1" touch display and all software features — is identical across the series.
Is it a mixed-signal oscilloscope (MSO)?
Yes — add the optional SPL2016 16-channel logic probe for 16 digital channels at up to 1 GSa/s and 100 Mpts, decoded alongside the 4 analog channels.
Does it have an arbitrary waveform generator?
A 50 MHz arbitrary/function generator is available via the SAG1021I module (125 MSa/s, 16 kpts) — a built-in stimulus source for frequency-response and stimulus-response testing.
Which serial protocols can it trigger and decode?
I²C, SPI, UART, CAN and LIN are standard. CAN FD, CAN XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, SpaceWire, USB 2.0 and SPMI are available as options.
Can I control it remotely?
Yes. The built-in web server gives full operation from a browser over Gigabit LAN; it also supports an external mouse and keyboard, SCPI remote control, USB 3.0 connectivity, and the 10.1" multi-touch screen.
