Siglent Digital Multimeters
The SDM family spans 4½, 5½ and 6½ digit bench DMMs — True-RMS, dual display, and reading rates up to 50,000 rdgs/s. Choose a -SC model to add a 12- or 16-channel scanner card for multi-point measurement and data logging.
Find your multimeter
Siglent bench multimeters deliver genuine lab-grade accuracy and resolution at a price that fits any budget — which is why they've become a default choice for engineers, educators and production teams across Europe. From 4½ digit for everyday bench work to 6½ digit metrology-grade precision, every SDM is True-RMS with a dual display, a bright easy-to-read screen, and a complete function set: DC/AC voltage and current, 2/4-wire resistance, capacitance, frequency, continuity, diode and temperature. Fast reading rates, generous internal memory and standard USB & LAN make them quick to use and simple to automate.
Wherever accurate measurement matters, there's an SDM that fits: R&D and design work that needs 6½-digit resolution and low noise; education labs that want robust, intuitive instruments for students; production & QA lines logging thousands of timestamped readings; and service & field work on power supplies, automotive and energy systems. Every unit is backed by a 3-year warranty, a factory ISO calibration certificate and local European support. Browse by family below, or jump to the full comparison table.

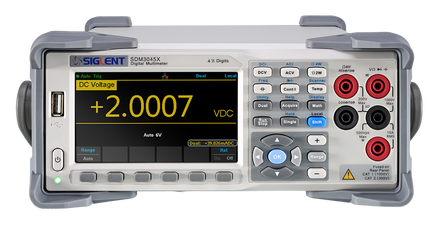

SDM3000X series
Established 4½–6½ digit bench multimeters with dual display and True-RMS.

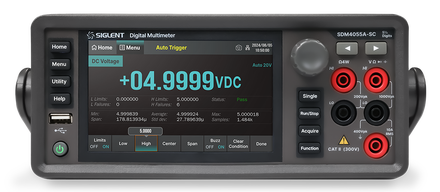

SDM4000A series
High-speed 5½–6½ digit DMMs with a 5-inch touchscreen and advanced data logging.
Scan many points from one meter

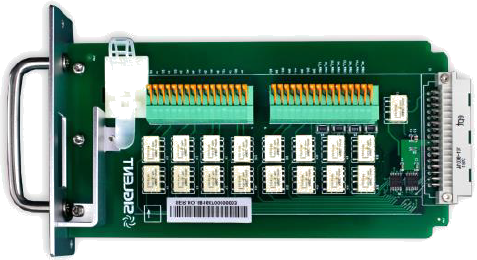

Every -SC model ships with the SC1016 scanner card — a built-in multiplexer that sequentially measures many channels from a single DMM. Ideal for multi-point monitoring, temperature mapping, burn-in and automated production test, with timestamped data logging.
- SDM3055-SC / SDM3065X-SC: 12 channels
- SDM4055A-SC / SDM4065A-SC: 16 channels (12 + 4 current)
- DCV/ACV, DCI/ACI, 2/4-wire Ω, capacitance
- Frequency, diode, continuity
- Temperature — thermocouple & RTD
- Timestamped scanning & data logging
The scanner card is included with the -SC variant only — choose the -SC model if you need multi-channel scanning.
Compare the SDM models
Match resolution, speed and scanning to your application.
| Model | Digits | Counts | Max reading rate | Scanner-card (-SC) | Display |
|---|---|---|---|---|---|

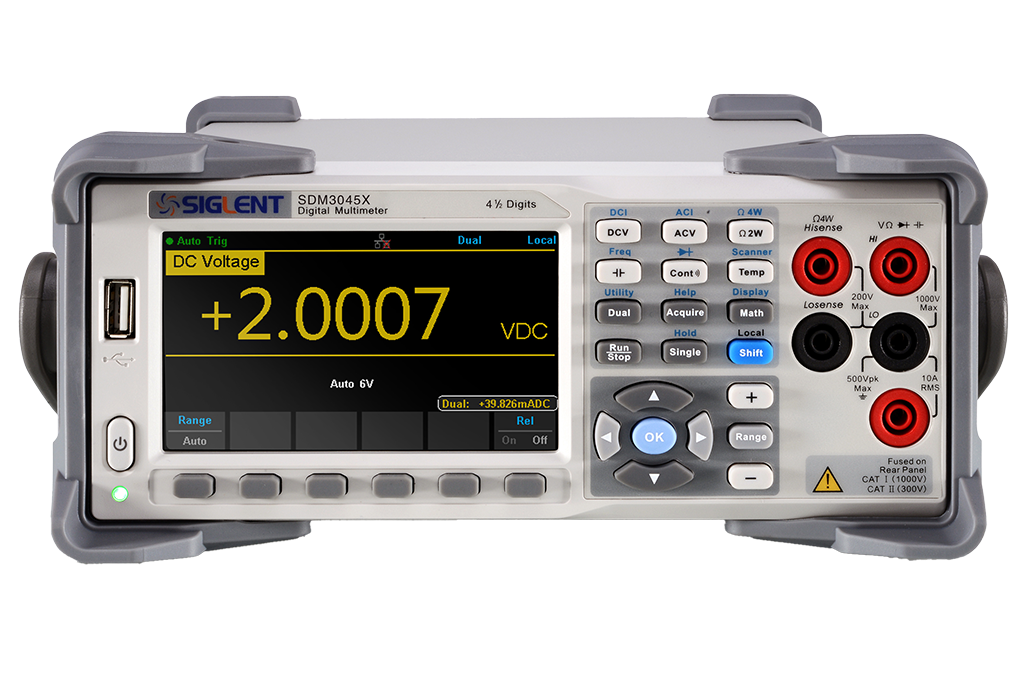

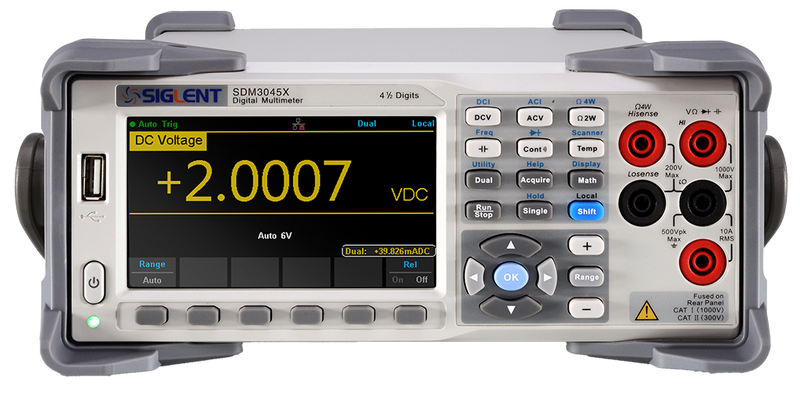

| SDM3045X | 4½ | 60,000 | 150 rdgs/s | — | Dual display |

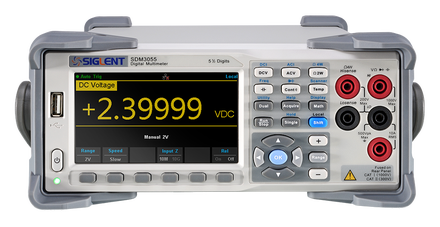

| SDM3055 | 5½ | 240,000 | 150 rdgs/s | SDM3055-SC · 12-ch | 4.3" TFT |

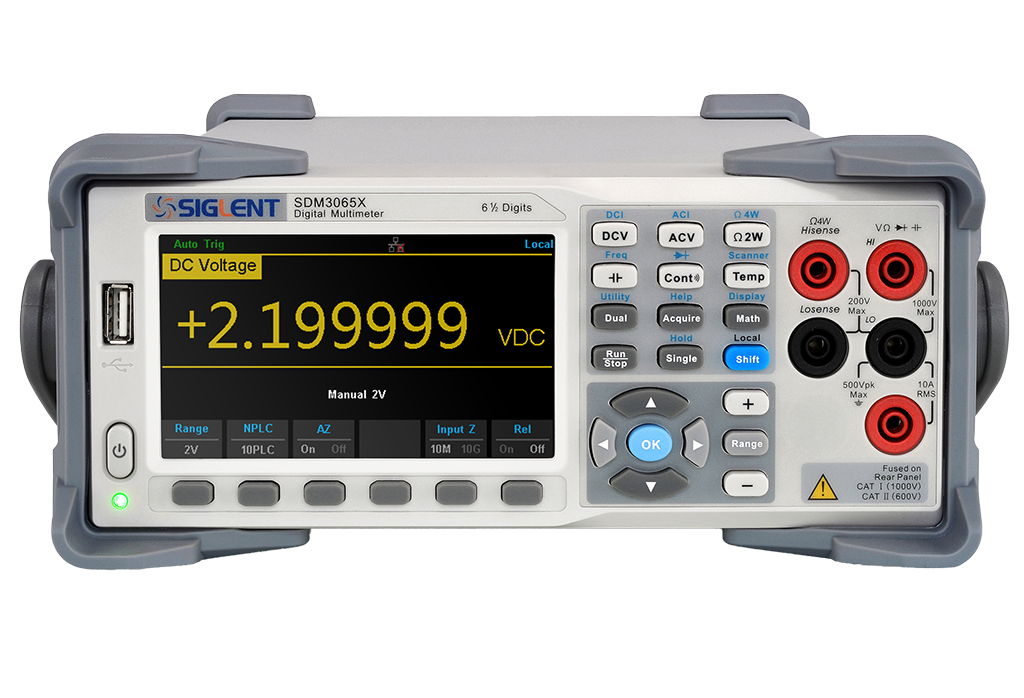

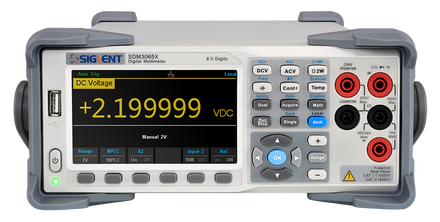

| SDM3065X | 6½ | 2,200,000 | up to 10,000 rdgs/s | SDM3065X-SC · 12-ch | 4.3" TFT dual |

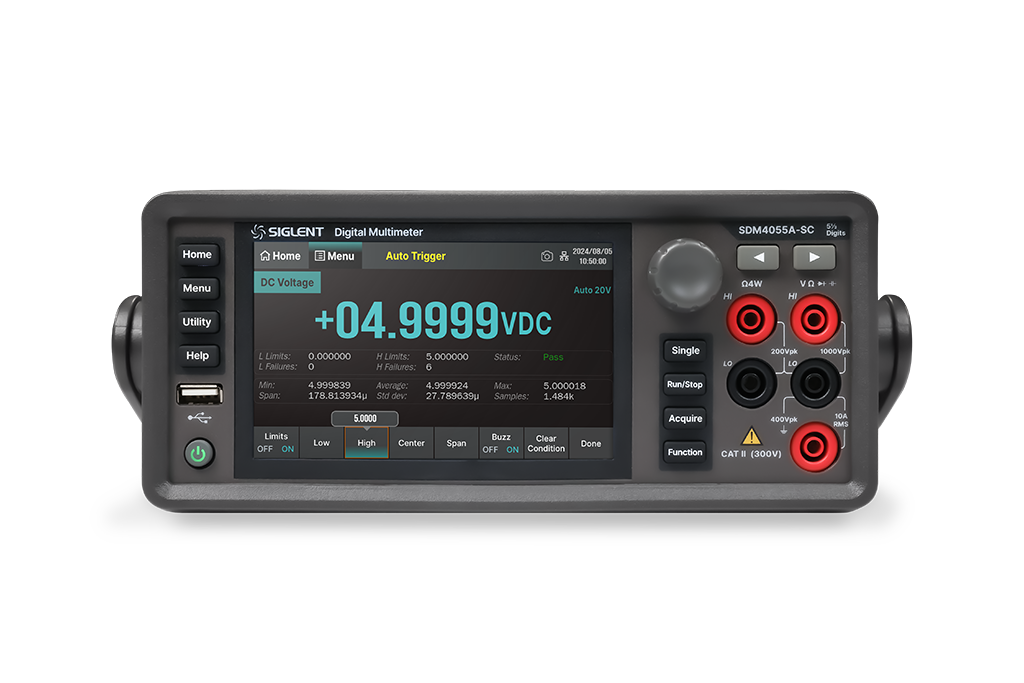

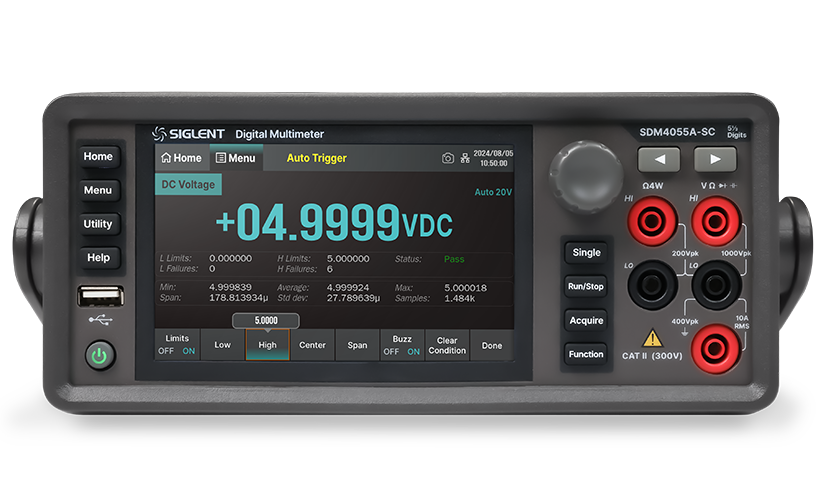

| SDM4055A | 5½ | 220,000 | up to 4,800 rdgs/s | SDM4055A-SC · 16-ch | 5" touch |

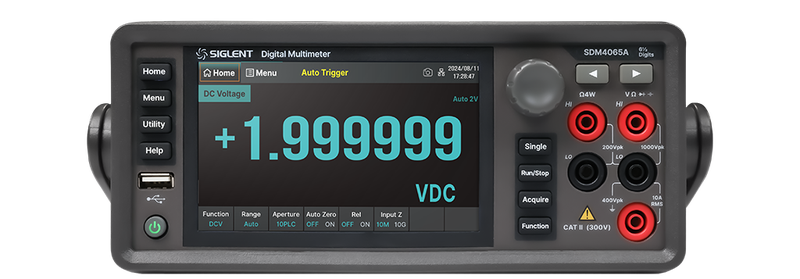

| SDM4065A | 6½ | 2,200,000 | up to 50,000 rdgs/s | SDM4065A-SC · 16-ch | 5" touch |
All models: True-RMS AC V/I, 2/4-wire resistance, capacitance, frequency/period, continuity, diode and temperature (TC/RTD). Specifications summarised for comparison; see each datasheet for full, guaranteed specifications. Errors & omissions excepted.
Everything you expect from a bench DMM
A full measurement toolset across the SDM range.
True-RMS & full functions
DCV/ACV, DCI/ACI, 2/4-wire resistance, capacitance, frequency, period, continuity and diode in one instrument.
Temperature measurement
Thermocouple and RTD support, plus user-defined sensors on the SDM4000A series.
Dual display & views

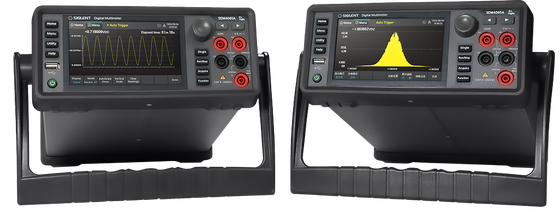

Show two measurements at once; the SDM4000A adds numeric, bar-meter, trend and histogram views on a 5" touchscreen.
Math & statistics
dBm/dB, relative, min/max/average, limits and pass/fail — with data-log and digitize on the SDM4000A.
Remote & automation
USB & LAN standard (optional USB-GPIB), SCPI command set and EasyDMM PC software for logging and control.
Multi-channel scanning
The -SC models add a 12- or 16-channel SC1016 scanner card for automated multi-point measurement and logging.
Need scanning or a specific resolution?
Tell us your accuracy, speed and channel-count requirements — we'll recommend the right SDM model (with or without the -SC scanner card) and quote it, calibration included on request.
Frequently asked questions
Siglent SDM digital multimeters & scanner cards.
What do 4½, 5½ and 6½ digits mean?
The digit count sets resolution: 4½ digit ≈ 60,000 counts (SDM3045X), 5½ digit ≈ 240,000 counts (SDM3055 / SDM4055A) and 6½ digit ≈ 2,200,000 counts (SDM3065X / SDM4065A). More digits give finer resolution and better accuracy.
What is a -SC model / the scanner card?
A -SC model ships with the SC1016 scanner card — a built-in multiplexer that measures many channels in sequence from one DMM. The SDM3055-SC and SDM3065X-SC have 12 channels; the SDM4055A-SC and SDM4065A-SC have 16 channels (12 multi-purpose + 4 current). Great for multi-point monitoring, temperature mapping and automated test.
Can I add the scanner card later?
The scanner card is supplied with the -SC variant only, so if you expect to do multi-channel scanning it's best to order the -SC model from the start. Contact us if you're unsure which variant suits your workflow.
What can the scanner card measure?
Per channel: DC/AC voltage and current, 2- and 4-wire resistance, capacitance, frequency/period, diode, continuity and temperature (thermocouple and RTD), with timestamped scanning and data logging.
Which model is fastest / most precise?

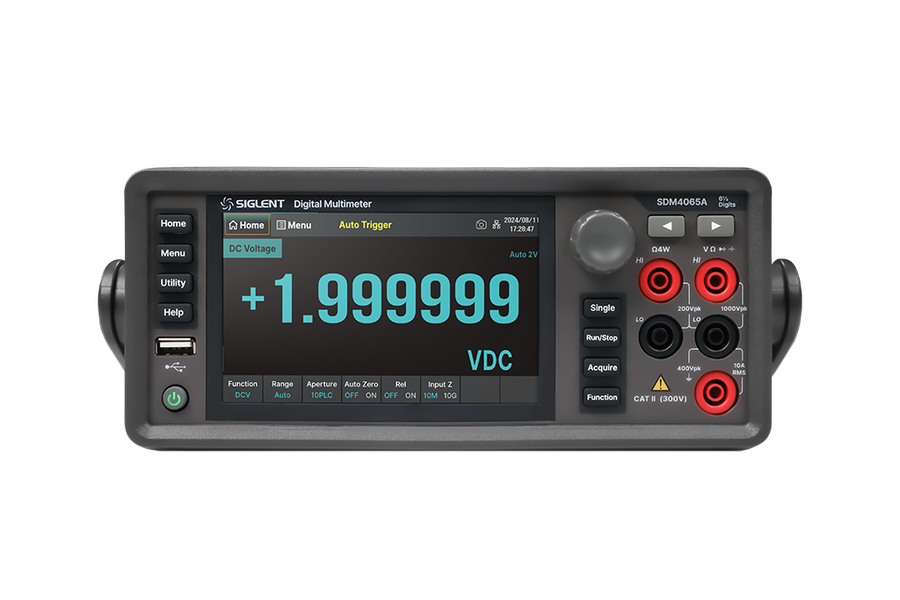

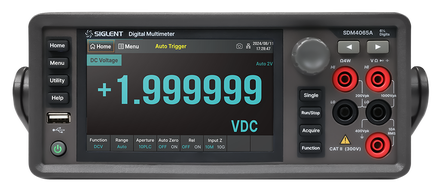

The SDM4065A is the flagship: 6½ digit (2,200,000 counts) with up to 50,000 rdgs/s, a 5" touchscreen, digitize and autozero. The SDM3065X also offers 6½ digit at up to 10,000 rdgs/s.
Are calibration certificates available?
Yes. Every unit ships with a factory ISO calibration certificate, and we offer accredited ISO/DKD (DAkkS) calibration and recalibration on request — see our calibration services.
