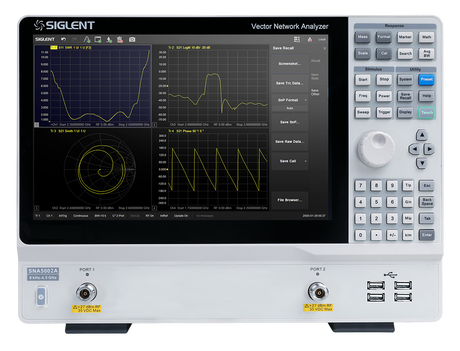

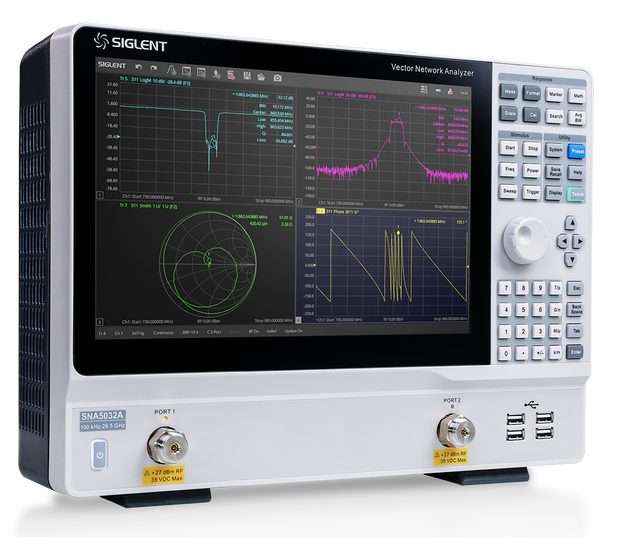

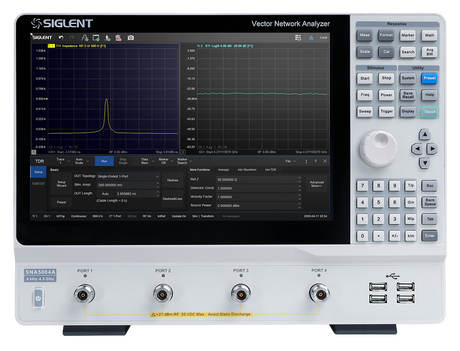

SNA5000A Series

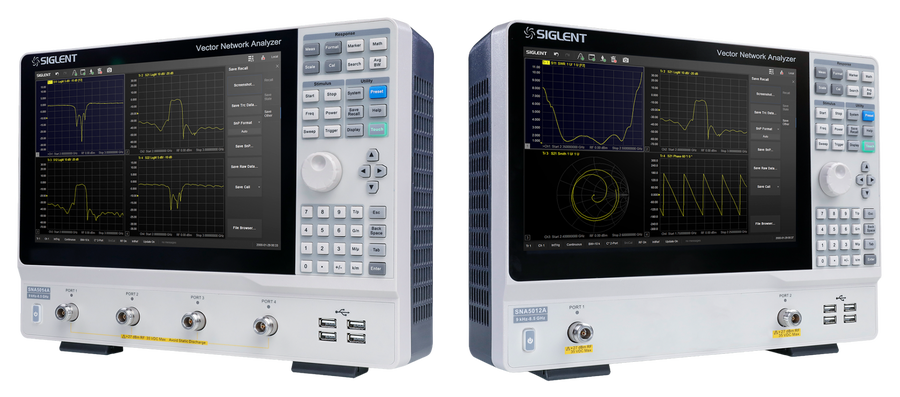

A full-featured vector network analyzer family covering 9 kHz to 26.5 GHz in 2- and 4-port configurations. With up to 125 dB of dynamic range, a −125 dBm/Hz noise floor, 1 Hz frequency and 0.05 dB level resolution and a 12.1-inch capacitive touchscreen, the SNA5000A measures full S-parameters, differential/balanced parameters and time-domain response. SOLT, SOLR, TRL, Response and Enhanced-Response calibration (with optional electronic cal kits) and a deep set of options — spectrum analysis, mixer, material, pulse, gain-compression and time-domain — make it a complete RF and microwave measurement platform for R&D and production.
Vector Network Analyzer
A full-featured vector network analyzer family covering 9 kHz to 26.5 GHz in 2- and 4-port configurations. With up to 125 dB of dynamic range, a −125 dBm/Hz noise floor, 1 Hz frequency and 0.05 dB level resolution and a 12.1-inch capacitive touchscreen, the SNA5000A measures full S-parameters, differential/balanced parameters and time-domain response. SOLT, SOLR, TRL, Response and Enhanced-Response calibration (with optional electronic cal kits) and a deep set of options — spectrum analysis, mixer, material, pulse, gain-compression and time-domain — make it a complete RF and microwave measurement platform for R&D and production.
Every model shares the same platform, 12.1-inch touch interface, calibration methods and option set, so you choose on frequency and port count — then add measurement options and an electronic cal kit to match. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights

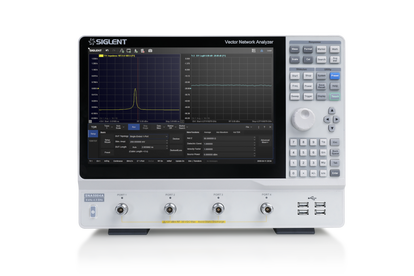

2- or 4-port VNA
Full S-parameter, differential/balanced and time-domain measurement in 2- and 4-port models.
125 dB dynamic range
Up to 125 dB at 10 Hz IFBW with a −125 dBm/Hz noise floor for demanding device test.
12.1" touchscreen

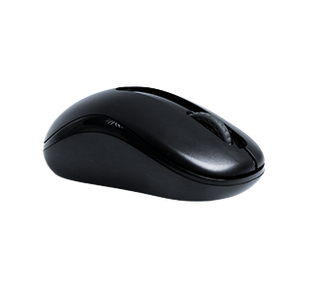

A large capacitive touchscreen with a wireless mouse and a familiar, fast VNA workflow.
A platform, not just a VNA
Options add spectrum analysis, mixer, material, pulse, gain-compression and TDR/TDA measurement.
Models in the series
Choose by frequency and port count — every model shares the same platform, calibration and options.
Core capabilities
2- and 4-port scattering parameters plus differential/balanced parameters for real devices.
Up to 125 dB (10 Hz IFBW), 1 Hz frequency and 0.05 dB level resolution.
SOLT, SOLR, TRL, Response and Enhanced-Response, with optional SEM-series electronic cal kits.
Linear, logarithmic, power, CW-time and segment sweeps for any measurement need.
Time-domain (TDR/TDA) analysis and impedance conversion built on the same platform.
Spectrum, mixer, material, pulse and gain-compression measurement licences extend the VNA.
Features in depth

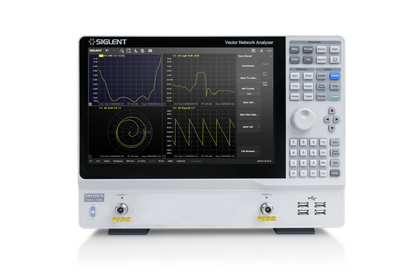

A full 2- or 4-port vector network analyzer

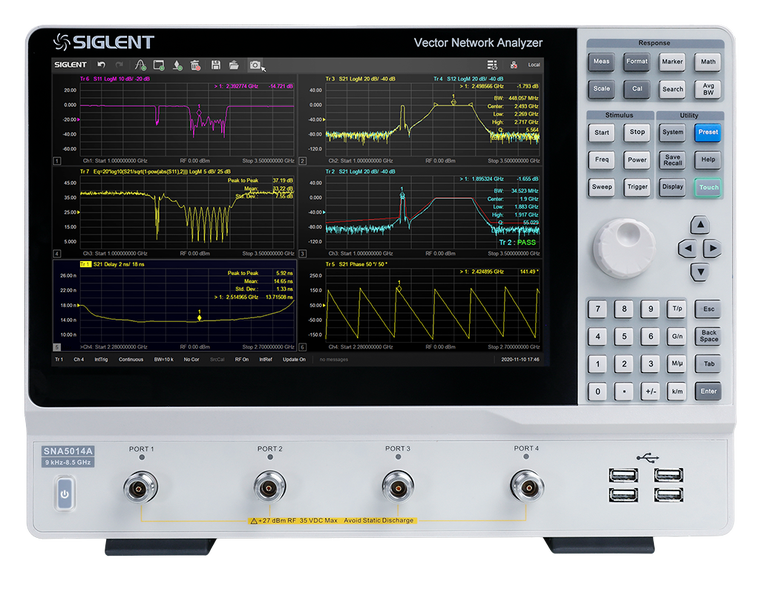

At its core the SNA5000A is a fast, accurate VNA: full S-parameters, differential and balanced parameters, and up to 125 dB of dynamic range, driven from a 12.1-inch touchscreen with SOLT, SOLR, TRL and Enhanced-Response calibration.
- 2- or 4-port S-parameters & differential/balanced
- 125 dB dynamic range, −125 dBm/Hz noise floor
- 1 Hz frequency & 0.05 dB level resolution
- SOLT / SOLR / TRL / Response / Enhanced calibration + ECal
Far more than S-parameters

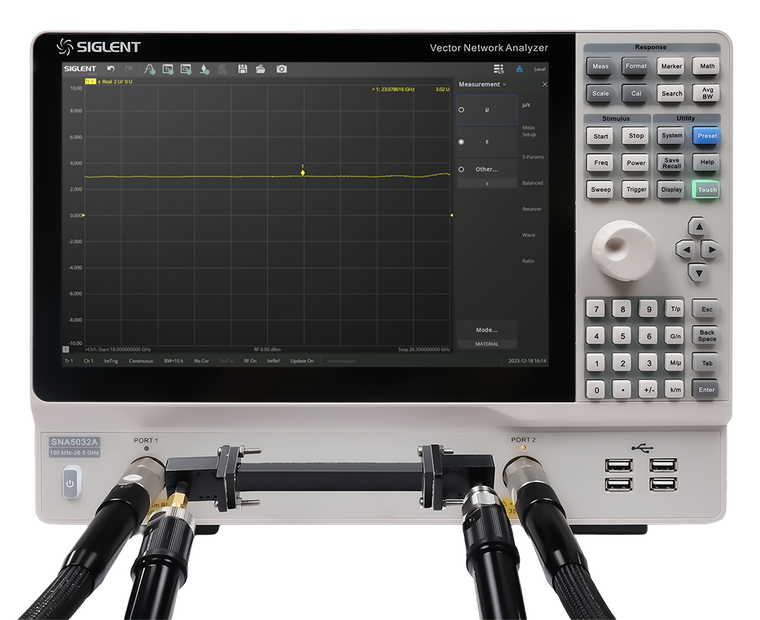

Licence options turn the SNA5000A into a broader measurement platform — scalar and vector mixer measurement, material characterisation, pulse and gain-compression measurement, spectrum analysis and time-domain reflectometry all run on the same instrument.

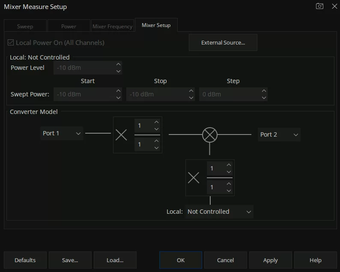

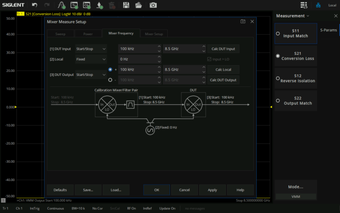

- Scalar (SMM) & vector (VMM) mixer measurement

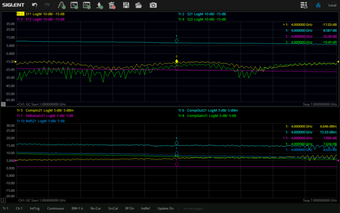

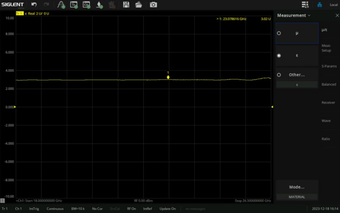

- Material (MT) & gain-compression (GC) measurement

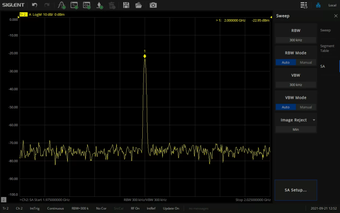

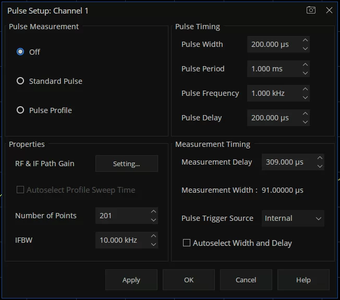

- Pulse (PM) measurement & spectrum analyzer (SA)

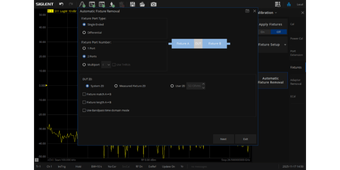

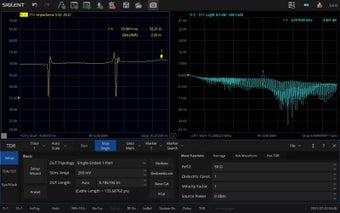

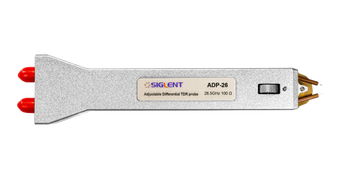

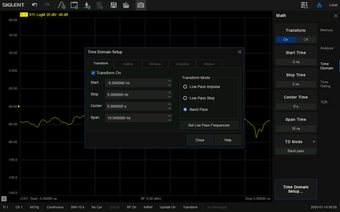

- Time-domain (TDA) and enhanced TDR + automatic fixture removal (AFR)

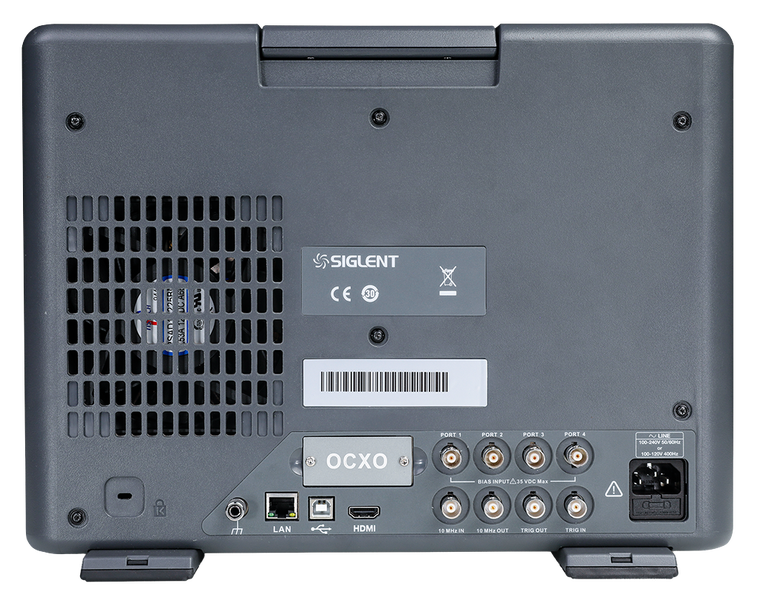

Rear panel, calibration & connectivity
LAN, USB and SCPI with an embedded web server make the SNA5000A straightforward to automate; an optional USB-GPIB adapter adds GPIB, and the SEM-series electronic cal kits speed up calibration.
- LAN · USB · SCPI · embedded web server

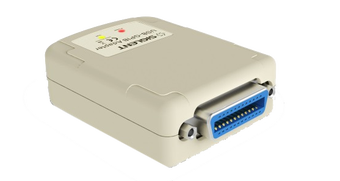

- Optional USB-GPIB adapter for GPIB buses
- SEM-series electronic calibration kits (2/4-port)

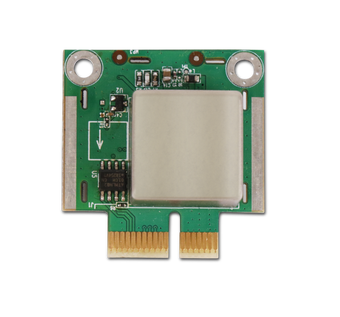

- High-performance reference option (HPR) for stability
Applications
Where the SNA5000A Series is at home.
Full specifications
| Frequency range | 9 kHz – 4.5 / 8.5 GHz · 100 kHz – 13.5 / 26.5 GHz (by model) |
| Ports | 2 or 4 (by model) |
| Dynamic range | Up to 125 dB @ 10 Hz IFBW |
| Noise floor | −125 dBm/Hz |
| Frequency resolution | 1 Hz |
| Level resolution | 0.05 dB |
| Measurements | S-parameters, differential/balanced parameters, time-domain, impedance conversion, limit/ripple |
| Calibration | SOLT · SOLR · TRL · Response · Enhanced Response; electronic cal (SEM series) |
| Sweep types | Linear · logarithmic · power · CW-time · segment |
| Display | 12.1-inch capacitive touchscreen (wireless mouse included) |
| Interfaces | LAN · USB · SCPI · embedded web server; USB-GPIB (optional) |
| Optional analysis | Spectrum (SA) · mixer (SMM/VMM) · material (MT) · pulse (PM) · gain-compression (GC) · TDR/TDA · AFR |
From the official SNA5000A Series datasheet; per-model values vary. Subject to change, errors & omissions excepted.
Accessories
What ships in the box, plus the calibration kits, options, cables and probes that match your model.

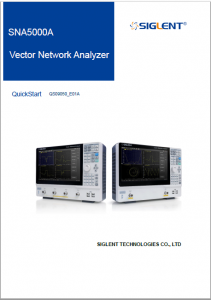

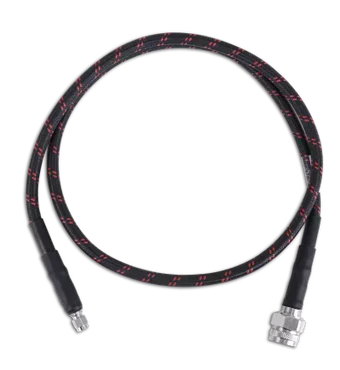

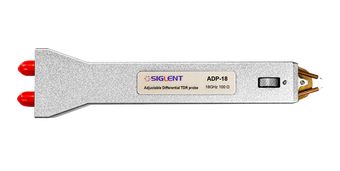

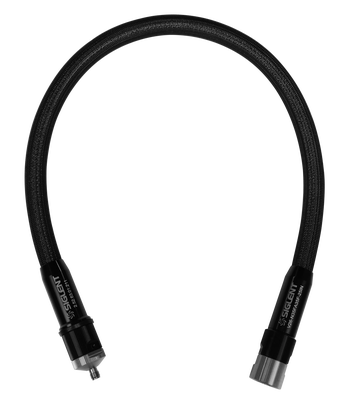

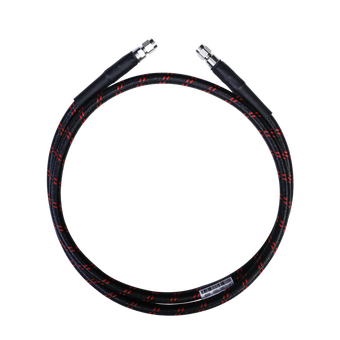

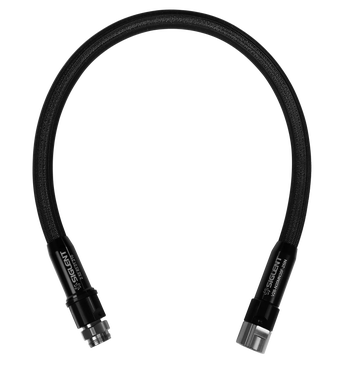

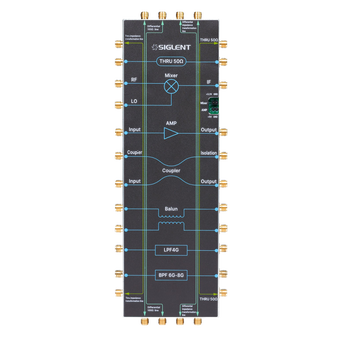

Options, calibration kits, cables and probes for the SNA5000A. All mechanical and electronic calibration kits are on one page — pick the one matching your port count and frequency.
Configure your SNA5000A Series
Tell us your frequency range, port count and which measurement options and calibration kit you need — we’ll quote the full configuration.
Frequently asked questions
Pick by frequency range and port count: 2-port models (SNA5002A/5012A/5022A/5032A) at 4.5, 8.5, 13.5 or 26.5 GHz, and 4-port models (SNA5004A/5014A) at 4.5 or 8.5 GHz. All share the same platform, 125 dB dynamic range, 12.1-inch touchscreen and options.

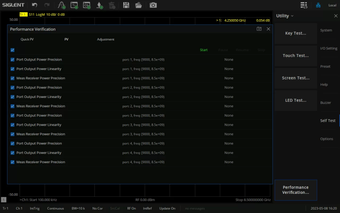

High-performance reference (HPR), time-domain (TDA) and enhanced TDR, spectrum analyzer (SA), scalar and vector mixer (SMM / VMM), material (MT), pulse (PM), gain-compression (GC), performance test (PV) and automatic fixture removal (AFR).

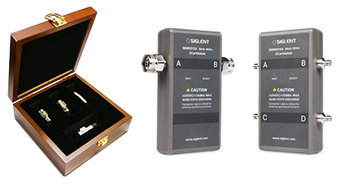

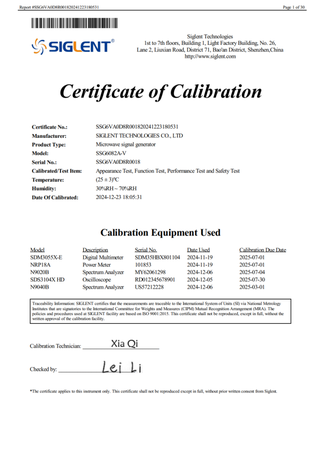

Each unit ships with a calibration certificate; for measurement you calibrate with SOLT/TRL standards or, more conveniently, a matching SEM-series electronic calibration kit (choose by port count and frequency). A USB-GPIB adapter is available for GPIB automation.
Up to 125 dB of dynamic range at 10 Hz IF bandwidth with a −125 dBm/Hz noise floor, 1 Hz frequency resolution and 0.05 dB level resolution.
Yes — LAN, USB and SCPI with an embedded web server are standard, and an optional USB-GPIB adapter adds GPIB control for existing test racks.
Specifications are taken from the official Siglent SNA5000A Series datasheet and are subject to change without notice; errors & omissions excepted. siglent.eu is operated by JRSE B.V., official EU distributor.
