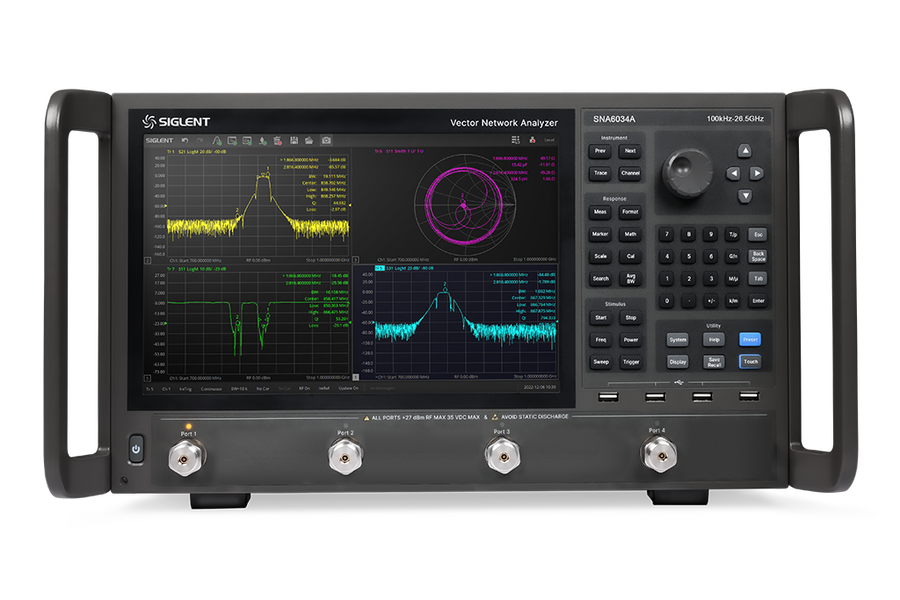

Seven options for the SNA6000A — six software keys and one plug-in reference — for all eight models from the 2-port 13.5 GHz SNA6022A to the 4-port 26.5 GHz SNA6134A with direct receiver access. They add time-domain and signal-integrity analysis, spectrum analysis, mixer, pulsed and material measurements, and an OCXO reference. Below them: the calibration kits, ECal modules and TDR probes Siglent lists for the series.
All instruments
Time-domain and signal integrity
SNA6000-TDA adds the time-domain transform and gating. SNA6000-TDR builds a complete signal-integrity suite on top — impedance versus time, eye diagrams with jitter and equalisation, and Hot TDR — with a minimum step rise time of 33.1 ps (13.5 GHz models) or 16.9 ps (26.5 GHz models). Buy SNA6000-TDR and SNA6000-TDA is included free.

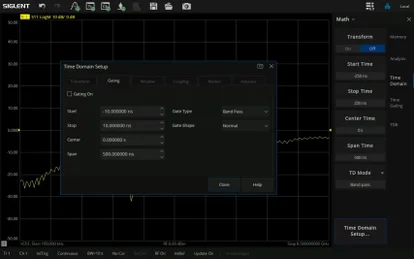

Time-domain transform and gating — see where along a line a mismatch sits, and gate out the fixture.

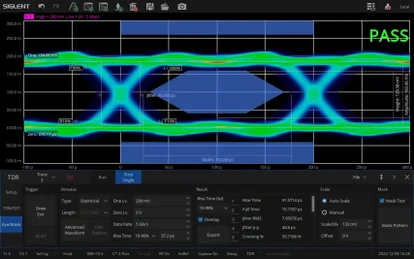

Full TDR/TDT with eye-diagram simulation, jitter, equalisation and Hot TDR — includes SNA6000-TDA free.
Measurement applications and reference
Four measurement modes beyond S-parameters, and a better timebase. ⚠ SNA6000-MT needs the KWR42A waveguide kit (18–26.5 GHz), so it is for the 26.5 GHz models. SNA6000-HPR is not a licence but a plug-in OCXO module for the rear slot, installed by the user: ±1 ppb stability over 0–40 °C instead of ±1 ppm.

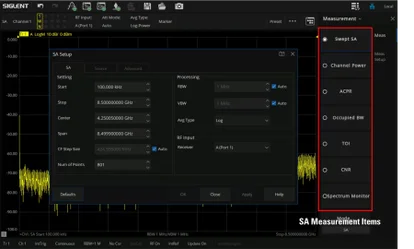

Spectrum analysis on the VNA receivers — harmonics and spurs on the same connection as the S-parameters.

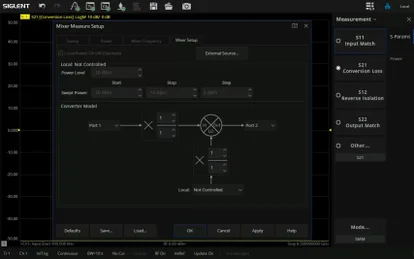

Scalar mixer and converter measurements — conversion gain or loss where input and output frequencies differ.

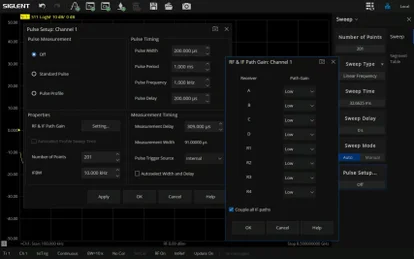

Pulsed S-parameters and pulse profiles for devices that cannot run on a CW signal.

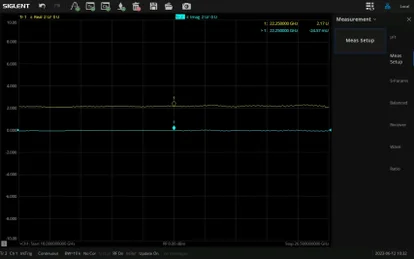

Permittivity and permeability of material samples in a waveguide holder — requires the KWR42A kit.
High-performance OCXO reference: ±1 ppb stability instead of ±1 ppm. Rear plug-in module.
Calibration
Every SNA6000A result is only as good as its calibration. These modules and kits cover the full frequency range: 13.5 GHz models with the SEM5022A/SEM5024A or F505TS, 26.5 GHz models with the SEM5032A/SEM5034A or the F606 and Y606 kits. Lower-frequency kits are on our calibration kits page. Choose the connector type and gender that mate with the end of your test cables.
2-port electronic calibration module, 100 kHz–13.5 GHz — one connection instead of changing standards.
4-port electronic calibration module to 13.5 GHz — a full 4-port calibration in one connection.
2-port electronic calibration module, 100 kHz–26.5 GHz.

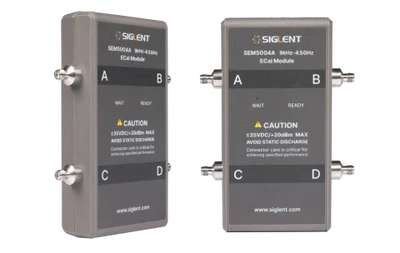

4-port electronic calibration module to 26.5 GHz — the full range of the 4-port 26.5 GHz models.

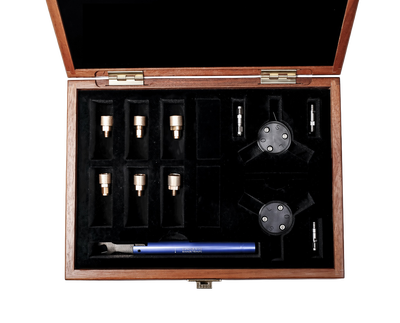

N-type male and female OSLT kit to 18 GHz — covers the 13.5 GHz models with N-type set-ups.

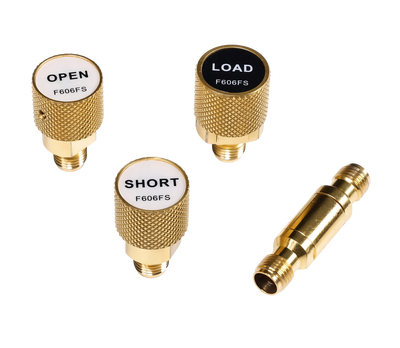

3.5 mm female OSLT kit to 26.5 GHz.

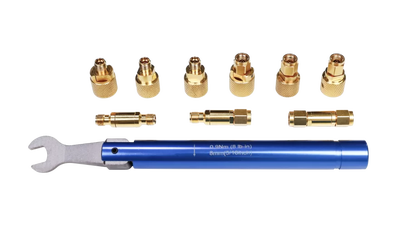

3.5 mm male and female OSLT kit to 26.5 GHz.

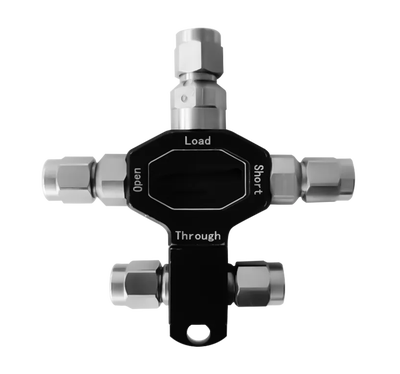

Integrated 3.5 mm male OSLT kit to 26.5 GHz.

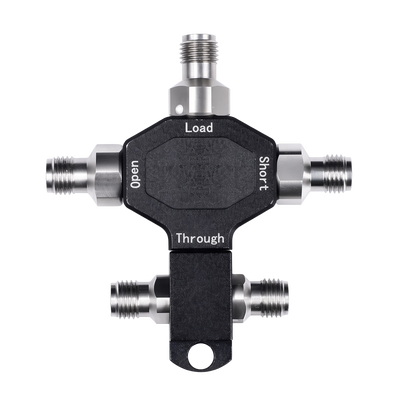

Integrated 3.5 mm female OSLT kit to 26.5 GHz.

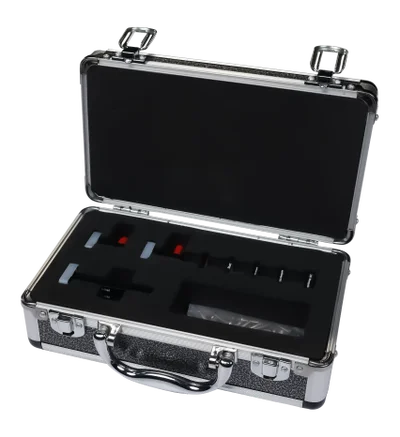

K-band waveguide calibration kit, 18–26.5 GHz — required for SNA6000-MT.
Probes and accessories
Physical items, not licence keys — the normal 14-day EU return right applies. The TDR probes pair with SNA6000-TDR: 18 GHz probes for the 13.5 GHz models, 26.5 GHz probes for the 26.5 GHz models. For more than four ports, the SNA6000A firmware controls Siglent’s SSM5000A switch matrices directly — an SNA6134A with an SSM5144A works as a 24-port analyser.

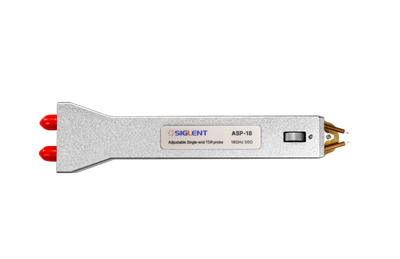

Adjustable single-ended TDR probe, DC–18 GHz — for PCB traces with the TDR option.
Adjustable single-ended TDR probe, DC–26.5 GHz.

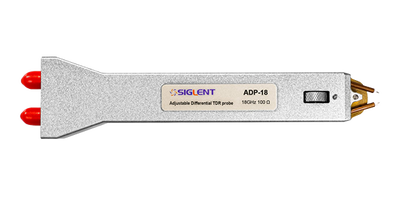

Adjustable differential TDR probe, DC–18 GHz — for differential pairs.

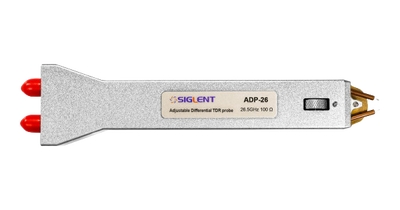

Adjustable differential TDR probe, DC–26.5 GHz.

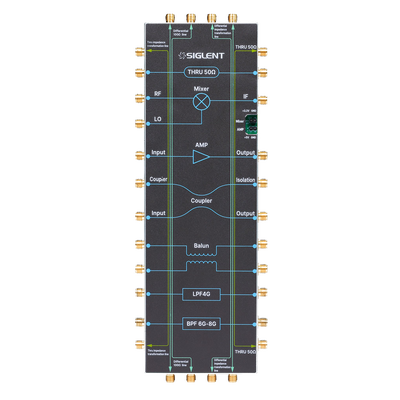

RF demonstration board with filters, amplifier and mixer — for training and checking set-ups.

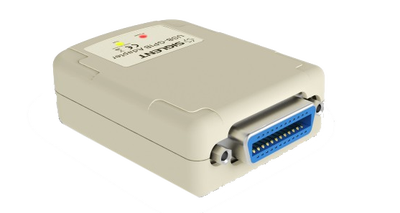

Adds a GPIB interface via the analyser’s USB host port, for older test systems.
