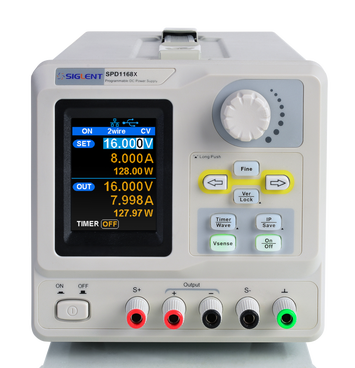

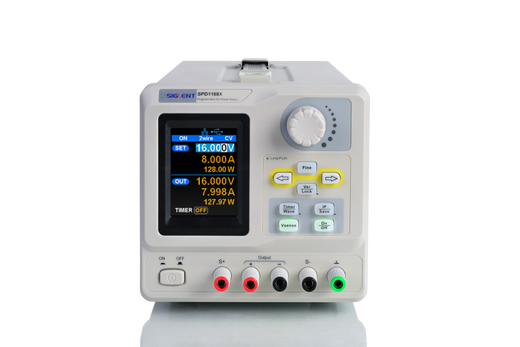

Siglent SPD1000X Series
A compact, high-precision single-output linear bench supply. 1 mV / 1 mA resolution, very low ≤350 µVrms noise, 4-wire remote sense and a 2.8" colour waveform display — in two models, up to 30 V or up to 8 A.
Small footprint, serious precision
When you need one clean, accurate rail rather than several, the SPD1000X is built for it. A single high-precision output sets and reads to 1 mV / 1 mA, and the linear design keeps ripple and noise down to ≤ 350 µVrms — the kind of clean supply sensitive analog, audio and RF circuits need.
A 4-wire remote-sense mode compensates for voltage dropped in the leads (up to 1 V), so the set voltage actually reaches your load. The 2.8" colour display charts voltage and current in real time, panel timing runs automated steps, and USB + LAN with SCPI, EasyPower and a LabVIEW driver make it easy to automate. Choose 30 V/5 A or 16 V/8 A.
Precision where it counts
Ultra-low noise & live waveform
Linear regulation delivers ≤ 350 µVrms ripple and a < 50 µs transient response. The 2.8" colour display charts voltage and current over time so you can see how a load behaves.

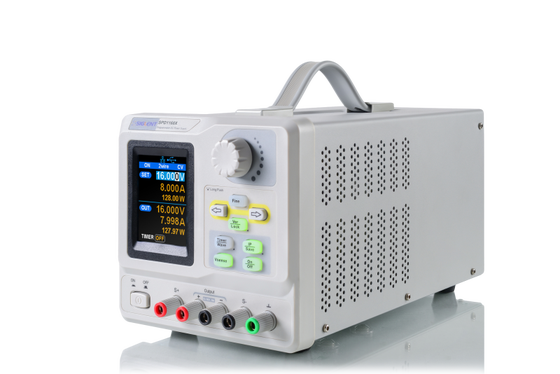

4-wire remote sense
Switch to 4-wire mode and the supply measures voltage at the load through separate sense leads, compensating up to 1 V of lead drop — accurate sourcing even over long or high-resistance connections.
Panel timing output
Program timed voltage/current steps from the front panel for simple automated profiles.
5 memory presets
Save and recall up to 5 sets of settings for fast, repeatable test setups.
USB + LAN automation
Control from a PC with SCPI, the free EasyPower software and a LabVIEW driver.
Two models — pick voltage or current
Identical precision, noise and features; they differ only in the output rating.
- 1 mV / 1 mA · 2.8" waveform display
- ≤ 350 µVrms low noise · 4-wire sense
- USB + LAN · SCPI / EasyPower / LabVIEW

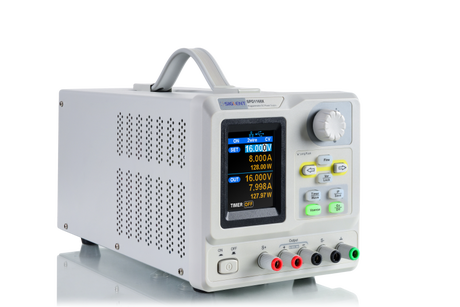

More voltage headroom — the choice when you need up to 30 V for higher-voltage rails and longer leads.
- 1 mV / 1 mA · 2.8" waveform display
- ≤ 350 µVrms low noise · 4-wire sense
- USB + LAN · SCPI / EasyPower / LabVIEW
More current at lower voltage — up to 8 A for higher-current 5 V / 12 V loads.
Full specifications
The two models differ only in the output table; everything below it is shared.
| Specification | SPD1305X | SPD1168X |
|---|---|---|
| Output voltage | 0 – 30 V | 0 – 16 V |
| Output current | 0 – 5 A | 0 – 8 A |
| Max output power | 150 W | 128 W |
| Price | €249.00 | €229.00 |
Shared across both SPD1000X models
Precision & display
- Setting resolution
- 1 mV / 1 mA
- Voltage accuracy
- ± (0.03% of reading + 10 mV)
- Current accuracy
- ± (0.3% of reading + 10 mA)
- Temperature coefficient (V)
- ± (0.01% + 3 mV) / °C
- Display
- 2.8" TFT-LCD 240×320 · 5-digit V / 4-digit I
Noise & regulation
- Load regulation (C.V.)
- ≤ 0.01% + 2 mV
- Ripple & noise (C.V.)
- ≤ 350 µVrms / 3 mVpp
- Transient recovery
- < 50 µs
- Line / load regulation (C.C.)
- ≤ 0.2% + 3 mA
- Ripple & noise (C.C.)
- ≤ 2 mArms
Sensing & functions
- Output modes
- 2-wire · 4-wire remote sense
- Remote sense compensation
- up to 1 V
- Memory save / recall
- 5 sets
- Front-panel key lock
- Yes
- Timing / sequenced output
- Yes
Control & general
- Interfaces
- USB Device + LAN
- Remote control
- SCPI · EasyPower · LabVIEW driver

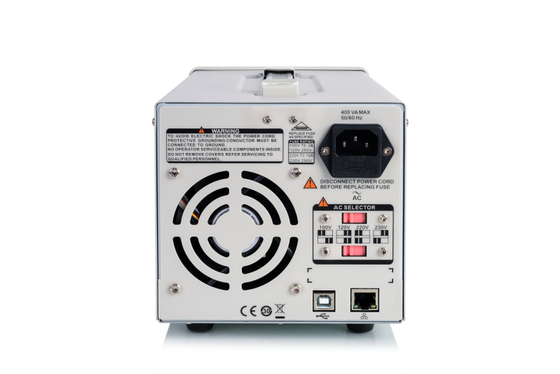

- AC input
- 100 / 120 / 220 / 230 V ±10%, 50/60 Hz
- Dimensions (W×H×D)
- 154.6 × 144.5 × 280 mm
- Weight / warranty
- ≈ 5.5 kg · 3-year warranty
Specifications are taken from the official SPD1000X datasheet and are subject to change; errors & omissions excepted. See the datasheet for full, guaranteed specifications and test conditions.
In the box
- Power cord
- USB cable
- Output test cords (2 sets)
- Quick Start guide
- Calibration certificate
Backed by a 3-year warranty (excluding accessories).
Need one clean, precise rail?
Tell us your voltage and current and we'll confirm the right SPD1000X model — with EU stock, support and calibration.
Frequently asked questions
What's the difference between the SPD1305X and SPD1168X?
Only the output rating. The SPD1305X delivers 0–30 V / 0–5 A (150 W); the SPD1168X delivers 0–16 V / 0–8 A (128 W). Everything else — 1 mV/1 mA resolution, low noise, 4-wire sense, 2.8" display and interfaces — is identical.
What is 4-wire (remote) sense and why does it matter?
In 4-wire mode the supply uses separate sense leads to measure the voltage directly at your load and compensates for voltage dropped in the test leads or connectors — up to 1 V. That keeps the voltage accurate even with long cables or high-current connections.
How low is the output noise?
Very low: ≤ 350 µVrms (3 mVpp) ripple and noise in constant-voltage mode. Combined with the linear design, that makes the SPD1000X well suited to sensitive analog, audio and RF circuits.
It's a single-output supply — what if I need more channels?
The SPD1000X has one high-precision output. If you need several rails at once, look at the 3-channel SPD3303 series or the 4-channel SPD4000X series.
How do I control it from a PC?
Both models have USB and LAN. They support the SCPI command set, the free EasyPower software and a LabVIEW driver for logging and automated test.
What resolution and accuracy can I expect?
The SPD1000X sets and reads back to 1 mV / 1 mA, with ±(0.03% + 10 mV) voltage and ±(0.3% + 10 mA) current accuracy — high precision for a compact bench supply.
