Rack mount kits & carry cases
Every rack mount kit, carry case and cover in Siglent’s current range — 21 items. Kits are made for a case size rather than a model name, so start with the finder: look up your instrument and it tells you which kit and which case fit.
A bench instrument in a rack, or on the road
Siglent’s instruments are built for the bench: feet, a carrying handle and a front panel meant to be looked down at. A rack mount kit turns the same instrument into a system component. The handle and feet come off, the instrument is fixed in a 19-inch panel, shelf or frame, and it goes into a standard EIA rack next to the generator, the supply and the load it works with — screen, controls and inputs still on the front, where you can reach them.
That matters in three places. In an automated test system, where every instrument has a fixed position and the cabling is dressed once. On a production line, where the scope must not walk off with the probes. And in a shared laboratory, where the instruments that get damaged are the ones that can be picked up.

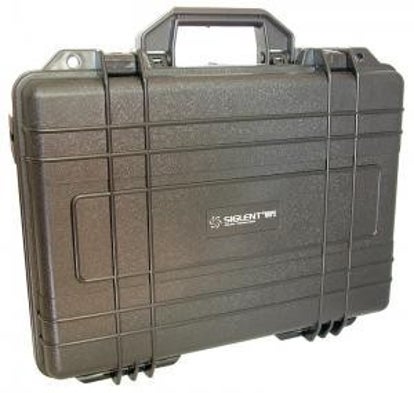

The carry cases do the opposite job: they take a bench instrument out of the building. Padded soft cases for the oscilloscopes and analysers, a bag for the handhelds, a hard transport case and a protective cover for the large SDS6000A, SNA5000A and SSA5000A.
What a rack kit or a case does for you
Six reasons customers buy them — and why the choice of kit matters.
The instrument stays put
Four probes, a ground lead and a USB cable pull a 4 kg bench scope around more than people expect. Bolted into a rack it stays exactly where it was set up, and nobody borrows it for another bench.
Screen and controls at eye level
A bench instrument is looked down at. At the right height in a rack it is looked straight at — and every Siglent kit leaves the display, knobs, inputs and USB ports fully accessible through the front panel.
One frame for the whole test system
Scope, generator, supply and load in one 19-inch frame, with the cabling dressed once and every instrument on LAN. That is what turns a bench into an automated test station.
Lifted by the frame, not the bezel
Most kits carry a handle at each side, so the assembly goes into the rails by its frame. Nothing is lifted by the instrument’s front.
Protection on the road
Field service and site work are not what a bench instrument’s cardboard box was made for. A padded case with room for probes and leads, or a hard transport case for the large analysers, gets it there in one piece.
Cover the front when it travels
The FC1 cover protects the touch screen and the front connectors of the SDS6000A, SNA5000A and SSA5000A between uses and in transit — the two parts that are expensive to replace.
Which kit fits my instrument?
Kits are made for a case size, and several series share one — so the kit’s name does not always match your model. Find your series here. Items marked “quote” are supplied on request — the link takes you to the quote form.
Oscilloscopes
Generators & meters
RF generators
Power supplies
Rack mount kits for oscilloscopes

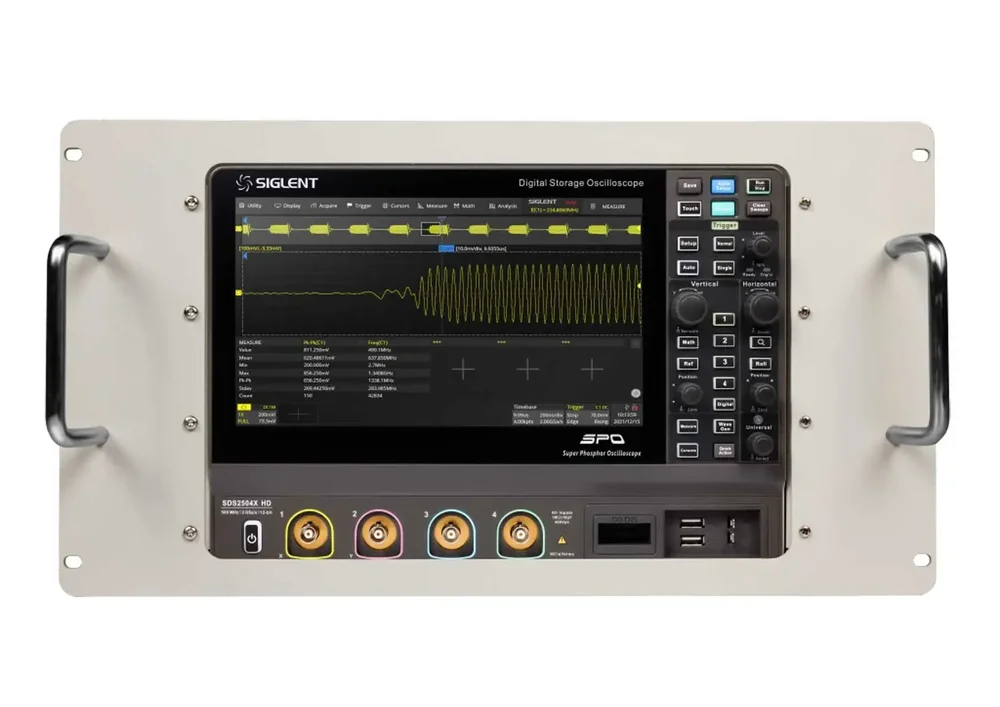

The oscilloscope kits are split by case size, not by name. “HD” describes the 12-bit ADC, not the case: the SDS800X HD takes the 4U SDS1X-E-RMK, the SDS1000X/2000X/3000X HD take the 6U SDS2000HD-RMK.
SDS1000X-E, SDS1000X-U, SDS2000X-E, SDS800X HD

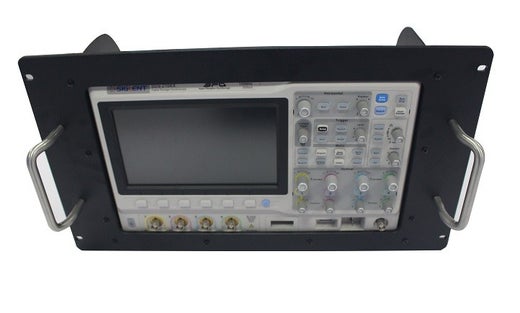

SDS2000, SDS2000X, SDS2000X Plus
SDS1000X HD, SDS2000X HD, SDS3000X HD

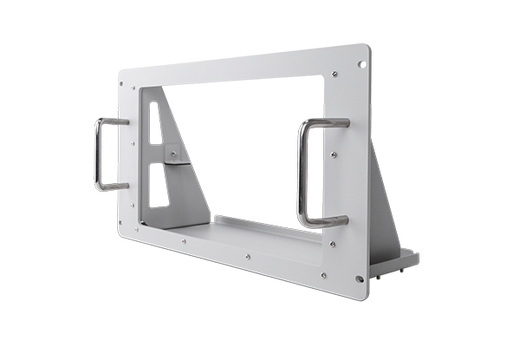

SDS5000X
SDS6004A, SNA5000A, SSA5000A
SDS7000A
Rack mount kits for generators, multimeters and analysers
The SDG-RMK is a shelf, so one kit takes an SDG generator or an SDM3000 multimeter. To rack two of them side by side in 3U, the SDG-2-RMK costs less than a single SDG-RMK. The SDG7000A is the exception: it takes the SSG-RMK.
SDG800, SDG1000X, SDG2000X, SDG5000, SDG6000X, SDM3000 multimeters
Two of: SDG800, SDG1000X, SDG2000X, SDG5000, SDG6000X, SDM3000
SSG3000X, SSG5000X, SSG5000A, SDG7000A
SSG6000A, SSG6000A-V
SSA3000X, SSA3000X Plus, SSA3000X-R, SVA1000X
Rack mount kits for power supplies

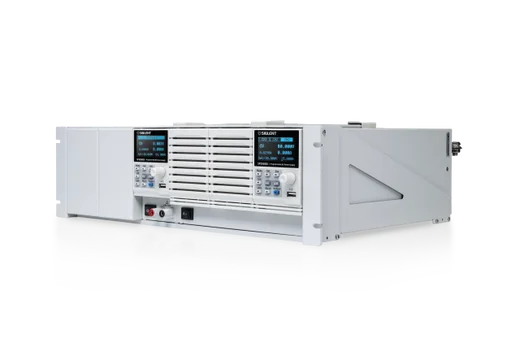

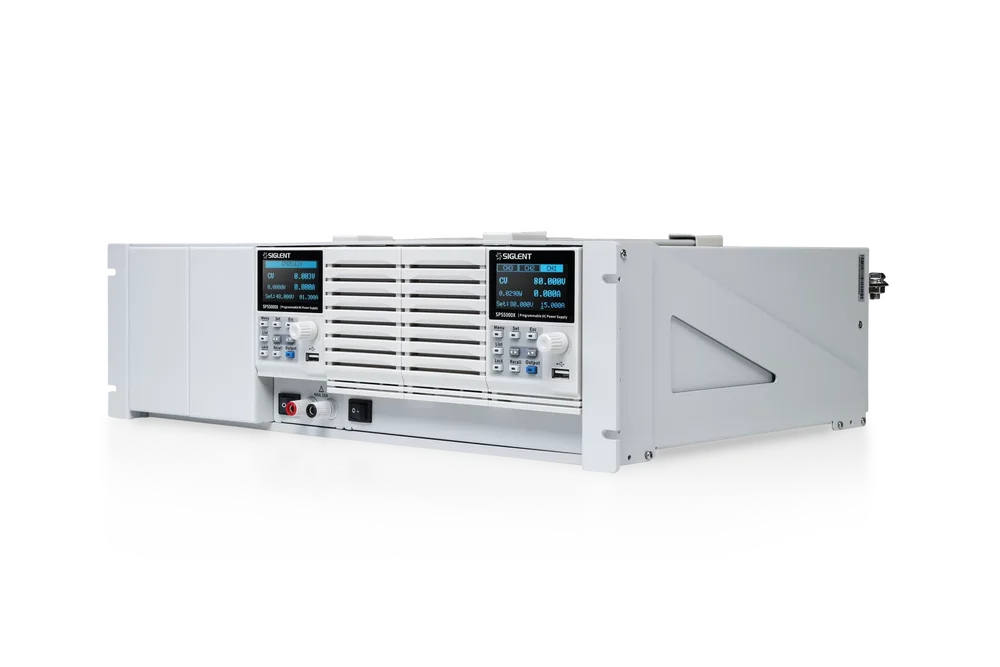

One kit per series. The SPS5000X-RMK holds up to six slots’ worth of SPS5000X supplies in any mix of widths.
Carry cases, transport case and covers

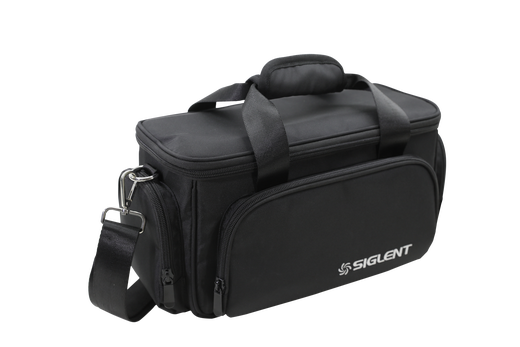

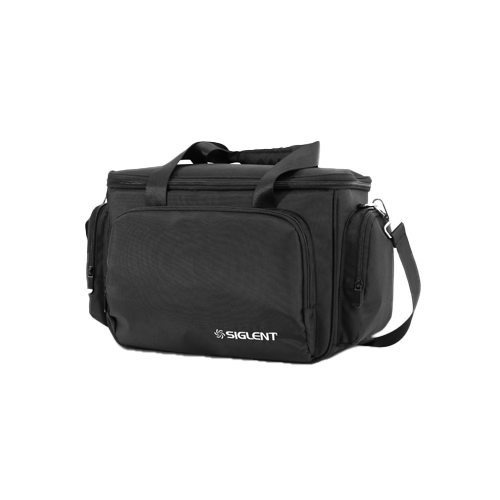

Padded soft cases for the bench and handheld instruments, a hard transport case for the large SDS6000A, SNA5000A and SSA5000A, and a protective cover for the same three instruments.
SDS1000DL+, SDS1000CML+, SDS1000X, SDS1000X-E, SDS2000X-E
SDS2000X, SDS2000X Plus, SDS2000X HD, SDS5000X, SSA3000X, SSA3000X Plus, SSA3000X-R, SVA1000X
SHS800X and SHS1000X handheld oscilloscopes

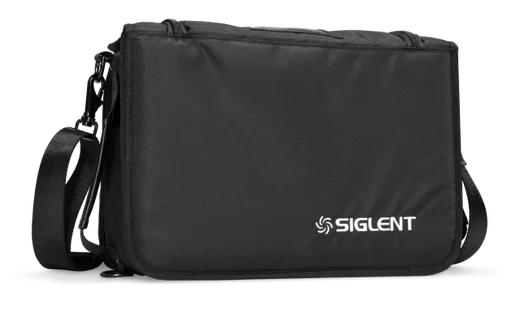

SHA850A / SHA860A handheld analysers, SHN900A handheld VNA
Siglent SHS handheld oscilloscopes — ask us about fit for the SHS800X/SHS1000X
SNA5000A, SSA5000A, SDS6000A
SNA5000A, SDS6000A, SSA5000A
How the kits are built, and how much rack they take
Four constructions, and the height each kit needs. Add the heights of the kits you plan before you order the rack.

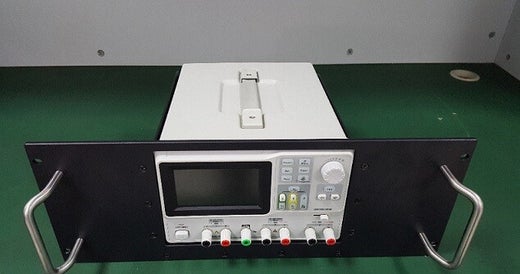

Panel with an opening
The instrument sits in a full-width 19-inch panel with a handle each side. One kit per case size, so it covers every series that shares that case.

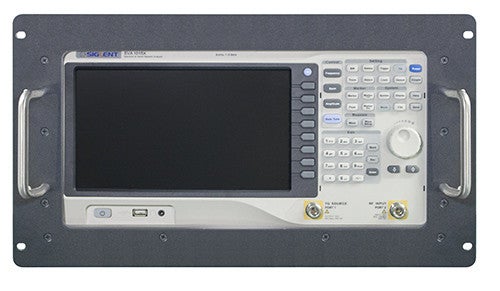

SDS2000HD-RMK, SDS5000X-RMK, SSA-RMK, SPD3000-RMK

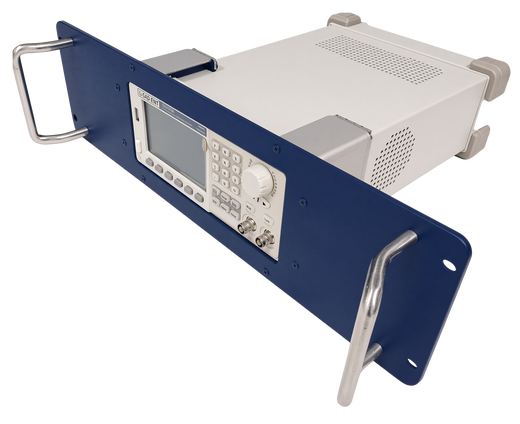

Shelf
A tray with a front panel: the instrument stands on it rather than being bolted to it, which is why one shelf takes both generators and multimeters.

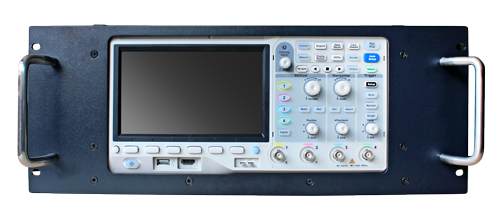

SDG-RMK, SDS1X-E-RMK
Multi-instrument frame
Two SDG or SDM instruments side by side in 3U, or up to six slots of SPS5000X supplies in one 3U frame with blank panels for the free slots.

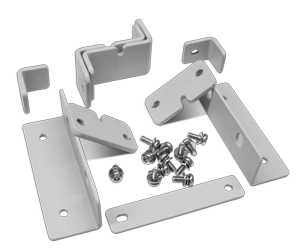

SDG-2-RMK, SPS5000X-RMK

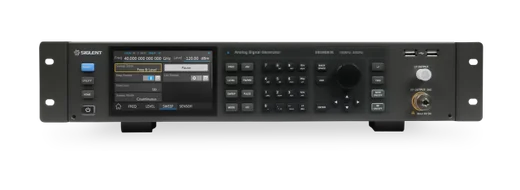

Bolt-on ears
Brackets fixed to the instrument’s own sides, for the generators built with rack mounting in mind.

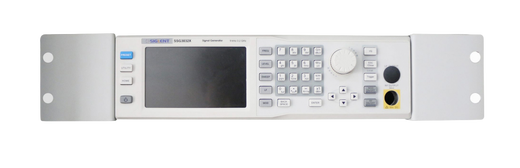

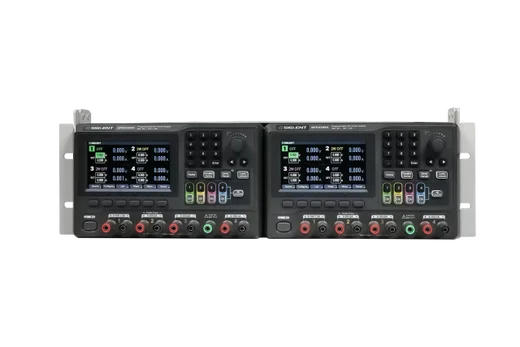

SSG-RMK, SSG6000A-RMK, SPD4000X-RMK
| Height | mm | Kits |
|---|---|---|
| 1U | 44.45 mm | the unit every rack is counted in |
| 2U | 89 mm | SSG6000A-RMK |
| 3U | 133 mm | SDG-RMK, SDG-2-RMK, SSG-RMK, SPD4000X-RMK, SPS5000X-RMK |
| 4U | 178 mm | SDS1X-E-RMK, SPD3000-RMK |
| 6U | 267 mm | SDS2000X-RMK, SDS2000HD-RMK (260 mm panel), SDS5000X-RMK, SSA-RMK |
| 7U | 311 mm | SDS6000-RMK |
Questions about cases and rack mounts
How do I find the right rack kit?
Look up your instrument in the finder table above. Kits are made for a case size, and several Siglent series share one — so the kit’s name does not always match your model. When in doubt, send us the model number.
What does “U” mean?
One rack unit (1U) is 44.45 mm of height in a 19-inch rack. A 3U kit needs 133 mm, a 6U kit 267 mm. All kits here are for standard 19-inch EIA racks.
Can I put two instruments in one kit?
Only with the SDG-2-RMK, which holds two SDG generators or SDM3000 multimeters side by side in 3U, and the SPS5000X-RMK, which holds several SPS5000X supplies. All other kits take one instrument.
My instrument is not in the table.
Siglent does not name a kit for every series — for example the SDG1000X Plus, SDG3000X, SDM4000A and SDS6000L. Ask us before ordering; we check the fit with Siglent.
Some items say “on request”. Can I still order them?
Yes. They are in Siglent’s current range; ask for a quote and we supply them at the list price shown.
Can I return a case or rack kit?
Yes. These are physical accessories, so the normal 14-day EU return right applies to consumer orders.
Racking several instruments?
Send us the list of instruments and your rack height. We will pick the kits, check the total height and quote the set.
