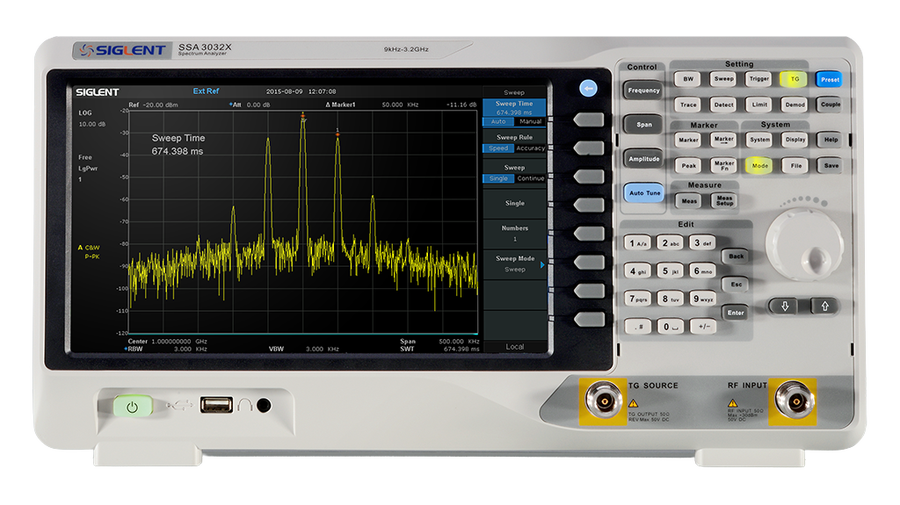

SSA3000X Series
A light, affordable all-digital-IF spectrum analyzer covering 9 kHz to 2.1 or 3.2 GHz — with a standard preamplifier, 1 Hz resolution bandwidth, −161 dBm/Hz displayed average noise level and a bright 10.1-inch display. Everyday spectrum analysis for R&D, education, production, maintenance and EMI pre-compliance, with an included tracking-generator license and optional EMI, advanced-measurement and reflection kits.
Spectrum Analyzer
A light, affordable all-digital-IF spectrum analyzer covering 9 kHz to 2.1 or 3.2 GHz — with a standard preamplifier, 1 Hz resolution bandwidth, −161 dBm/Hz displayed average noise level and a bright 10.1-inch display. Everyday spectrum analysis for R&D, education, production, maintenance and EMI pre-compliance, with an included tracking-generator license and optional EMI, advanced-measurement and reflection kits.
Both models share the same platform, user interface and remote-control command set, so you choose purely on frequency — then scale the analysis with EMI, advanced-measurement and reflection kits as your work grows. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
All-digital IF
All-digital intermediate-frequency technology for stable, repeatable measurements down to a 1 Hz resolution bandwidth.
Standard preamplifier
A 20 dB preamplifier is fitted as standard across 9 kHz–3.2 GHz, pushing DANL to −161 dBm/Hz for weak-signal work.
10.1" WVGA display
A bright 1024×600 display with four independent traces and markers — easy to read right across the bench.
Tracking generator included
siglent.eu models ship with a free TG license — scalar-network and, with the reflection kit, VSWR measurements out of the box.
Models in the series
Choose by frequency — both models share the same platform and software.
Core capabilities
Digital IF for accurate, repeatable results and RBW from 1 Hz to 1 MHz in a 1-3-10 sequence.
A 9 kHz–3.2 GHz preamplifier fitted as standard for low-noise, weak-signal measurements.
Channel power, ACPR, OBW, time-domain power, TOI and more with the Advanced Measurement Kit.
CISPR-16 EMI filters and a quasi-peak detector with the EMI kit plus EasySpectrum software.
Add the reflection kit for on-screen VSWR, return loss and reflection coefficient.
100 kHz–3.2 GHz tracking generator for scalar-network and filter measurements.
Features in depth

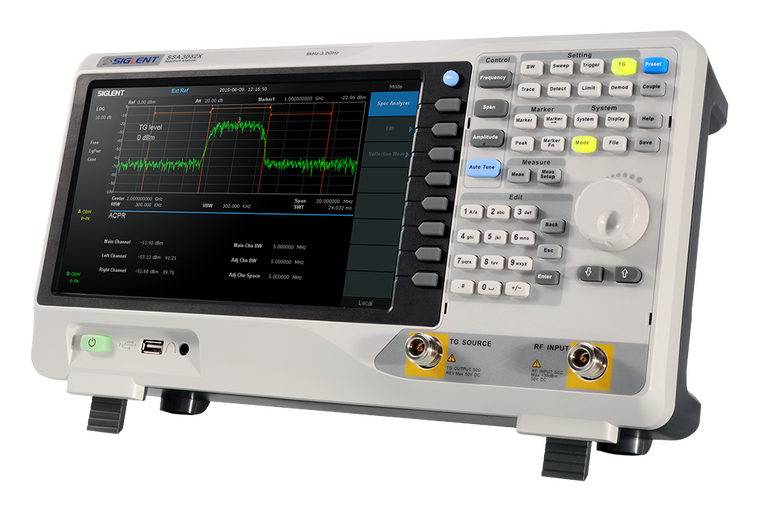

Sensitivity you can rely on
With a standard 20 dB preamplifier and all-digital IF, the SSA3000X reaches a −161 dBm/Hz displayed average noise level — so small signals stay visible without any add-on hardware.
- Standard preamplifier, 9 kHz – 3.2 GHz
- −161 dBm/Hz DANL (typ., preamp on, normalised to 1 Hz)
- 1 Hz minimum resolution bandwidth for close-in detail
- Phase noise −98 dBc/Hz @ 1 GHz, 10 kHz offset (typ.)

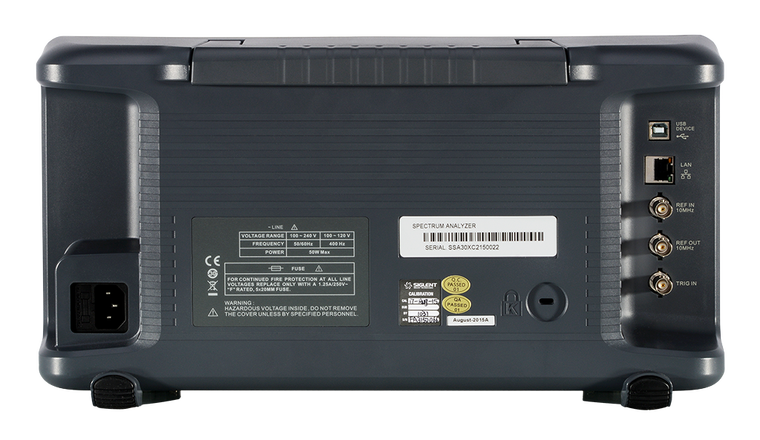

Rear panel, connectivity & remote control
USB, LAN (VXI-11) and a 10 MHz reference in/out make the SSA3000X easy to automate and to lock to a house reference — fully SCPI-compatible for scripted test.
- USB Host + USB Device, LAN (VXI-11, 10/100)
- 10 MHz reference input and output (BNC)
- External trigger input, 5 V TTL
- SCPI remote control + free EasySpectrum PC software
Automatic measurements & pre-compliance
Beyond a plain trace, the SSA3000X adds real measurement power — channel power, ACPR, occupied bandwidth and more with the Advanced kit, plus CISPR-16 EMI pre-compliance with the EMI kit.
- Advanced kit: channel power, ACPR, OBW, T-power, TOI, spectrum monitor
- EMI kit: CISPR-16 filters + quasi-peak detector + EasySpectrum
- Reflection kit: VSWR, return loss, reflection coefficient
- Four traces & markers, zero-span and demodulation
Applications
Where the SSA3000X Series is at home.
Full specifications
| Frequency range | SSA3021X: 9 kHz – 2.1 GHz · SSA3032X: 9 kHz – 3.2 GHz |
| Frequency resolution | 1 Hz |
| Resolution bandwidth (RBW) | 1 Hz – 1 MHz, 1-3-10 sequence; shape factor < 4.8:1 |
| Video bandwidth (VBW) | 1 Hz – 3 MHz, 1-3-10 sequence |
| Displayed average noise level | −161 dBm/Hz (typ., preamp on, normalised to 1 Hz) |
| Phase noise | < −98 dBc/Hz @ 1 GHz, 10 kHz offset (typ.) |
| Total amplitude accuracy | < 0.7 dB |
| Preamplifier | 20 dB (nom.), standard, 9 kHz – 3.2 GHz |
| Input attenuator | 0 – 51 dB, 1 dB steps |
| Reference level | −100 dBm to +30 dBm, 1 dB steps |
| Max. input / damage level | +20 dBm CW · ±50 VDC · damage > +33 dBm |
| Third-order intercept (TOI) | +10 dBm (typ.) |
| Trace detectors | Positive/negative peak, sample, normal, average (V/RMS/video), quasi-peak (EMI opt.) |
| Traces / display points | 4 traces · 751 points |
| Tracking generator (incl./opt.) | 100 kHz – 2.1/3.2 GHz, −20 to 0 dBm output |
| Sweep | 1 ms – 3000 s · Sweep & FFT modes |
| Trigger | Free, video, external (5 V TTL) |
| Reference clock | 10 MHz, < 1 ppm initial, aging < 0.5 ppm/first year |
| Display | 10.1-inch TFT LCD, 1024×600 |
| Interfaces | USB Host/Device · LAN (VXI-11) · 10 MHz ref in/out · ext. trigger |
| Power | 100–240 VAC, 45–440 Hz, 30 W |
| Dimensions / weight | 393 × 207 × 116.5 mm · 4.6 kg |
| Compliance | EN 61326-1 (EMC) · EN 61010-1 (safety) |
From the official SSA3000X Series datasheet; subject to change, errors & omissions excepted.
Measurement kits & options
Extend the SSA3000X with measurement kits and licenses — click Buy to open the option in the shop. See the full SSA3000X Series license page.
| Kit / option | Order number | Price | Shop |
|---|---|---|---|
| EMI pre-compliance kit — CISPR-16 filters + quasi-peak detector + EasySpectrum software | EMI-SSA3000X | €425.00 | Buy |
| Advanced measurement kit — ACPR, channel power, OBW, TOI, time-domain power, spectrum monitor | AMK-SSA3000X | €395.00 | Buy |
| Reflection / VSWR kit — VSWR, return loss, reflection coefficient (with bridge) | RBSSA3X25 | €559.00 | Buy |
| Near-field probe set — H/E-field probes, 300 kHz – 3 GHz (EMI debugging) | SRF5030T | €499.00 | Buy |
Related & resources
Configure your SSA3000X Series
Tell us your frequency range and whether you need EMI, advanced measurements or reflection — we’ll quote the right model with the kits to match.
Frequently asked questions
Frequency range: the SSA3021X covers 9 kHz to 2.1 GHz, the SSA3032X to 3.2 GHz. Everything else — the platform, 1 Hz RBW, standard preamplifier, 10.1-inch display and software — is identical.
On siglent.eu the SSA3021X and SSA3032X ship with a free tracking-generator license, so you can perform scalar-network and — with the reflection kit — VSWR / return-loss measurements out of the box.
Yes, with the EMI kit (EMI-SSA3000X): it adds CISPR-16 EMI filters and a quasi-peak detector plus the EasySpectrum EMI pre-compliance software. Pair it with the SRF5030/SRF5030T near-field probes to locate emissions.
The Advanced Measurement Kit (AMK-SSA3000X) adds channel power, ACPR, occupied bandwidth, time-domain power, third-order intercept and a spectrum monitor — all on-screen.
The SSA3000X is the classic series (10.1-inch display, up to 3.2 GHz). The SSA3000X Plus is the newer platform with a touchscreen and improved specifications. This page covers the standard SSA3000X.
