| Model | Frequency | Type | Connector | Impendence | Similar |
|---|---|---|---|---|---|
| 1 F503ME | DC - 4.5 GHz | OSLT | N Type - Male | 50 Ω | 85032B/E |
| 2 F503FE | DC - 4.5 GHz | OSLT | N Type - Female | 50 Ω | 85032B/E |
| 3 F603ME | DC - 4.5 GHz | OSLT | 3.5mm SMA-Male | 50 Ω | 85033E |
| 4 F603FE | DC - 4.5 GHz | OSLT | 3.5mm SMA -Female | 50 Ω | 85033E |
| 5 F504MS | DC - 9 GHz | OSLT | N Type - Male | 50 Ω | 85032F |
| 6 Y504MS | DC - 9 GHz | OSLT | N Type - Male | 50 Ω | 85032F |
| 7 F504FS | DC - 9 GHz | OSLT | N Type - Female | 50 Ω | 85032F |
| 8 Y504FS | DC - 9 GHz | OSLT | N Type - Female | 50 Ω | 85032F |
| 9 F504TS | DC - 9 GHz | OSLT | N-Male and Female | 50 Ω | 85032F |
| 10 F604MS | DC - 9 GHz | OSLT | 3.5mm-Male | 50 Ω | 85033E |
| 11 F604FS | DC - 9 GHz | OSLT | 3.5mm-Female | 50 Ω | 85033E |
| 12 F604TS | DC - 9 GHz | OSLT | 3.5mm Male and Female | 50 Ω | 85033E |
| F505MS | DC - 18 GHz | OSLT | N Type - Male | 50 Ω | 85054D |
| F505FS | DC - 18 GHz | OSLT | N Type - Female | 50 Ω | 85054D |
| F505TS | DC - 18 GHz | OSLT | N Type - Male AND Female | 50 Ω | 85054D |
| F606MS | DC – 26.5 GHz | OSLT | 3.5mm - Male | 50 Ω | 85052D |
| Y606MS | DC – 26.5 GHz | OSLT | 3.5mm - Male | 50 Ω | 85052D |
| F606FS | DC – 26.5 GHz | OSLT | 3.5mm - Female | 50 Ω | 85052D |
| Y606FS | DC – 26.5 GHz | OSLT | 3.5mm - Female | 50 Ω | 85052D |
| F606TS | DC – 26.5 GHz | OSLT | 3.5mm Male and Female | 50 Ω | 85052D |
| KWR42A | 18 – 26.5 GHz | Waveguide | 2.92mm-Male AND Female | 50 Ω | K11644A |
OSLT = Open + Short + 50Ω termination Load + Through adaptor
The Siglent F503ME economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz.

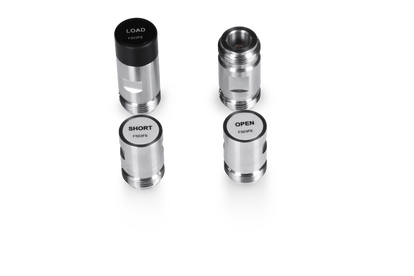

The Siglent F503FE economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz.

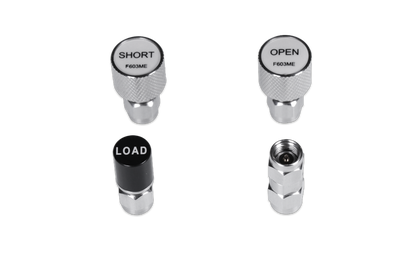

The Siglent F603ME economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standard include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz

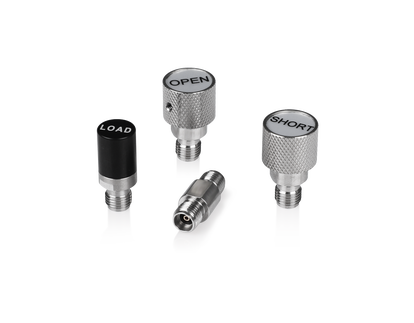

Siglent F603FE SMA-Female economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standard include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 4.5 GHz

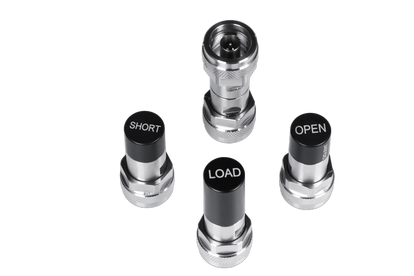

Siglent F504MS N-Male economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

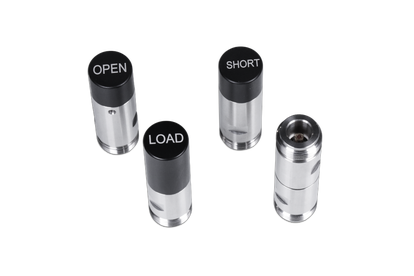

Siglent F504FS N-Female economy 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

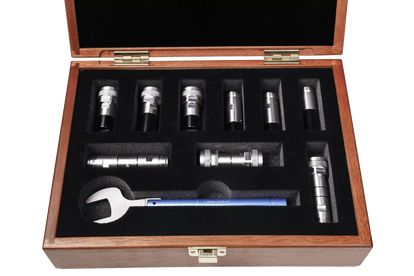

The Siglent F504TS 50Ω N type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

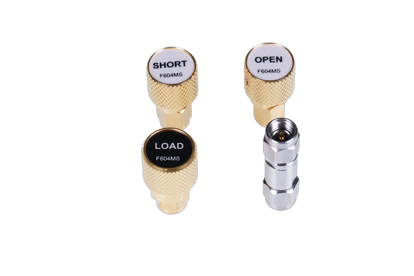

Siglent F604MS SMA-Male economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

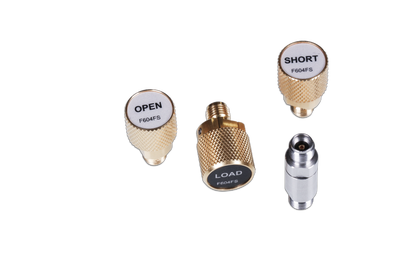

Siglent F604FS SMA-Female economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

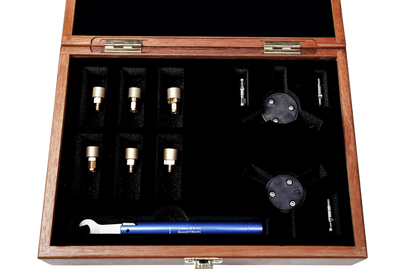

The Siglent F604TS 50Ω SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.
The Siglent Y604MS 50Ω N type coaxial Integrated mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.
The Siglent Y604FS 50Ω N type coaxial Integrated mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

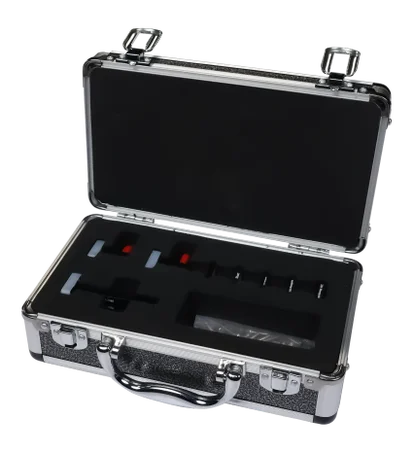

The Siglent KWR42A precise K-band waveguide mechanical calibration kit contains K-band load, K-band short, 1/8λ waveguide line, 1/4λ waveguide line and 3/8λ waveguide line, specified from 17.6 GHz to 26.7 GHz.
