Siglent SDM3000X Series
Three resolutions, one proven platform: 4½, 5½ and 6½ digit True-RMS bench multimeters with dual display, full function set and USB/LAN control — and -SC models that add a factory-installed 12-channel scanner card for multi-point measurement.
One platform, three levels of precision

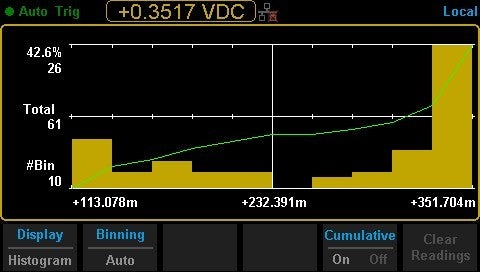

Every SDM3000X shares the same DNA: a bright 4.3″ TFT dual display that shows two readings of one signal at once, True-RMS AC measurement, and a complete function set — DC/AC voltage and current, 2/4-wire resistance, capacitance, frequency, continuity, diode and TC/RTD temperature. Statistics, histogram, trend and limit testing run on the instrument itself.
Pick your precision: 4½ digits for everyday bench work, 5½ digits for development and production, or 6½ digits at 0.0035% where microvolts matter. USB (plus LAN from the SDM3055 up) with SCPI and the free EasyDMM software make every model automation-ready.
Twelve measurement points. One instrument.
The factory-installed SC1016 scanner card turns an SDM3055-SC or SDM3065X-SC into a compact data-acquisition system: 12 multiplexed channels scanning DCV/ACV, resistance, capacitance, frequency, diode, continuity and TC/RTD temperature — with time-stamped logging for burn-in, environmental and reliability testing.
- 12 channels (CH1–CH12), scanned automatically or manually
- Multi-point thermocouple / RTD temperature monitoring
- Time-stamped logging to internal memory or PC
- Factory-installed only — the card is not a field upgrade, so choose -SC if scanning may ever be on your roadmap
Five models — pick precision and channels
The same function set and dual display across the series — choose your resolution, then decide whether the 12-channel scanner belongs in the box.
- 60,000 counts · 150 rdgs/s
- 0.06% basic DCV
- USB · SCPI remote control

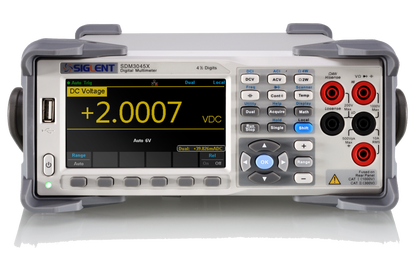

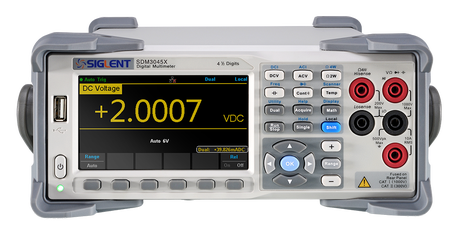

The affordable entry — everyday bench accuracy with True-RMS and dual display.
- 240,000 counts · 150 rdgs/s
- 0.015% basic DCV
- USB & LAN · SCPI remote control

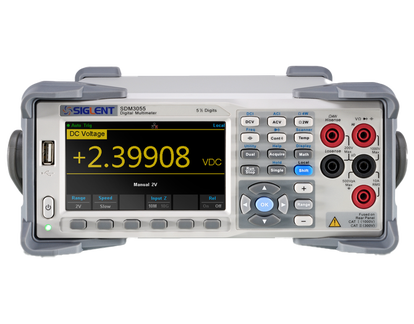

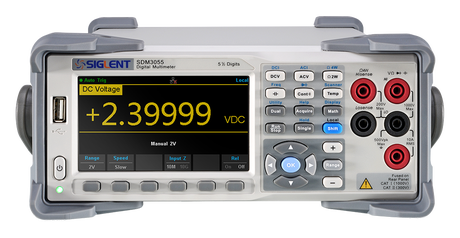

The all-rounder — lab-grade accuracy for R&D, production and education.
- 240,000 counts · 150 rdgs/s
- 0.015% basic DCV
- 12-ch SC1016 installed
The SDM3055 as a multi-point system: 12 scanned channels with time-stamped logging.
- 2,200,000 counts · up to 10,000 rdgs/s
- 0.0035% basic DCV
- USB & LAN · SCPI remote control

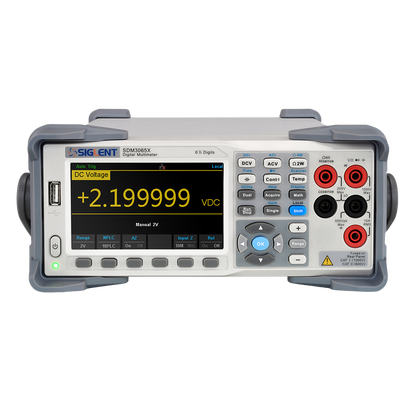

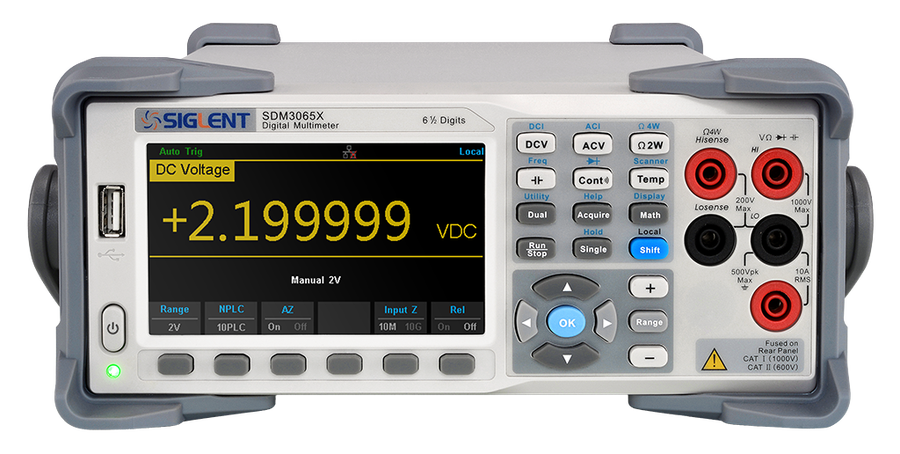

Metrology-grade precision — microvolts and milliohms, resolved on the bench.
- 2,200,000 counts · up to 10,000 rdgs/s
- 0.0035% basic DCV
- 12-ch SC1016 installed
6½-digit precision on 12 scanned channels — a compact data-acquisition system.
Compare the specifications
All models: True-RMS AC, 2/4-wire resistance, capacitance, frequency, continuity, diode, TC/RTD temperature, statistics & limit testing, EasyDMM software.
| Specification | SDM3045X | SDM3055 | SDM3055-SC | SDM3065X | SDM3065X-SC |
|---|---|---|---|---|---|
| Resolution | 4½ digit | 5½ digit | 5½ digit | 6½ digit | 6½ digit |
| Counts / rate | 60,000 counts · 150 rdgs/s | 240,000 counts · 150 rdgs/s | 240,000 counts · 150 rdgs/s | 2,200,000 counts · up to 10,000 rdgs/s | 2,200,000 counts · up to 10,000 rdgs/s |
| Basic DCV accuracy | 0.06% basic DCV | 0.015% basic DCV | 0.015% basic DCV | 0.0035% basic DCV | 0.0035% basic DCV |
| Scanner card | — | — | SC1016 · 12-ch | — | SC1016 · 12-ch |
| Connectivity | USB | USB · LAN | USB · LAN | USB · LAN | USB · LAN |
| Price | €382.00 | €469.00 | €698.00 | €689.00 | €938.00 |
Summarised from the official datasheets; errors & omissions excepted. Model names link to full product pages from the cards above.
Accessories & software
- EasyDMM PC software — configuration, logging & export (free)
- SDM-PB test leads — spare 1000 V CAT III pair · €15
- USB-GPIB adapter — IEEE-488 for legacy ATE racks · €135
- DKD/DAkkS calibration — accredited option at order time
Not sure which resolution you need?
Tell us what you measure and how many points — we’ll match the right SDM3000X, with or without the scanner card, from EU stock with calibration and support.
Frequently asked questions
What is the difference between the SDM3045X, SDM3055 and SDM3065X?
Resolution and accuracy: 4½ digit / 0.06%, 5½ digit / 0.015% and 6½ digit / 0.0035% basic DCV accuracy respectively. All three share the same True-RMS function set, dual display and USB connectivity; the SDM3055 and SDM3065X add LAN, and the SDM3065X reads up to 10,000 rdgs/s.
What does the -SC suffix mean?
-SC models ship with the SC1016 scanner card factory-installed: a 12-channel multiplexer (CH1–CH12) that scans DCV/ACV, resistance, capacitance, frequency, diode, continuity and TC/RTD temperature with time-stamped logging — one instrument measuring twelve points.
Can I add the scanner card to a standard model later?
No — the SC1016 is only available factory-installed in the -SC variants and is not a field upgrade. If multi-point scanning might ever be on your roadmap, choose the -SC model from the start.
Which measurement functions are included?
Every SDM3000X measures DC/AC voltage and current (True-RMS), 2- and 4-wire resistance, capacitance, frequency/period, continuity, diode and temperature (thermocouple & RTD), with statistics, histogram, trend, limit testing and dB/dBm maths on the instrument.
Can I control them remotely?
Yes. All models have USB (USB-TMC, SCPI); the SDM3055 and SDM3065X add LAN. The free EasyDMM PC software covers configuration, logging and export, and a USB-GPIB adapter is available for legacy ATE racks.
Are the multimeters calibrated?
Every unit ships with a factory calibration certificate. Accredited DKD/DAkkS calibration is available as an option for audit-proof traceability.
