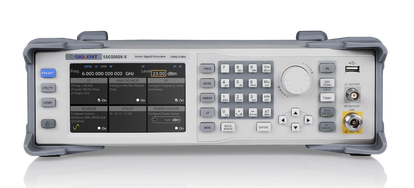

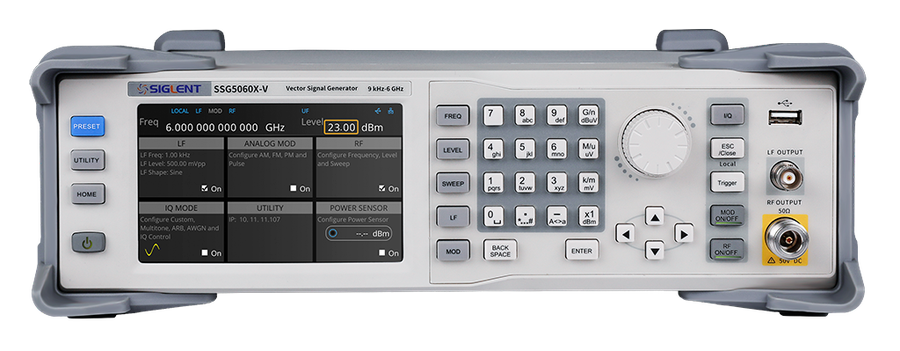

SSG5000X Series
A high-purity analog and vector signal generator to 4 or 6 GHz with industry-leading phase noise, spectral purity and EVM. The -V models add an internal I/Q baseband generator for digitally-modulated and wideband vector signals — a true one-box source for 5G sub-6, Wi-Fi and radar work.
Analog & Vector Signal Generator
A high-purity analog and vector signal generator to 4 or 6 GHz with industry-leading phase noise, spectral purity and EVM. The -V models add an internal I/Q baseband generator for digitally-modulated and wideband vector signals — a true one-box source for 5G sub-6, Wi-Fi and radar work.
Every model shares the same platform, user interface and remote-control command set, so you choose purely on frequency and capability — and scale the analysis with licenses and accessories as your work grows. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
Industry-leading purity
Exceptional phase noise, spectral purity and low EVM for demanding receiver and modulation test.
High output power
Up to +26 dBm output keeps levels high for cabled and over-the-air test.
Internal vector (-V)
-V models include an internal I/Q baseband generator for digitally-modulated and wideband signals.
Upgradeable
License upgrades from 4 GHz to 6 GHz and IQ bandwidth from 75 MHz to 150 MHz.
Models in the series
Choose by frequency and capability — every model shares the same platform and software.
Core capabilities
Wide coverage; 4 GHz upgradeable to 6 GHz by license.
Among the best in its class for spectral purity.
High output power for cabled and OTA setups.
-V models generate vector / digitally-modulated signals; IQ bandwidth 75 → 150 MHz.
Full analog modulation plus pulse and pulse-train generator.
10.1" touch UI, LAN/USB/GPIB and full SCPI.
Features in depth

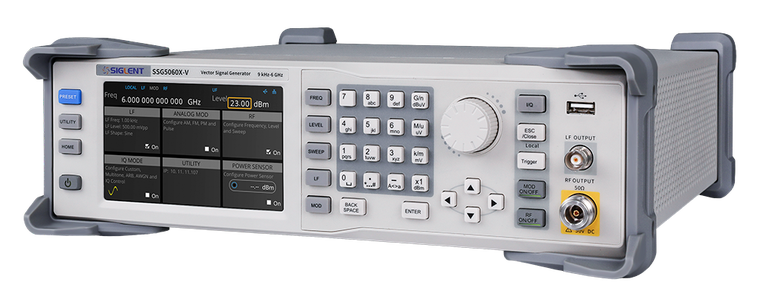

Reference-grade signal purity
The SSG5000X targets the measurements where the source has to be cleaner than what you test — receiver blocking, ACPR and modulation quality.
- −120 dBc/Hz phase noise @ 1 GHz, 20 kHz offset
- Industry-leading spectral purity and low EVM
- Output up to +26 dBm with fine level control
- Pristine carrier for blocking, ACPR and intermod tests

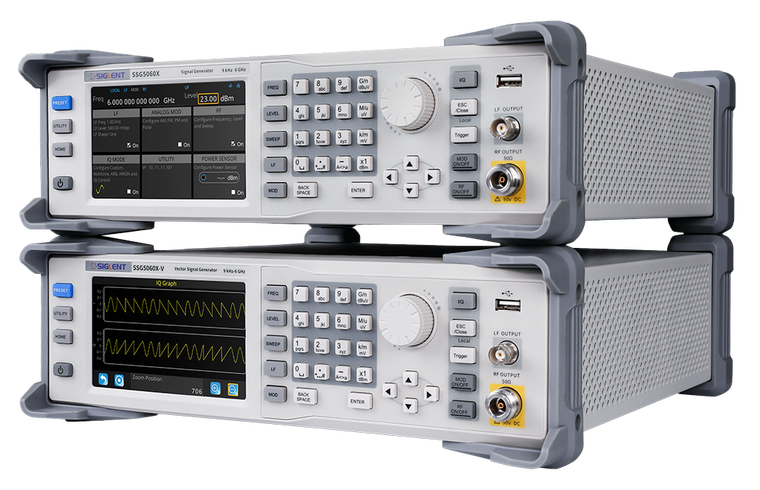

Built-in vector engine (-V)
The -V models fold an I/Q baseband generator into the same box, so one instrument produces both clean carriers and modern digitally-modulated signals.
- Internal I/Q baseband — no external AWG needed
- Digitally-modulated & wideband vector signals
- IQ bandwidth upgradeable from 75 MHz to 150 MHz
- Ideal for 5G sub-6, Wi-Fi, Bluetooth and radar waveforms
Applications
Where the SSG5000X Series is at home.
Full specifications
| Frequency range | 9 kHz – 4 GHz (…40X) / 6 GHz (…60X) |
| Phase noise | −120 dBc/Hz @ 1 GHz, 20 kHz offset (typ.) |
| Max. output power | up to +26 dBm |
| Analog modulation | AM, FM, PM |
| Pulse | Pulse modulation + pulse-train generator |
| Vector / IQ | Internal I/Q baseband on -V models; IQ BW 75 → 150 MHz (upgrade) |
| Sweep | Frequency & level sweep, list mode |
| Reference | Internal OCXO option; 10 MHz in/out |
| Display | 10.1" capacitive touch |
| Interfaces | LAN (LXI) · USB · GPIB · SCPI |
From the official SSG5000X Series datasheet; subject to change, errors & omissions excepted.
Licenses & options
Add capability, bandwidth and references with software licenses and expansion options — click Buy to open the option in the shop. See the full SSG5000X Series license page.
| License / option | Order number | Price | Shop |
|---|---|---|---|
| Pulse-train generator | SSG5000X-PT | €819.00 | Buy |
| Zigbee & Z-Wave signal generation | SSG5000XV-IOT | €1,215.00 | Buy |
| IQ bandwidth upgrade → 150 MHz | SSG5000XV-B150 | €3,829.00 | Buy |
| RF frequency upgrade → 6 GHz | SSG5000X-F60 | €5,209.00 | Buy |
| High-accuracy OCXO clock source | 10M-OCXO-L | €1,039.00 | Buy |

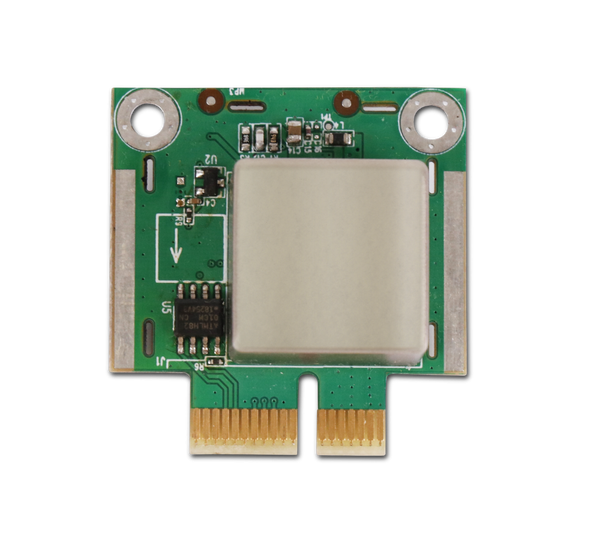

10M-OCXO-L — high-accuracy OCXO clock source
An OCXO (Oven-Controlled Crystal Oscillator) is an internal hardware upgrade that replaces the SSG5000X’s standard 10 MHz reference with an oven-stabilised crystal. The result is a markedly more accurate and stable timebase — the foundation every frequency, level and modulation measurement is built on. Fit it when your application needs reference-grade frequency accuracy, low drift over temperature and time, or a common clock across the bench.
- Oven-stabilised crystal
The 10 MHz quartz crystal sits in a temperature-controlled oven, so the reference frequency barely moves as the lab warms up or cools down.
- Far tighter accuracy & ageing
Replaces the standard internal timebase with a much lower-drift reference — better initial accuracy and a smaller yearly ageing figure for reference-grade work.
- Cleaner close-in phase noise
A more stable timebase improves close-to-carrier phase noise and frequency stability, which matters for narrowband, EVM and modulation-quality measurements.
- Lock your whole bench
Provides a stable 10 MHz that other instruments can lock to (or be locked from) via the rear-panel reference, keeping a multi-instrument setup on one common clock.

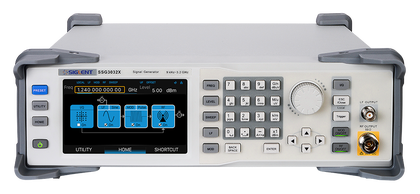

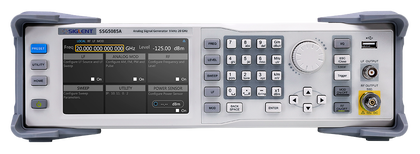

Other RF signal generators
Configure your SSG5000X Series
Tell us your frequency, power and modulation needs — we’ll quote the right model with the options and references to match.
Frequently asked questions
4 GHz (SSG5040X) or 6 GHz (SSG5060X); the 4 GHz models can be upgraded to 6 GHz with a license.
The -V models add an internal I/Q baseband generator, so they produce vector / digitally-modulated signals in one box. Non-V models are clean analog sources.
75 MHz, upgradeable to 150 MHz with the B150 license — wide enough for 5G sub-6, Wi-Fi and radar waveforms.
−120 dBc/Hz at 1 GHz, 20 kHz offset (typical) — among the best in its class.
Up to +26 dBm, with fine level control for both cabled and over-the-air setups.
