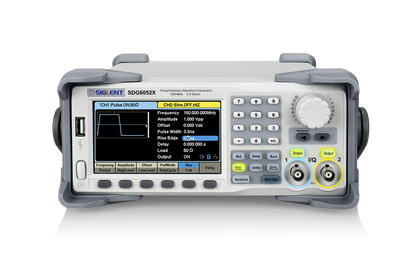

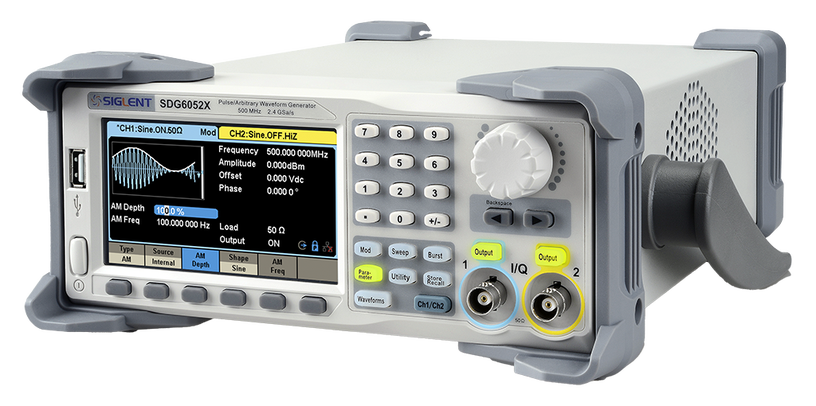

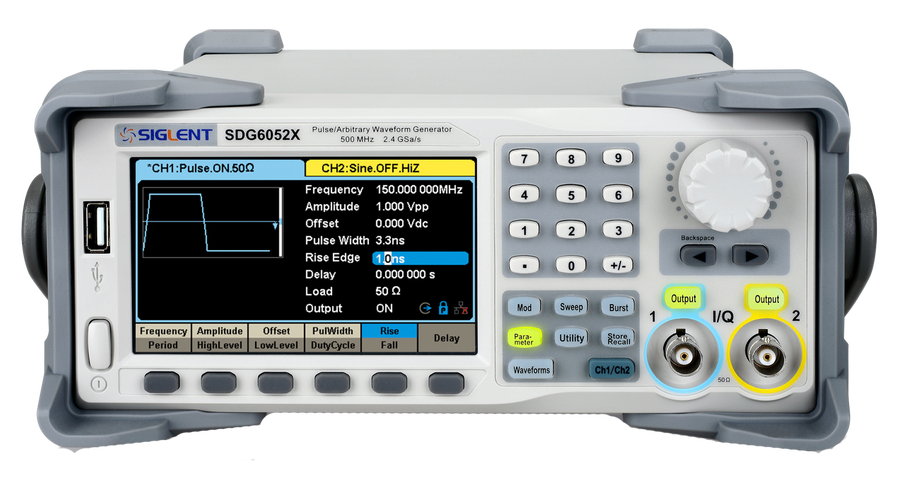

SDG6000X Series
A dual-channel pulse/arbitrary generator with up to 500 MHz bandwidth, 2.4 GSa/s sampling and 16-bit resolution. TrueArb and EasyPulse deliver high-fidelity, low-jitter signals with 20 Vpp output and 80 dB dynamic range.
Overview
The SDG6000X series is a high-end, dual-channel pulse/arbitrary waveform generator. With up to 500 MHz bandwidth, a 2.4 GSa/s sample rate and 16-bit vertical resolution, it produces clean, detailed signals across a wide range of applications.
Siglent's TrueArb and EasyPulse technologies overcome the jitter and distortion limits of traditional DDS designs — TrueArb plays arbitrary waveforms point-by-point, and EasyPulse delivers low-jitter pulses down to 3.3 ns wide with 1 ns edges. A 20 Vpp output with 80 dB dynamic range makes it a cost-effective replacement for RF signal generators below 500 MHz.
Three models share identical performance and differ only in bandwidth: the SDG6022X (200 MHz), SDG6032X (350 MHz) and SDG6052X (500 MHz). Optional IQ/vector signal generation adds ASK, FSK, PSK and QAM for communications work.
From general R&D and digital/communications testing to serial-bus, education and production use, the SDG6000X delivers high-fidelity, low-jitter signals from a single dual-channel instrument.
As the official Siglent distributor for Europe, we hold the SDG6000X in EU stock and back every unit with local warranty, optional ISO/DKD calibration and expert application support.
At a glance
- Type
- Pulse / arbitrary generator
- Models
- SDG6022X · 6032X · 6052X
- Channels
- 2
- Max bandwidth
- Up to 500 MHz
- Display
- 4.3-inch touch · 480×272
- Availability
- EU stock
Key highlights
Up to 500 MHz
Dual-channel output to 500 MHz for wideband signal generation.
2.4 GSa/s · 16-bit
High sample rate and resolution for accurate, low-distortion waveforms.
20 Vpp · 80 dB range
20 Vpp output amplitude with 80 dB dynamic range for clean large and small signals.
TrueArb & EasyPulse
Point-by-point arbitrary playback and low-jitter pulses (3.3 ns width, 1 ns edge).
Optional IQ / vector
ASK, FSK, PSK and QAM with symbol rates to 37.5 MSymb/s via EasyIQ (optional).
196 arbs · counter
196 built-in arbitrary waveforms plus an 8-digit hardware frequency counter.
Core capabilities
TrueArb & EasyPulse
Point-by-point arbitrary playback (linear and zero-order-hold interpolation) up to 300 MSa/s, plus low-jitter square/pulse output down to 3.3 ns width and 1 ns edge.
IQ / vector signals (optional)
ASK, FSK, PSK, QAM up to 256QAM, MSK and MultiTone — symbol rate 250 Symb/s to 37.5 MSymb/s, carrier to 500 MHz, generated and edited in EasyIQ.
Modulation, sweep & PRBS
AM, FM, PM, PWM, ASK, FSK, PSK and DSB-AM, plus sweep (linear/log), burst (N-cycle/infinite/gated), harmonics and PRBS3–PRBS32 to 300 Mbps (TTL/LVCMOS/LVPECL/LVDS).
Dual-channel & noise
Channel coupling, copy, tracking and phase-lock, waveform combining, wideband Gaussian noise to 500 MHz, and an 8-digit frequency counter.
Models in the series
Identical performance — choose your bandwidth.
Specifications
Key specs across the SDG6000X series (SDG6022X / SDG6032X / SDG6052X).
- Max sine frequency
- 500 / 350 / 200 MHz
- Channels
- 2
- Frequency resolution
- 1 µHz
- Max output amplitude
- 20 Vpp (HiZ) · 80 dB range
- Square / pulse max
- 120 MHz / 150 MHz
- Output impedance
- 50 Ω
- Max sample rate
- 2.4 GSa/s (2× interpolation)
- TrueArb rate
- 1 µSa/s – 300 MSa/s
- DDS arb rate
- 1.2 GSa/s
- Vertical resolution
- 16-bit
- Arbitrary memory
- 2 – 20 Mpts
- Standard
- Sine, Square, Ramp, Pulse, Noise, DC, Arb, PRBS
- Built-in arbitrary
- 196 waveforms
- Pulse min width / edge
- 3.3 ns / 1 ns
- Pulse/square jitter
- 100 ps
- Sine THD
- 0.075%
- Harmonics
- Up to 10th order
- Analog / digital
- AM, FM, PM, PWM, ASK, FSK, PSK, DSB-AM
- Sweep / burst
- Linear/log · N-cycle/infinite/gated
- PRBS
- to 300 Mbps (160 on 6022X)
- Logic levels (PRBS)
- TTL · LVCMOS · LVPECL · LVDS
- IQ / vector¹
- to 37.5 MSymb/s · carrier to 500 MHz
- Interfaces
- USB host · USB device · LAN · GPIB opt.
- Display
- 4.3-inch touch · 480×272
- Frequency counter
- 8-digit · up to 400 MHz
- Reference clock
- 10 MHz in/out · ±1 ppm
- Power
- 100–240 V · ≤50 W
- Dimensions / weight
- 260 × 107 × 296 mm · 3.5 kg
¹ IQ/vector signal generation (SDG-6000X-IQ, requires EasyIQ software) and the GPIB interface are options. Amplitude figures are into a HiZ load (halved into 50 Ω). Ask us for a configured quote. Full specifications in the datasheet below.
Software & control
Build and edit waveforms on the 4.3-inch touch screen or over USB/LAN for automated test.
EasyIQ
Create and edit IQ/vector signals — ASK/FSK/PSK/QAM, MultiTone and custom constellations (optional).
EasyWave & remote
PC waveform editor (manual, line, equation, coordinate) plus SCPI control over USB/LAN.
