Siglent SSG3032X-IQE 9 kHz ~ 3.2 GHz Signal Generator

SIGLENT SSG3032X-IQE – RF Signal Generator with Integrated IQ Modulation

The SIGLENT SSG3032X-IQE is a high-performance RF signal generator with integrated IQ modulation, designed for R&D, education, production testing, and advanced RF laboratories. Covering frequencies up to 3.2 GHz and delivering output power levels of up to +20 dBm, it provides stable, low-phase-noise RF signals suitable for a wide range of wireless, EMC, and RF validation applications.

Equipped with advanced IQ modulation capabilities, the SSG3032X-IQE supports both internal and external baseband sources, enabling precise generation of complex vector and digitally modulated signals. When combined with SIGLENT arbitrary waveform generators as a baseband source, it offers excellent modulation accuracy, signal integrity, and repeatability. As a result, the SSG3032X-IQE delivers reliable RF performance, flexible modulation options, and consistent timing behavior, even in demanding real-world test scenarios.

Designed for Real-World RF & IQ Test Applications

The SIGLENT SSG3032X-IQE is purpose-built for demanding RF and vector signal test environments, including:

RF and wireless communication system development
IQ modulation, demodulation, and vector signal analysis
Receiver sensitivity, blocking, and BER testing
EMC pre-compliance and RF component validation
Education, training laboratories, and automated RF test systems

With integrated IQ modulation capability, precise signal stability, and comprehensive remote-control interfaces including LAN, USB (USBTMC), and optional GPIB, the SSG3032X-IQE integrates seamlessly into modern automated test environments. The built-in web server enables convenient remote operation and monitoring directly from a standard web browser.

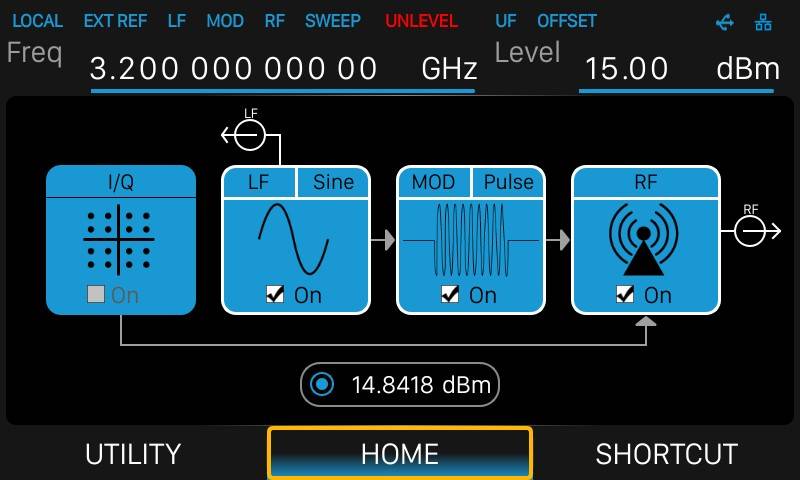

5 inch touch screen, keyboard and mouse support

5-inch color touchscreen with intuitive operation, plus full keyboard and mouse support for fast, precise control in both bench and remote test environments.

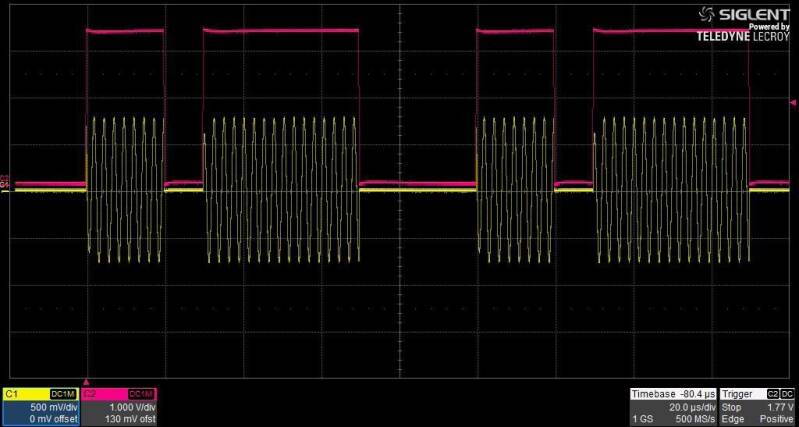

Double pulse modulation

Double pulse modulation support enables precise testing of switching devices, power electronics, and dynamic response characteristics.

Target Applications & Users

The SIGLENT SSG3032X-IQE is intended for professional RF engineers, research and development laboratories, educational facilities, and manufacturing test environments requiring a stable, accurate, and cost-effective RF signal generator. It is well suited for wireless communications development, EMC pre-compliance testing, RF component characterization, system validation, troubleshooting, and automated test setups, delivering a strong combination of performance, reliability, and long-term value.

Key Features & Benefits

RF signal generator with integrated IQ modulation, ideal for vector and digital communication testing
Wide frequency coverage up to 3.2 GHz (with upgrade options) supporting modern wireless standards

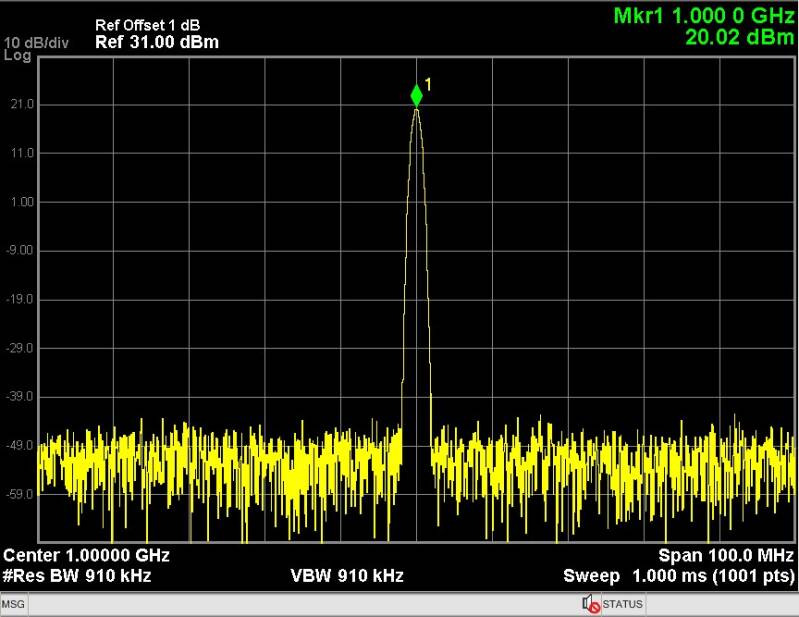

Maximum output power up to +20 dBm, enabling direct DUT testing without external amplification
External IQ modulation support, using the SIGLENT SDG6000X series as a high-performance baseband source
High signal fidelity and excellent frequency stability for repeatable, accurate RF measurements
Advanced baseband and waveform capabilities when paired with SIGLENT AWGs, including:
- 20 MHz bandwidth, dual independent channels
- 1.2 GSa/s sampling rate with 16-bit resolution for high waveform accuracy
- TrueArb™ technology for low-jitter, point-by-point arbitrary waveform generation
- EasyPulse™ technology for precise square waves and pulses with adjustable rise/fall times
- Up to 20 Vpp output amplitude (Hi-Z)
- 40 Mpts memory depth per channel for long, complex waveforms
- 196 built-in arbitrary waveforms plus user-defined waveforms
- PRBS generation up to 120 Mbps for digital and communication testing
- Comprehensive modulation support: AM, FM, PM, DSB-AM, FSK, ASK, PSK, PWM
- Sweep, burst, multi-pulse, multi-tone, and frequency hopping modes
- IQ signal generation for advanced vector modulation applications
7-inch capacitive touchscreen with intuitive user interface and fast parameter access

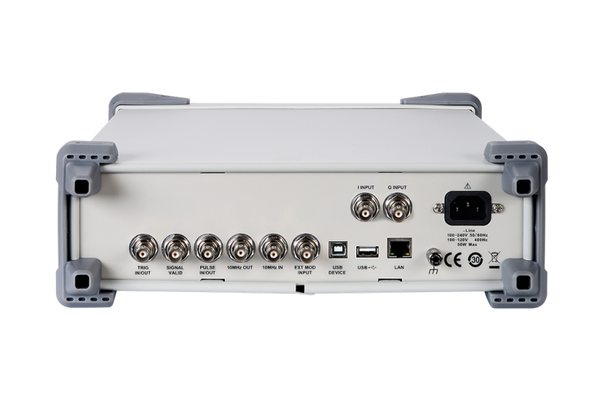

LAN, USB (USBTMC), and optional GPIB interfaces for automated test systems
Built-in web server for convenient remote control via standard web browsers
