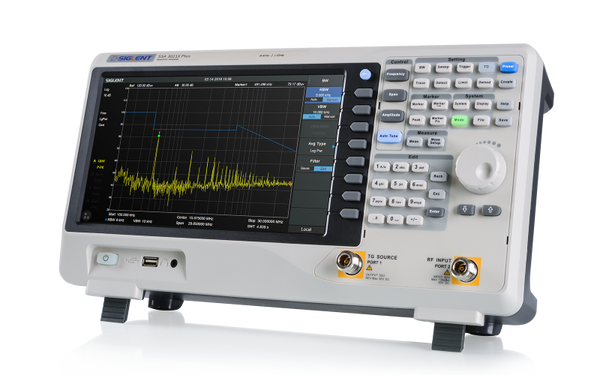

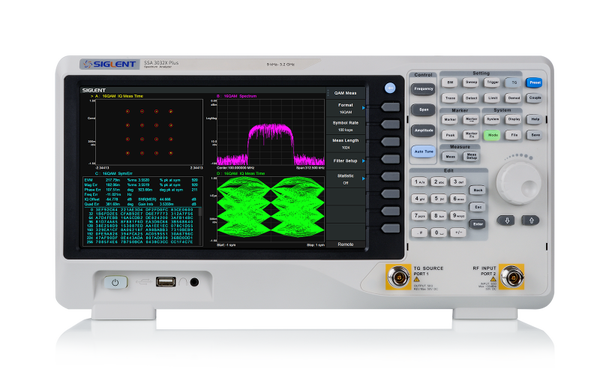

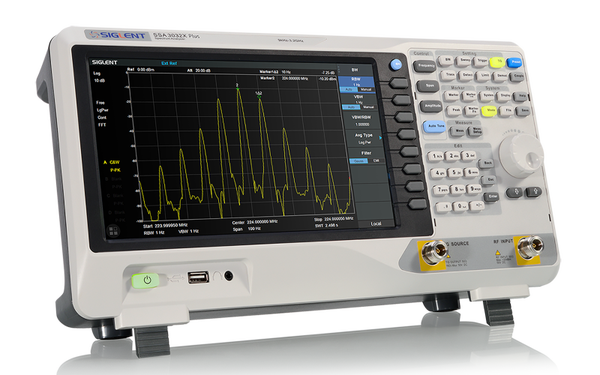

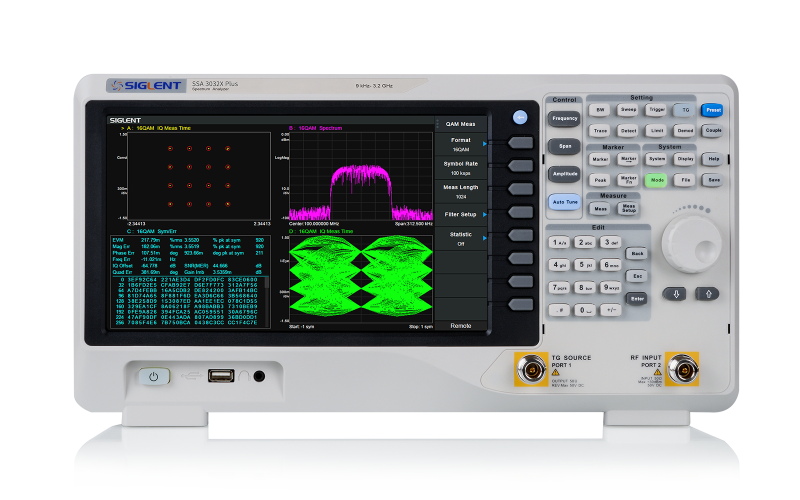

Siglent SSA3032X PLUS 3.2GHz Spectrum analyzer + FREE TG LICENSE

€2,439.00

Siglent SSA3032X PLUS 3.2GHz Spectrum analyzer + FREE TG LICENSE

€2,439.00

The SIGLENT SSA3032X Plus spectrum analyzer is a powerful and flexible tool for RF signal and network analysis. With a frequency range of 3.2 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation

The basic function of the Siglent SSA3032X PLUS Spectrum analyzer and options include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI testing. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

10.1 lnch Display with Multi-Touch Screen



Phase noise <-98 dBc/Hz@1 GHz

Key Features:

  • Spectrum Analyzer Frequency Range from 9 kHz up to 2.1 GHz / 3.2 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Preamplifier Standard Tracking Generator (Opt.)
  • Analog and Digital Signal Modulation Analysis Mode (Opt.)
  • Reflection Measurement Kit (Opt.)
  • EMI Filter and Quasi-Peak Detector Kit(Opt.)
  • Advanced Measurement Kit (Opt.)
  • 10.1 lnch Multi-Touch Screen , Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Minimum 1 Hz Resolution Bandwidth (RBW)

Accessoires Included:

1 x Siglent SSA3032X  PLUS with TG
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

Documentation and Manual downloads:

SSA3000X Plus Series User Manual
PDF – 3.0 MB 104 downloads
SSA3000X Plus Programming Guide
PDF – 3.3 MB 74 downloads
SSA3000X Plus Data Sheet DS 0703 P E 02 A 1
PDF – 1.9 MB 78 downloads
