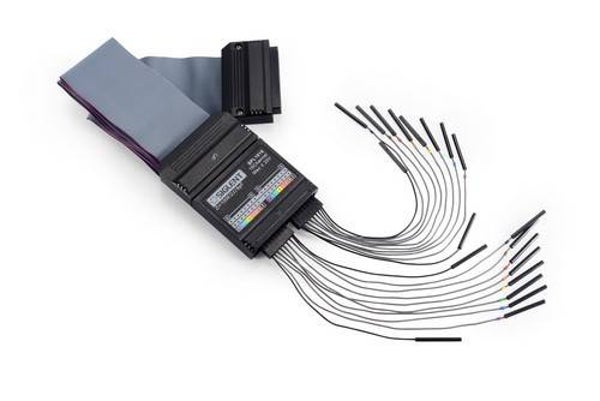

Siglent SPL1016 16 Channel logic probe module with license key

€304.00

Siglent SPL1016 16 Channel logic probe module with license key

€304.00

Siglent SPL1016 logic analyzer probe for SDS1000X scopes with license key.

Parameters : SPL1016
Channels 16
Input Impedance 100 KΩ||8 pF
Max. Input Voltage ±20 V peak
Threshold Groupings Pod 2: D15-D8 Pod 1: D7-D0
Threshold Selections TTL (1.5 V), COMS (2.5 V), 3.3 V_LVCOMS (1.65 V), 2.5 V_LVCOS (1.25 V)
User defined threshold range ±3 V in 10 mv steps
Threshold Accuracy ±(3%*Threshold+150 mv)
Input Dynamic Range ±10 V
Min. Input Voltage Swing 800 mVpp
Max. Input Frequency 60 MHz
Min. Detectable Pulse Width 8.3 ns
Channel Skew ±(1 digital sample interval)
