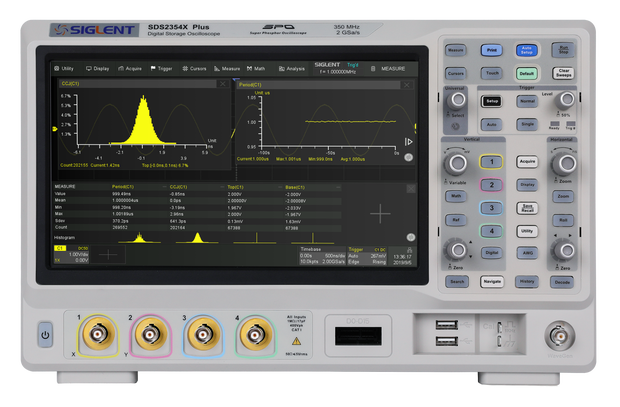

Siglent SDS2104X Plus 4Ch 100MHz 2GSa/s Oscilloscope
The Siglent SDS2104X Plus brings four analog channels to the 100 MHz general-purpose bench — the practical choice when one capture has to show a power rail, a clock and a couple of control or bus lines at once, rather than two signals at a time. Four channels let you correlate timing and cause-and-effect across a whole subsystem, while a 500,000 wfm/s capture rate, up to 200 Mpts of memory and a 10-bit enhanced-resolution mode keep those captures deep, responsive and clean.
SDS2104X Plus — 100 MHz, 4 channels
The SDS2104X Plus is the 100 MHz, 4-channel model of Siglent’s third-generation SDS2000X Plus series — a feature-rich, general-purpose oscilloscope with a deep toolset at a real-world bench budget. An 8-bit front end with a 10-bit enhanced-resolution mode keeps low-level measurements clean, and Siglent’s SPO technology gives a fast, detailed display.
Performance backs it up: 2 GSa/s sampling, up to 200 Mpts of memory and a 500,000 wfm/s capture rate, on a 10.1" capacitive multi-touch display. Built-in Bode plot, an optional power-analysis package, a 16-channel MSO and a 50 MHz generator make it a complete bench — and its bandwidth is license-upgradable to 200 MHz, so the instrument grows with your work.
More scope per euro than anything in its class
500,000 wfm/s and 256-level grading mean glitches show up on screen — not after an hour of guessing.
I²C, SPI, UART, CAN and LIN trigger & decode ship as standard — features many competitors licence separately.
Bandwidth, MSO, a 50 MHz generator and power analysis all activate by licence — buy the scope once, upgrade when you need it.
Scope, Bode plotter, protocol analyzer, generator and logic analyzer in a single 10.1" touchscreen instrument.
Six tools in one instrument
Everything below runs on the SDS2104X Plus itself — no PC software required.
Bode plot

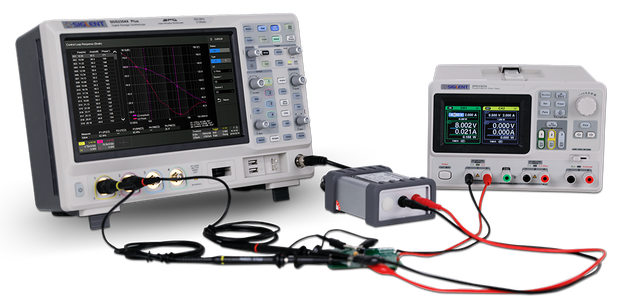

Drive the built-in generator or any Siglent SDG and plot gain and phase versus frequency — power-supply loop response and filter characterisation on the instrument.
Power analysis

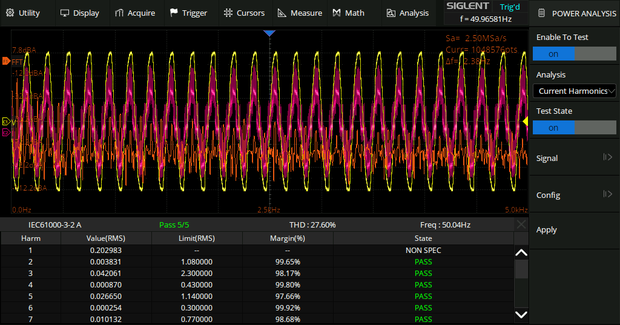

Optional power-analysis software measures switching loss, harmonics, ripple, modulation and slew rate for switching supplies and power devices.
Mixed-signal (MSO)

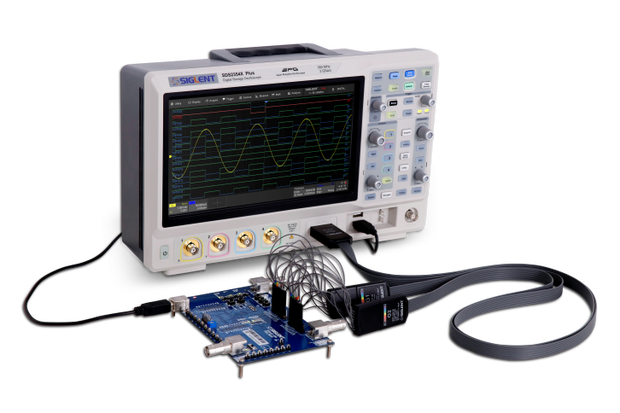

Add the SPL2016 Plus 16-channel logic probe to view and decode 16 digital channels alongside the analog inputs.
Built-in 50 MHz AWG
An optional 50 MHz arbitrary/function generator licence turns the scope into a stimulus-and-measure bench in one box.
Serial decode

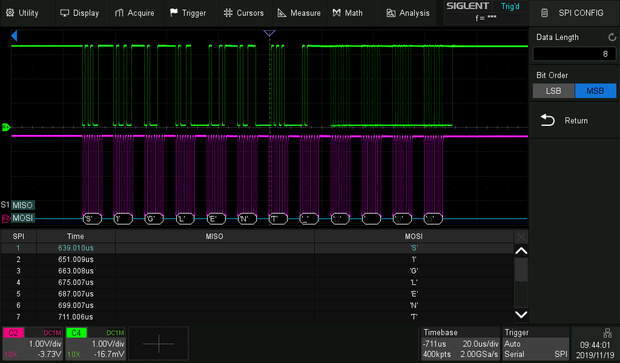

Trigger and decode I²C, SPI, UART, CAN and LIN as standard — with colour-coded bus overlays and list view. CAN FD, FlexRay, I²S and 1553B add on.
Deep memory & history

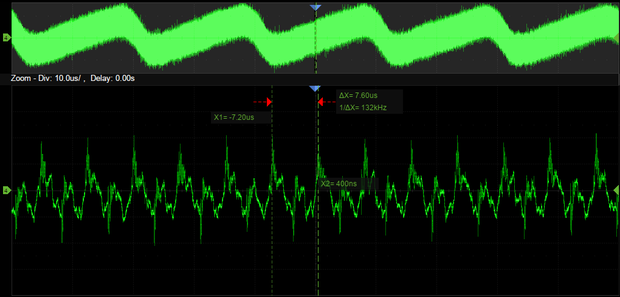

200 Mpts of record plus Sequence and History modes capture long, rare events at full sample rate — then zoom, search and navigate to the fault.
Every angle

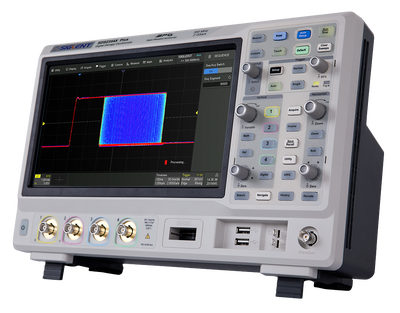

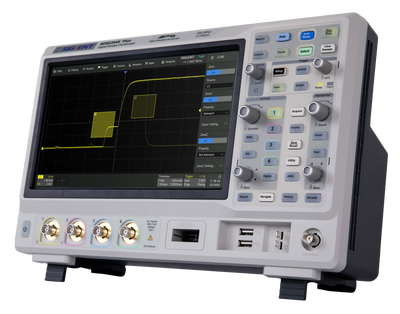

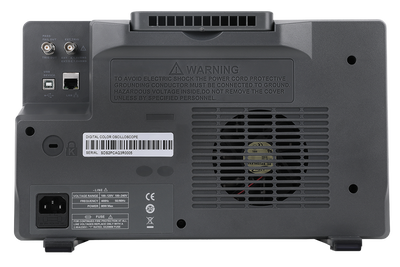

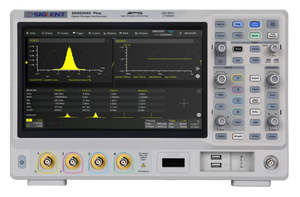

The SDS2104X Plus on the bench — front, side and rear views.
Who it’s for & best applications
The SDS2104X Plus adds two more channels — a 100 MHz, 4-channel general-purpose scope for work that watches several signals at once, from multi-rail power supplies to small embedded systems. Four channels correlate clocks, control lines and power rails in one acquisition; a 500,000 wfm/s capture rate and up to 200 Mpts of memory keep captures deep and responsive; and a 10-bit ERES mode lowers noise on small signals. With Bode plot, optional power analysis, 16-channel MSO, a 50 MHz generator and serial-decode licences, it is a versatile bench that license-upgrades to 200 MHz.
- Embedded & IoT developers
- Education & advanced teaching labs
- Service and product-development benches
- Power-supply and motor-control work
- Multi-signal general-purpose benches
- Multi-rail power-supply sequencing & checks
- Several serial buses together (I²C, SPI, UART, CAN, LIN)
- Control-loop & timing relationships across channels
- Sensor and analog measurements
- Mixed analog + optional 16-ch digital debug
- Teaching and lab exercises
Specifications
| Analog bandwidth | 100 MHz (upgradable to 200 MHz) |
| Analog channels | 4 + EXT |
| Vertical resolution | 8-bit · 10-bit enhanced-resolution (ERES) mode |
| Max. sample rate | 2 GSa/s (interleaved) · 1 GSa/s per channel |
| Max. record length | 200 Mpts (interleaved) · 100 Mpts per channel |
| Waveform capture rate | 120,000 wfm/s (normal) · 500,000 wfm/s (sequence) |
| SPO display | 256-level intensity grading · colour-temperature display |
| Display | 10.1" capacitive multi-touch (1024×600) · web control |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/Hold, Delay, Serial + Zone |
| Serial decode (standard) | I²C, SPI, UART/RS232, CAN, LIN |
| Serial decode (optional) | CAN FD, FlexRay, I²S, MIL-STD-1553B (licences) |
| Measurement | 50+ parameters · statistics, histogram, trend & track |
| Math | FFT (1 Mpts) · +, −, ×, ÷ · formula editor |
| Analysis tools | Search, Navigate, History, Mask Test, DVM, Counter, Histogram, Bode Plot, Power Analysis |
| MSO (optional) | 16 digital channels (SPL2016 Plus logic probe) |
| Waveform generator (optional) | Built-in 50 MHz arbitrary/function generator (SDS2000XP-FG) |
| Connectivity | USB 2.0 Host + Device · 10/100M LAN · aux (trigger / pass-fail) out · web control |
| Standard probes | One passive probe per channel |
From the official SDS2000X Plus datasheet; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDS2104X Plus.
Optional accessories & licence keys
Expand your SDS2104X Plus with logic-analysis hardware, probes and software activations. Serial decode for I²C, SPI, UART, CAN and LIN is included as standard.
SPL2016 Plus 16-channel logic probe module with licence key — adds 16 digital channels.
Spare passive probes (PP510 / PP215 / PP430) and active / high-speed probes.
SDP6150A / SDP6150D and DPB-series differential and high-voltage probes.
Cables, cases, calibration kits and more for your instrument.
Licence keys & bandwidth upgrades
Software activations for the SDS2104X Plus — click Buy to open the licence in the shop. See all SDS2000X Plus licenses & options.
| Licence / upgrade | Order number | Price | Shop |
|---|---|---|---|
| Bandwidth upgrade — 100 MHz → 200 MHz | SDS2000XP-4BW02 | €999.00 | Buy |
| Built-in 50 MHz function/arb generator | SDS2000XP-FG | €205.00 | Buy |
| Power analysis | SDS2000XP-PA | €239.00 | Buy |
| CAN FD trigger & decode | SDS2000XP-CANFD | €255.00 | Buy |
| FlexRay trigger & decode | SDS2000XP-FlexRay | €255.00 | Buy |
| I²S trigger & decode | SDS2000XP-I2S | €255.00 | Buy |
| MIL-STD-1553B trigger & decode | SDS2000XP-1553B | €255.00 | Buy |
Prices subject to change. The bandwidth upgrade shown is the one available from this model’s 100 MHz base. MSO (SPL2016 Plus) is a hardware option shown above.
Compare the full SDS2000X Plus range
See the 100, 200 and 350 MHz, 2- and 4-channel models side by side, or ask us to configure the right options.
