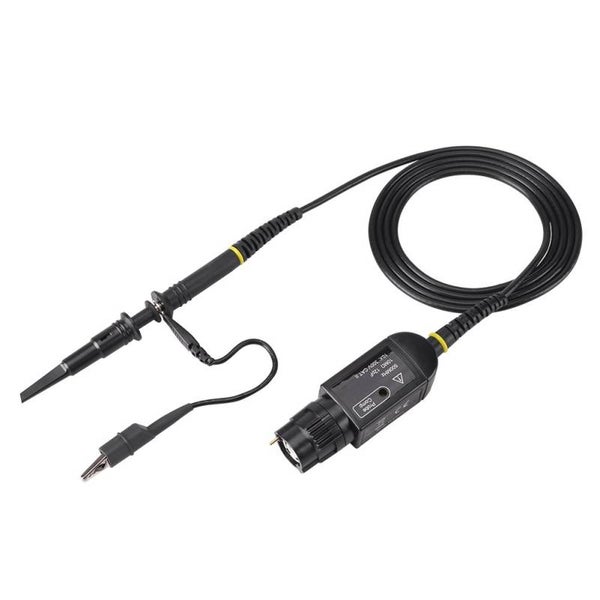

P6500 500MHz passive probe
Sold out
€54.00
This probe is 500MHz Oscilloscope ( non Siglent brand ) probe with a switch for 10x attenuation. This probe is good oscilloscope accessories, suitable for BNC interface oscilloscope. This high quality probe is used in professional test quipment, probe has a 1.22m cable with standard BNC end. This probe has stable performance, providing several accessories designed to make probing and measurements a simple task. Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.Marker rings in different colors help to identify different channels.
| Model: | P6500 |
|---|---|
| Attenuation ratio: | 10X |
| Input resistance: | 10 MΩ |
| Input capacitance: | 10X:10pF~13pF |
| Compensation range: | 9pF~25pF |
| System bandwidth: | 10X: DC-500Mhz |
| Input voltage: | 10X: < 600VDC+ AC Vp-p |
| Operating temperature range: | 15 ℃ ~ + 75 ℃ |
| Not working temperature range: | - 20 ℃ ~ + 60 ℃ |
| Process: | injection molding integration |
| Color: | black |
| Cable length: | 122cm /48inch |
| Humidity: | ≤ 85% (relative humidity) |
| Weight: | 82g |
Package Included:
1 x P6500 Oscilloscope Probes
1 x adjust tool
4 pair x color circle
1 x spring circle
1 x joint
