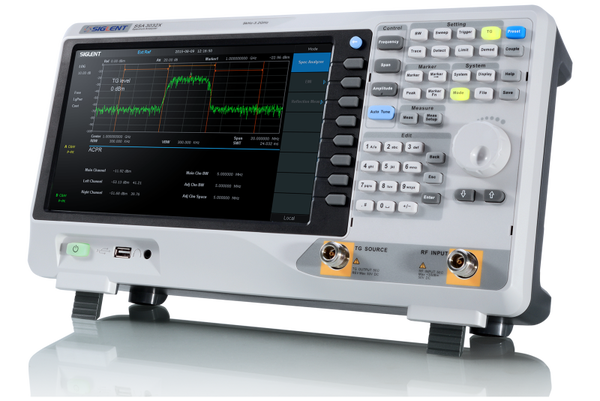

Siglent SSA3021X 2.1GHz Spectrum analyzer + FREE TG LICENSE

€1,299.00

The Siglent SSA3021X spectrum analyzer offers a frequency range of 9 KHz to 2.1GHz. With light weight, small size, and friendly user interface, the ssa3021x has a large 10.1 lnch WVGA bright easy to read display, can do powerful and reliable automatic measurements, and plenty of impressive features. Applications include research and development, education, production, maintenance, and pre-compliance testing.

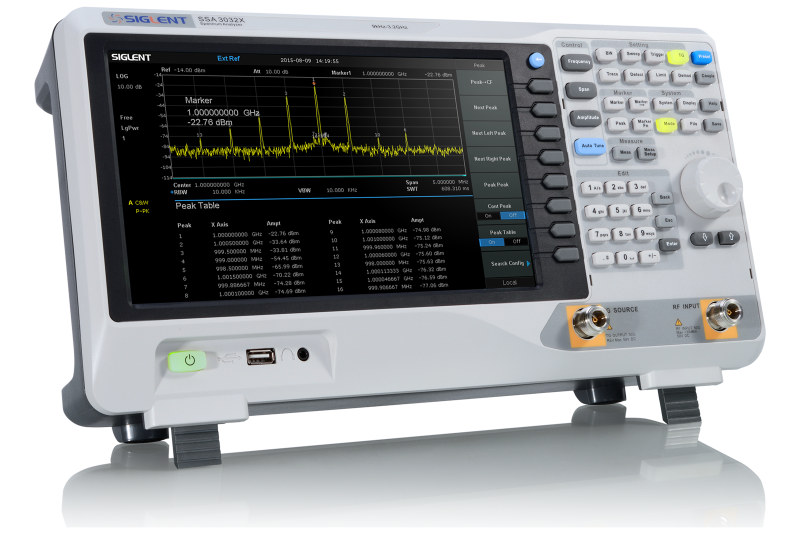

Siglent’s SSA3021X spectrumanalyzer has a frequency range of 9 kHz to 2.1 GHz. With his light weight, small size, and friendly user interface, the SSA3021X offers a bright easy to read display, powerful and reliable automatic measurements, and plenty of powerful features. Applications include broadcast monitoring/evaluation, site surveying, EMI pre-compliance, research and development, education, production, and maintenance.

Easy to operate, Support four independent traces and cursors

Key Features:

  • All-Digital IF Technology
  • Frequency Range from 9 kHz up to 2.1 GHz
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 10 Hz Minimum Resolution Bandwidth (RBW)
  • Standard Pre-amplifier
  • Standard Tracking Generator Kit
  • 10.1 lnch WVGA(1024x600)Display

On-screen VSWR/Return Loss measurements with the reflection measurement option

Model Overview SVA1015X VNA SVA1032X VNA SSA3021X SSA3032X
Max. Bandwidth 1.5 GHz 3.2 GHz 2.1 GHz 3.2 GHz
Resolution bandwidth (RBW) 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence 1 Hz ~ 1 MHz, in 1-3-10 sequence
Display average noise level (DANL), min. -156 dBm/Hz Displayed Average Noise Level -161 dBm/Hz Displayed Average Noise Level -161 dBm/Hz, Normalize to 1 Hz (typ.) -161 dBm/Hz, Normalize to 1 Hz (typ.)
Preamplifier YES YES YES YES
Tracking Generator YES YES YES YES
Vector Network Analysis YES YES NO NO
Distance To Fault Option Option NO NO
Modulation Analysis Option Option NO NO
EMI Pre-compliance Test Kit Option Option Option Option
Advanced Measurement Kit Option Option Option Option
Multi-Touch Screen YES 10.1" LCD YES 10.1" LCD NO Touch 10.1" LCD NO Touch 10.1" LCD

Accessoires Included:

1 x Siglent SSA3021X 9 kHz - 2.1 GHz with TG included
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide

Optional Accessoires:

Documentation and Manual downloads:

SSA3000X User Manual
PDF – 2,6 MB 2377 downloads
SSA3000X Programming Guide
PDF – 2,4 MB 1640 downloads
SSA3000X Series Data Sheet
PDF – 2,9 MB 2180 downloads
SSA3000X Service Manual
PDF – 1,3 MB 1702 downloads
