Siglent SDG7032A 350 MHz Arbitrary Function Waveform Generator
SIGLENT’s SDG7032A is a dual-channel Arbitrary Waveform Generator with a 350 MHz bandwidth, a maximum sample rate of 5 GSa/s and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signal with a maximum 500 MS/s.
Product overview

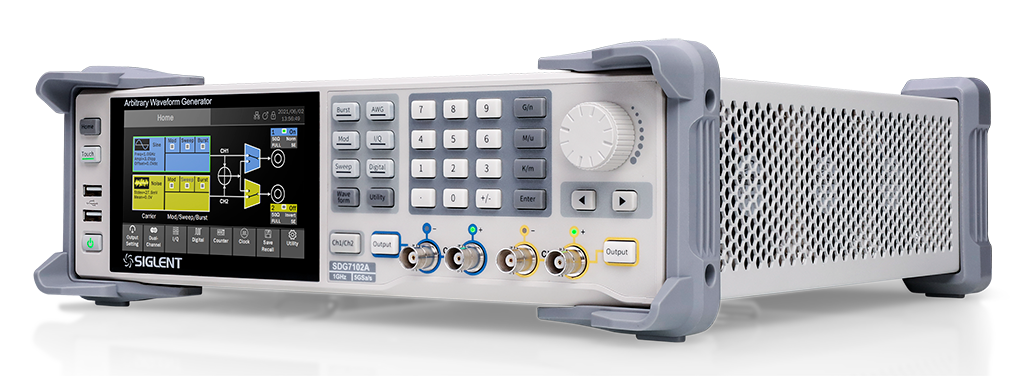

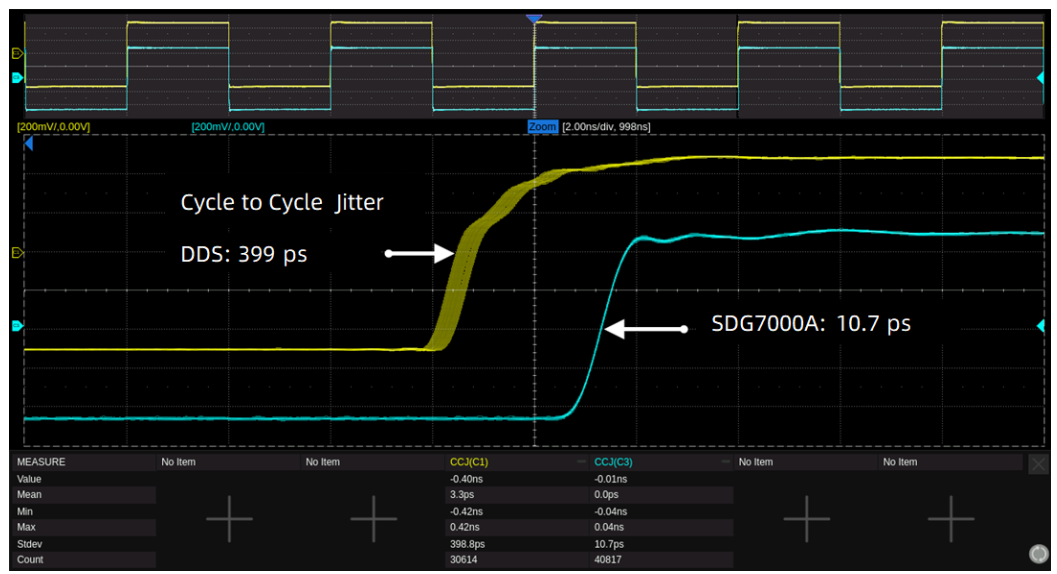

The SDG7032A is a flagship dual-channel arbitrary waveform generator with up to 350 MHz bandwidth, a 5 GSa/s sample rate and 14-bit vertical resolution. It generates high-fidelity, low-jitter signals — continuous wave, pulse, noise, PRBS and arbitrary — with up to 512 Mpts of memory and segment editing/playback.
Differential and single-ended outputs deliver a wide ±24 V range (24 Vpp + ±12 Vdc offset), so large signals stay clean at high frequency without an external amplifier. Optional IQ/vector generation (with EasyIQ and SigIQPro), a 16-channel digital bus and bandwidth upgrades extend it further. A 5-inch capacitive touchscreen, a frequency counter and USB/LAN with a web server make the SDG7032A a complete signal source for advanced R&D, communications and mixed-signal test.
Key highlights
350 MHz · dual-channel
Two differential/single-ended channels to 350 MHz, with a 5 GSa/s sample rate and 14-bit resolution.
5 GSa/s · 14-bit
A 5 GSa/s sampling system and 14-bit vertical resolution generate high-fidelity, low-jitter signals.
±24 V wide output
A 24 Vpp output with ±12 Vdc offset gives a ±24 V range — often removing the need for an external amplifier.
512 Mpts arb · segments
Point-by-point arbitrary playback (0.01 Sa/s–2.5 GSa/s) with up to 512 Mpts memory and segment editing/playback.
16-ch digital bus (opt.)
An optional 16-bit LVTTL/LVDS digital bus up to 1 Gbps enables true mixed-signal stimulus.
IQ / vector (opt.)
Optional vector generation to 500 MS/s (DC–1 GHz carrier), with EasyIQ and the SigIQPro protocol suite.
Core capabilities
Dual-channel, differential
Two independent differential/single-ended channels with full specifications, plus tracking, coupling, copy, phase-lock and superposition.
TrueArb & EasyPulse

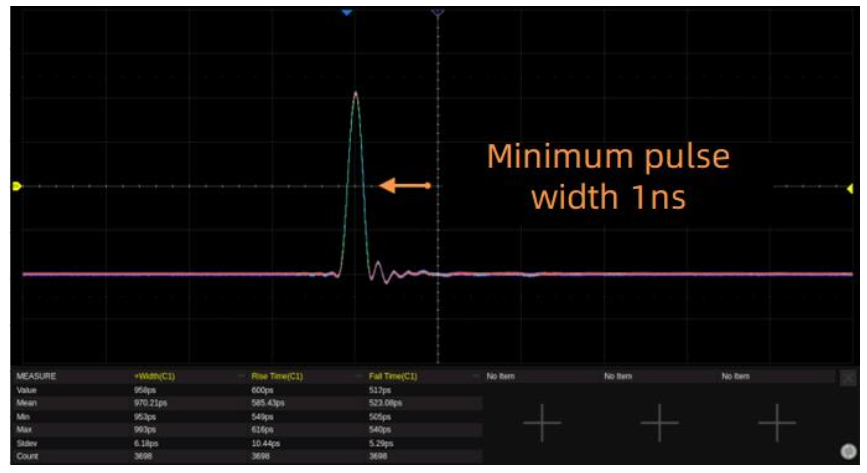

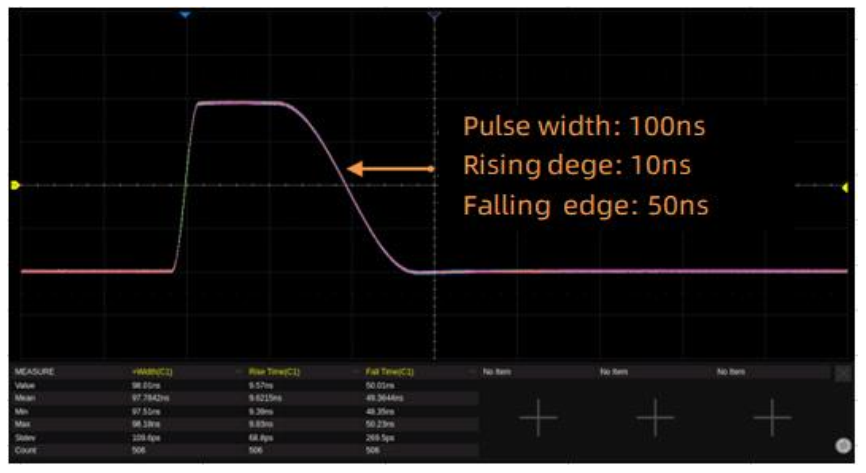

Point-by-point arbitrary playback (0.01 Sa/s–2.5 GSa/s) with 0-order/linear/sinc interpolation, plus low-jitter pulses to 1 ns width and 500 ps edges.
Wide-range output
A 24 Vpp analog output with ±12 Vdc offset for a ±24 V (48 V) range — large amplitude at high frequency without an external amplifier.
Modulation, sweep & hopping
AM, FM, PM, PWM, ASK, FSK, PSK and DSB-SC, plus sweep, burst, frequency hopping, multi-pulse and PRBS to 312.5 Mbps.
IQ / vector & SigIQPro

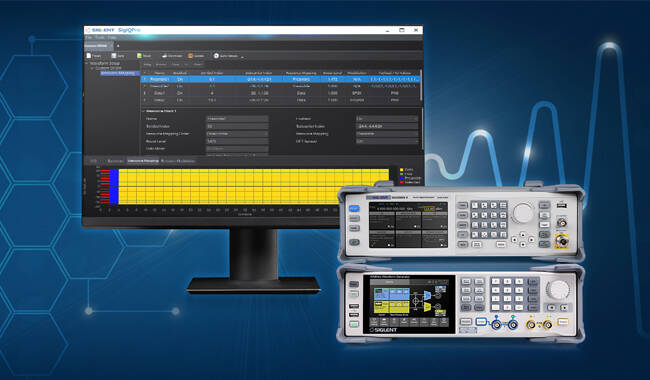

Optional ASK/PSK/FSK/QAM (to 256QAM), MSK and MultiTone to 500 MS/s (DC–1 GHz), with EasyIQ and SigIQPro (Bluetooth, IoT, OFDM).
16-channel digital bus
An optional 16-bit LVTTL/LVDS digital bus up to 1 Gbps combines with the analog channels for mixed-signal outputs.
Features in depth

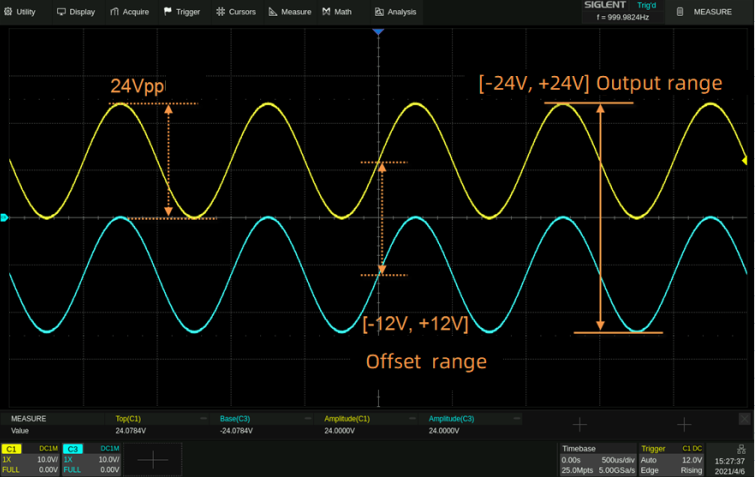

Wide-range, high-voltage output
The SDG7000A delivers a 24 Vpp analog output superimposed with a ±12 Vdc offset, for a maximum output range of ±24 V (48 V). This large amplitude is maintained even at high frequency, which eliminates the need for an external power amplifier in many applications and addresses a wider range of requirements. Differential and single-ended outputs give the flexibility to drive balanced and unbalanced loads directly from the generator, with full specifications on both channels.

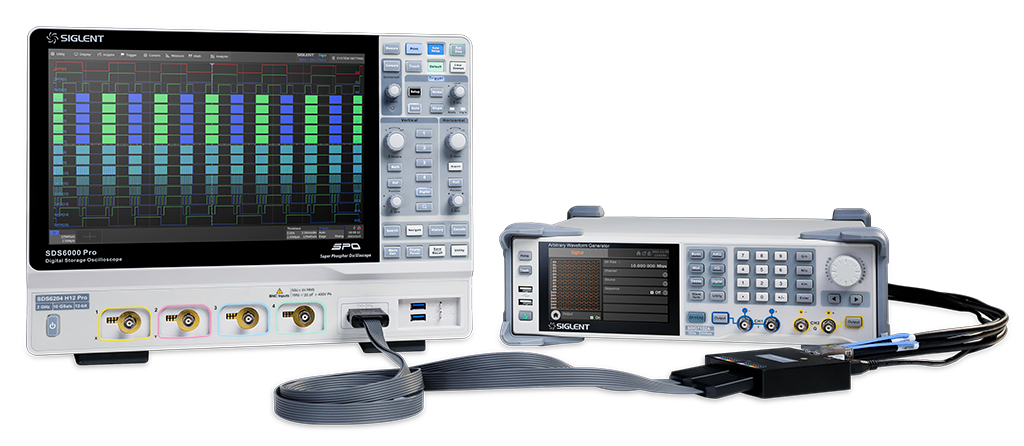

16-channel digital bus (optional)

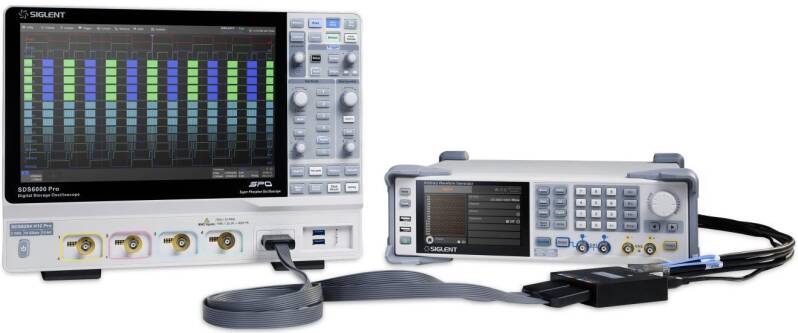

With the optional digital-bus kit the SDG7000A adds a 16-channel LVTTL or LVDS output with a bit rate from 1 μbps up to 1 Gbps. Combine the digital bus with the two analog channels to create true mixed-signal stimulus — for example driving a device under test with analog waveforms while clocking or addressing it over the digital bus. It pairs naturally with a logic-analyzer-equipped oscilloscope for complete mixed-signal validation.

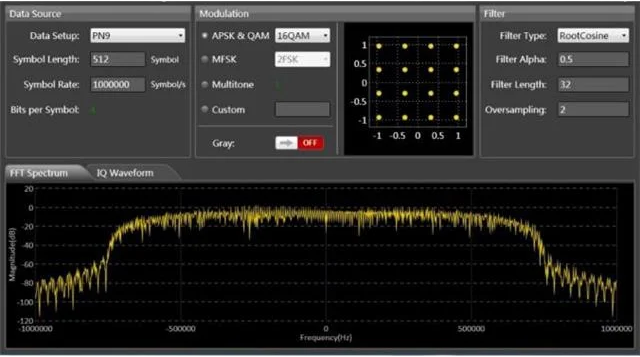

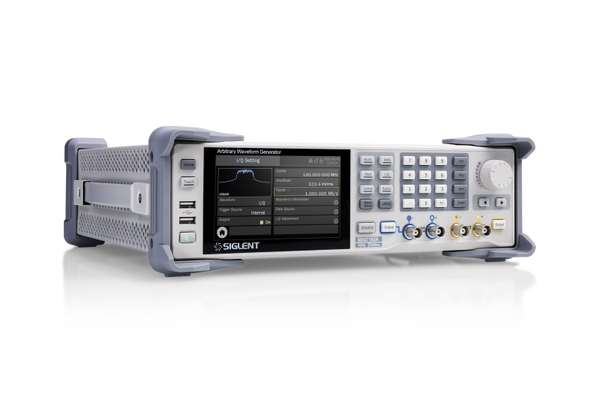

IQ / vector signal generation (optional)
Activate the optional IQ licence and the SDG7000A becomes a capable vector signal source, generating ASK, FSK, PSK and QAM (to 256QAM), MSK and MultiTone with symbol rates up to 500 MS/s and a carrier from DC to 1 GHz. EasyIQ creates and edits I/Q data, while the SigIQPro suite adds ready-made standards such as Bluetooth, IoT 802.15.4 and OFDM — extending the instrument into communications and wireless R&D.
Signal generation at a glance

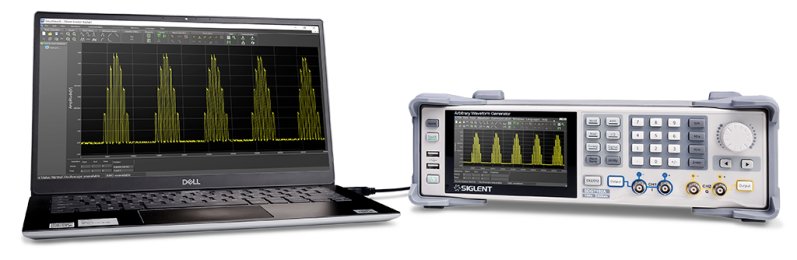

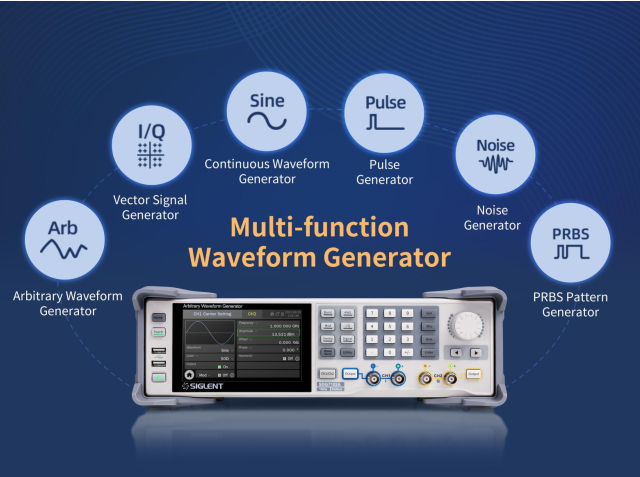

From continuous, pulse and noise to arbitrary, PRBS, vector and a 16-channel digital bus — the SDG7032A is a true multi-function source, backed by the free EasyWaveX and SigIQPro PC software.
Panels & connectivity

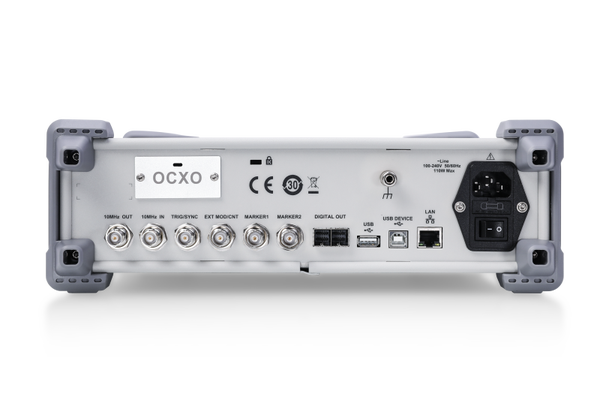

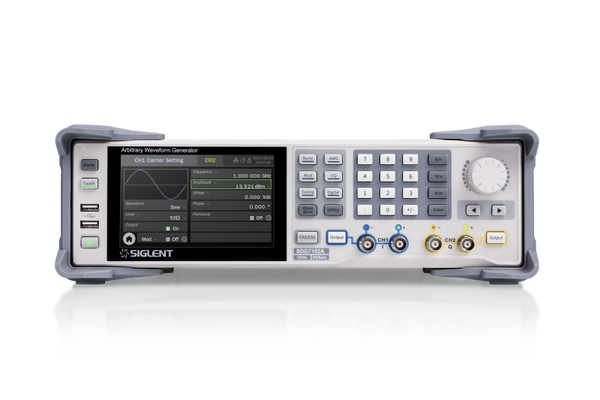

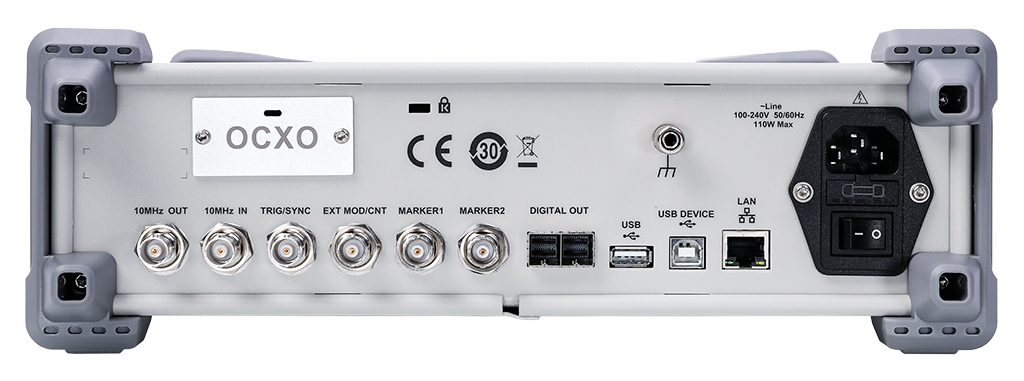

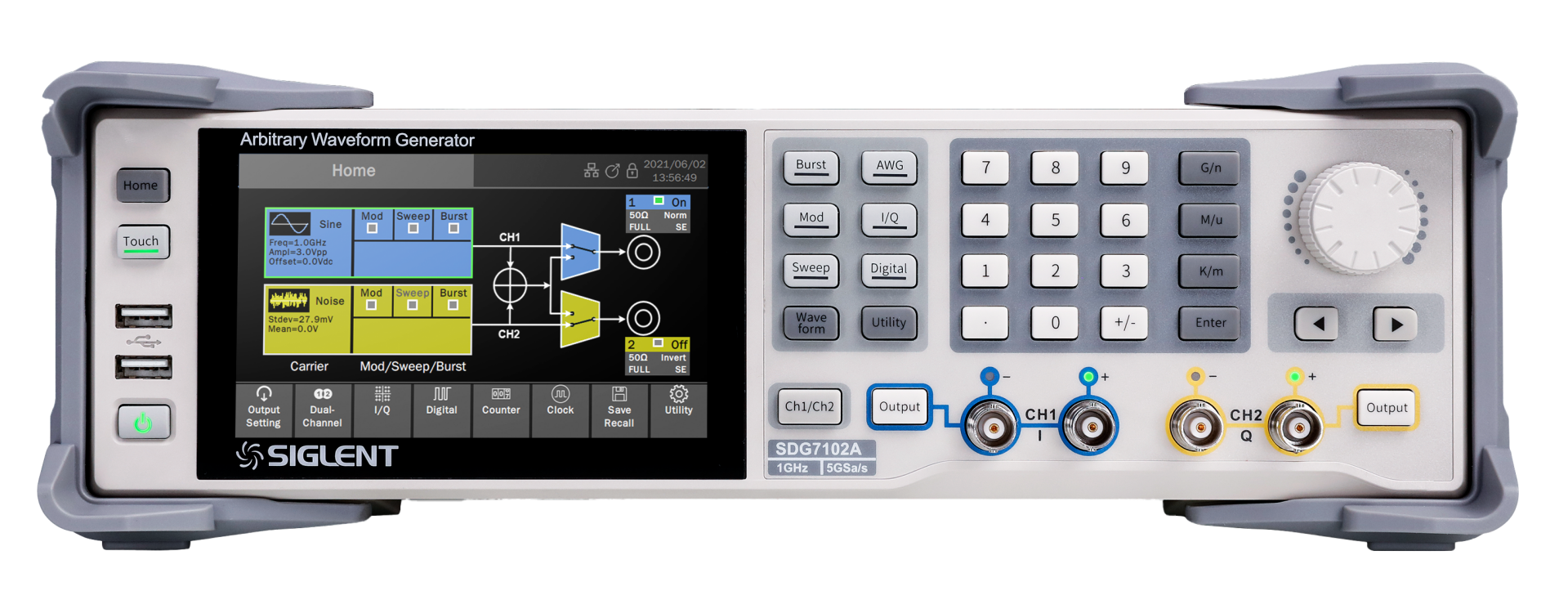

Differential CH1/CH2 + I/Q outputs, dual USB and a 5-inch touchscreen up front; 10 MHz reference, trigger, markers, LAN and USB at the rear.
Connectivity
- CH1 / CH2 differential + I/Q outputs (front, 50 Ω)
- 2× USB Host (front) — storage & mouse
- USB Device (rear, USBTMC) — PC/SCPI control
- LAN — remote control & web server
- Optional USB-GPIB adapter
- 10 MHz in / out · trigger in/out · markers (rear)
- Optional 16-channel digital bus
- 5-inch capacitive touchscreen
Where it is used
Communications & wireless
Vector/IQ signals with EasyIQ and SigIQPro standards (Bluetooth, IoT 802.15.4, OFDM) for receiver and transmitter test.
High-speed digital & mixed-signal
The optional 16-channel digital bus plus two analog channels drive true mixed-signal device stimulus.
Radar, EW & aerospace
Wideband, high-voltage output and precise pulses for radar, electronic-warfare and aerospace test.
Semiconductor & device test
Precise, high-amplitude stimulus for characterising components, drivers and interfaces.
Advanced R&D
Segmented arbitrary playback, dual-channel operations and low-jitter pulses for demanding development.
ATE & production
SCPI, LAN/USB/GPIB and save/recall for integration into automated production test.
In the box
Every SDG7032A ships with the standard accessories below.
Software options & licences
The SDG7032A ships with the full standard feature set. These licences activate by key — IQ/vector signal generation and field bandwidth upgrades (350 MHz → 500 MHz and 500 MHz → 1 GHz). See the SDG7000A series.
Activates vector signal generation — ASK/FSK/PSK/QAM, MSK and MultiTone to 500 MS/s, carrier DC–1 GHz, with EasyIQ.

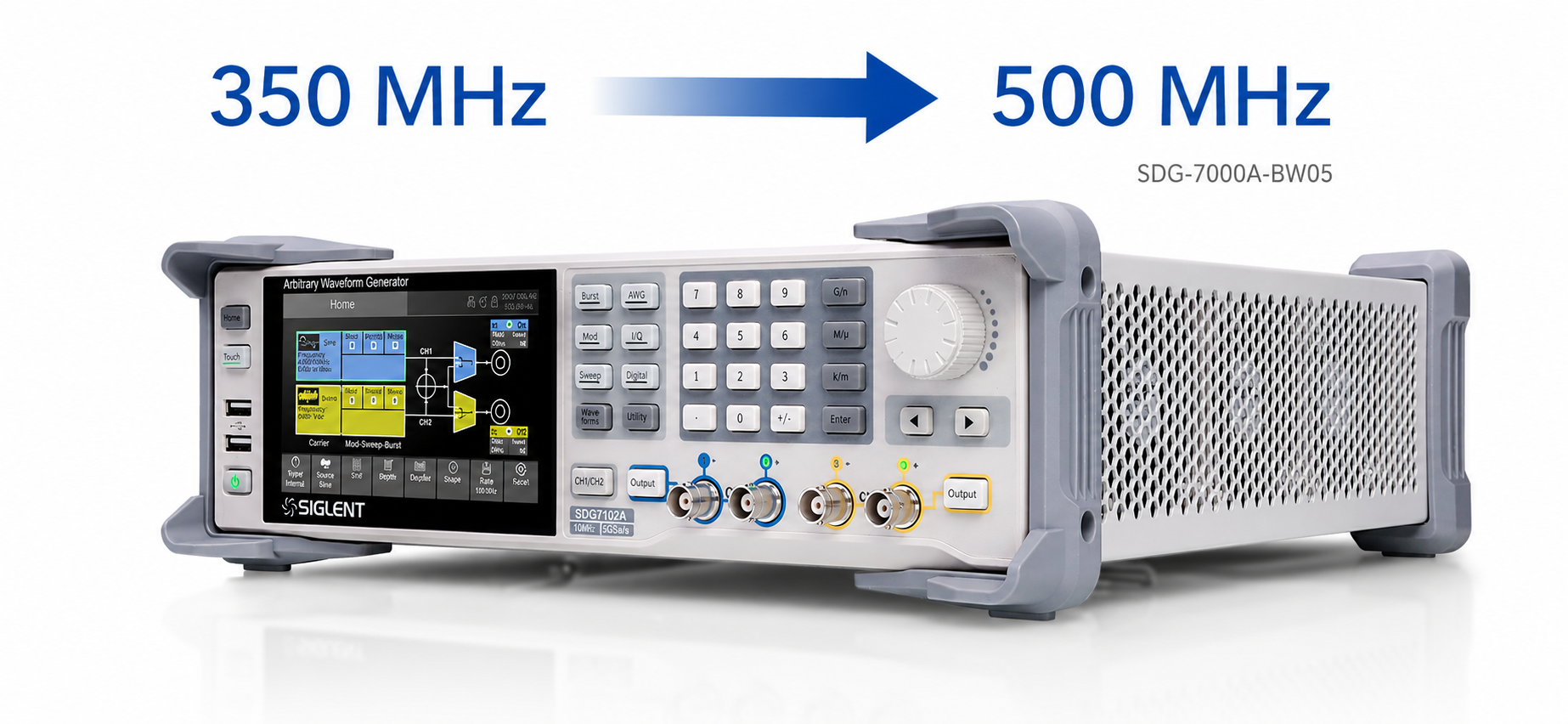

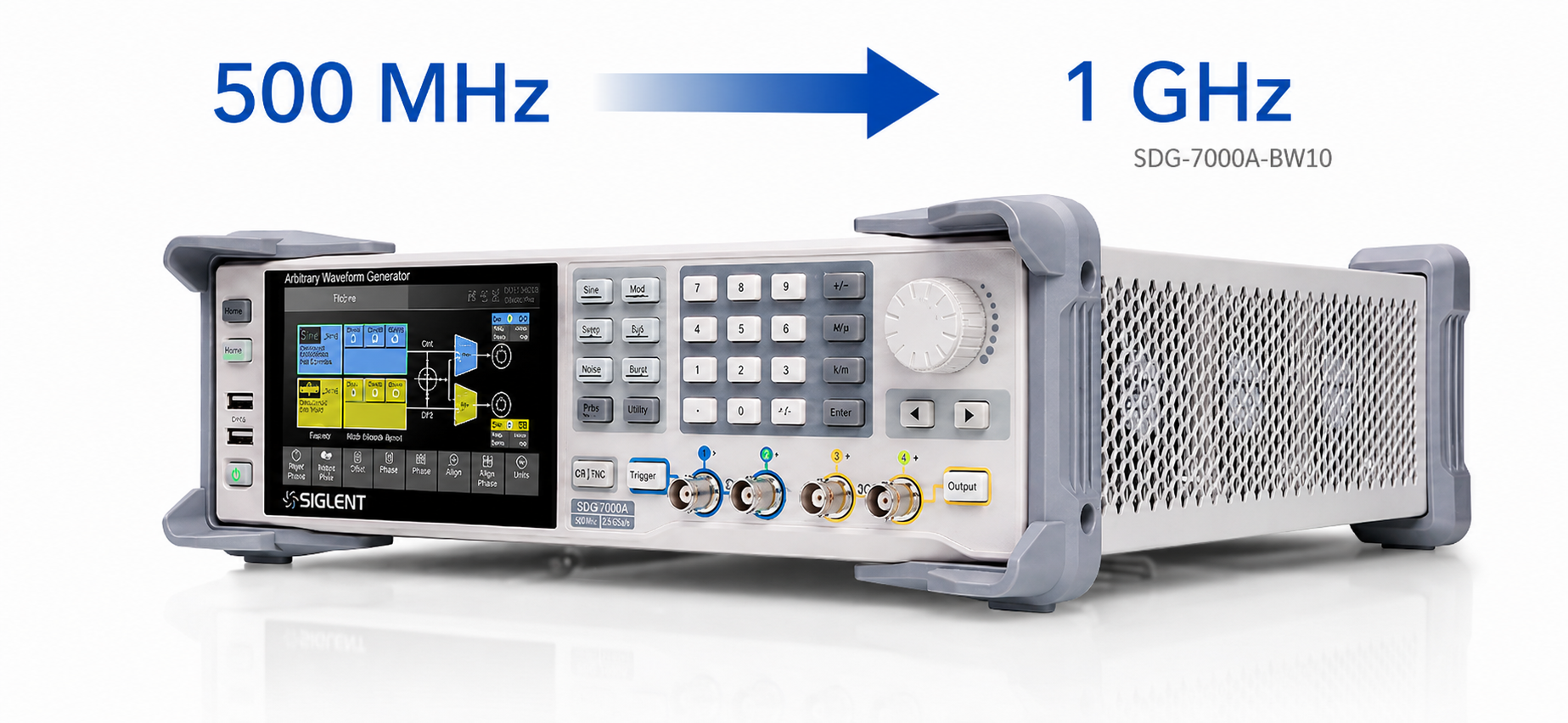

Licence upgrade to raise the analog bandwidth from 350 MHz to 500 MHz.
Licence upgrade to raise the analog bandwidth from 500 MHz to 1 GHz.
Optional accessories
16-bit Low-Voltage Differential Signaling (LVDS) output module — the digital-bus hardware for mixed-signal work.
16-bit LVDS digital-output module supplied as a complete kit with connection cables.
16-bit Low-Voltage TTL (LVTTL) digital-output module for the SDG7000A digital bus.
High-accuracy oven-controlled crystal oscillator (OCXO) reference for improved frequency stability.
In-line 20 dB attenuator (DC–4 GHz, 1 W) to protect sensitive inputs and extend the usable amplitude range.
19-inch rack-mount kit for installing the SDG7000A in a standard equipment rack.
Specifications
- Channels
- 2 · differential / single-ended
- Max. bandwidth
- 350 MHz
- Sample rate
- 5 GSa/s
- Vertical resolution
- 14-bit
- Output range
- ±24 V (24 Vpp + ±12 Vdc offset)
- Min. pulse width
- 1 ns · edge 500 ps
- Arbitrary
- 0.01 Sa/s – 2.5 GSa/s · up to 512 Mpts · segment edit/playback
- Vector (optional)
- 500 MS/s · carrier DC – 1 GHz (ASK/PSK/FSK/QAM)
- Noise
- 1 mHz – 1 GHz adjustable bandwidth
- PRBS
- PRBS3–PRBS32 · up to 312.5 Mbps
- Modulation / sweep / burst
- AM · FM · PM · PWM · ASK · FSK · PSK · DSB-SC · sweep · burst · hopping · multi-pulse
- Digital bus (optional)
- 16-ch LVTTL/LVDS · up to 1 Gbps
- Display
- 5-inch capacitive touchscreen (800 × 480)
- Interfaces
- USB Host · USB Device (USBTMC) · LAN · web server
- Rear I/O
- 10 MHz in/out · trigger in/out · markers
- Optional interface
- GPIB (via USB-GPIB adapter)
- Options
- IQ / vector · bandwidth upgrades · 16-ch digital bus
- Remote control
- SCPI · SigIQPro / EasyIQ software
Specifications are guidance only — the official Siglent datasheet is the definitive reference. Software licences are delivered electronically and excluded from the 14-day EU return right once the key has been issued.
