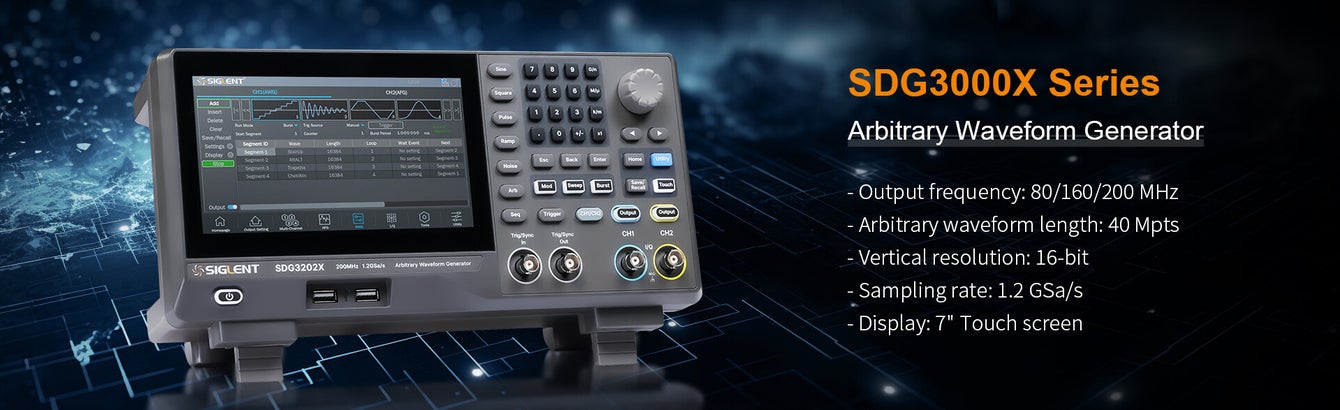

SDG3000X Series
A dual-channel function/arbitrary generator with up to 200 MHz bandwidth, 1.2 GSa/s sampling and 16-bit resolution. TrueArb and EasyPulse deliver high-fidelity, low-jitter signals with a 20 Vpp output and a 7-inch touchscreen.

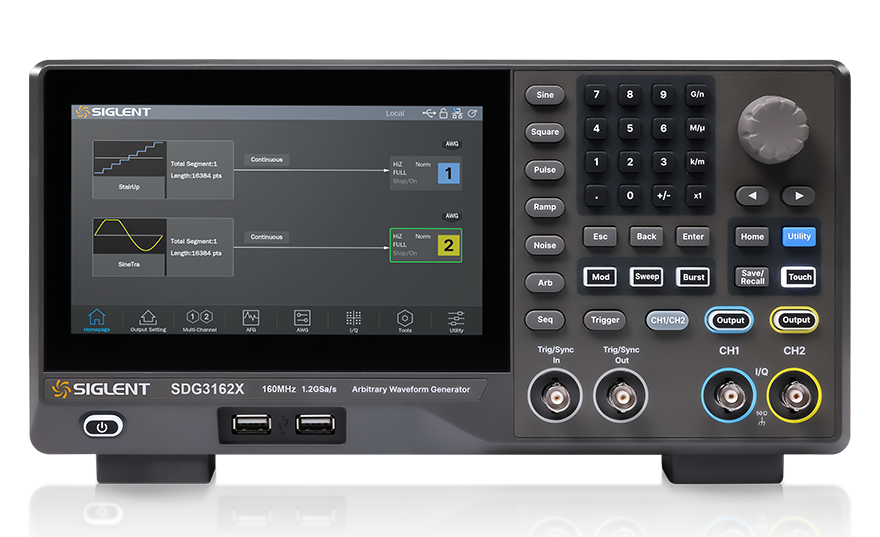

Overview
The SDG3000X series is a high-performance, dual-channel function/arbitrary waveform generator. With up to 200 MHz bandwidth, a 1.2 GSa/s sample rate and 16-bit vertical resolution, it produces clean, detailed signals across a wide range of applications.
Built on DDS and enhanced with Siglent's TrueArb and EasyPulse technologies, it overcomes the jitter and distortion limits of traditional DDS — TrueArb plays arbitrary waveforms point-by-point, and EasyPulse delivers low-jitter pulses with fine width and edge control. A 20 Vpp output, sequence playback and dual/multi-pulse round out a versatile bench instrument.
Three models share identical performance and differ only in bandwidth: the SDG3082X (80 MHz), SDG3162X (160 MHz) and SDG3202X (200 MHz). Optional IQ/vector, Multi-Tone & Chirp and a 40 Mpts memory upgrade extend it further.
From R&D and education to power-device characterization (dual/multi-pulse), communications and digital testing (PRBS, IQ), the SDG3000X delivers high-fidelity, low-jitter signals from a single dual-channel instrument.
As the official Siglent distributor for Europe, we hold the SDG3000X in EU stock and back every unit with local warranty, optional ISO/DKD calibration and expert application support.
At a glance
- Type
- Function / arbitrary generator
- Models
- SDG3082X · 3162X · 3202X
- Channels
- 2
- Max bandwidth
- Up to 200 MHz
- Display
- 7-inch touch · 1024×600
- Availability
- EU stock
Key highlights
Up to 200 MHz
Dual-channel output to 200 MHz for a wide range of signals.
1.2 GSa/s · 16-bit
High sample rate and resolution for accurate, low-distortion waveforms.
20 Vpp output
Large 20 Vpp amplitude (HiZ) drives demanding loads directly.
TrueArb & EasyPulse
Point-by-point arbitrary playback and low-jitter square/pulse output.
Sequence & multi-pulse
Sequence playback (to 1024 segments) and up to 30-pulse output for power-device test.
196 arbs · 7-inch touch
196 built-in arbitrary waveforms on a 7-inch capacitive touchscreen.
Core capabilities
TrueArb & EasyPulse
Point-by-point arbitrary playback (10 mSa/s–600 MSa/s) with several interpolation modes, plus low-jitter square/pulse output with fine width and edge control.
Sequence & multi-pulse
Sequence playback with up to 1024 segments and five run modes, plus dual/multi-pulse output (up to 30 pulses) for power-device switching characterization.
Modulation, sweep & PRBS
AM, DSB-SC, FM, PM, ASK, FSK, PSK and PWM, plus sweep (linear/log/step), burst (N-cycle/gated), harmonics to the 20th order and PRBS3–PRBS32 to 120 Mbps (single-ended or differential).
IQ, Multi-Tone & Chirp (optional)
Optional IQ/vector (ASK/FSK/PSK/QAM, symbol rate to 50 MSymb/s, carrier to 200 MHz via EasyIQ), plus optional Multi-Tone and Chirp generation.
Models in the series
Identical performance — choose your bandwidth.
Specifications
Key specs across the SDG3000X series (SDG3082X / SDG3162X / SDG3202X).
- Max sine frequency
- 200 / 160 / 80 MHz
- Channels
- 2
- Frequency resolution
- 1 µHz
- Max output amplitude
- 20 Vpp (HiZ) · ±10 V
- Square / pulse max
- 60 MHz / 60 MHz
- Output impedance
- 50 Ω
- Max sample rate
- 1.2 GSa/s (2× interpolation)
- TrueArb rate
- 10 mSa/s – 600 MSa/s
- Vertical resolution
- 16-bit
- Arbitrary memory
- 20 Mpts/ch (40 Mpts opt.)
- Sequence
- Up to 1024 segments
- Standard
- Sine, Square, Pulse, Ramp, Noise, DC, Arb
- Built-in arbitrary
- 196 waveforms
- Pulse min width / edge
- 8 ns / 3 ns
- Pulse/square jitter
- 150 ps
- Sine THD
- 0.075%
- Harmonics
- Up to 20th order
- Analog / digital
- AM, DSB-SC, FM, PM, ASK, FSK, PSK, PWM
- Sweep / burst
- Linear/log/step · N-cycle/infinite/gated
- PRBS
- to 120 Mbps · single / differential
- Multi-pulse
- Up to 30 pulses
- IQ / vector¹
- to 50 MSymb/s · carrier to 200 MHz
- Interfaces
- USB host · USB device · LAN · GPIB opt.
- Display
- 7-inch touch · 1024×600
- Frequency counter
- Up to 200 MHz
- Reference clock
- 10 MHz in/out · ±1 ppm
- Power
- 100–240 V · 30–50 W
- Dimensions / weight
- 312 × 162 × 126 mm · 2.73 kg
¹ IQ/vector signal generation (SDG-3000X-IQ, EasyIQ), Multi-Tone & Chirp (SDG-3000X-MTONENL), the 40 Mpts memory upgrade and the GPIB interface are options. Amplitude figures are into a HiZ load (halved into 50 Ω). Ask us for a configured quote. Full specifications in the datasheet below.
Software & control
Build and edit waveforms on the 7-inch touch screen, from a browser, or over USB/LAN for automated test.
EasyIQ
Create and edit IQ/vector signals — ASK/FSK/PSK/QAM, MultiTone and custom constellations (optional).
EasyWave & web control
PC waveform editor (manual, line, equation, coordinate) plus a built-in web server and SCPI over USB/LAN.
Resources & downloads

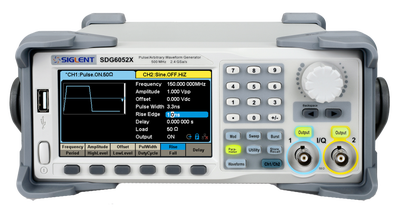

Related series
Configure your SDG3000X
Tell us your bandwidth and whether you need the IQ/vector, Multi-Tone & Chirp, 40 Mpts or GPIB options — we'll quote the right SDG3082X, SDG3162X or SDG3202X.
