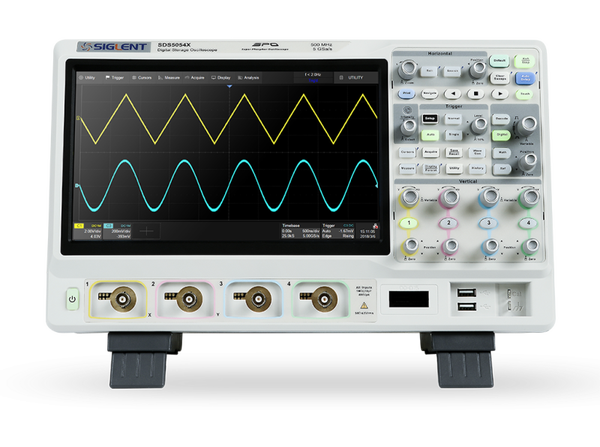

Siglent SDS5102X 2Ch 1GHz 5GSa/s Oscilloscope

€5,229.00
FREE shipping

Siglent SDS5102X 2Ch 1GHz 5GSa/s Oscilloscope

€5,229.00
FREE shipping

SIGLENT’s SDS5102X  2 Channel Digital Storage Oscilloscope with a bandwidth of 1 GHz, have a maximum sample rate of 5 GSa/s, maximum record length of 250 Mpts, and display up to 4 analog channels + 16 digital channels mixed signal analysis ability.

The SDS5102X 2 Channel Oscilloscope employs Siglent’s SPO technology with a maximum waveform capture rate of up to 110,000 wfm/s (normal mode, up to 480,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS5000X. The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly one-button design for most commonly used functions, can greatly improve the operation efficiency of the SDS5000X. It also supports mouse and external keyboard control.

Up to 110,000 wfm/s waveform update rate

With a waveform update rate of up to 110,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode the waveform capture rate can reach 500,000 wfm/s

Record Length of up to 250 Mpts/ch

Using hardware-based Zoom technique and record length of up to 250 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest

Multiple Trigger Functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualifed and serial trigger

  • 1 GHz, 500 MHz, 350 MHz models with real-time sample rate up to 5 GSa/s SPO technology
  • Waveform capture rates up to 110,000 wfm/s (normal mode), and 480,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes
  • Record length up to 250 Mpts
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). Trigger zone helps to simplify advanced triggering
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD1553B
  • Low background noise, supports 0.5 mV/div to 10 V/div voltage scales
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 100,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 100,000 frames
  • Automatic measurement function on 39 parameters, supports statistics with histogram, Gating measurement,

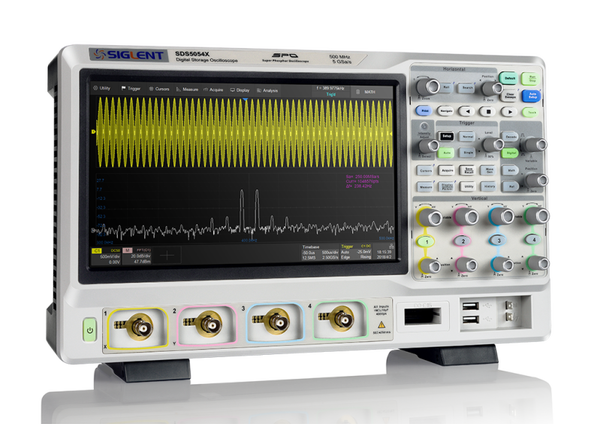

  • Math measurement, History measurement and Ref measurement Math function (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root), supports math on math

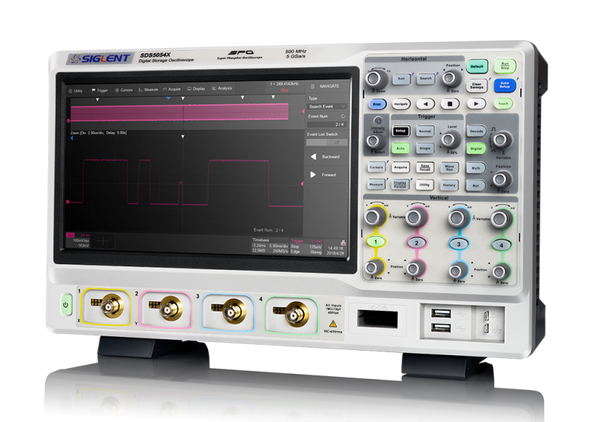

  • Search and Navigate
  • Digital Voltmeter Waveform Histogram
  • High Speed hardware-based Average, Eres (Enhanced Resolution)
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (optional) with maximum waveform capture rate up to 1.25 GSa/s, record length up to 62.5 Mpts
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
  • Supports external mouse and keyboard
  • 10 types of one-button shortcuts

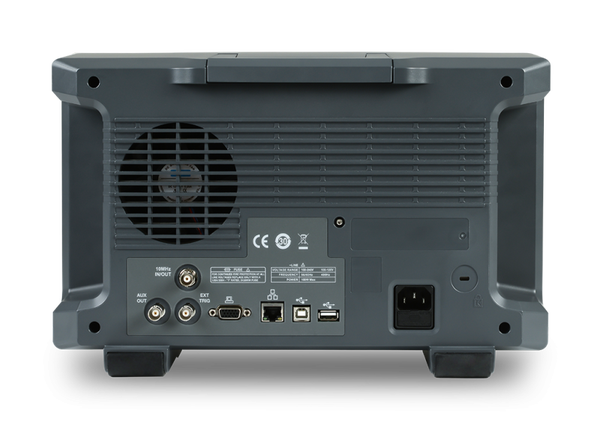

  • Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output
  • Built-in web server supports remote control by the LAN port using a web browser
  • Supports SCPI remote control commands
Models : SDS5032X / SDS5034X SDS5052X / SDS5054X SDS5102X / SDS5104X
Channels 2 / 4CH+EXT 2 / 4CH+EXT 2 / 4CH+EXT
Bandwidth 350 MHz 500 MHz 1 GHz
Sampling Rate (Max.) 5 GSa/s 5 GSa/s 5 GSa/s
Memory Depth (Max.) 250 Mpts/CH ( interleave mode); 125 Mpts/CH (non-interleave mode) 250 Mpts/CH ( interleave mode); 125 Mpts/CH (non-interleave mode) 250 Mpts/CH ( interleave mode); 125 Mpts/CH (non-interleave mode)
Waveform Capture Rate (Max.) 110,000 wfm/s (normal mode), 480,000 wfm/s (sequence mode) 110,000 wfm/s (normal mode), 480,000 wfm/s (sequence mode) 110,000 wfm/s (normal mode), 480,000 wfm/s (sequence mode)
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video,Qualified Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video,Qualified Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video,Qualified
Serial Trigger & Decoding I2C, SPI, UART, CAN, LIN (Standard); CAN FD, Flexray,I2S, MIL-STD-1553B (Optional) I2C, SPI, UART, CAN, LIN (Standard); CAN FD, Flexray,I2S, MIL-STD-1553B (Optional) I2C, SPI, UART, CAN, LIN (Standard); CAN FD, Flexray,I2S, MIL-STD-1553B (Optional)
Digital channels (Optional) 16-channel; Maximum waveform capture rate up to 1.25 GSa/s, Record length up to 62.5 Mpts 16-channel; Maximum waveform capture rate up to 1.25 GSa/s, Record length up to 62.5 Mpts 16-channel; Maximum waveform capture rate up to 1.25 GSa/s, Record length up to 62.5 Mpts
Waveform Generator Single channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts Single channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts Single channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output
Display 10.1” TFT-LCD with capacitive touch screen (1024*600) 10.1” TFT-LCD with capacitive touch screen (1024*600) 10.1” TFT-LCD with capacitive touch screen (1024*600)

Accessoires Included:

1 x Siglent SDS5102X Oscilloscope
2 x 1 GHz probe SPA3050A
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
