Siglent F604MS 9 GHz SMA-Male type VNA calibration kit

€1,499.00

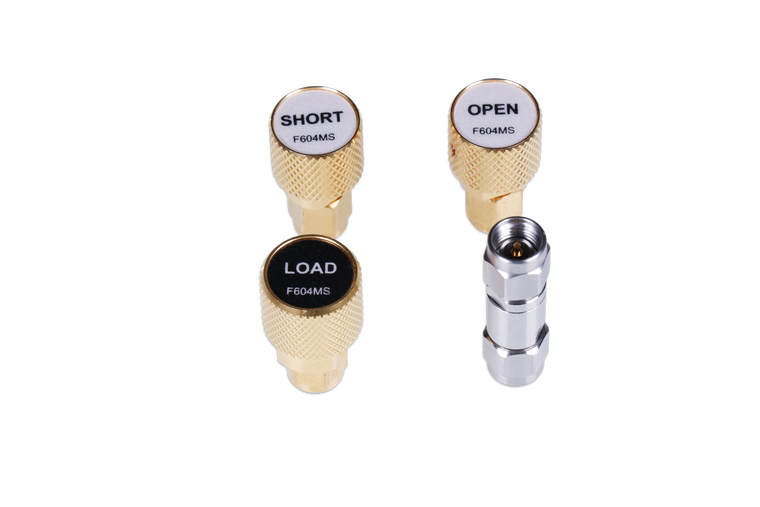

Siglent F604MS SMA-Male economy 50Ω 3.5mm/SMA type coaxial mechanical calibration standards include fixed terminations, open circuits, short circuits, and through adaptors, specified from DC to 9 GHz.

Siglent's F604MS is used to calibrate Siglent vector & spectrum analyzers. Standards include a fixed 50 Ω termination, an open load, a short load, and a through adaptor. The F604MS S performance specifications are very similar to the Keysight 85033E mechanical calibration kit and it can be used as an approximate replacement of 85033E, or use the STD of 85033E in network analyzers

Type Connector Specification
Open 3.5mm-Male DC – 9 GHz, Phase Deviation* ≤ ± 0.8°
Short 3.5mm-Male DC – 9 GHz, Phase Deviation* ≤ ± 0.8°
Load 3.5mm-Male DC – 9 GHz, SWR ≤ 1.032 (Return Loss ≥ -36 dB)
Through 3.5mm-Male to 3.5mm-Male DC – 9 GHz, SWR ≤ 1.06 (Return Loss ≥ -31dB), 9 – 26.5 GHz, SWR ≤ 1.1 (Return Loss ≥ -26dB), Insert Loss ≤ 0.1 dB, Delay= 82.0 ps

Specifications :

Impendence 50 Ω
Power 1 W
Interfaces Standard IEC 60169-23
Durability > 2000
Torque 0.9 Nm
Spanner 8 mm
Temperature -15 ℃ ~ + 35 ℃
Mechanical Calibration Kit Datasheet V 1 4
PDF – 589,8 KB 224 downloads
