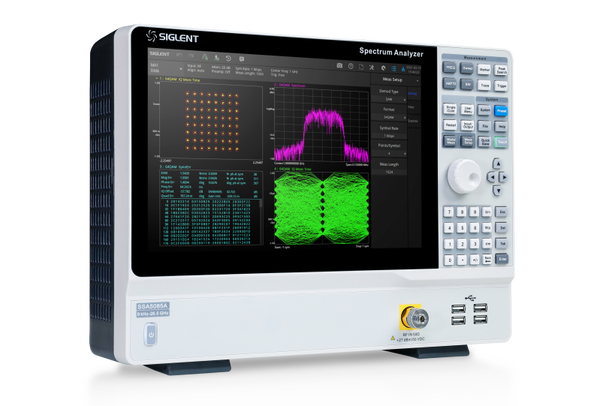

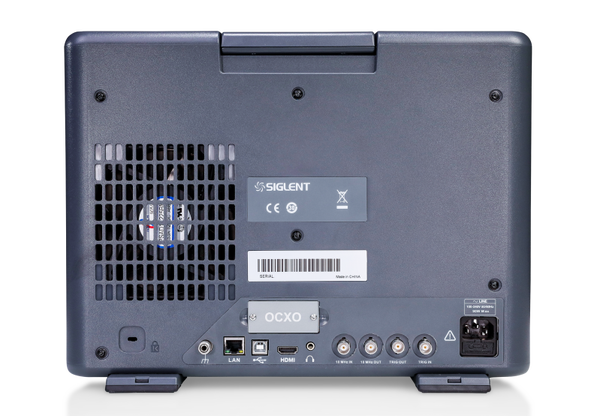

Siglent SSA5083A 9 kHz ~ 13.6 GHz spectrum analyzer

€15,980.00

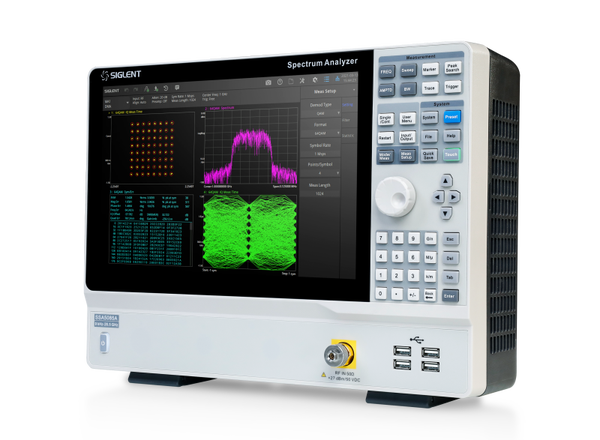

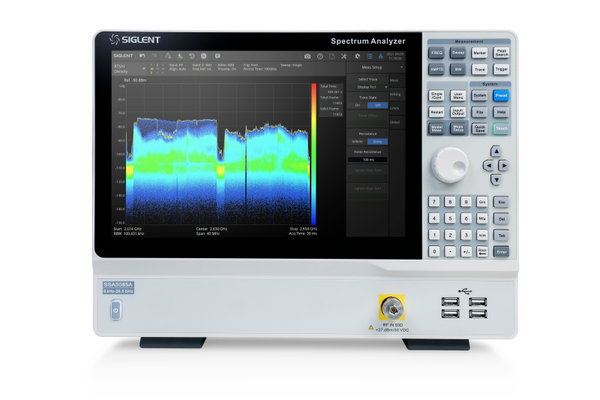

The SIGLENT SSA5083A 9 kHz ~ 13.6 GHz is a powerful and flexible spectrum analyzer with tools for complex RF spectrumand signal analysis.

The SIGLENT SSA5083A has a real-time spectrum analysis capability,the analyzer can provide multi-dimensions data displays, advanced triggering to solve modern R spectrum challengeslike channel power measurement, hopping frequency conflict channel, spectrum interferenceApplications include broadcast monitoring/evaluation, cellular siteIoT, wlan and Bluetooth surveying, research and development, education, production, and maintenance.

Real Time Analysis Mode Multi-view and dimensions to monitor complex signals

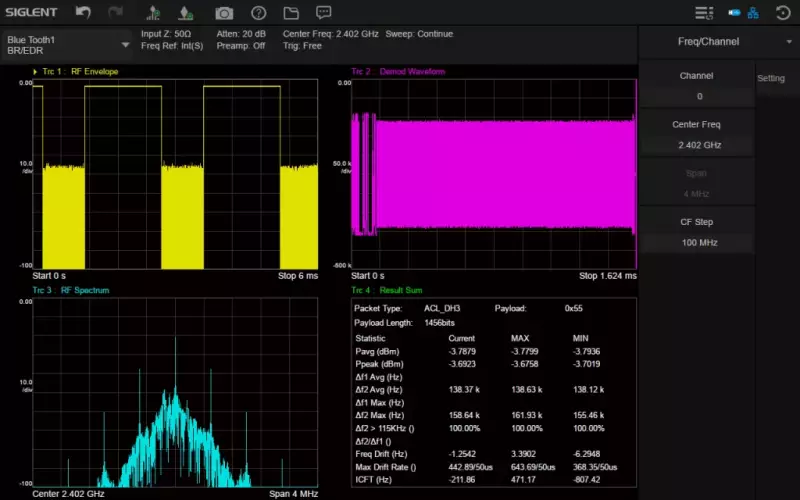

Bluetooth Analysis

Bluetooth is widely used in various devices and application scenarios as a wireless communication technology. The measurement application follows the Bluetooth® RF test specification issued by Bluetooth SIG to calculate the measurement results, and automatically detects the protocol version of the signal for Bluetooth BR/EDR/LE with one-click measurements to help you design, evaluate and manufacture Bluetooth devices with confidence. Together with the new SigIQPro signal generation software and a SSG5000X-V generator, it forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, accelerating the process from signal generation to data to evaluation. The SSA5000A is helpful for users to troubleshoot flexibly in the laboratory and optimize RF design easily and quickly.

Phase Noise Measurement

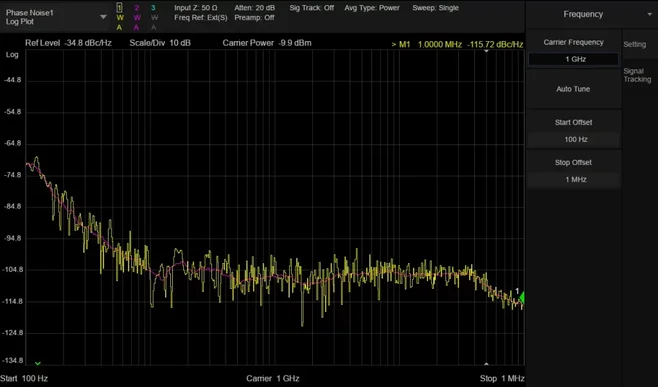

A stable frequency source is a common need for many electronic devices and most RF equipment. Phase noise can be used to characterize the short-term frequency stability of these frequency sources. Siglent’s SSA5000A Spectrum analyzers now provide a one-button phase noise measurement. The SSA5000A features lower Display Average Noise Level (DANL) and phase noise ensuring the accuracy of your tests. The smaller resolution bandwidth avoids measuring both carrier power and noise power together, and the measurement results are automatically calculated and graphed. The use of a logarithmic scale for the horizontal coordinate gives both a wider frequency range and finer resolution when close to the carrier – smaller offsets tend to reflect the quality of the signal better than phase noise at larger frequency offsets.

SSA5083A Features :

  • Spectrum Analyzer Frequency Range from 9 kHz up to 13.6 GHz
  • 165dBm/Hz Displayed Average Noise Level(Typ.)
  • -105dBc/Hz@1 GHz,10kHz offset SSB Phase Noise(Typ.)
  • 25 MHz/40 MHz Analysis Bandwidth.
  • 100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT.
  • Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
  • Analog Modulation Analysis and Vector Digital Modulation Analysis.
  • 12.1inch Multi-Touch Screen, HDMI output.
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

Noise Figure Measurement

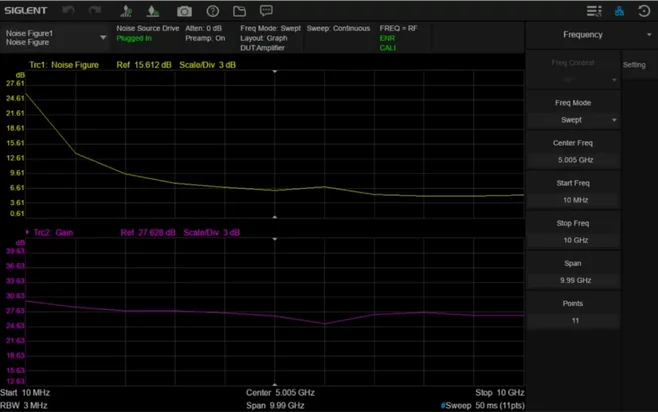

Accurate measurement of noise figure is crucial in product development and manufacturing. In the field of research and development, high test accuracy can ensure high repeatability between design simulation and real measurement and help to find the noise sources that are not considered in the simulation process. In the field of production and manufacturing, higher test accuracy means that the index margin can be set smaller when setting and verifying the technical index of the device. The higher the technical index of the final product, the more competitive it will be in the market. Quantifying those unknowns depends on flexible tools that provide accurate, reliable results. The noise figure measurement function of SIGLENT SSA5000A provides engineers with a simple tool, which can quickly and effectively measure the noise figure with high accuracy. Engineers can characterize noise figure and gain of connectorized devices and system blocks with graph, meter, and table layouts, and support the measurement of noise factor, Y-factor, effective temperature, and hot/cold power density.

Standard Accessories

1 x USB cable
1 x Quick start
1 x Certificate of calibration
1 x Power cord
1 x 2.92mm Female to Female         adapter ( 2.9F-2.9F-40A )

Optional Accessories / license keys:

Max Frequency update to 26.5 GHz Activation License
(SSA5000-F5)

40 MHz Real Time Bandwidth Activation License
(SSA5000-B40
)

25 MHz Real Time Analysis Activation License
(SSA5000-RTA1)

SSA5000A Broadcast Measurement Kit Activation License (SSA5000-AMK)

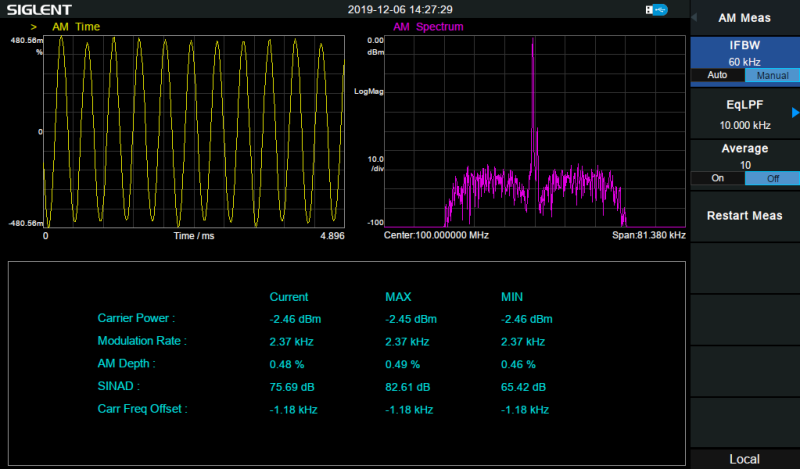

Analog modulation analysis (AM/FM) activation license (SSA5000A-AMA)

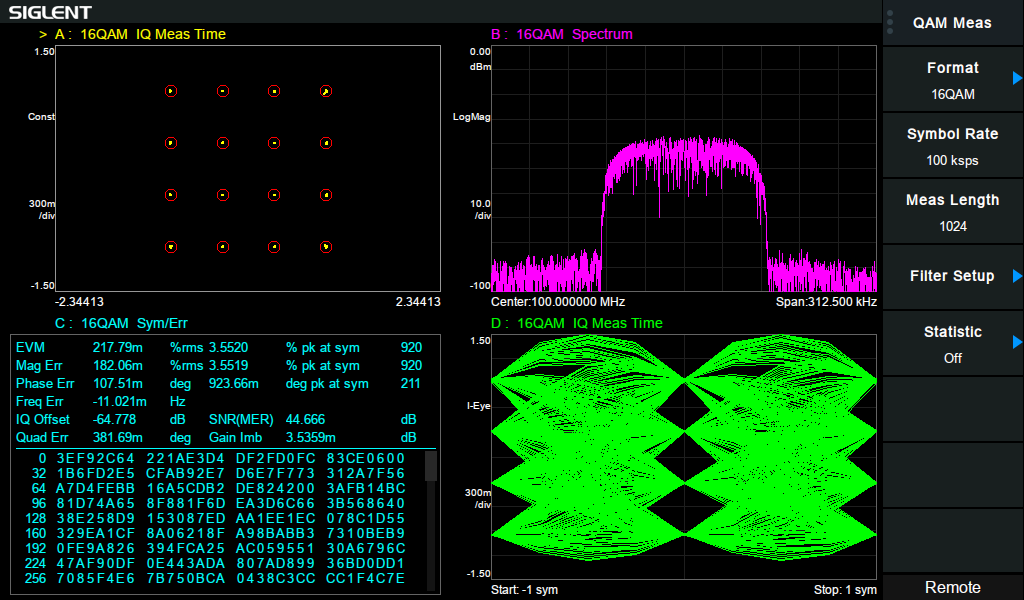

Digital modulation analysis activation license
(SSA5000A-DMA)

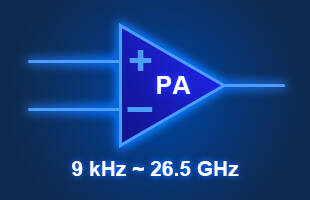

Pre-amplifier,

9 kHz ~ 13.6 GHz

Pre-amplifier,

9 kHz ~ 26.5 GHz

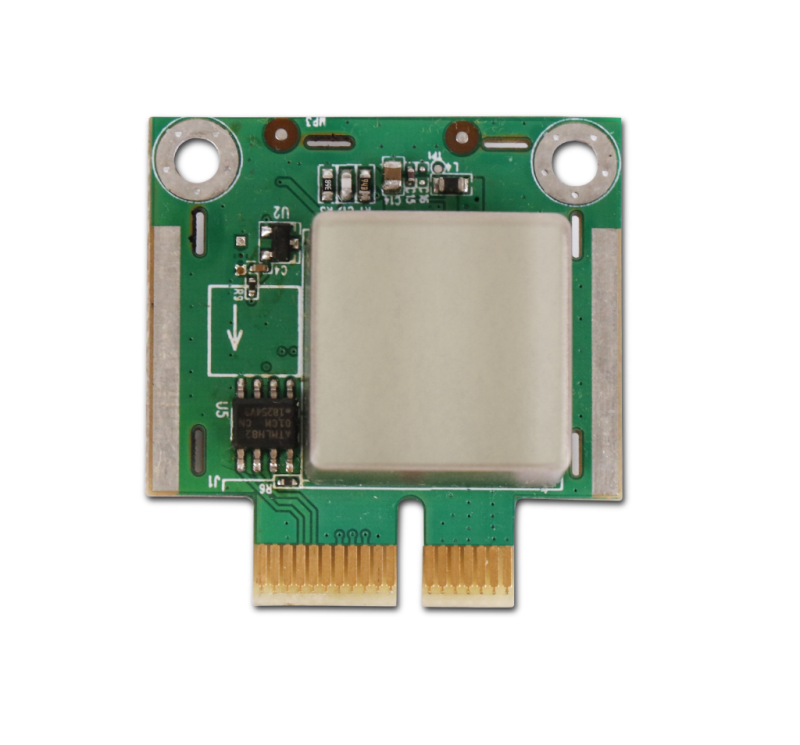

High accuracy clock source

NSD28 Noise source driver(hardware)

SSA5000A User Manual
PDF – 6,8 MB 51 downloads
SSA5000A Service Manual
PDF – 2,2 MB 43 downloads
SSA SVA SHA IVI C Progr Guide
PDF – 1,4 MB 44 downloads
SSA5000A Quick Guide EN 01 A
PDF – 1,0 MB 250 downloads
SSA5000A Data Sheet EN 02 A
PDF – 1,7 MB 50 downloads
