Siglent SSA5085A Spectrum Analyzer (9 kHz – 8.5 GHz) – High Performance RF Signal Analysis

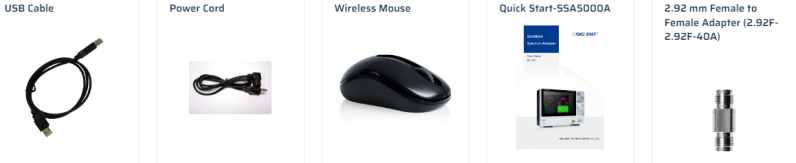

The Siglent SSA5085A is a powerful and versatile spectrum analyzer designed for engineers, researchers, and RF professionals who need accurate, reliable, and high-resolution RF signal analysis. Covering a frequency range from 9 kHz to 8.5 GHz, it is suitable for a wide range of applications, including wireless communications, RF circuit testing, EMI pre-compliance testing, and general-purpose RF analysis.

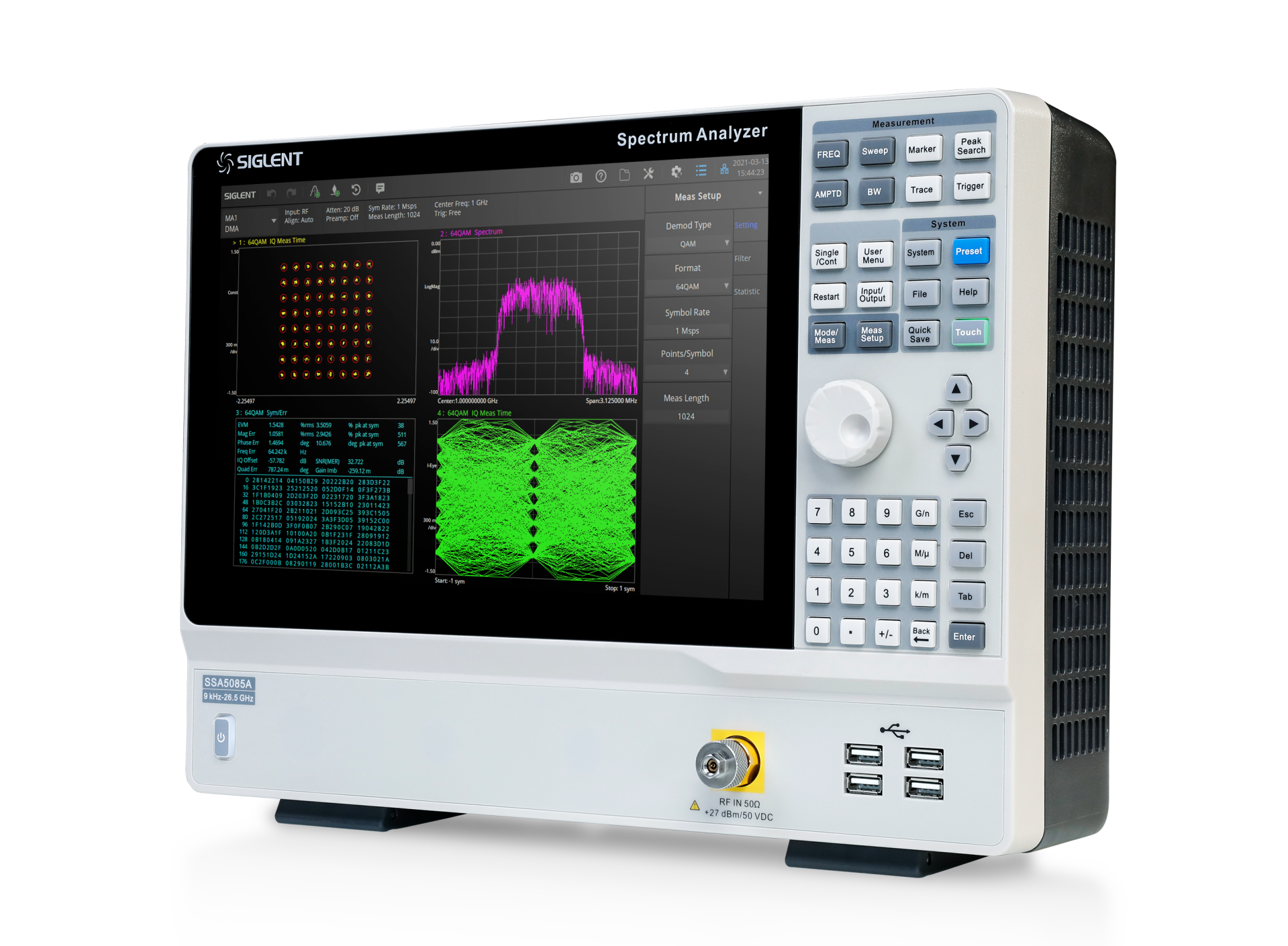

With a 12.1-inch multi-touch screen, intuitive navigation, and a modern, user-friendly interface, the SSA5085A provides a smooth and efficient workflow. The device supports real-time spectrum analysis (optional) with up to 40 MHz of real-time bandwidth, making it possible to visualize and analyze fast-changing signals with ease.

Key Features and Benefits:

✔ Wide Frequency Range: 9 kHz to 8.5 GHz, covering most RF testing needs.
✔ High Resolution Bandwidth (RBW): Adjustable from 1 Hz to 10 MHz for precise signal separation.
✔ Low Noise Floor: High sensitivity with a displayed average noise level (DANL) as low as -165 dBm, allowing for detection of weak signals.
✔ Real-Time Spectrum Analysis (Optional): Up to 40 MHz bandwidth for capturing transient and pulsed signals.
✔ Advanced EMI Pre-Compliance Testing (Optional): Supports CISPR filters, quasi-peak detectors, and limit line testing for pre-compliance measurements.

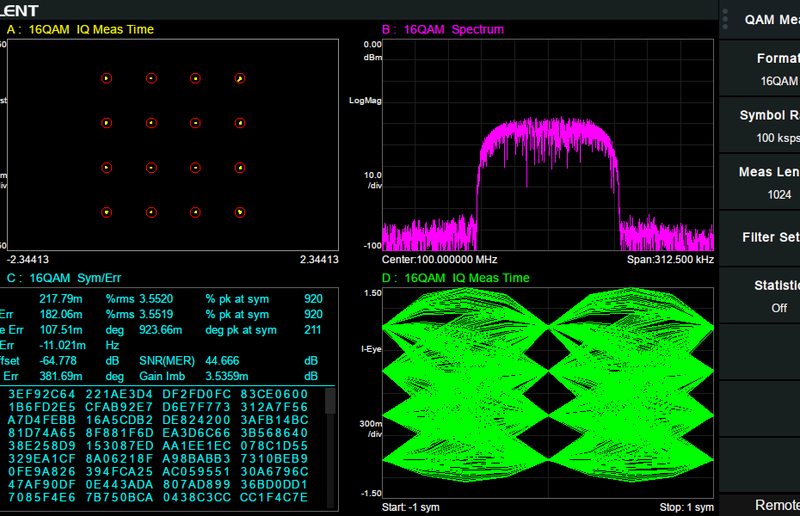

✔ Modulation Analysis (Optional): Supports AM/FM, ASK/FSK, PSK, and QAM demodulation, making it ideal for communication testing.
✔ Fast Sweep Time: Allows rapid signal analysis with high accuracy.
✔ Multiple Connectivity Options: USB, LAN, and HDMI output for data sharing and remote operation.
✔ Durable and Reliable: Rugged design for laboratory and field use.

Whether you're working on wireless communication systems, IoT devices, RF components, EMI testing, or education, the Siglent SSA5085A provides a high-performance solution at an excellent value.

Real Time Analysis Mode Multi-view and dimensions to monitor complex signals

Bluetooth Analysis

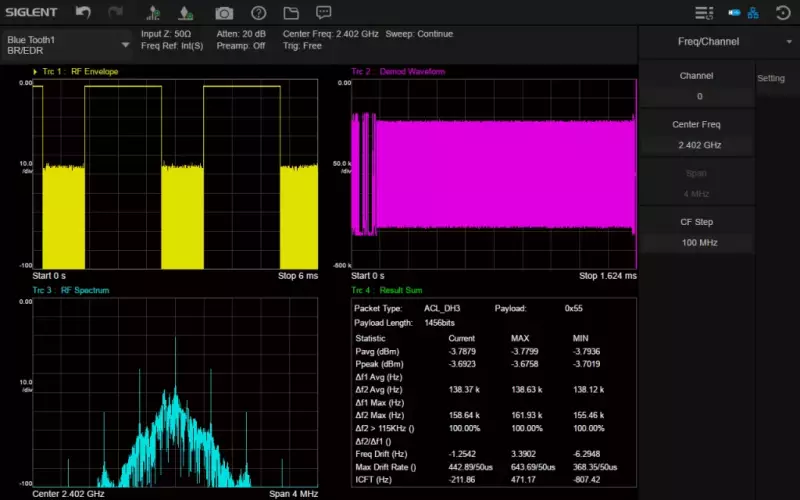

Bluetooth is widely used in various devices and application scenarios as a wireless communication technology. The measurement application follows the Bluetooth^® RF test specification issued by Bluetooth SIG to calculate the measurement results, and automatically detects the protocol version of the signal for Bluetooth BR/EDR/LE with one-click measurements to help you design, evaluate and manufacture Bluetooth devices with confidence. Together with the new SigIQPro signal generation software and a SSG5000X-V generator, it forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, accelerating the process from signal generation to data to evaluation. The SSA5000A is helpful for users to troubleshoot flexibly in the laboratory and optimize RF design easily and quickly.

Phase Noise Measurement

SSA5085A Features :

Spectrum Analyzer Frequency Range from 9 kHz up to 26.5 GHz
165 dBm/Hz Displayed Average Noise Level(Typ.)
-105 dBc/Hz@1 GHz,10kHz offset SSB Phase Noise(Typ.)
25 MHz/40 MHz Analysis Bandwidth.
100% POI 7.20 μs, Dynamic Range 60 dB, Multi-view for Density, Spectrogram and PvT.
Channel power, ACPR, OBW, Harmonic, TOI measurement etc.
Analog Modulation Analysis and Vector Digital Modulation Analysis.
12.1inch Multi-Touch Screen, HDMI output.
Web Browser Remote Control on PC and Mobile Terminals and File Operation

Noise Figure Measurement

A stable frequency source is a common need for many electronic devices and most RF equipment. Phase noise can be used to characterize the short-term frequency stability of these frequency sources. Siglent’s SSA5000A Spectrum analyzers now provide a one-button phase noise measurement. The SSA5000A features lower Display Average Noise Level (DANL) and phase noise ensuring the accuracy of your tests. The smaller resolution bandwidth avoids measuring both carrier power and noise power together, and the measurement results are automatically calculated and graphed. The use of a logarithmic scale for the horizontal coordinate gives both a wider frequency range and finer resolution when close to the carrier – smaller offsets tend to reflect the quality of the signal better than phase noise at larger frequency offsets.

Accurate measurement of noise figure is crucial in product development and manufacturing. In the field of research and development, high test accuracy can ensure high repeatability between design simulation and real measurement and help to find the noise sources that are not considered in the simulation process. In the field of production and manufacturing, higher test accuracy means that the index margin can be set smaller when setting and verifying the technical index of the device. The higher the technical index of the final product, the more competitive it will be in the market. Quantifying those unknowns depends on flexible tools that provide accurate, reliable results. The noise figure measurement function of SIGLENT SSA5000A provides engineers with a simple tool, which can quickly and effectively measure the noise figure with high accuracy. Engineers can characterize noise figure and gain of connectorized devices and system blocks with graph, meter, and table layouts, and support the measurement of noise factor, Y-factor, effective temperature, and hot/cold power density.
