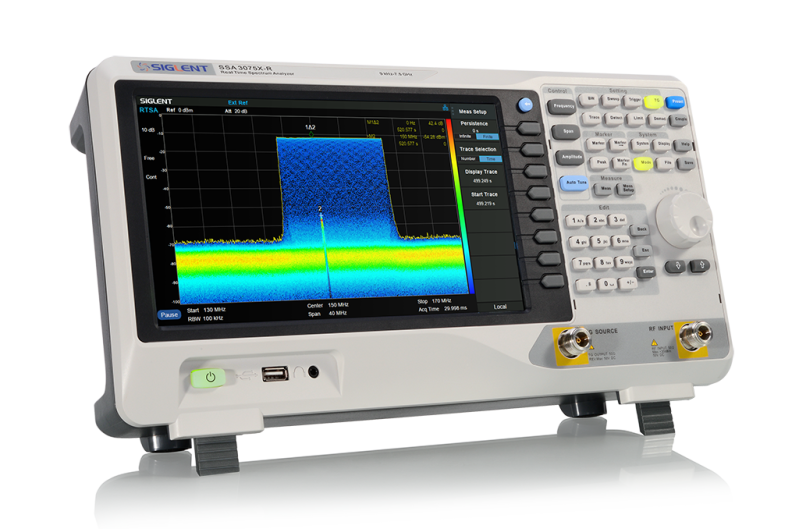

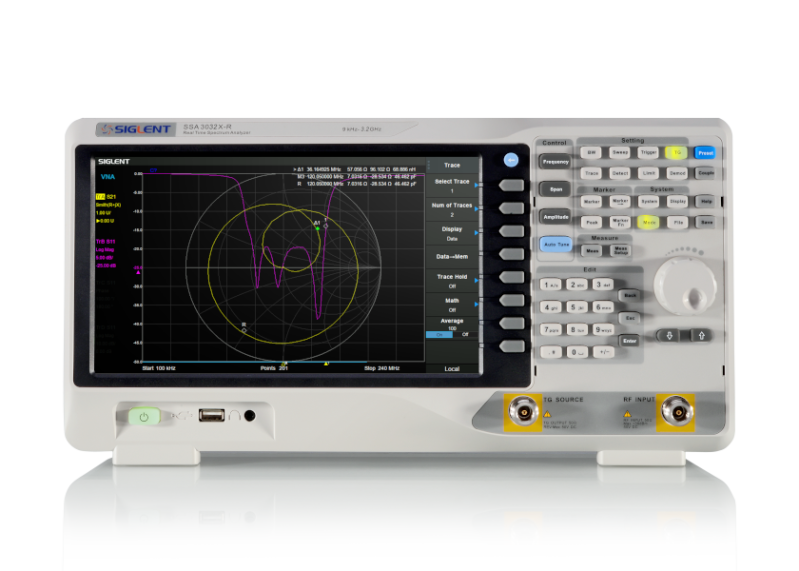

The SIGLENT SSA3032X-R Real Time spectrum & vector network analyzer has a a capability of 40 MHz analysis bandwidth and 7.2 μs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. The Siglent SSA3032X-R also provides standard tracking generator for network analysis, optional wide band digital modulation analysis, and EMI measurement. Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.
Real Time Analysis Mode
Density,3D,Spectrogram,PvT,Multi-view and dimensions to monitor complex signals

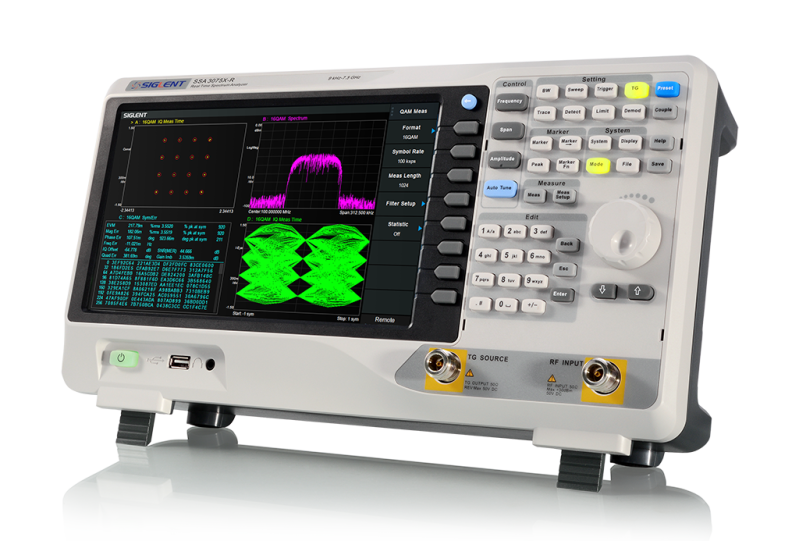

Modulation Analysis Mode
AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation, and Data recording to PC. The analysis BW is same with real-time BW in RTSA mode
SSA3050X-R Features and Benefits
- Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier Standard
- Tracking Generator Standard
- Up to 40 MHz Real Time Analysis Bandwidth (Opt.)
- 100% POI 7.20 μs, Dynamic Range 60 dB
- Multi-view for Density, Spectrogram, PvT and 3D
- Advanced Measurement Kit (Opt.)
- Reflection Measurement Kit (Opt.)
- Modulation Analysis Mode (Opt.)
- EMI Measurement Mode (Opt.)
- 10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and
- File Operation
EMI Measurement Mode
EMI Measurement with CISPR 16-1-1 EMI filter ,Quasi-peak Detector, and pre-stored standards.

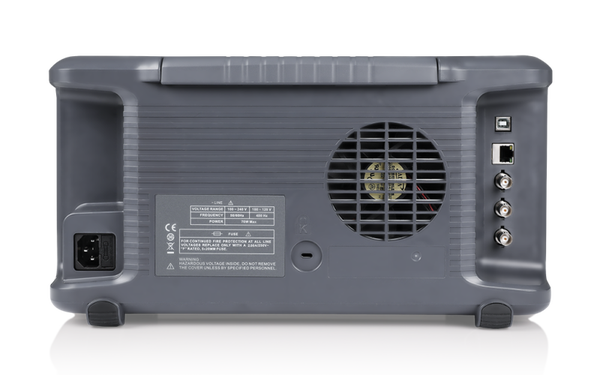

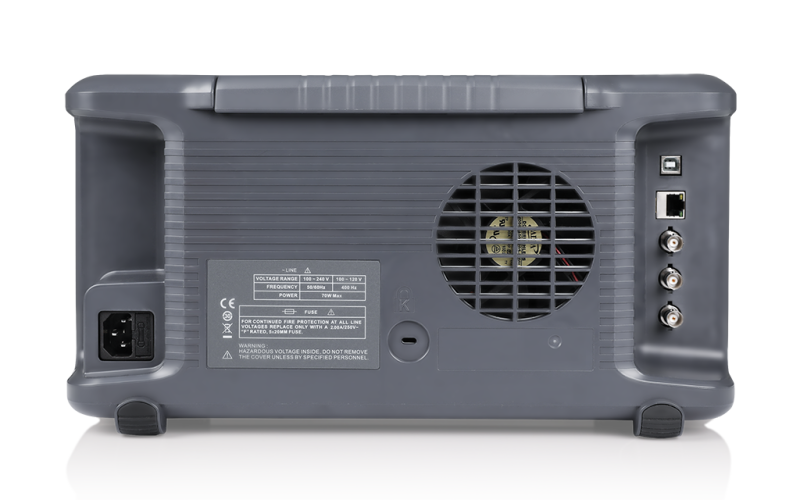

Model | SSA3032X-R |
---|---|
Frequency Range | 9 kHz~3.2 GHz |
Resolution Bandwidth | 1 Hz~3 MHz |
Displayed Average Noise Level | -165 dBm/Hz |
SSB Phase Noise | <-98 dBc/Hz |
Third-order intercept(TOI) | +14 dbm |
Total Amplitude Accuracy | < 0.7 dB |
Tracking Generator | 100 kHz - 5.0 GHz |
Real Time Band Width | 25 MHz, 40 MHz (Option) |
SFDR | 60 dB |
100% POI | 7.20 μs |
7.20 μs | 7.20 μs |
RTSA Measurement | Density, Spectrogram, 3D, PvT |
Touch Screen | Multi Touch, Mouse and Keyboard supported |
Advanced Measurement | CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor |
Modulation Analysis | AM, FM, ASK, FSK, MSK, PSK, QAM |
Reflection Measurement | VSWR measurement using Reflection Bridge |
EMI Measurement | EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line |
Communication Interface | LAN, USB Device, USB Host (USB-GPIB) |
Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet |
Remote Controller | NI-MAX, Web Browser, Easy Spectrum software, File Explorer |
Accessoires Included:
1 x Siglent SSA3032X-R 9kHz - 3.2 GHz
1 x Guarantee Card
1 x Power Cord
1 x USB Cable
1 x Quick Start Guide
