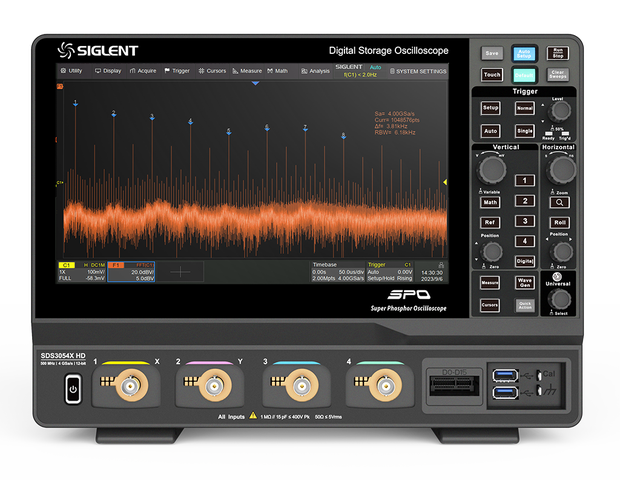

Siglent SDS3054X HD 4CH 12bit 500MHz Oscilloscope
SIGLENT’s SDS3054X HD series Digital Storage Oscilloscope has a bandwidth of 500 MHz and has 12 bit ADCs with sample rate up to 4 GSa/s, maximum record length of 400 Mpts/ch, and it will display up to 4 analog channels + 16 digital channels for high performance mixed signal analysis.
SDS3054X HD — 500 MHz, 4 channels, 12-bit
The SDS3054X HD is the 500 MHz model of Siglent’s high-end SDS3000X HD series — a 4-channel, 12-bit oscilloscope built for engineers who need to see the detail that 8-bit scopes miss. Its 12-bit ADC (extendable to 16-bit in ERES mode) resolves small signals, low-level distortion and subtle power-rail ripple with far less quantisation noise, while a genuinely quiet front end and 0.5% DC gain accuracy keep those measurements trustworthy.
Performance keeps pace with the resolution: 4 GSa/s sampling, up to 400 Mpts of memory for long, fast captures, and a 200,000 wfm/s update rate to catch rare glitches. A 10.1" capacitive multi-touch display, USB 3.0 and Gigabit LAN make it quick to drive, and built-in Bode plot, power analysis, 4 Mpts FFT and an optional 16-channel MSO turn one instrument into a complete analysis bench — ideal for power-electronics, embedded, automotive and education work.
Analysis tools built in
12-bit high resolution
A true 12-bit ADC (up to 16-bit in ERES) reveals fine detail and small signals with far less noise than an 8-bit scope.
Bode plot & power analysis
Built-in frequency-response (Bode) and power-analysis tools for supply loop response, switching loss, harmonics and more.
4 Mpts FFT
A deep 4 Mpts FFT with magnitude and phase turns the scope into a capable spectrum tool for noise and harmonics.
10.1" multi-touch
A large 1024×600 capacitive touch display with gesture control, plus mouse, keyboard and web control over Gigabit LAN.
Specifications
| Analog bandwidth | 500 MHz |
| Analog channels | 4 + EXT |
| Vertical resolution | 12-bit (up to 16-bit in ERES) |
| Max. sample rate | 4 GSa/s (interleaved) · 2 GSa/s per channel |
| Max. record length | 400 Mpts (single-ch) · 200 Mpts (dual) · 100 Mpts/ch |
| Waveform capture rate | 200,000 wfm/s (normal) · 890,000 wfm/s (sequence) |
| Display | 10.1" capacitive multi-touch (1024×600) |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/Hold, Delay, Serial + Zone |
| Serial decode (standard) | I²C, SPI, UART, CAN, LIN |
| Serial decode (optional) | CAN FD/XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, SpaceWire, USB 2.0, SPMI |
| Math | 4 traces · 4 Mpts FFT (magnitude & phase) · formula editor |
| Analysis tools | Search, Navigate, History, Mask Test, DVM, Counter, Waveform Histogram, Bode Plot, Power Analysis |
| Connectivity | USB 3.0 Host ×2 + USB 2.0 Host · USB 3.0 Device · 10/100/1000M LAN · web control |
| Standard probes | One 500 MHz passive probe per channel |
From the official SDS3000X HD datasheet; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDS3054X HD.
Optional accessories & license keys
Expand your SDS3054X HD with logic-analysis, a built-in generator, probes and software activations.
SPL2016 16-channel logic probe — adds 16 digital channels at up to 1 GSa/s.
SAG1021I 25 MHz arbitrary/function generator module.
SAP1000 (1 GHz), SAP2500 / SAP2500D active and differential active probes.
SDP6150A / SDP6150D and DPB-series differential high-voltage probes.
Cables, cases, calibration kits and more for your instrument.
License keys & bandwidth upgrades
Software activations for the SDS3000X HD — click Buy to open the licence in the shop. See all SDS3000X HD licenses & options.
| License / upgrade | Order number | Price | Shop |
|---|---|---|---|
| Bandwidth upgrade — 500 MHz → 1 GHz | SDS3000HD-BW5TA | €1,690.00 | Buy |
| Power analysis | SDS3000HD-PA | €849.00 | Buy |
| CAN FD trigger & decode | SDS3000HD-CANFD | €329.00 | Buy |
| FlexRay trigger & decode | SDS3000HD-FlexRay | €329.00 | Buy |
| I²S trigger & decode | SDS3000HD-I2S | €329.00 | Buy |
| MIL-STD-1553B decode | SDS3000HD-1553B | €329.00 | Buy |
| ARINC 429 decode | SDS3000HD-ARINC | €569.00 | Buy |
| SENT decode | SDS3000HD-SENT | €329.00 | Buy |
| Manchester decode | SDS3000HD-Manch | €329.00 | Buy |
Prices subject to change.
Compare the full SDS3000X HD range
See the 350 MHz, 500 MHz and 1 GHz models side by side, or ask us to configure the right options.
