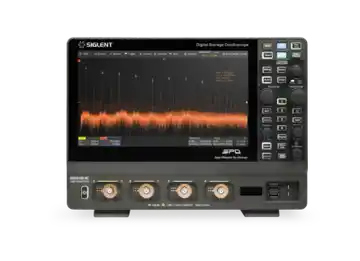

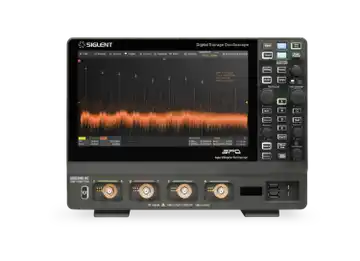

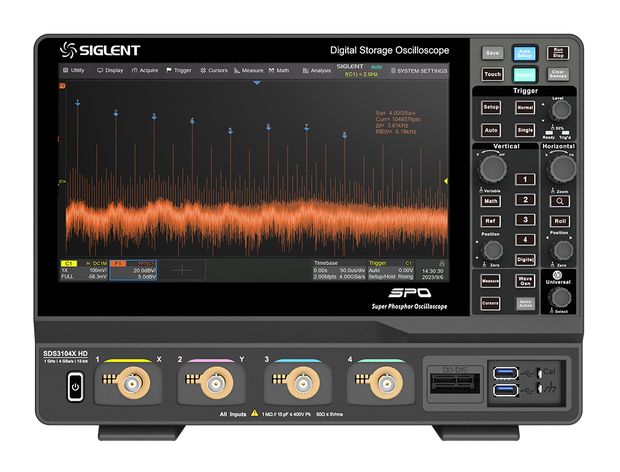

Siglent SDS3104X HD 4CH 12bit 1GHz Oscilloscope

NEW
€5,980.00

SIGLENT’s SDS3104X HD series Digital Storage Oscilloscope has a bandwidth of 1 GHz and has 12 bit ADCs with sample rate up to 4 GSa/s, maximum record length of 400 Mpts/ch, and it will display up to 4 analog channels + 16 digital channels for high performance mixed signal analysis.

The Siglent SDS3104X HD with SPO technology has a maximum waveform capture rate of up to 200,000 wfm/ s, 256 level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot and Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS3104X HD. The large 10.1 display capacitive touch screen supports multi touch gestures, with the addition of user friendly UI design, can greatly improve the operation al efficiency. It also supports mouse control, and remote web control over LAN.

Bode Plot

The oscilloscope can control the SIGLENT isolated USB AWG module or a stand alone SIGLENT SDG generator, to scan the amplitude and phase frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzer s in some applications

Deep Memory FFT

FFT supports up to4 Mpts operation. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.

Siglent SDS3104X Key Features:

  • 4 analog channels, 1 GHz bandwidth with up to 4 GSa/s
    sample rate.
  • 12 bit ADC
  • Low background noise : 125 μVrms @ 1 GHz bandwidth
  • SPO technology
    - Waveform capture rates up to 20 0 ,000 wfm/s in normal mode       and 890 ,000 wfm/s in sequence mode.
    -Supports 256 level intensity grading and color temperature   display  modes
    - Up to 4 00 Mpts/ch record length.
    - Digital trigger system.
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering.

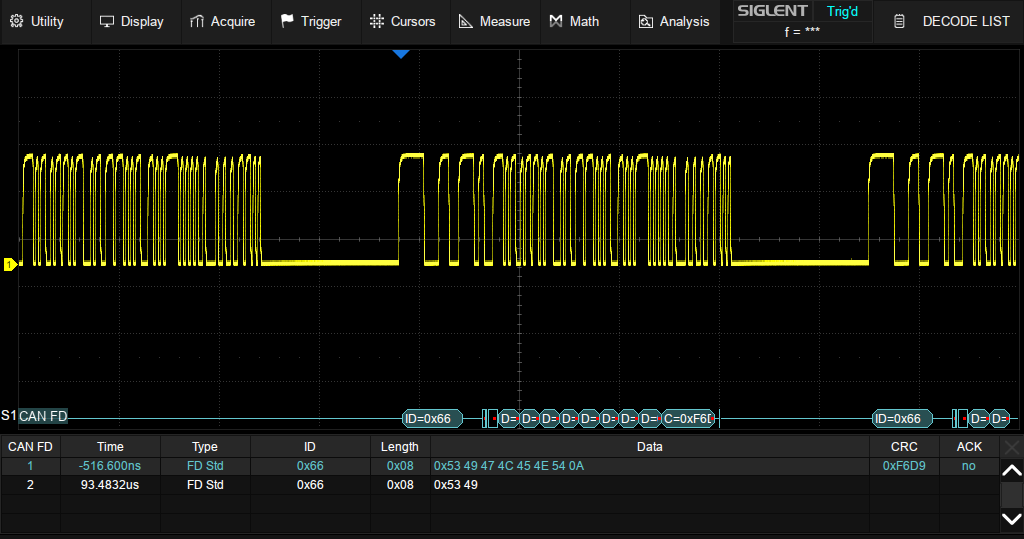

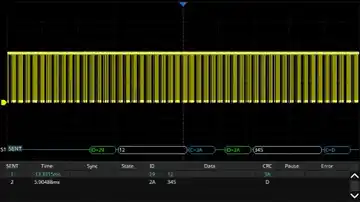

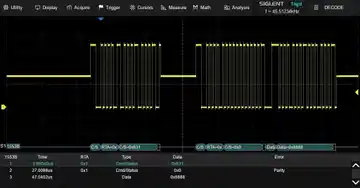

  • Serial bus triggering and decoder, supports protocols I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL STD 1553B, SENT,  Manchester and ARINC429.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80 ,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
  • History waveform record (History) function, the maximum
    recorded waveform length is 80 ,000 frames.
  • Automatic measurement s on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces.
  • 4 Math traces ( 4 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform. Histogram, Bode plot and Power Analysis.
  • High Speed hardware based Average, ERES ; High Speed hardware based Mask Test function, with Mask Editor tool for creating user defined masks.
  • 16 digital channels (optional)
  • External 50 MHz waveform generator (optional)

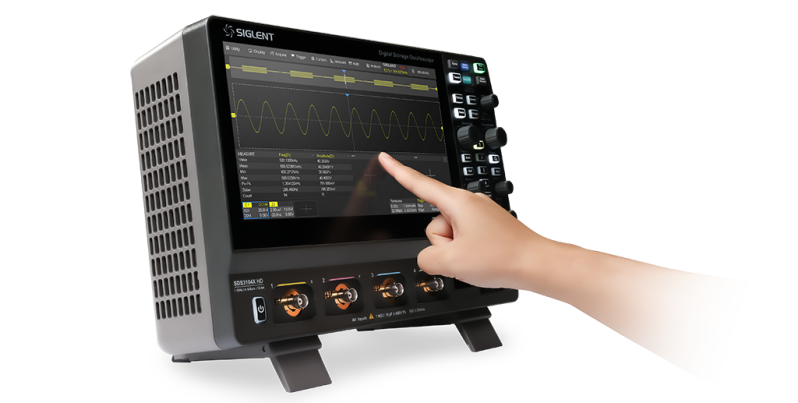

  • Large 10.1 TFT LCD display with 1024 * 600 resolution;
    Capacitive touch screen supports multi touch gestures.
  • Interfaces include : 2x USB 3.0 Host Host,1 x USB 2 .0 Host ,
    USB 3 .0 Device ( USBTMC),1000M LAN ((VXI11/ Telnet/ Socket /LXI) LXI))), External Triger In , Aux Out  (Pass/Fail, Trigger Out).
  • Built in web server supports remote control over the LAN
    port using a web browser . Supports SCPI remote control
    commands . Supports external mouse and keyboard
Model SDS3104X HD
Analog channels 4 + EXT
Bandwidth 1 GHz ( 800 MHz in non interleaving mode )
Sample rate ( max ) 4 GSa/s interleaving mode ), 2 GSa/s non interleaving mode
Memory depth ( max ) 400 Mpts/ ch interleaving mode : single channel ), 2 00 Mpts/ ch interleaving mode : d ual channel ), 100 Mpts/ ch non interleaving mode
Waveform capture rate ( max ) Normal mode mode:200,000 wfm/s; Sequence mode mode:890,000 wfm/s
Vertical resolution 12-bit. Up to 16 bit in ERES mode
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode Standard: I2C, SPI, UART, CAN, LIN Optional: CAN FD, FlexRay, I2S, MIL STD 1553B, SENT, Manchester (decode only), ARINC429
Measurement 50+ parameters, statistics, histogram, trend, and track supported
Math 4 traces 4 Mpts FFT, +, --, x, ÷, ∫dt, d/dt, √√, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, F ilter . Supports ormula editor
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
Digital channel ( optional ) 16 channel; maximum sample rate up to 1 GSa/s; record length up to 100 Mpts
Waveform generator ( optional ) Single channel SAG1021I, frequency up to 50 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

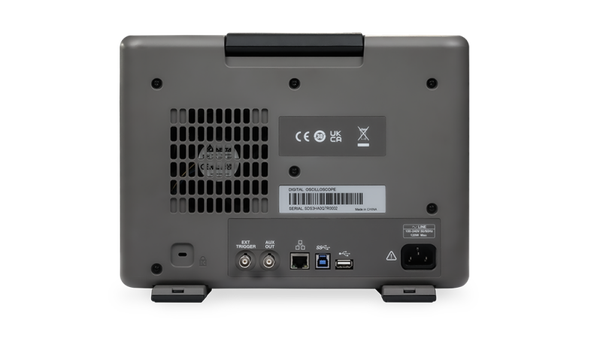

I/O USB 3.0 Host x2, USB 2.0 Host x1, USB 3.0 Device, 10M/100M/1000M LAN, External trigger, Auxiliary output TRIG OUT, PASS/FAIL)
Probe ( standard ) One 500 MHz passive probe supplied for each channel
Display 10.1 TFT LCD with capacitive touch screen (1024*600)

Standard Accessories:

1 x USB cable
1 x Quick start
4 x Passive probe ( 500 MHz)
1 x Certificate of calibration
1 x Power cord

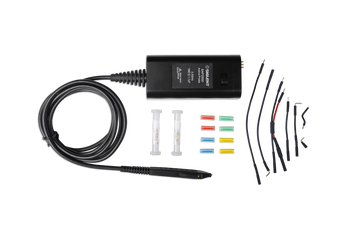

Optional Accessories / license keys
