Siglent SDS7304A H12 4CH 3GHz 12-bit 20 GSa/s Oscilloscope
SIGLENT’s NEW SDS7304A H12 digital storage oscilloscope with a bandwidth of 3GHz and has a 12-bit ADCs with sample rate up to 20GSa/s with a maximum record length it can display up to 4 analog channels + 16 digital channels for hgh performance mixed signal analysis.

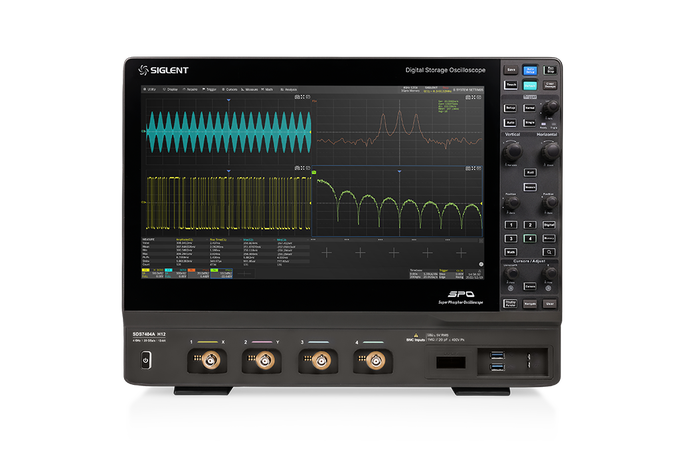

SDS7304A H12 — 3 GHz 12-bit oscilloscope
The SDS7304A H12 is the entry into Siglent’s flagship platform: 3 GHz, four channels, a genuine 12-bit ADC and 20 GSa/s — the same workstation-class chassis, display and analysis software as the 8 GHz model, at a third of the price.
Behind the 15.6″ full-HD touchscreen sits a real Linux workstation — Core i3 or better with 32 GB of memory — which is what lets a 32 Mpts FFT, eye-diagram analysis and full Ethernet compliance testing run on the scope. SPO technology paints up to a million waveforms a second, and every advanced function is a software licence rather than a new instrument.
What “H12” (A model) means for channel count
The A models share their converters: 20 GSa/s across two channels, 10 GSa/s across three or four. For one- and two-channel work that costs you nothing. If you routinely need all four at full speed, look at the SDS7604AP. In return, the A models include Spectrum Analyzer mode (RTSA / DDC), which the AP does not.
Analysis that usually needs a second instrument
Licensed software running on the scope’s own workstation hardware — not on your PC afterwards.

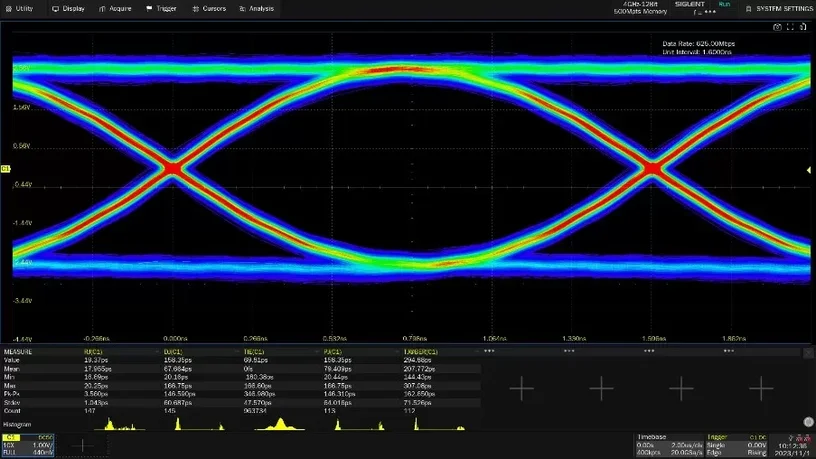

Eye diagram & jitter analysis
A colour-graded eye built from the captured signal with the full jitter breakdown beneath it — TJ, RJ, DJ and the rest — so you can separate a random noise problem from a deterministic one. The measurement that decides whether a high-speed link ships.

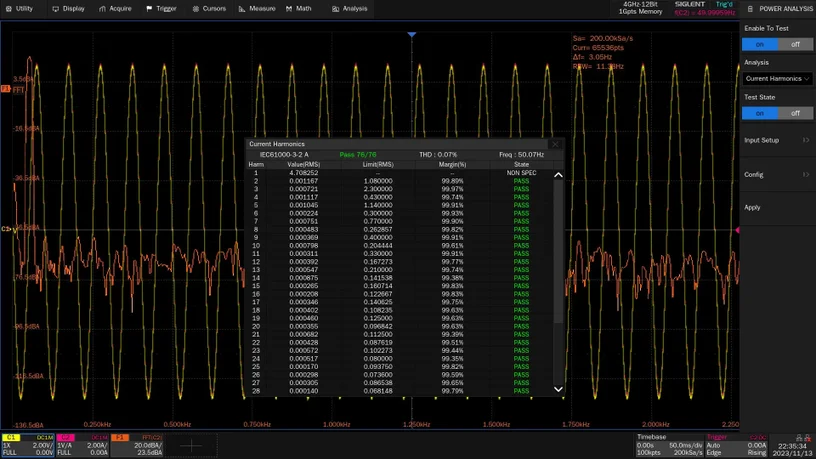

Power analysis
Switching loss, harmonics against the limit line, modulation, inrush and safe-operating area, computed on the instrument with the harmonic table beside the waveform. Deskew the probes with the DF2001A first — a few hundred picoseconds of skew is the difference between a real loss number and a fictional one.

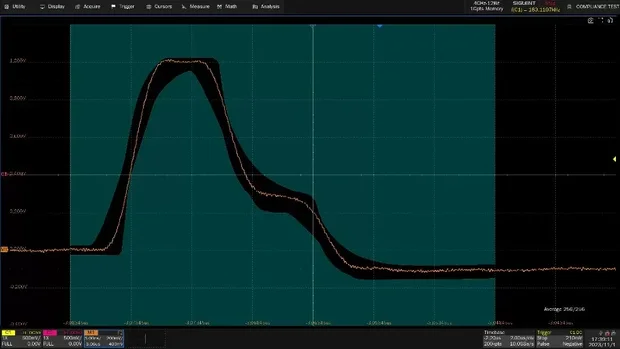

Ethernet & USB compliance
Automated pass/fail against the standard’s own template: 100BASE-T, 1000BASE-T, automotive 100BASE-T1 and 1000BASE-T1, and USB 2.0.

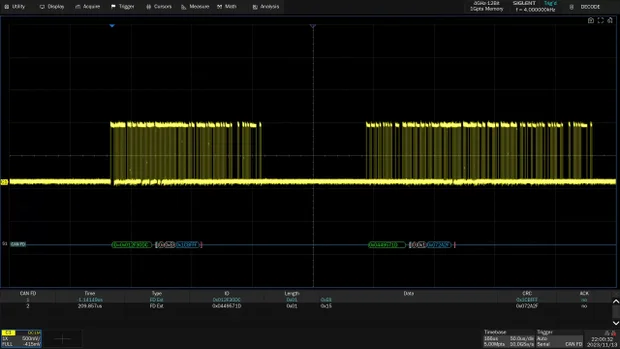

Serial trigger & decode
I²C, SPI, UART, CAN and LIN are standard. CAN FD, CAN XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, USB 2.0, SpaceWire, SPMI, 8B/10B and MIPI RFFE are licences.
Built-in 50 MHz generator
The FG licence enables an internal arbitrary/function generator — 50 MHz, 125 MSa/s, 16 kpts — for stimulus-response work and Bode plots without a separate source.
Key features
- 3 GHz across 4 analog channels · 12-bit ADC (16-bit in ERES)
- Sample rate: 20 GSa/s (2 channels) · 10 GSa/s (3–4 channels)
- Memory: 500 Mpts/ch standard · optional 1 Gpts/ch in dual-channel mode
- Background noise 220 µVrms @ 4 GHz · up to 1,000,000 wfm/s with 256-level intensity grading
- Full trigger set including Zone Trigger · sequence capture to 124,000 segments
- I²C, SPI, UART, CAN and LIN decode standard — 13 more protocols by licence
- 60+ measurements with statistics, histogram, trend and track · 4 math traces · 32 Mpts FFT
- Spectrum Analyzer mode (RTSA / DDC) included — A models only
- 16 digital channels at 1 GSa/s with the optional SPL2016 logic probe
- 15.6″ full-HD capacitive touchscreen · Core i3 / 32 GB / Linux workstation inside
- 2× gigabit LAN with web server · 6× USB host · DVI-D, DisplayPort, HDMI out
Application examples
High-speed serial and digital design
3 GHz with 12-bit resolution resolves the amplitude detail an 8-bit scope loses in quantisation noise — and the eye-diagram and jitter licence turns that capture into a pass/fail answer about your link.
Embedded and mixed-signal systems
Add the SPL2016 for 16 digital channels at 1 GSa/s and correlate firmware activity with the analog rails and buses it drives — on one timebase, one screen.
Power electronics
The power-analysis licence measures switching loss, harmonics and safe-operating area on-instrument. Use the DF2001A deskew fixture first — at these edge rates, probe skew is the dominant error in any loss figure you quote.
Compliance before the test house
Licences for 100BASE-T, 1000BASE-T, automotive 100BASE-T1 / 1000BASE-T1 and USB 2.0 run the standard’s own masks with an automated pass/fail verdict, so surprises happen on your bench instead.
Spectrum work without a second box
Spectrum Analyzer mode (RTSA / DDC) is available on the A models, so an EMI hunt or a modulation check does not mean unplugging everything and fetching an analyser.
Specifications
| Analog bandwidth | 3 GHz — full 3 GHz on every channel |
| Sample rate (max.) | 20 GSa/s (2 channels) · 10 GSa/s (3–4 channels) |
| Record length (max.) | 500 Mpts/ch standard · optional 1 Gpts/ch in dual-channel mode |
| Background noise | 220 µVrms @ 4 GHz |
| Analog channels | 4 + EXT · 16 digital channels with the optional SPL2016 logic probe |
| Vertical resolution | 12-bit ADC — up to 16-bit in ERES mode |
| Waveform capture rate | Up to 1,000,000 wfm/s (SPO technology) · 256-level intensity grading & colour-temperature display |
| Background noise | 300 µVrms at 8 GHz · 220 µVrms at 4 GHz |
| Trigger types | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV), Qualified, Nth edge, Setup/Hold, Delay, Serial — plus Zone Trigger |
| Serial trigger & decode (standard) | I²C, SPI, UART, CAN, LIN |
| Serial (optional licence) | CAN FD, CAN XL, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester, ARINC429, USB 2.0, SpaceWire, SPMI, 8B/10B, MIPI RFFE |
| Segmented capture | Sequence mode up to 124,000 segments · History up to 124,000 frames |
| Measurements | 60+ parameters with statistics, histogram, trend, track and gating — also on Math, History and Memory traces |
| Math | 4 traces · 32 Mpts FFT (magnitude & phase), filter, integrate, differentiate, √, MaxHold/MinHold, ERES, envelope · formula editor |
| Analysis tools | Search, Navigate, History, SignalScan, Mask Test, DVM, Counter, Waveform Histogram, Bode plot · Power Analysis, Eye/Jitter and Compliance Test as licences |
| Spectrum analyzer mode | RTSA / DDC / signal analysis — A models only |
| Digital channels | 16 channels · up to 1 GSa/s · 50 Mpts record length (SPL2016) |
| Waveform generator | Built-in, 50 MHz, 125 MSa/s, 16 kpts — enabled by the SDS7000A-FG licence |
| Display | 15.6″ HD TFT-LCD, 1920 × 1080, capacitive multi-touch with gestures |
| Processor system | Intel Core i3-8100 or better · 32 GB memory · 250 GB storage · Linux |
| Interfaces | 4× USB 3.1 Gen 1 Host · 2× USB 3.0 Host · USB 2.0 Device (USBTMC) · 2× 1000M LAN (LXI, VXI-11, Socket, Telnet, web server) |
| Video & other I/O | DVI-D, DisplayPort 1.2, HDMI 1.4 · mic in / audio out · External Trigger In · Aux Out (Trig Out, Pass/Fail) · 10 MHz In and Out |
| Remote control | Built-in web server over LAN · full SCPI · external mouse and keyboard supported |
From the official SDS7000A series data sheet (EN04A); subject to change, errors & omissions excepted.
In the box
Standard configuration for the SDS7304A — including one SP3150A passive probe per channel and a protective cover.
Licences for the SDS7304A
Every advanced function is a software licence — add what you need, when you need it.
| Option | Order code | Price | |
|---|---|---|---|
| Bandwidth upgrades | |||
| 3 GHz → 4 GHz bandwidth upgrade | SDS7000A-BW3T4 | €7,410.00 | View |
| Analysis software | |||
| Eye diagram & jitter analysis | SDS7000A-EJ | €1,960.00 | View |
| Power analysis | SDS7000A-PA | €1,610.00 | View |
| Built-in 50 MHz waveform generator | SDS7000A-FG | €730.00 | View |
| Compliance test | |||
| 1000BASE-T1 compliance test | SDS7000A-CT-1000BASE-T1 | €3,820.00 | View |
| 1000BASE-T compliance test | SDS7000A-CT-1000BASE-T | €3,590.00 | View |
| 100BASE-T1 compliance test | SDS7000A-CT-100BASE-T1 | €2,310.00 | View |
| 100BASE-T compliance test | SDS7000A-CT-100BASE-T | €2,130.00 | View |
| USB 2.0 compliance test | SDS7000A-CT-USB2 | €510.00 | View |
| Serial trigger & decode | |||
| CAN FD trigger & decode | SDS7000A-CANFD | €540.00 | View |
| FlexRay trigger & decode | SDS7000A-FlexRay | €540.00 | View |
| I²S trigger & decode | SDS7000A-I2S | €540.00 | View |
| MIL-STD-1553B trigger & decode | SDS7000A-1553B | €540.00 | View |
| SENT trigger & decode | SDS7000A-SENT | €540.00 | View |
| ARINC 429 trigger & decode | SDS7000A-ARINC | €540.00 | View |
| Manchester decode | SDS7000A-Manch | €540.00 | View |
| USB 2.0 decode | SDS7000A-USB2 | €540.00 | View |
See the full licence overview. Software licences are delivered electronically and are excluded from the 14-day EU return right once the key has been issued.
Recommended accessories
Probes and fixtures that match what this instrument can measure.

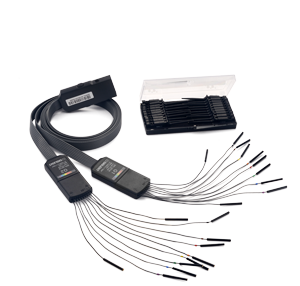

16 digital channels at up to 1 GSa/s — turns the scope into a true mixed-signal instrument.

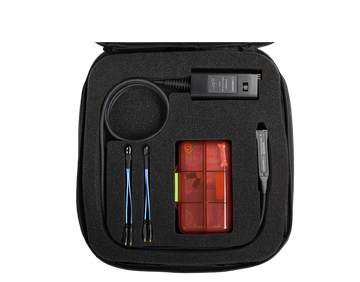

8 GHz differential active probe on the SAPBus interface — the probe that matches an 8 GHz front end.

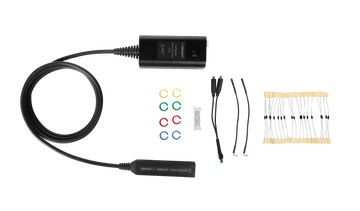

5 GHz differential active probe, 400 fF input capacitance — for high-speed single-ended and differential work.

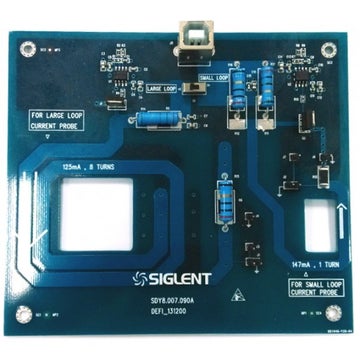

Deskews voltage and current probes before a power-analysis run — skew is the biggest error source in switching-loss measurement.
Adds GPIB alongside the standard dual LAN and USB interfaces.

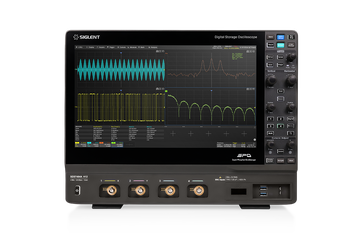

Other models in the series
Same chassis, display, software and analysis licences — different bandwidth and sampling.
Specifying a 3 GHz bench?
Tell us your fastest edge, how many channels you need at full rate and which standards you must prove — we will size the model, probes and licences together, with EU stock, calibration and support.
Downloads
These documents cover the whole SDS7000A series, including the SDS7304A.
