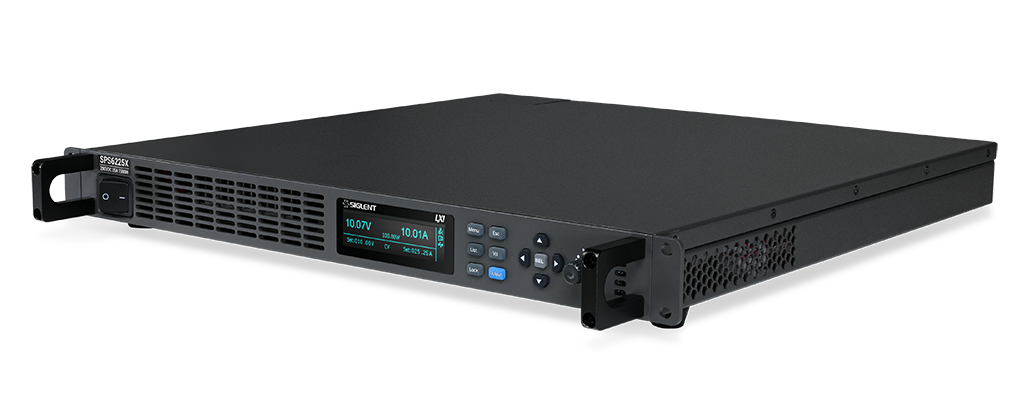

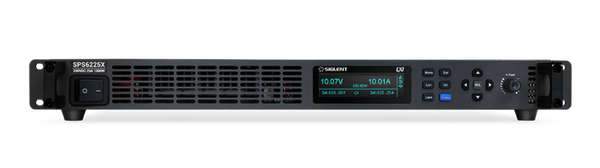

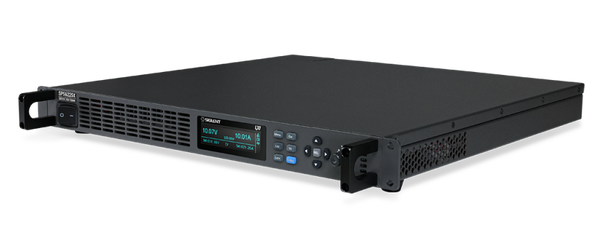

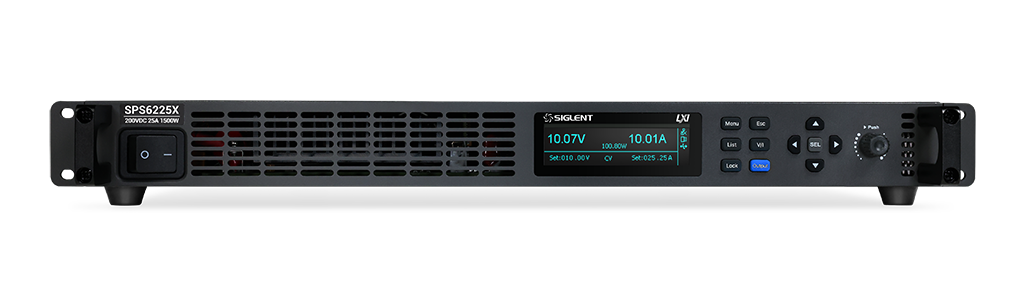

Siglent SPS6225X 200V / 25A Wide Range Programmable switching DC Power supply
The Siglent SPS6225X is a 200V/25A programmable DC power supply offering 1.5kW of output power with adjustable voltage/current rise times and a minimum resolution of 10 mV/10 mA. It features constant voltage and current modes, list sequence programming, and robust safety protections. A bright 3.12-inch OLED display ensures intuitive operation for demanding applications.
Siglent SDS6000X Series High-Performance Oscilloscopes
The Siglent SDS6000X Series oscilloscopes are designed to meet the demands of high-performance testing and analysis. With bandwidth options up to 2 GHz, these oscilloscopes offer advanced capabilities for engineers and researchers across various industries. Whether you're working with high-speed digital circuits, RF systems, or complex embedded designs, the SDS6000X Series delivers exceptional performance and versatility.
Remote Control Capabilities of the Siglent SDS6000X Series
The SDS6000X Series offers advanced remote control functionality through LAN, USB, and a built-in web server. Users can monitor and control the oscilloscope via a standard web browser without the need for additional software. These features ensure seamless integration into automated testing setups and enable efficient operation from virtually anywhere.
Key Features:
- High Bandwidth and Sample Rate: Up to 2 GHz bandwidth with a maximum real-time sample rate of 5 GS/s per channel.
- Advanced Signal Integrity: Offers low noise, high dynamic range, and advanced trigger modes, including serial bus decoding.
- Multi-Channel Versatility: Available in 4 or 8-channel configurations, enabling simultaneous monitoring of multiple signals.
- Exceptional Memory Depth: Deep memory of up to 500 Mpts per channel ensures detailed analysis over extended time frames.
- Intelligent Measurements: Comprehensive analysis tools, including FFT, mask testing, power analysis, and jitter measurements.
User-Friendly Interface and Connectivity
The SDS6000X Series features a high-resolution 12.1-inch multi-touch display for an intuitive user experience. Users can operate the oscilloscope via touch, buttons, or knobs for flexibility. Connectivity options include USB, LAN, and HDMI, with remote control supported via a web server, making it suitable for both lab and field environments.
Innovative Features
The series integrates powerful options such as a 16-bit digital input module and waveform generator, enabling simultaneous analog and digital signal analysis. Built-in advanced math functions, waveform search, and history recording enhance diagnostic capabilities.
Applications
Ideal for debugging and validation of high-speed designs, testing communication protocols, and power integrity analysis, the SDS6000X Series is a valuable tool for R&D, manufacturing, and education.
Why Choose the SDS6000X Series?
The Siglent SDS6000X Series oscilloscopes provide industry-leading performance, rich feature sets, and exceptional value, backed by Siglent's reputation for quality and innovation. Whether you're an engineer, researcher, or educator, this series is designed to elevate your testing capabilities.
With its combination of power, precision, and usability, the SDS6000X Series is the perfect solution for your most challenging measurement tasks.
| Model | SPS6225X | SPS6150X |
|---|---|---|
| Rated Output Voltage | 200 V | 100 V |
| Rated Output Current | 25 A | 50 A |
| Total Rated Output Power | 1500 W | |
| Power Ratio | 3.33 | |
| C.V Mode | ||
| Line Regulation | 40 mV (90 ~ 132 Vac or 170 ~ 265 Vac) | 5 mV (90 ~ 132 Vac or 170 ~ 265 Vac) |
| Load Regulation | 100 mV (no load to full load) | 50 mV (no load to full load) |
| Ripple and Noise(*1) | (Noise bandwidth 20 MHz; Ripple bandwidth 5 Hz ~ 1 MHz) | |
| RIPPLE (pk to pk) @220 Vac Input | 220 mV | 120 mV |
| RMS RIPPLE @220 Vac Input | 39 mV | 30 mV |
| Voltage Programming Accuracy(*2) | 0.1% ± 10 mV | |
| Voltage Programming Resolution | 10 mV | |
| Voltage Readback Accuracy(*2) | 0.1% ± 20 mV | |
| Voltage Readback Resolution | 10 mV | |
| Temperature Coefficient | 100 ppm/°C (after 30-minute warm-up) | |
| Remote Compensation Voltage (Single Wire) | 0.6 V | |
| Rise Time (10% ~ 90%) | 30 ms (rated resistance load) | |
| Fall Time (90% ~ 10%) | 15 ms (rated resistance load) | |
| Output Capacitance | 1100 μF | 1760 μF |
| Transient Response Time | 2.5 ms (recovery to within 0.5% of its rated output) | |
*1: Use a probe to measure the positive and negative poles of the sense terminal, the bandwidth limit is 20 MHz
*2: %output+offset, when the output voltage is less than 5 V, the offset is 200 mV
Accessoires Included:
