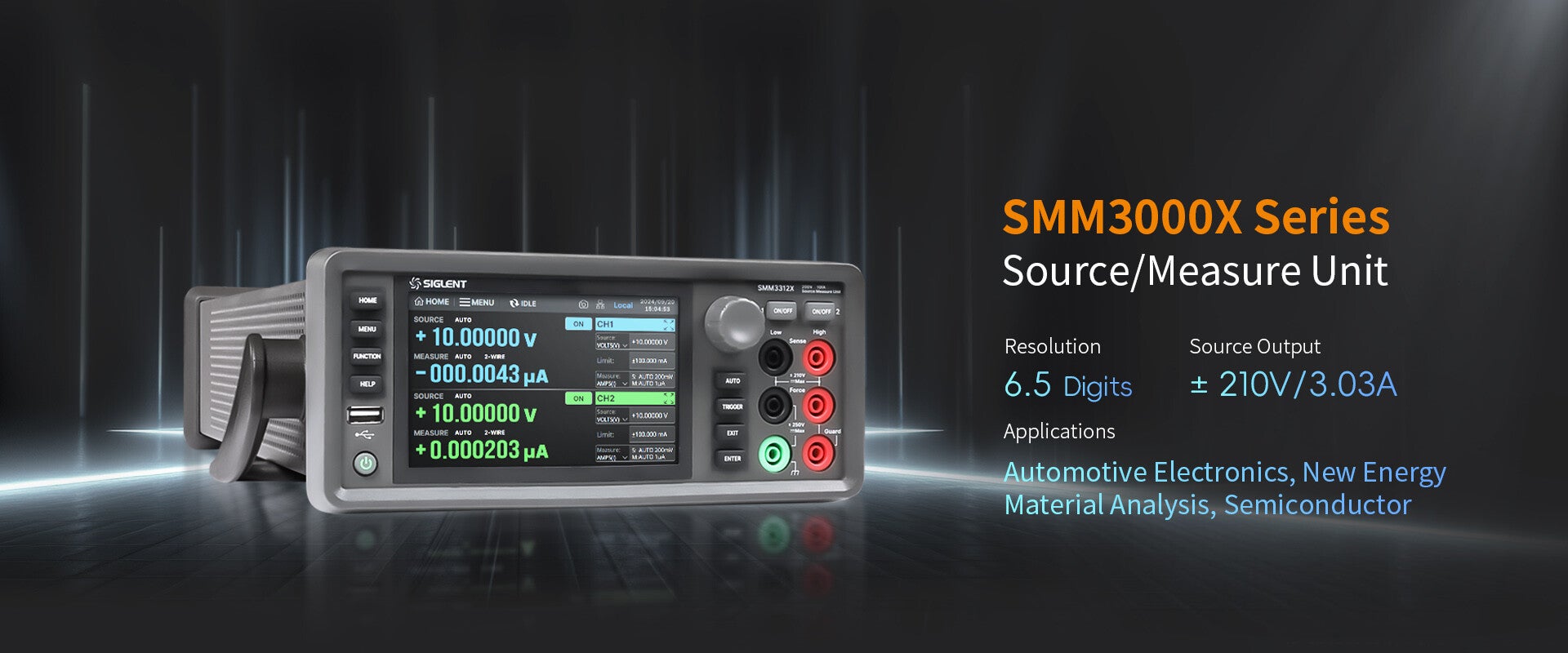

SMM3000X Series

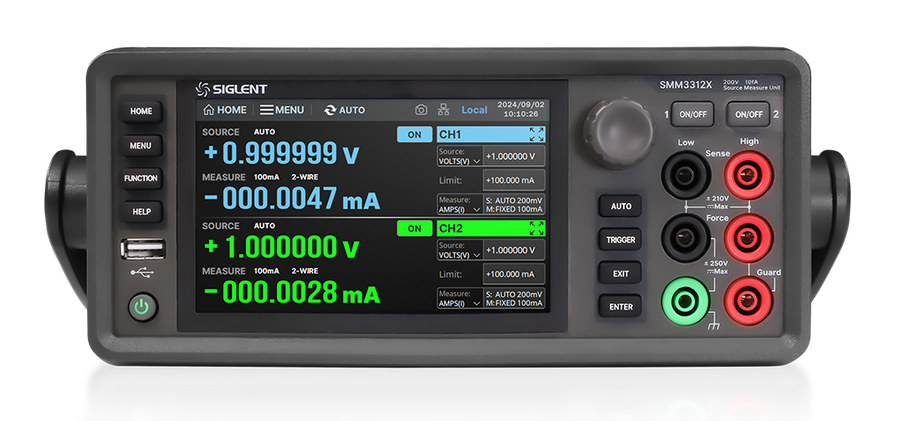

A precision four-quadrant Source Measure Unit that sources and measures voltage and current in one tightly-integrated instrument. Spanning ±210 V and ±3.03 A DC (±10.5 A pulse) at 31.8 W per channel, it resolves down to 10 fA and 100 nV with 6½-digit readback — ideal for characterising semiconductors, LEDs and laser diodes, sensors, materials and batteries. DC, pulse, sweep and list modes, 100,000 readings/s acquisition, a 5-inch capacitive touchscreen and SCPI over USB/LAN make it equally at home in R&D and automated production test, in single- or dual-channel versions.
Precision Source Measure Unit (SMU)
A precision four-quadrant Source Measure Unit that sources and measures voltage and current in one tightly-integrated instrument. Spanning ±210 V and ±3.03 A DC (±10.5 A pulse) at 31.8 W per channel, it resolves down to 10 fA and 100 nV with 6½-digit readback — ideal for characterising semiconductors, LEDs and laser diodes, sensors, materials and batteries. DC, pulse, sweep and list modes, 100,000 readings/s acquisition, a 5-inch capacitive touchscreen and SCPI over USB/LAN make it equally at home in R&D and automated production test, in single- or dual-channel versions.
Both models share the same platform, 5-inch touch interface and SCPI command set, so you choose on channel count — then add the triaxial adapters and GPIB control your fixtures need. siglent.eu is the official EU distributor, with stock, warranty and local support.
Key highlights
Precision 4-quadrant SMU
Sources and measures voltage and current in all four quadrants — sourcing or sinking power for full device characterisation.
10 fA / 100 nV resolution
6½-digit measurement (2,100,000 count) with 0.015% + 225 µV voltage and 0.1% + 100 pA current accuracy.
DC & pulse power
±210 V and ±3.03 A DC, ±10.5 A pulse (from 50 µs), 31.8 W per channel for real device stress.
Touch & remote
A 5-inch capacitive touchscreen with USB, LAN (web server) and SCPI; single- or dual-channel models.
Models in the series
Single- or dual-channel — identical performance per channel, same platform and software.
Core capabilities
Force voltage / measure current or force current / measure voltage, sourcing or sinking across four quadrants.
10 fA current and 100 nV voltage resolution with 6½-digit, 2.1 M-count readback for tiny signals.
±3.03 A DC and ±10.5 A pulse from a 50 µs minimum width — safe stress without over-heating the DUT.
Linear/log sweeps and list mode (10 µs minimum interval); DC, pulse and scanning output.
Up to 100,000 readings/s with up to 100k time-stamped points of internal storage.
5-inch capacitive touchscreen, USB & LAN with embedded web server, full SCPI; GPIB via USB-GPIB adapter.
Features in depth

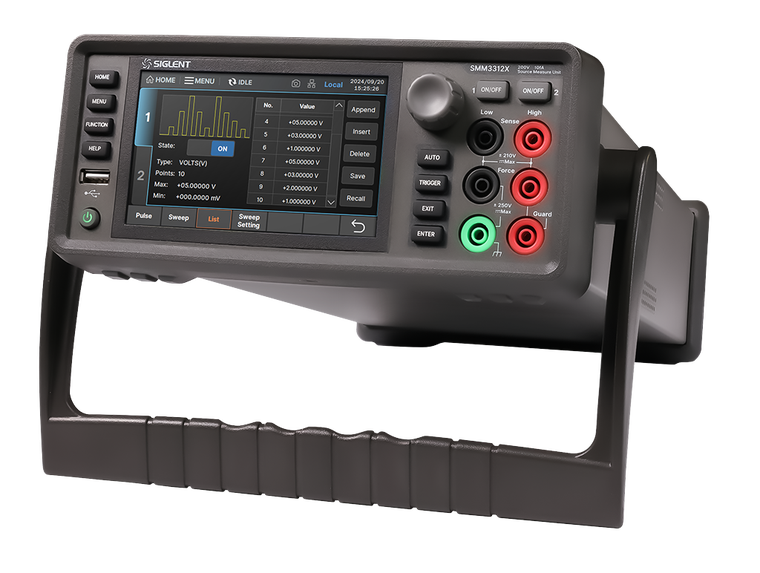

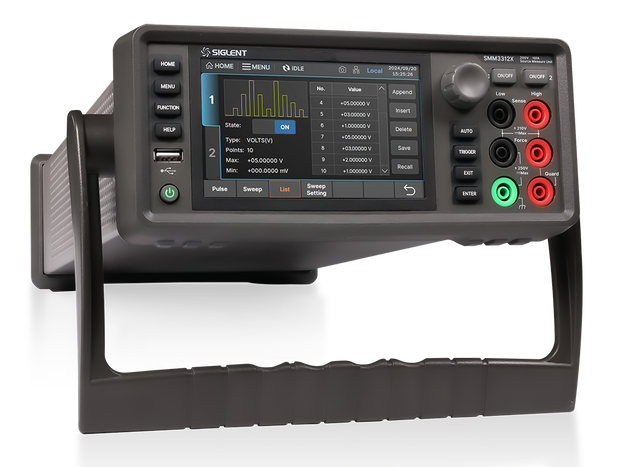

Source and measure, across four quadrants
A Source Measure Unit combines a precision programmable source and a high-resolution meter that track together. The SMM3000X can force a voltage and measure the resulting current — or force a current and measure the voltage — while sourcing or sinking power in any of the four quadrants, so it characterises active and passive devices a plain supply or meter cannot.
- Force V / measure I, or force I / measure V
- Four-quadrant operation — source or sink
- ±210 V, ±3.03 A DC, ±10.5 A pulse, 31.8 W per channel
- 0.015% + 225 µV voltage & 0.1% + 100 pA current accuracy

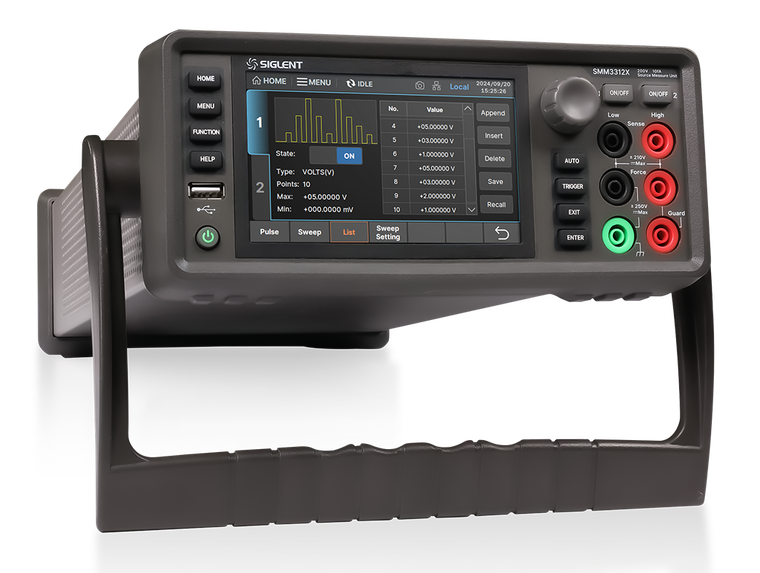

Femto-amp resolution for precision device test
With 10 fA current and 100 nV voltage resolution and 6½-digit readback, the SMM3000X resolves leakage currents and small signal levels that ordinary instruments miss — the basis for semiconductor, sensor and materials characterisation.
- 10 fA / 100 nV resolution, 6½-digit (2.1 M count)
- Linear & logarithmic sweeps, list mode (10 µs interval)
- Up to 100,000 readings/s, 100k-point time-stamped storage

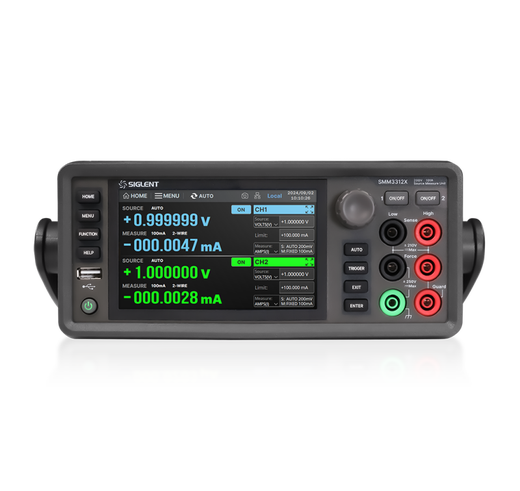

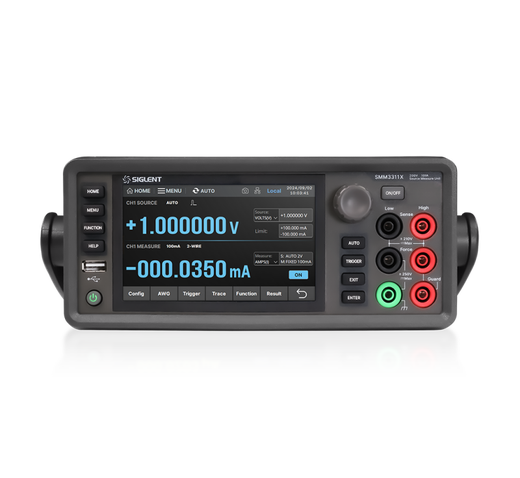

- Single-channel (SMM3311X) or dual-channel (SMM3312X)

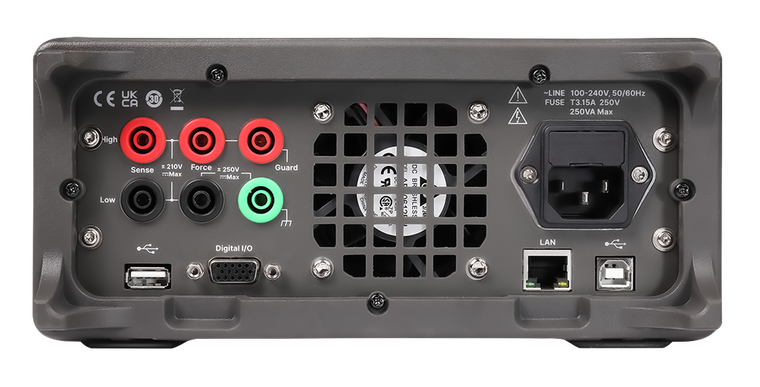

Rear panel, triaxial connections & remote
Triaxial outputs preserve the guarding needed for low-current measurement, and the standard USB/LAN interfaces make the SMM3000X easy to automate. Optional banana-to-triaxial adapters connect it to test fixtures and wafer probe stations.
- Triaxial force/sense outputs with guard
- USB & LAN (embedded web server) standard; SCPI

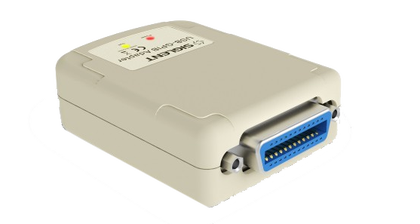

- Optional USB-GPIB adapter for GPIB buses
- Optional STC6-series banana-to-triaxial adapters
Applications
Where the SMM3000X Series excels.
Full specifications
| Configuration | Precision four-quadrant Source Measure Unit (SMU) |
| Channels | SMM3311X: 1 · SMM3312X: 2 |
| Source voltage | ±210 V · resolution 100 nV |
| Source current | ±3.03 A DC · ±10.5 A pulse · resolution 10 fA (min.) |
| Max. power per channel | 31.8 W |
| Voltage measurement accuracy | 0.015% + 225 µV |
| Current measurement accuracy | 0.1% + 100 pA |
| Resistance measurement | Supported (source-and-measure) |
| Measurement resolution | 6½ digits (2,100,000 count) |
| Minimum pulse width | 50 µs |
| Output modes | DC · pulse · scanning · list; linear / logarithmic sweep |
| List interval (min.) | 10 µs |
| Acquisition rate | Up to 100,000 readings/s |
| Internal storage | Up to 100k points with timestamps |
| Display | 5-inch capacitive touchscreen |
| Interfaces | USB · LAN (embedded web server) · SCPI; GPIB via USB-GPIB adapter |
| Connections | Triaxial force/sense outputs (with guard) |
From the official SMM3000X Series datasheet; subject to change, errors & omissions excepted.

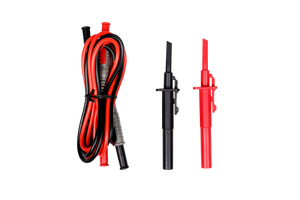

Accessories
What ships in the box, and the optional adapters for triaxial fixtures and GPIB control.
Related & resources
Configure your SMM3000X Series
Tell us whether you need one or two channels and which triaxial or GPIB accessories your setup requires — we’ll quote the right configuration.
Frequently asked questions
An SMU combines a precision programmable voltage/current source with a high-resolution meter that operate together. It can force a voltage and measure current, or force a current and measure voltage, while sourcing or sinking power in all four quadrants — ideal for characterising devices such as semiconductors, LEDs and sensors.
The SMM3311X is a single-channel SMU and the SMM3312X is a dual-channel version; both share the same ±210 V, ±3.03 A DC (±10.5 A pulse), 31.8 W/channel performance and 10 fA / 100 nV resolution. Choose the dual-channel model when you need to source and measure two nodes at once.
Down to 10 fA of current and 100 nV of voltage, with 6½-digit (2,100,000-count) readback — fine enough for device leakage and small-signal characterisation.

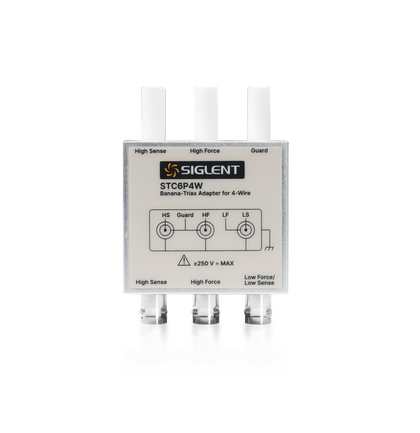

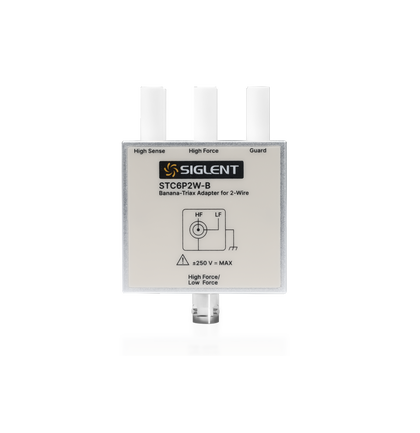

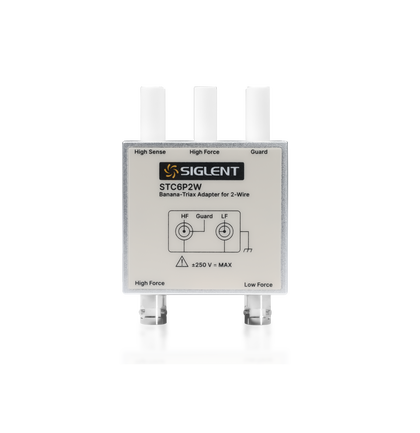

The outputs are triaxial. The optional STC6-series banana-to-triaxial adapters (STC6P4W 4-wire/Kelvin, STC6P2W 2-wire with guard, STC6P2W-B 2-wire) connect the SMM3000X to test fixtures and wafer probe stations; a USB-GPIB adapter adds GPIB control.
Yes — USB and LAN with an embedded web server are standard, with full SCPI command support and optional GPIB via the USB-GPIB adapter, plus list/sweep modes and up to 100,000 readings/s for high-throughput test.
Specifications are taken from the official Siglent SMM3000X Series datasheet and are subject to change without notice; errors & omissions excepted. siglent.eu is operated by JRSE B.V., official EU distributor.
