Siglent SDM3065X-SC 6 1/2 Digits Dual-Display Digital Multimeter
The Siglent SDM3065X-SC packs a precision data-acquisition system into a single bench instrument: 6½-digit, 0.0035%-accuracy measurement multiplexed across twelve scanned channels by the factory-installed SC1016 card. Where multi-point setups usually force a compromise — a switching mainframe's cost or a logger's limited accuracy — the SDM3065X-SC applies genuine metrology-grade resolution to every channel: DC/AC voltage, two- and four-wire resistance, capacitance, frequency and thermocouple/RTD temperature, each scan time-stamped and logged.

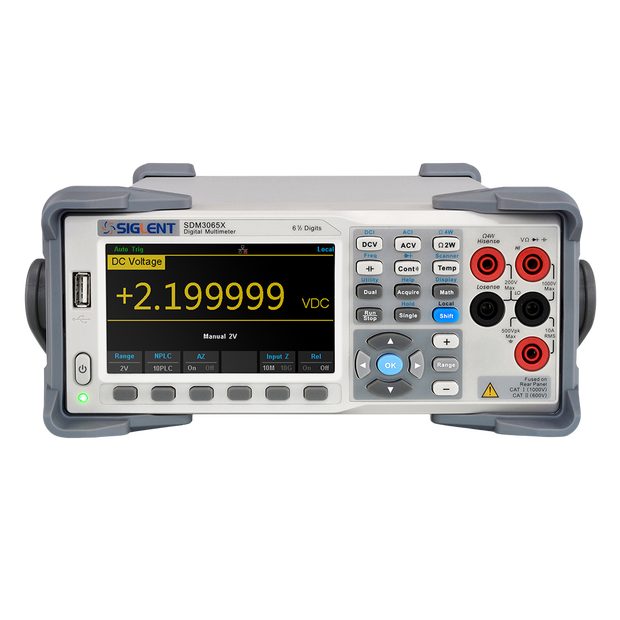

SDM3065X-SC — 6½ digit bench multimeter
The SDM3065X-SC pairs 6½-digit, 0.0035% precision with the factory-installed SC1016 scanner card: 12 multiplexed channels of metrology-grade measurement in one box — the compact alternative to a rack of instruments for multi-point calibration, burn-in and reliability work.

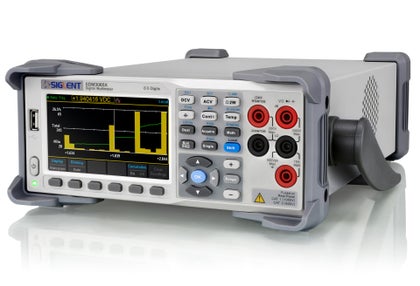

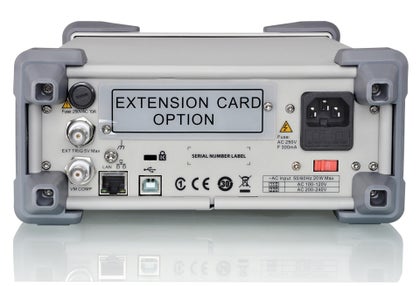

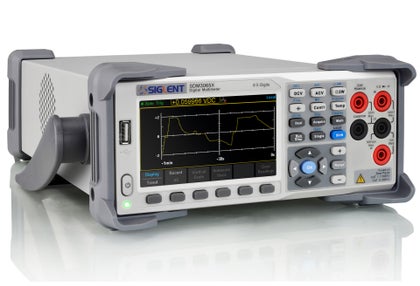

Every angle
The SDM3065X-SC up close.
A measurement system, not just a meter
Dual display, full function set
Show two readings of one signal at once — DC level with AC ripple, voltage with frequency. True-RMS AC, 2/4-wire resistance, capacitance, temperature and more are all built in.

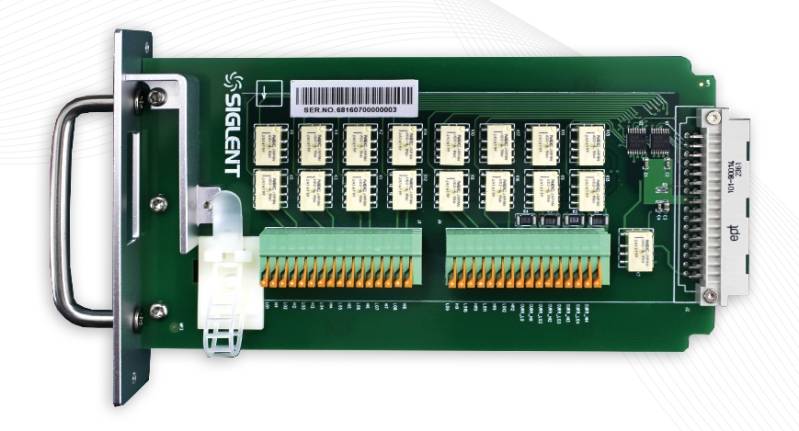

SC1016 scanner: 12 channels installed
The factory-installed SC1016 multiplexer scans 12 channels — DCV/ACV, resistance, capacitance, frequency and TC/RTD temperature — with time-stamped logging. Note: the scanner card is only available factory-installed on -SC models, not as a field upgrade.
Who it’s for & best applications
- Multi-point precision monitoring
- Calibration labs with many channels
- Reliability, burn-in & environmental test
- Automated data-acquisition systems
- 12-channel precision scanning (DCV/ACV, 2/4-wire Ω)
- Multi-point thermocouple/RTD temperature
- Time-stamped long-term logging
- Automated multi-sensor characterisation
Specifications
| Resolution | 6½ digit · 2,200,000 counts |
| Basic DCV accuracy | 0.0035% |
| Max. reading rate | up to 10,000 rdgs/s |
| Display | 4.3" TFT dual display |
| Scanner card (installed) | SC1016 · 12 channels (CH1–CH12) · DCV/ACV, DCI/ACI, 2/4-wire Ω, capacitance, frequency, diode, continuity, temperature · time-stamped scanning |
| Measurement functions | DCV/ACV (True-RMS) · DCI/ACI · 2/4-wire resistance · capacitance · frequency/period · continuity · diode · temperature (TC/RTD) |
| Math & analysis | Statistics · limits · dBm/dB · relative · histogram/trend |
| Connectivity | USB Device · USB Host · LAN · SCPI remote control |
| PC software | EasyDMM — configuration, logging & export |
From the official SDM3065X datasheet; subject to change, errors & omissions excepted.
In the box
Everything included as standard with your SDM3065X-SC. The SC1016 scanner card comes factory-installed.
Accessories & related
Prefer it without the scanner card? The base SDM3065X costs €689.00.
Compare the full SDM range
4½ to 6½ digit, with or without scanner card — see all models side by side, or ask us for advice.
