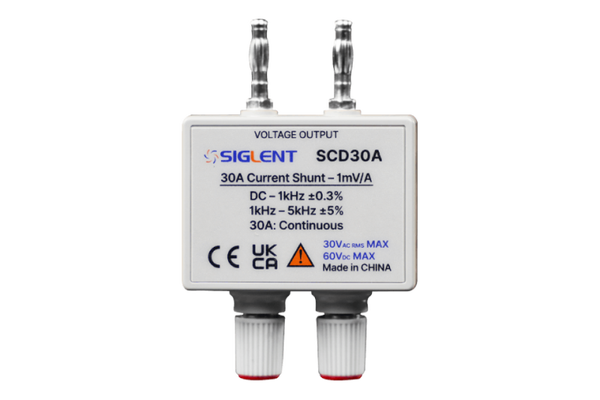

Siglent SCD30A Current Shunt
The Siglent SCD30A is a precision current shunt designed for accurate current-to-voltage conversion in laboratory and research applications. It enables direct measurement of current up to 30 A by providing a proportional voltage output of 10 mV/A, facilitating straightforward monitoring using standard measurement instruments such as oscilloscopes, data acquisition systems, or digital multimeters.
Technical Characteristics:
-
Rated Current: Continuous measurement capability up to 30 A, suitable for DC and low-frequency AC applications.
-
Output Sensitivity: The shunt provides a linear output of 10 mV per ampere, simplifying the calculation of measured current values.
-
Low Resistance: Utilizes a precision low-resistance element to minimize power dissipation and voltage drop, reducing impact on the measured circuit.
-
Connector Configuration: Features robust terminal connections to ensure stable and repeatable measurements under varying test conditions.
Typical Applications:
-
Power electronics testing, including converters and inverters.
-
Battery discharge profiling and energy storage system evaluation.
-
General laboratory measurements where high-current signals must be observed with high fidelity.
The SCD30A Current Shunt offers a stable and reproducible method for current measurement, making it suitable for educational, research, and development environments where reliable data acquisition is essential.
