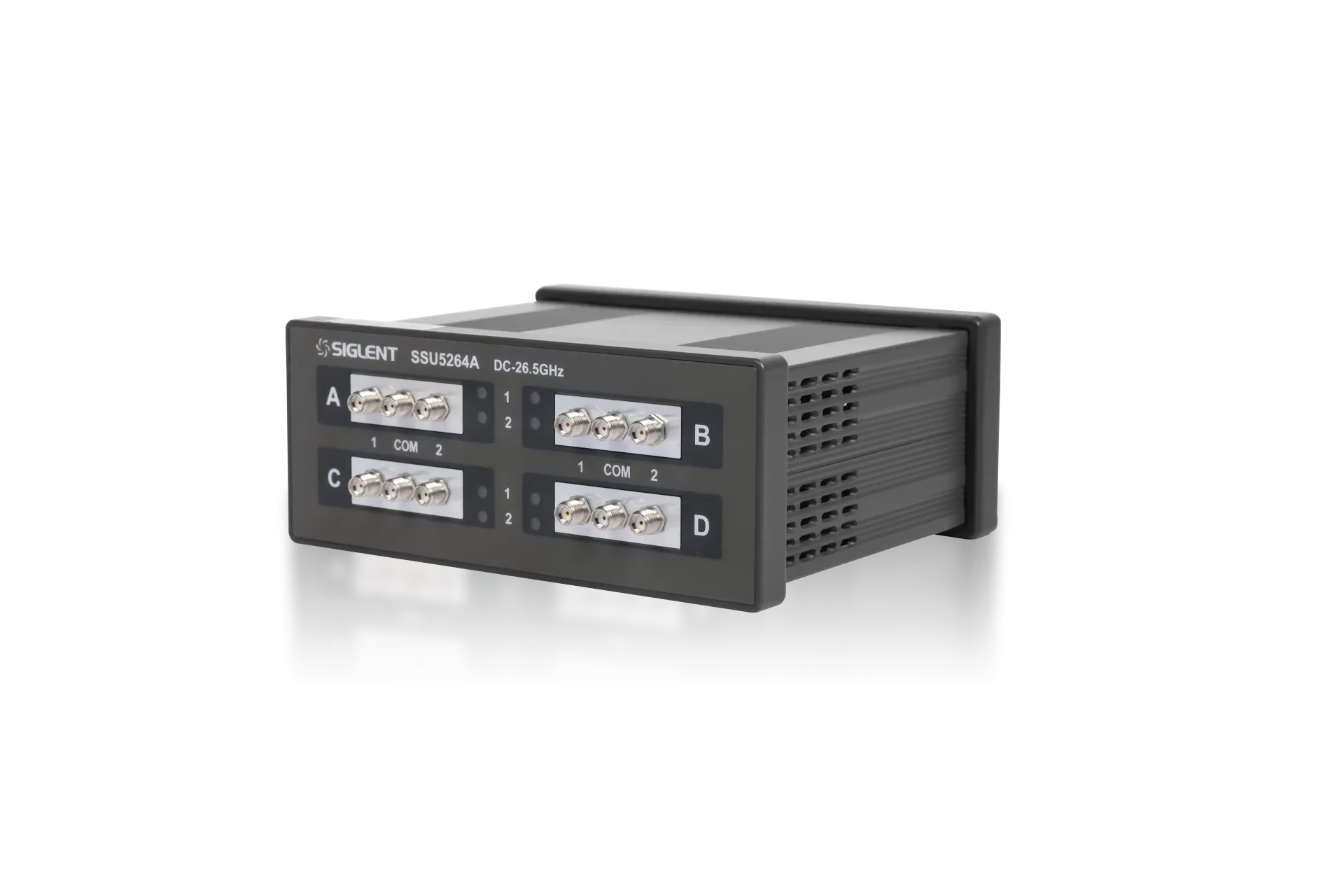

Siglent SSU5184A DC-18 GHZ including four SPDT Mechanical Switches

NEW
€1,707.92

Siglent's new SSU5184A mechanical switch has a frequency range up to 18 GHz. The SSU5184A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 4 independent single-pole double-throw mechanical switches with SMA connectors.

In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.

Compact Design, Fast Measurement

Siglent SSU5184A Key Features

    • Maximum frequency: 18 GHz.

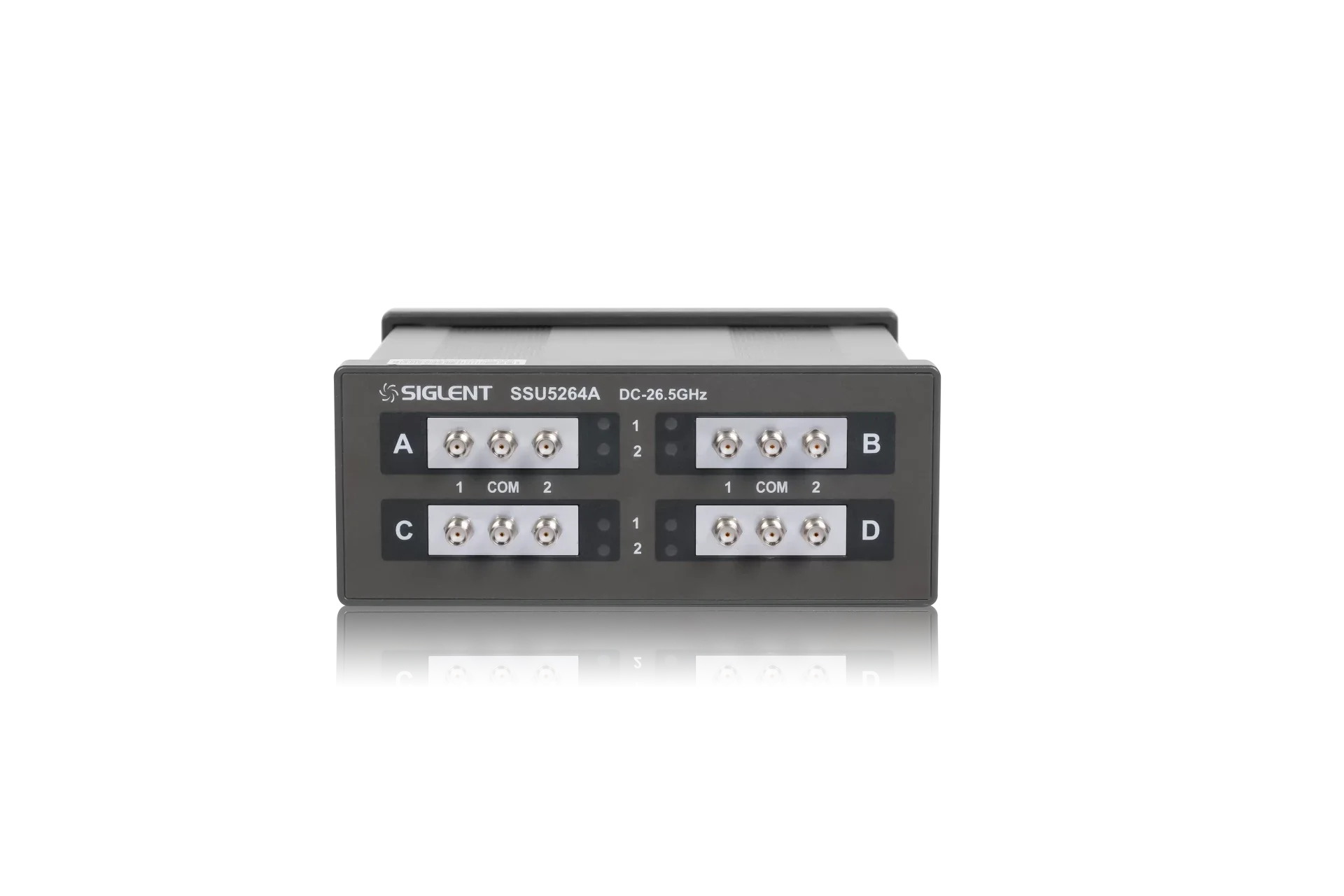

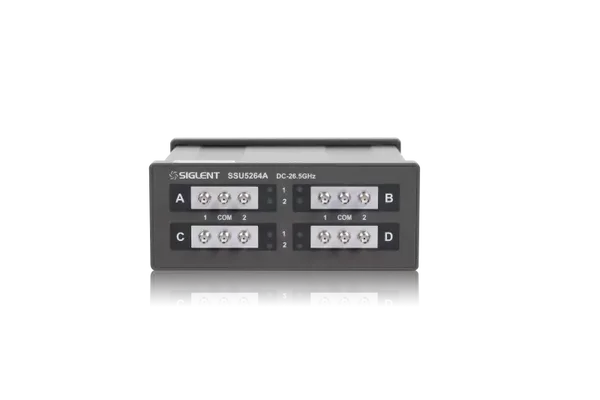

    • 4 SPDT switches
    • SCPI Controllable via VISA and EasySSU software

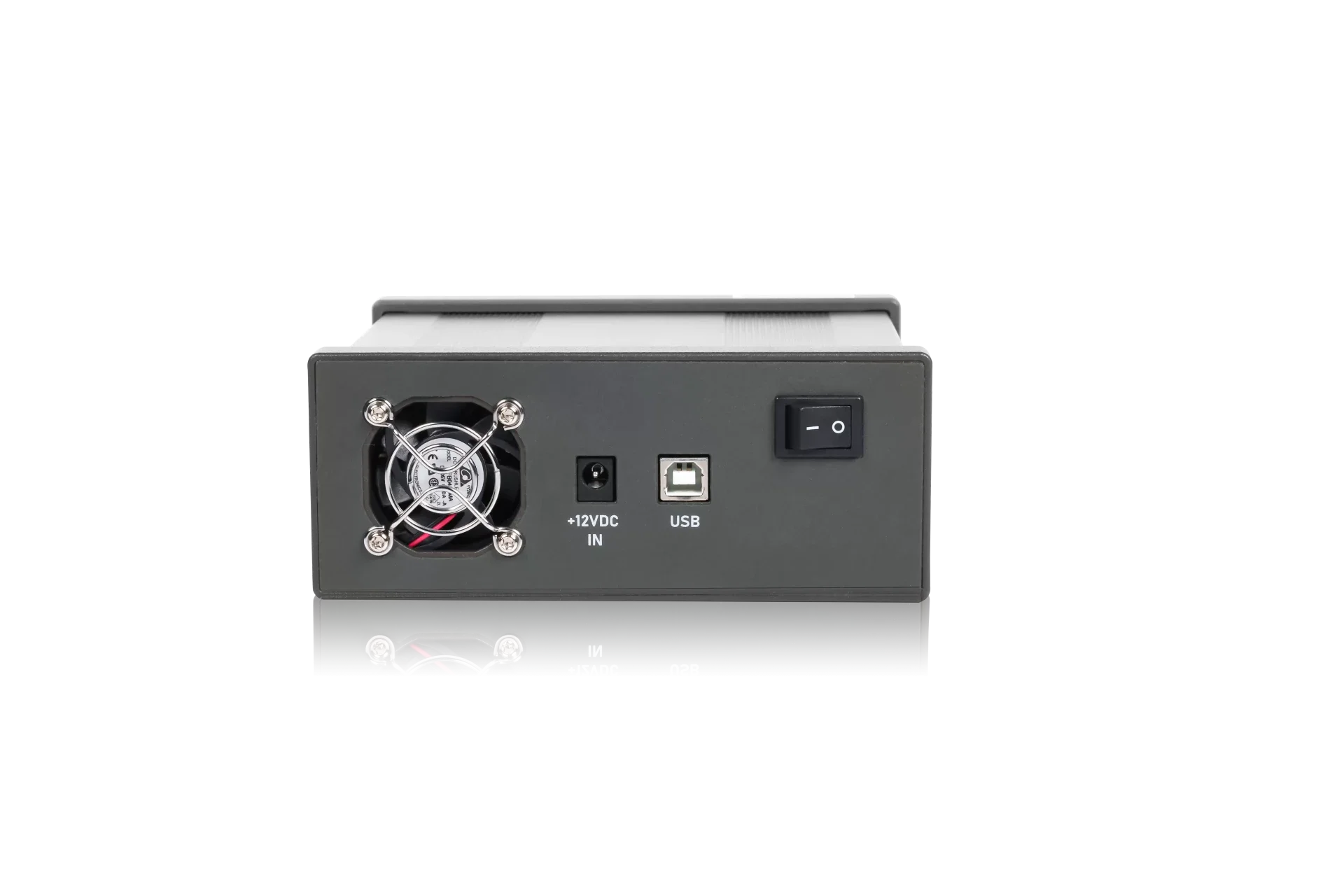

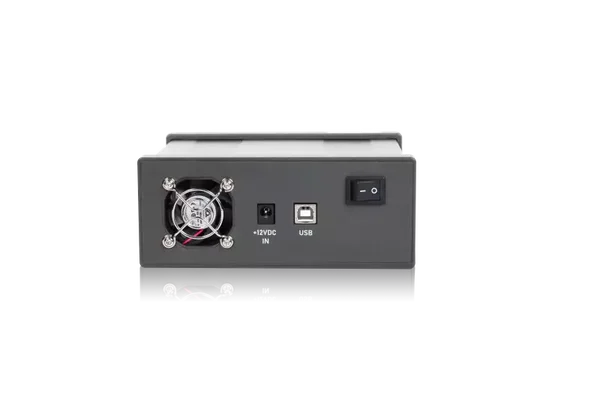

    • USB Connectivity
    • Size: W×H×D=153×62.4×137.5mm
    • RF connector: SMA female
    • SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals.
